Nissan Maxima. Manual - part 296





CHG-26

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009465982

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Power Generation Voltage Variable Control System

INFOID:0000000009465983

CAUTION:

For this model, the battery current sensor that is installed to the battery cable at the negative terminal

measures the charging/discharging current of the battery, and performs various controls. If the electri-

cal component or the ground wire is connected directly to the battery terminal, the current other than

that being measured with the battery current sensor is charging to or discharging from the battery.

This condition causes the malfunction of the control, and then the battery discharge may occur. Do

not connect the electrical component or the ground wire directly to the battery terminal.

CHG

PREPARATION

CHG-27

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009465984

The actual shapes of the tools may differ from those illustrated here.

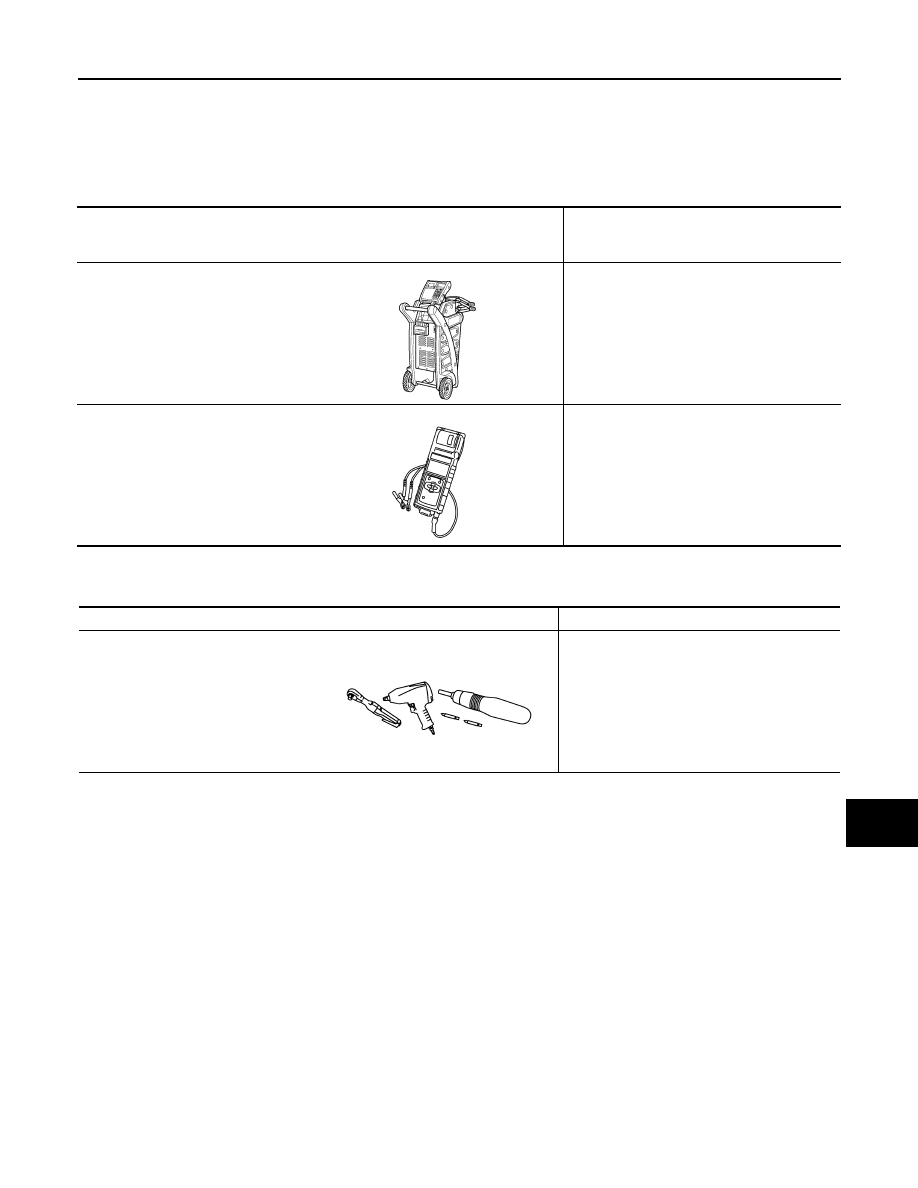

Commercial Service Tool

INFOID:0000000009465985

Tool number
(TechMate No.)
Tool name

Description

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
For operating instructions, refer to diagnostic
analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

CHG-28

< REMOVAL AND INSTALLATION >

GENERATOR

REMOVAL AND INSTALLATION

GENERATOR

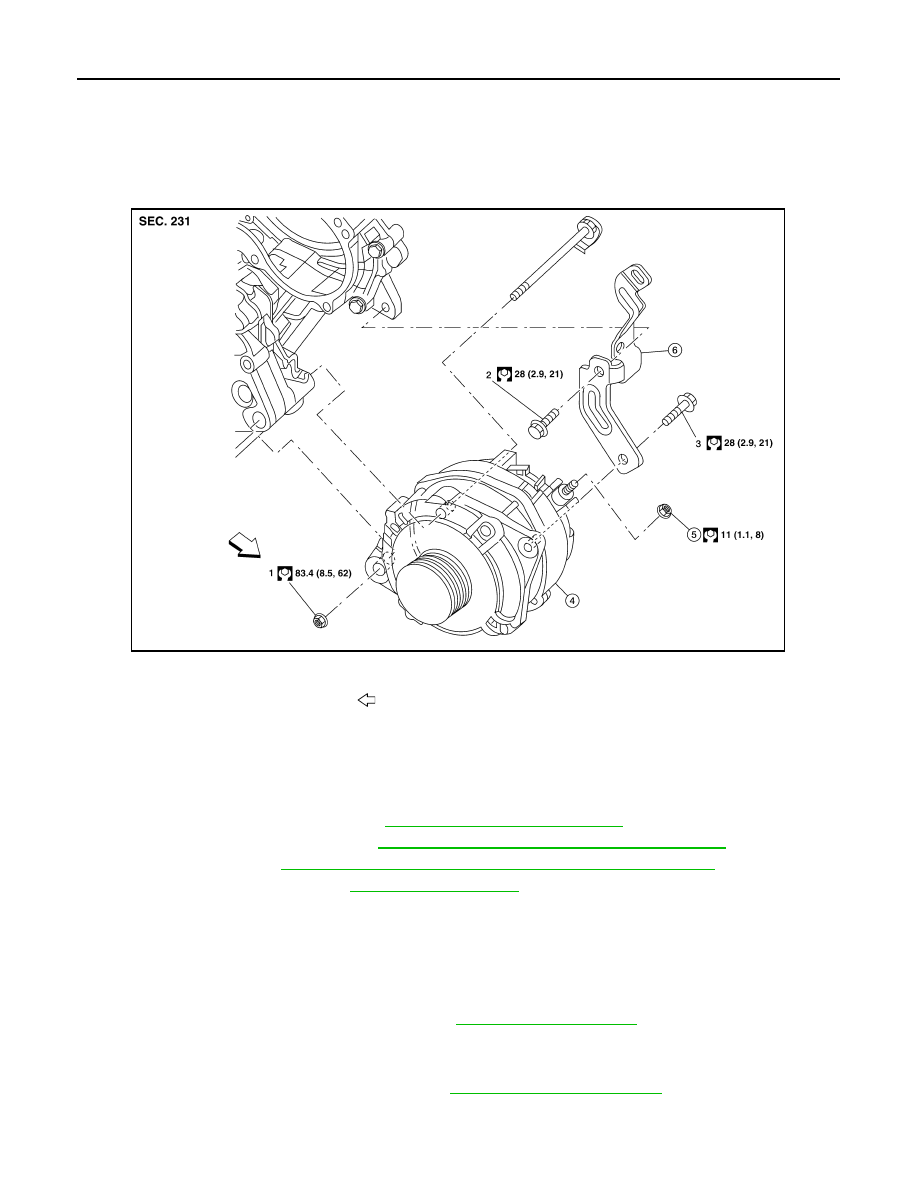

Exploded View

INFOID:0000000009465986

Removal and Installation

INFOID:0000000009465987

REMOVAL

1. Remove hoodledge covers (LH/RH).
2. Remove cooling fan assembly. Refer to

CO-16, "Removal and Installation"

.

3. Remove the A/C compressor. Refer to

HA-37, "Removal and Installation for Compressor"

.

4. Remove A/C idler pulley

EM-15, "Removal and Installation of Drive Belt Auto-tensioner"

.

5. Disconnect the oil pressure switch

EM-36, "Exploded View"

.

6. Disconnect the generator harness connectors.
7. Remove the generator bolt and nuts, using power tools.
8. Remove generator bracket.
9. Slide the generator out and remove.

INSTALLATION

Installation is in the reverse order of removal. Refer to

CHG-28, "Exploded View"

• Temporarily tighten bolts and nut, then finish tightening in the specified numerical order.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

• Install generator and check tension of belt. Refer to

EM-14, "Checking Drive Belts"

.

• For this model, the power generation voltage variable control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation voltage variable control system

1 - 3 Tightening order

4.

Generator

5.

B terminal nut

6.

Generator bracket

Front

AWBIA1646ZZ

CHG

GENERATOR

CHG-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

operation inspection should be performed after replacing the generator, and then make sure that the system

operates normally. Refer to

CHG-11, "Diagnosis Procedure"

.

Inspection

INFOID:0000000009465988

GENERATOR PULLEY INSPECTION

Perform the following.

• Make sure that generator pulley does not rattle.

• Make sure that generator pulley nut is tight.

NOTE:

Replace the generator as an assembly if necessary.
