Nissan Maxima. Manual - part 265





ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-81

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Note 1: Confirm tire pressure is normal.
Note 2: On and off timing for warning lamp and indicator lamp. Refer to

BRC-9, "System Description"

.

Fail-Safe

INFOID:0000000010049146

CAUTION:

If the Fail-Safe function is activated, perform self-diagnosis for VDC/TCS/ABS system.

ABS, EBD SYSTEM

In case of an electrical malfunction with the ABS, ABS warning lamp and SLIP indicator lamp will turn on. In

case of an electrical malfunction with the EBD system, brake warning lamp, ABS warning lamp and SLIP indi-

cator lamp will turn on. The system will revert to one of the following conditions of the fail-safe function.

• For ABS malfunction, only the EBD is operative and the condition of vehicle is the same condition of vehicles

without VDC/TCS/ABS system.

• For EBD malfunction, the EBD and ABS become inoperative, and the condition of vehicle is the same as the

condition of vehicles without VDC/TCS/ABS or EBD system.

VDC / TCS

In case of VDC/TCS system malfunction, SLIP indicator lamp is turned on, and the condition of vehicle is the

same as the condition of vehicles without VDC/TCS system. In case of an electrical malfunction with the VDC/

TCS system, the ABS control continues to operate normally without VDC/TCS control.

USV[FR-RL]

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT) or
actuator relay is inactive (when in fail-
safe mode)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

HSV[FL-RR]

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT) or
actuator relay is inactive (when in fail-
safe mode)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

HSV[FR-RL]

VDC switch-over valve

When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT) or
actuator relay is inactive (when in fail-
safe mode)

On

When actuator (switch-over valve) is not
active and actuator relay is active (igni-
tion switch ON)

Off

V/R OUTPUT

Solenoid valve relay activated

When the solenoid valve relay is active
(when ignition switch OFF)

On

When the solenoid valve relay is not ac-
tive (in the fail-safe mode)

Off

M/R OUTPUT

Actuator motor and motor relay activated

When the actuator motor and motor relay
are active (

″ACTIVE TEST” with CON-

SULT)

On

When the actuator motor and motor relay
are inactive

Off

ENGINE RPM

With engine running

With engine stopped

0 rpm

Engine running

Almost in accor-

dance with tachome-

ter display

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

BRC-82

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

DTC No. Index

INFOID:0000000010049147

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-26, "DTC Logic"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-30, "DTC Logic"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR- 2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-32, "Description"

C1110

CONTROLLER FAILURE

BRC-34, "DTC Logic"

C1111

PUMP MOTOR

BRC-35, "Description"

C1114

MAIN RELAY

BRC-37, "Description"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-39, "Description"

C1116

STOP LAMP SW

BRC-42, "Description"

C1120

FR LH IN ABS SOL

BRC-44, "Description"

C1122

FR RH IN ABS SOL

C1124

RR LH IN ABS SOL

C1126

RR RH IN ABS SOL

C1121

FR LH OUT ABS SOL

BRC-47, "Description"

C1123

FR RH OUT ABS SOL

C1125

RR LH OUT ABS SOL

C1127

RR RH OUT ABS SOL

C1130

ENGINE SIGNAL 1

BRC-50, "Description"

C1131

ENGINE SIGNAL 2

C1132

ENGINE SIGNAL 3

C1133

ENGINE SIGNAL 4

C1136

ENGINE SIGNAL 6

C1142

PRESS SEN CIRCUIT

BRC-51, "Description"

C1143

ST ANG SEN CIRCUIT

BRC-54, "Description"

C1144

ST ANG SEN SIGNAL

C1145

YAW RATE SENSOR

BRC-56, "Description"

C1146

SIDE G-SEN CIRCUIT

C1147

USV LINE [FL-RR]

BRC-59, "Description"

C1148

USV LINE [FR-RL]

C1149

HSV LINE [FL-RR]

C1150

HSV LINE [FR-RL]

C1153

EMERGENCY BRAKE

BRC-34, "DTC Logic"

C1154

PNP POS SIG

BRC-62, "Description"

C1155

BR FLUID LEVEL LOW

BRC-64, "Description"

C1156

ST ANG SEN COM CIR

BRC-66, "Description"

C1170

VARIANT CODING

BRC-34, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-67, "Description"

BRAKE CONTROL SYSTEM

BRC-83

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

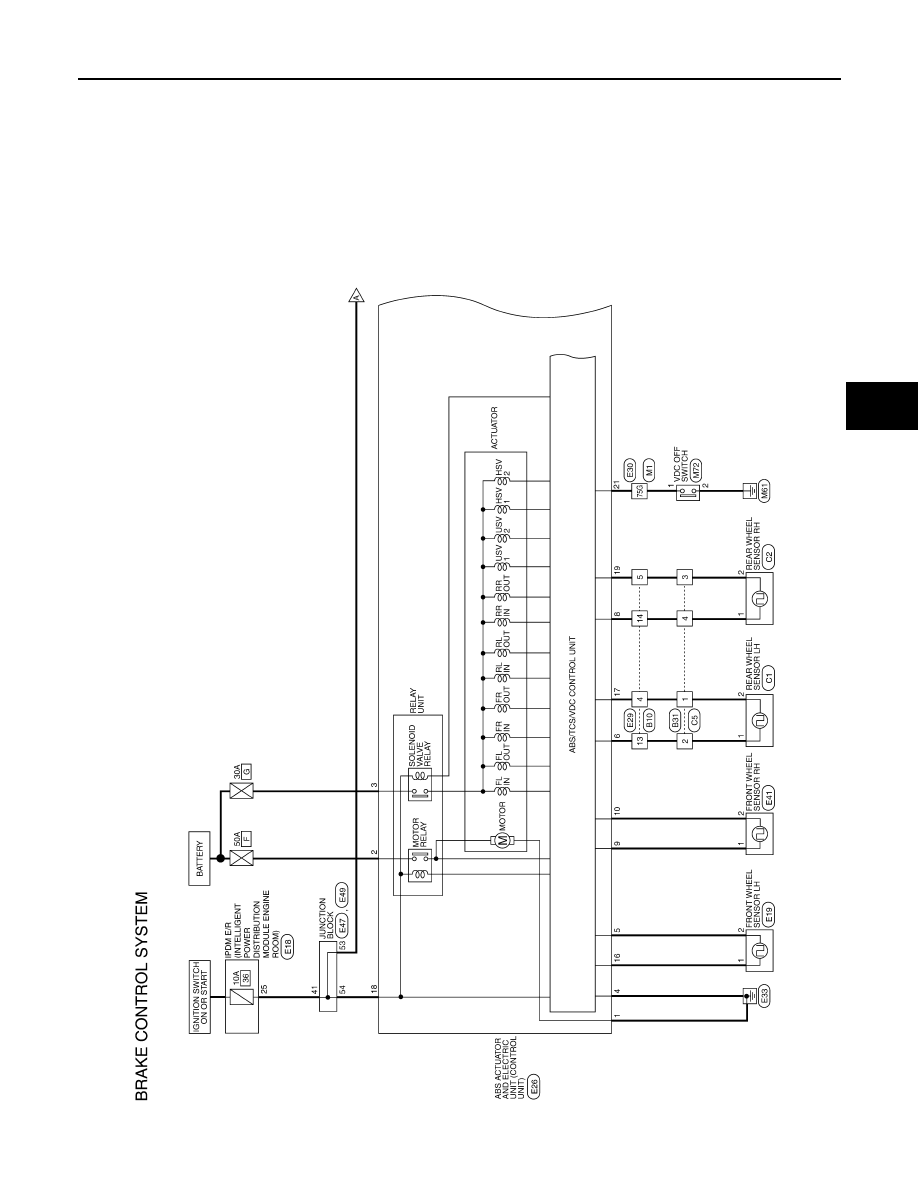

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010049148

ABFWA0253GB

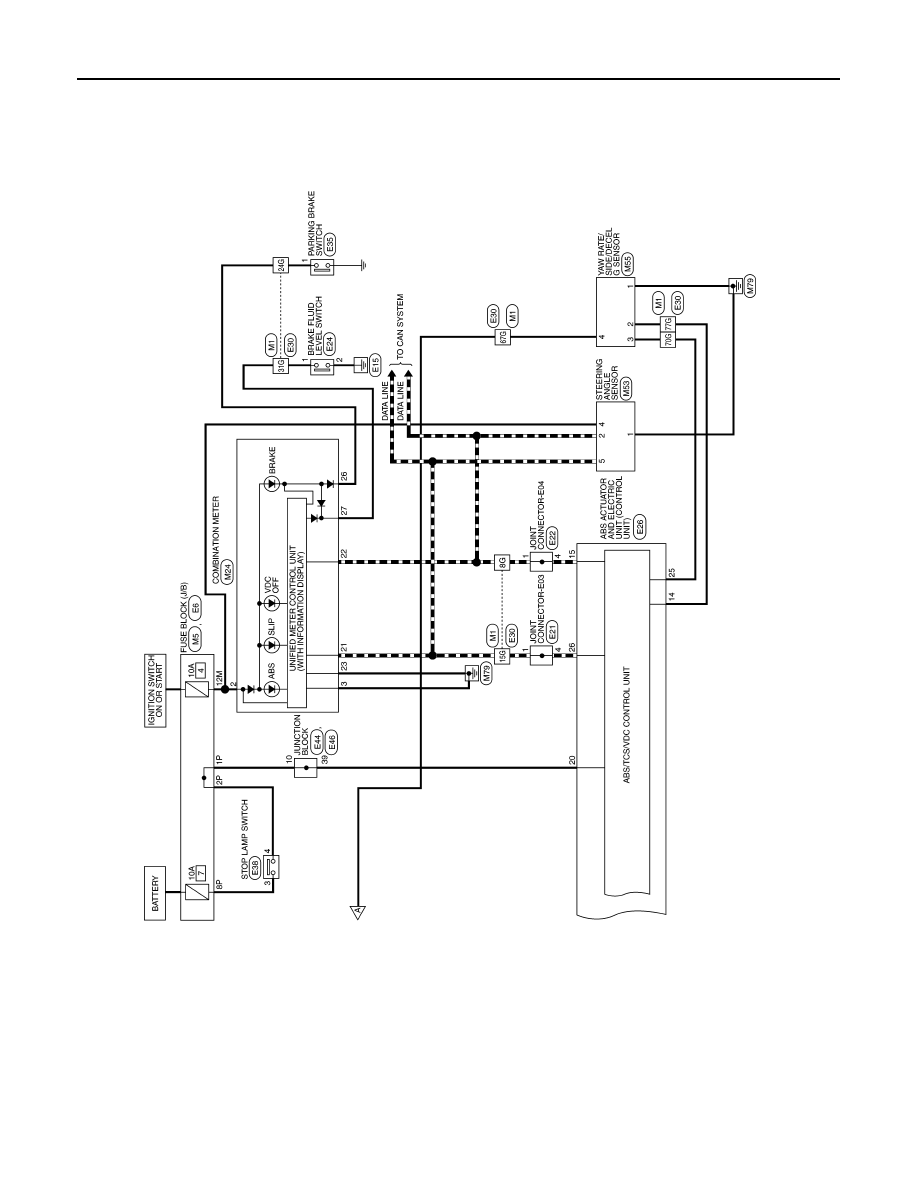

BRC-84

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM

ABFWA0364GB
