BCS

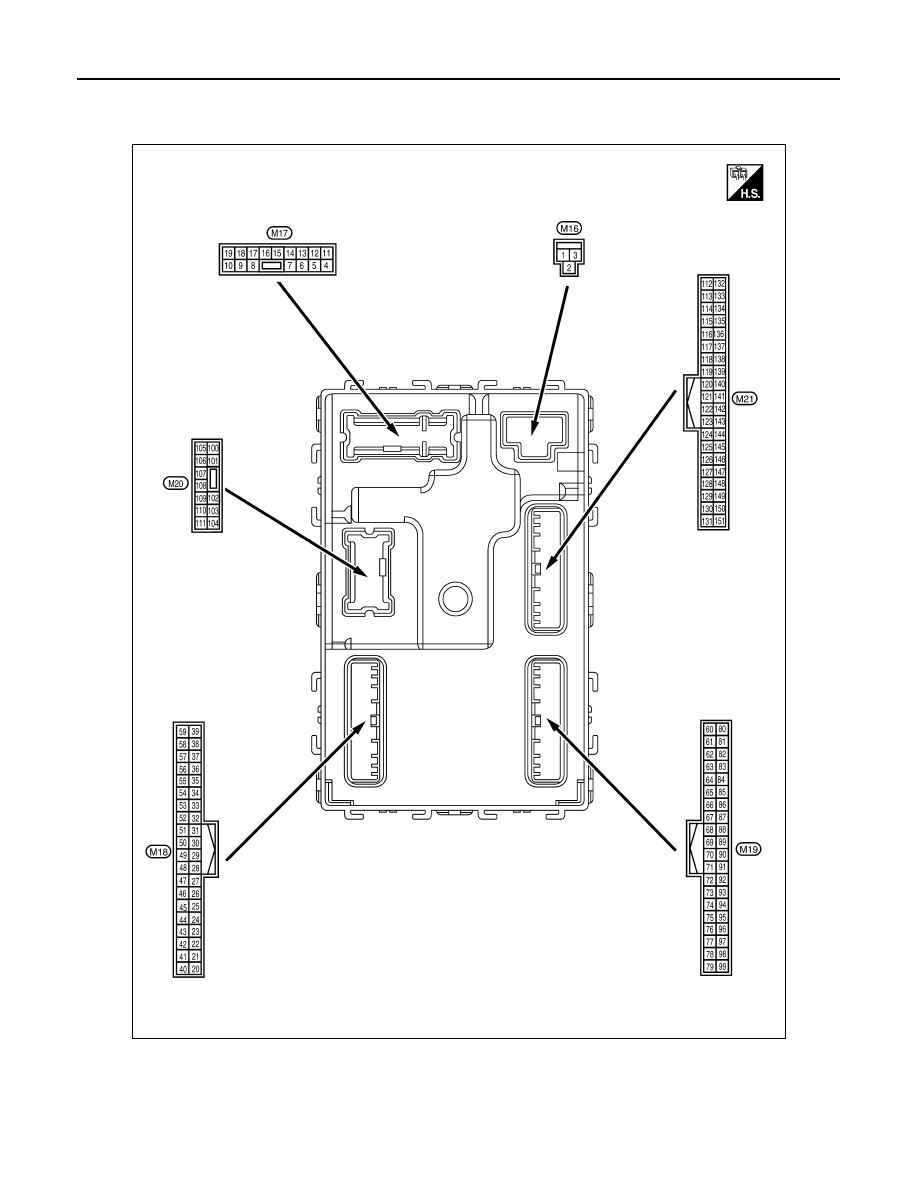

BCM (BODY CONTROL MODULE)
BCS-43
< ECU DIAGNOSIS INFORMATION >
[BCM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
REQ SW -RL
When rear door request switch is not pressed (driver side)
OFF
When rear door request switch is pressed (driver side)
ON
REQ SW -RR
When rear door request switch is not pressed (passenger side)
OFF
When rear door request switch is pressed (passenger side)
ON
REQ SW -BD/TR
When trunk opener request switch is not pressed
OFF
When trunk opener request switch is pressed
ON
PUSH SW
When engine switch (push switch) is not pressed
OFF
When engine switch (push switch) is pressed
ON
IGN RLY2 -F/B
Ignition switch OFF or ACC
OFF
Ignition switch ON
ON
ACC RLY -F/B
Ignition switch OFF
OFF
Ignition switch ACC or ON
ON
BRAKE SW 1
When the brake pedal is not depressed
ON
When the brake pedal is depressed
OFF
DETE/CANCL SW
When selector lever is in P position
OFF
When selector lever is in any position other than P
ON
SFT PN/N SW
When selector lever is in any position other than P or N
OFF
When selector lever is in P or N position
ON
UNLK SEN -DR
Driver door UNLOCK status
OFF
Driver door LOCK status
ON
PUSH SW -IPDM
When engine switch (push switch) is not pressed
OFF
When engine switch (push switch) is pressed
ON
IGN RLY1 -F/B
Ignition switch OFF or ACC
OFF
Ignition switch ON
ON
DETE SW -IPDM
When selector lever is in P position
OFF
When selector lever is in any position other than P
ON
SFT PN -IPDM
When selector lever is in any position other than P or N
OFF
When selector lever is in P or N position
ON
SFT P -MET
When selector lever is in any position other than P
OFF
When selector lever is in P position
ON
SFT N -MET
When selector lever is in any position other than N
OFF
When selector lever is in N position
ON
ENGINE STATE
Engine stopped
STOP
While the engine stalls
STALL
At engine cranking
CRANK
Engine running
RUN
VEH SPEED 1
While driving
Equivalent to speedometer reading
VEH SPEED 2
While driving
Equivalent to speedometer reading
DOOR STAT-DR
Driver door LOCK status
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Driver door UNLOCK status
UNLK
DOOR STAT-AS
Passenger door LOCK status
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Passenger door UNLOCK status
UNLK
Monitor Item
Condition
Value/Status
