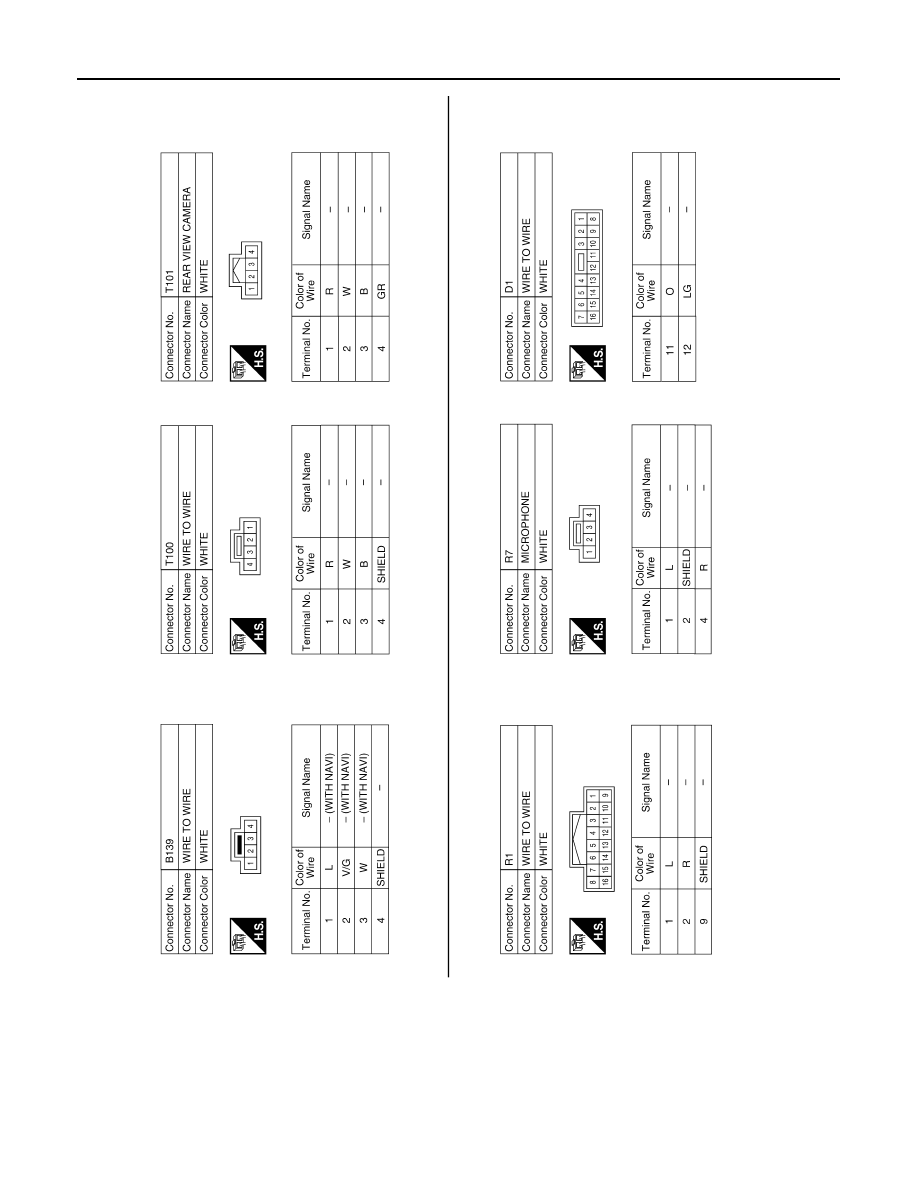

AV-632

< WIRING DIAGRAM >

[COLOR DISPLAY - W/BOSE & NAVI]

COLOR DISPLAY

ABNIA5124GB

AV

COLOR DISPLAY

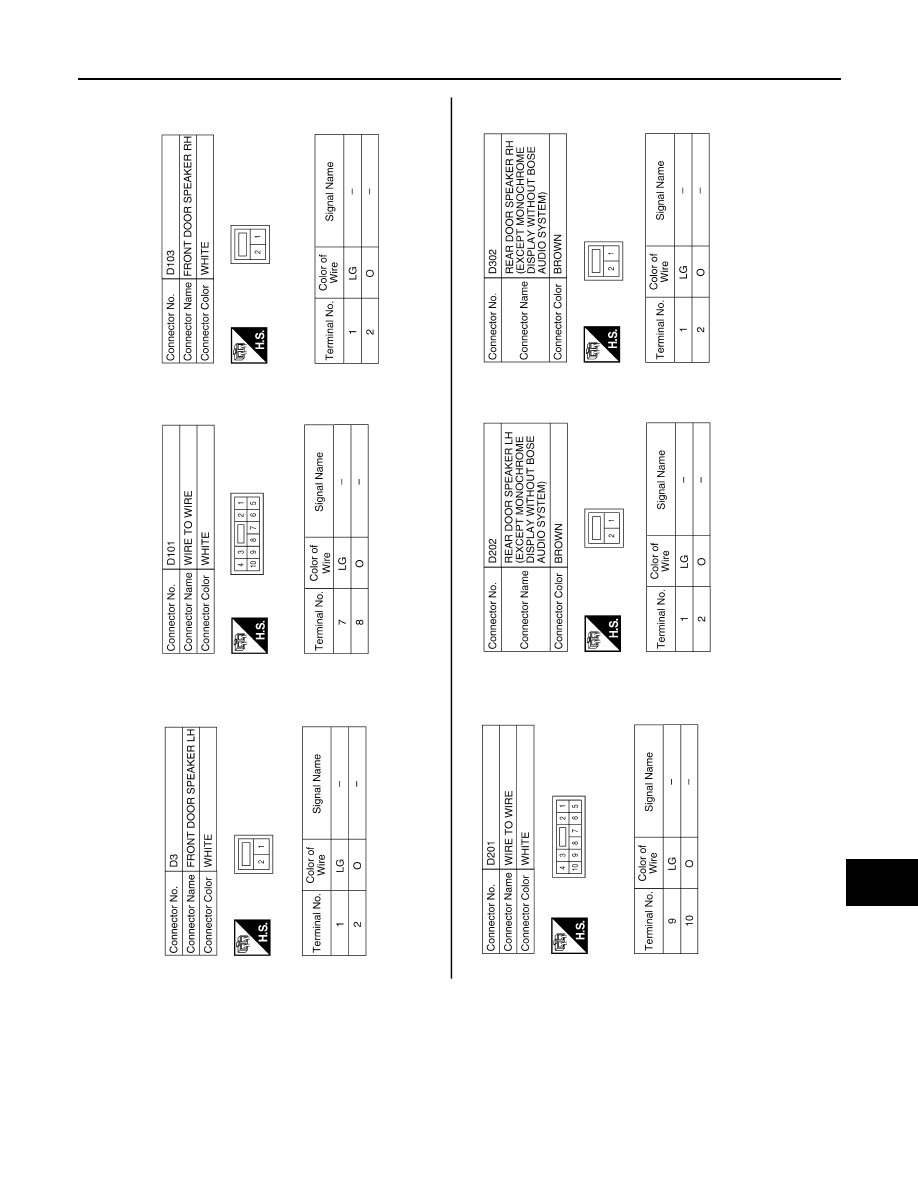

AV-633

< WIRING DIAGRAM >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5125GB

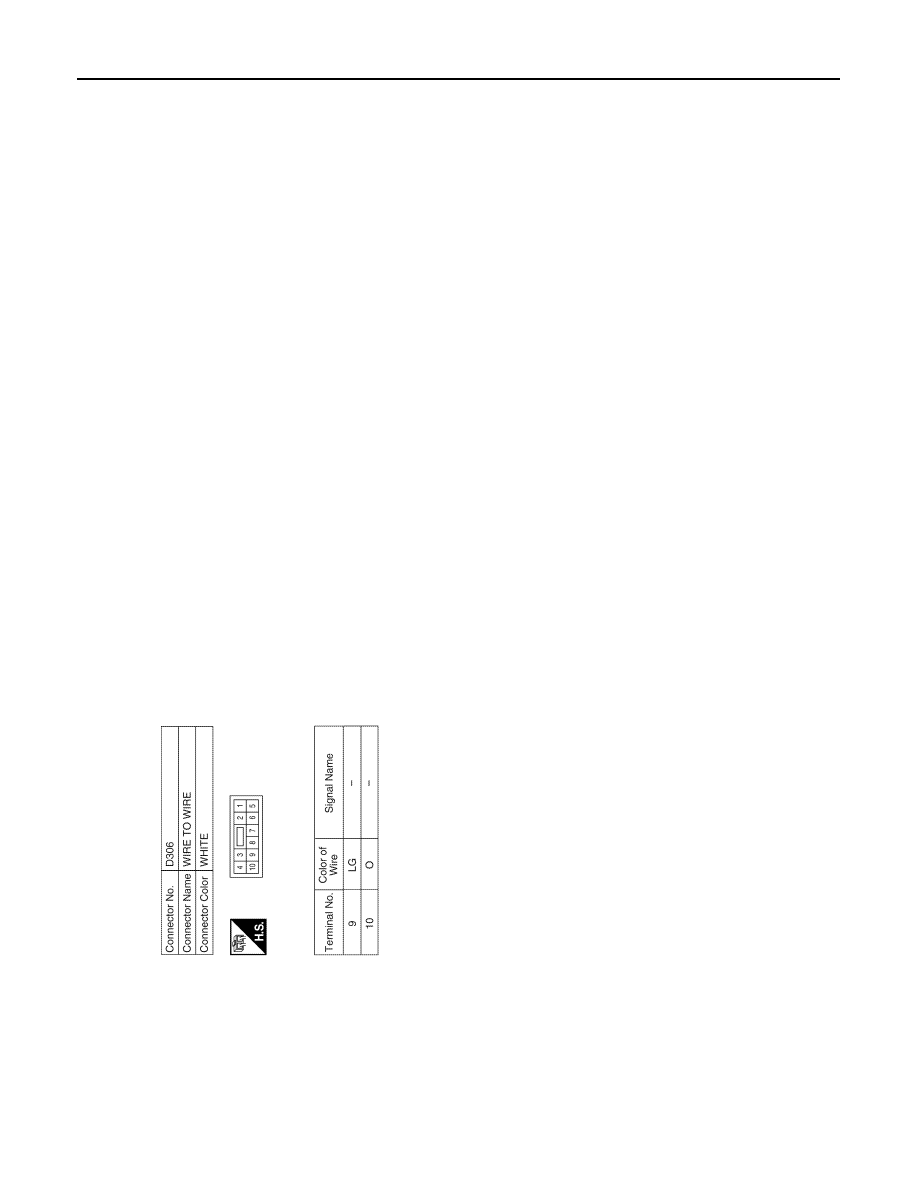

AV-634

< WIRING DIAGRAM >

[COLOR DISPLAY - W/BOSE & NAVI]

COLOR DISPLAY

ABNIA1663GB

AV

MULTI AV SYSTEM SYMPTOMS

AV-635

< SYMPTOM DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009471523

RELATED TO NAVIGATION

Trouble Diagnosis Chart by Symptom

RELATED TO HANDS-FREE PHONE

• Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with

the vehicle.

• It is possible that a malfunction is occurring due to a version change of the phone even though the phone is

a compatible type. This can be confirmed by changing the cellular phone to another compatible type, and

checking that it operates normally. It is important to determine whether the cause of the malfunction is the

vehicle or the cellular phone.

Check Compatibility

1. Make sure the customer’s Bluetooth

®

 related concern is understood.

2. Verify the customer’s concern.
NOTE:

The customer’s phone may be required, depending upon their concern.
3. Write down the customer’s phone brand, model, and service provider.
NOTE:

It is necessary to know the service provider. On occasion, a given phone may be on the approved list with one

provider, but may not be on the approved list with other providers.
4. Go to "www.nissanusa.com/bluetooth/".
a. Using the website’s search engine, find out if the customer’s phone is on the approved list.
b. If the customer’s phone is NOT on the approved list:

Stop diagnosis here. the customer need to obtain a Bluetooth phone that is on the approved list before

any further action.

c. If the feature related to the customer’s concern shows as "N" (not compatible):

Symptoms

Check items

Probable malfunction location

Multifunction switch and preset
switch operation does not work.

• All switches cannot be operated.
• “MULTI AV” is displayed on system

selection screen when the CONSULT
is started.

• Multifunction switch power supply and ground circuit.

Refer to

AV-600, "Diagnosis Procedure"

.

• AV communication circuit between AV control unit and

multifunction switch.
Perform CONSULT self-diagnosis. Refer to

AV-536,

"CONSULT Function (MULTI AV)"

.

• All switches cannot be operated.
• “MULTI AV” is not displayed on sys-

tem selection screen when the CON-
SULT is initialized.

AV control unit power supply and ground circuit malfunc-
tion. Refer to

AV-571, "AV CONTROL UNIT : Diagnosis

Procedure"

.

Only specified switch cannot be operat-
ed.

Multifunction switch or preset switch malfunction.
Perform multifunction switch and preset switch self-di-
agnosis function.
Refer to

AV-600, "Diagnosis Procedure"

.

Fuel economy display is abnor-
mal.

There is malfunction in the CONSULT
self-diagnosis result.

Perform detected DTC self-diagnosis.
Refer to

AV-536, "CONSULT Function (MULTI AV)"

.

There is no malfunction in the self-diag-
nosis results.

Ignition signal circuit malfunction.
Refer to

PCS-56, "Diagnosis Procedure"

.

Start of the AV control unit takes
time.

—

Room lamp timer control circuit malfunction.

Guide sound is not heard or too
low.

On the setting display select “system
sound (guide sound volume, etc.),” and
confirm that guide sound is ON.

Voice guidance signal circuit malfunction.
