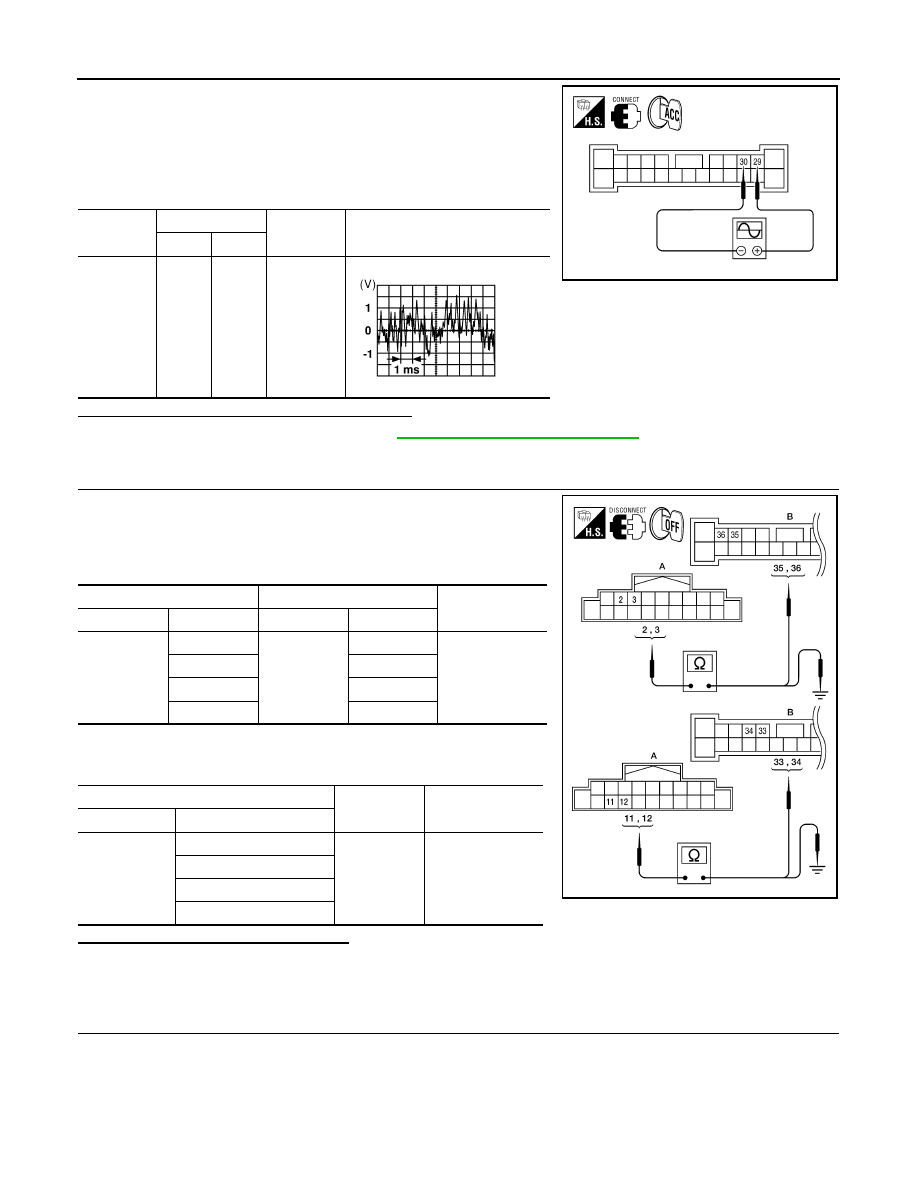

CENTER SPEAKER

1. Connect BOSE speaker amp. connector B109 and center

speaker connector.

2. Turn ignition switch to ACC.

3. Push POWER switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B109 terminals with CONSULT or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace center speaker. Refer to

AV-660, "Removal and Installation"

.

NO

>> GO TO 4.

4.

HARNESS CHECK

1. Disconnect AV control unit connector M160 and BOSE speaker

amp. connector B109.

2. Check continuity between AV control unit harness connector

M160 (A) and BOSE speaker amp. harness connector B109 (B).

3. Check continuity between AV control unit harness connector

M160 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 5.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

5.

CENTER SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B109

29

30

Receive
audio sig-
nal

AWNIA1700ZZ

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M160

2

B109

35

Yes

3

36

11

33

12

34

A

—

Continuity

Connector

Terminal

M160

2

Ground

No

3

11

12

AWNIA1696ZZ

AV

CENTER SPEAKER

AV-593

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

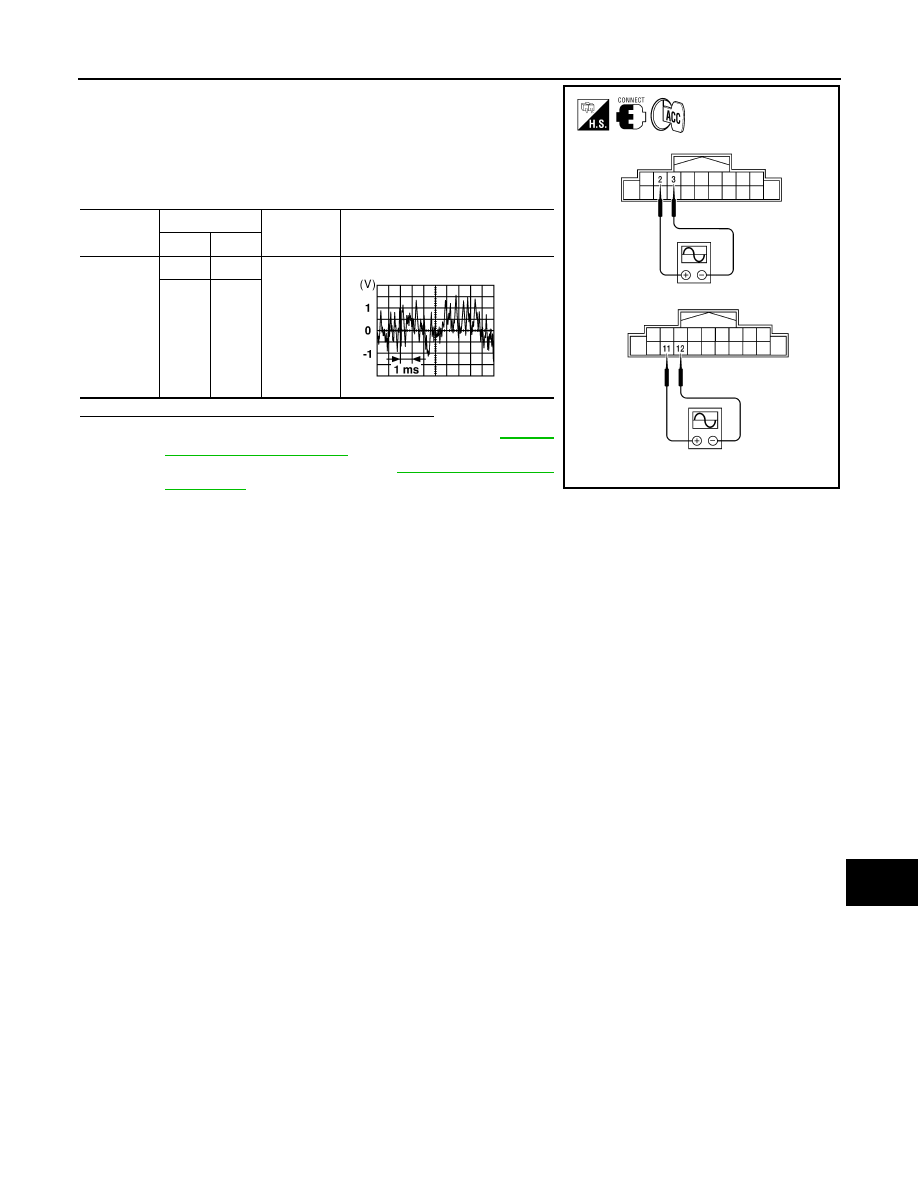

1. Connect AV control unit connector and BOSE speaker amp.

connector.

2. Turn ignition switch ACC.

3. Push POWER switch.

4. Check the signal between AV control unit harness connector ter-

minals with CONSULT or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-664,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-652, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M160

2

3

Receive
audio sig-
nal

11

12

ALNIA0171ZZ

SKIA0177E

AV-594

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Description

INFOID:0000000009471512

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000009471513

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair the terminal and connector.

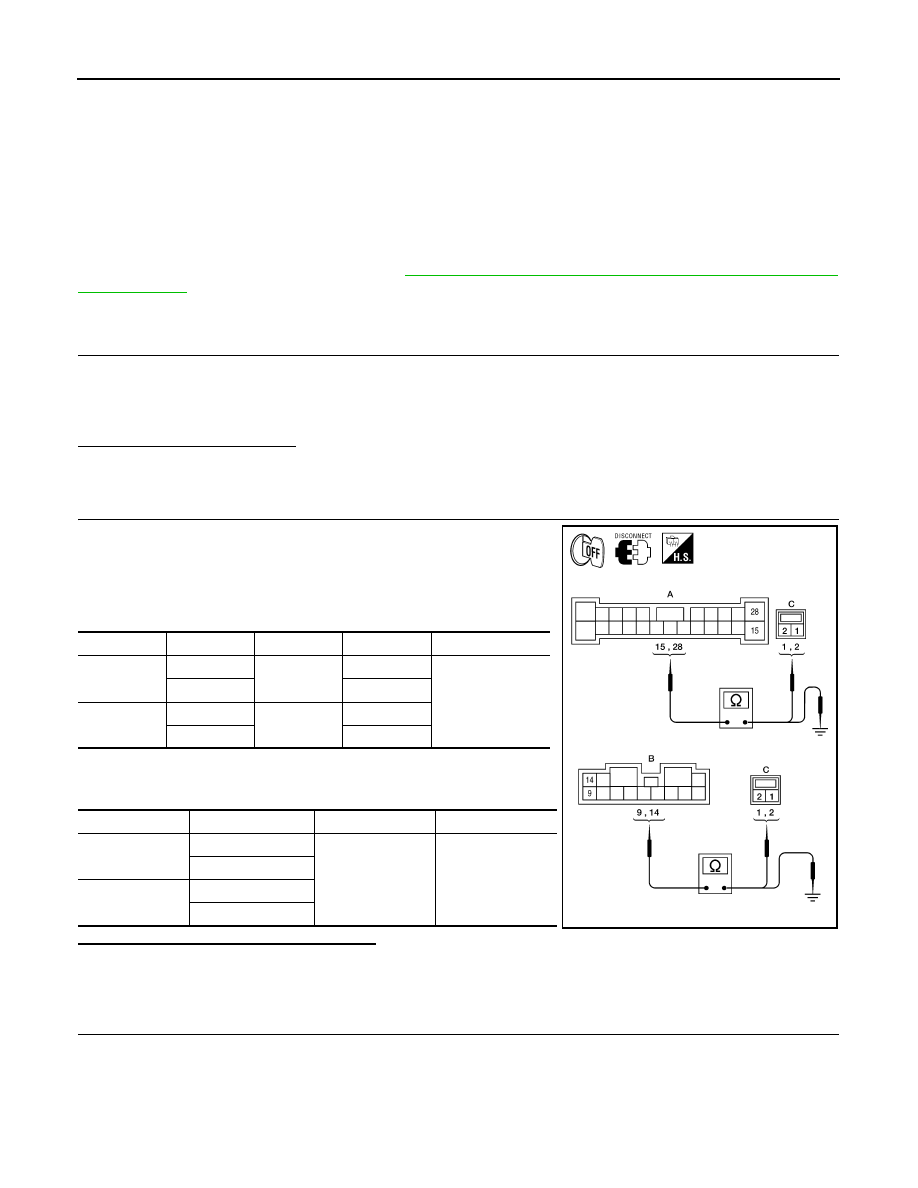

2.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors B109, B110 and

suspect speaker connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors B109 (A) and B110 (B) and suspect speaker harness con-

nector (C).

3. Check continuity between BOSE speaker amp. harness connec-

tors B109 (A) and B110 (B) and ground.

Are the continuity test results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminal

Connector

Terminal

Continuity

A: B109

15

C: D202

2

Yes

28

1

B: B110

9

C: D302

2

14

1

Connector

Terminal

-

Continuity

A: B109

15

Ground

No

28

B: B110

9

14

AWNIA1702ZZ

AV

REAR DOOR SPEAKER

AV-595

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

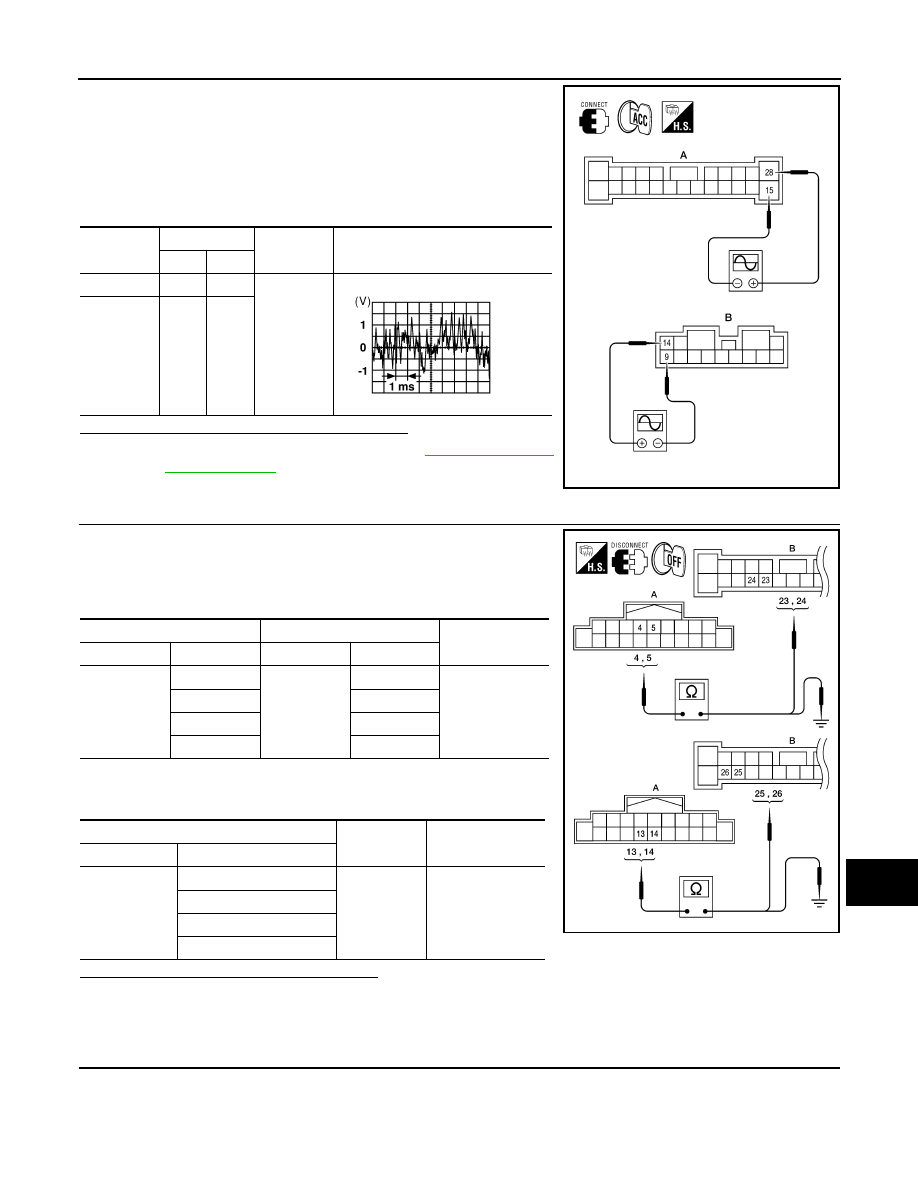

1. Connect BOSE speaker amp. connectors and suspect speaker

connector.

2. Turn ignition switch to ACC.

3. Push POWER switch.

4. Check the signal between BOSE speaker amp. harness connec-

tors B109 (A) and B110 (B) terminals with CONSULT or oscillo-

scope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect speaker. Refer to

AV-662, "Removal

and Installation"

.

NO

>> GO TO 4.

4.

HARNESS CHECK

1. Disconnect AV control unit connector M160 and BOSE speaker

amp. connector B109.

2. Check continuity between AV control unit harness connector

M160 (A) and BOSE speaker amp. harness connector B109 (B).

3. Check continuity between AV control unit harness connector

M160 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 5.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

5.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

A: B109

28

15

Receive
audio sig-
nal

B: B110

14

9

AWNIA1703ZZ

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M160

4

B109

24

Yes

5

23

13

26

14

25

A

—

Continuity

Connector

Terminal

M160

4

Ground

No

5

13

14

AWNIA1704ZZ
