AV-484

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/ BOSE]

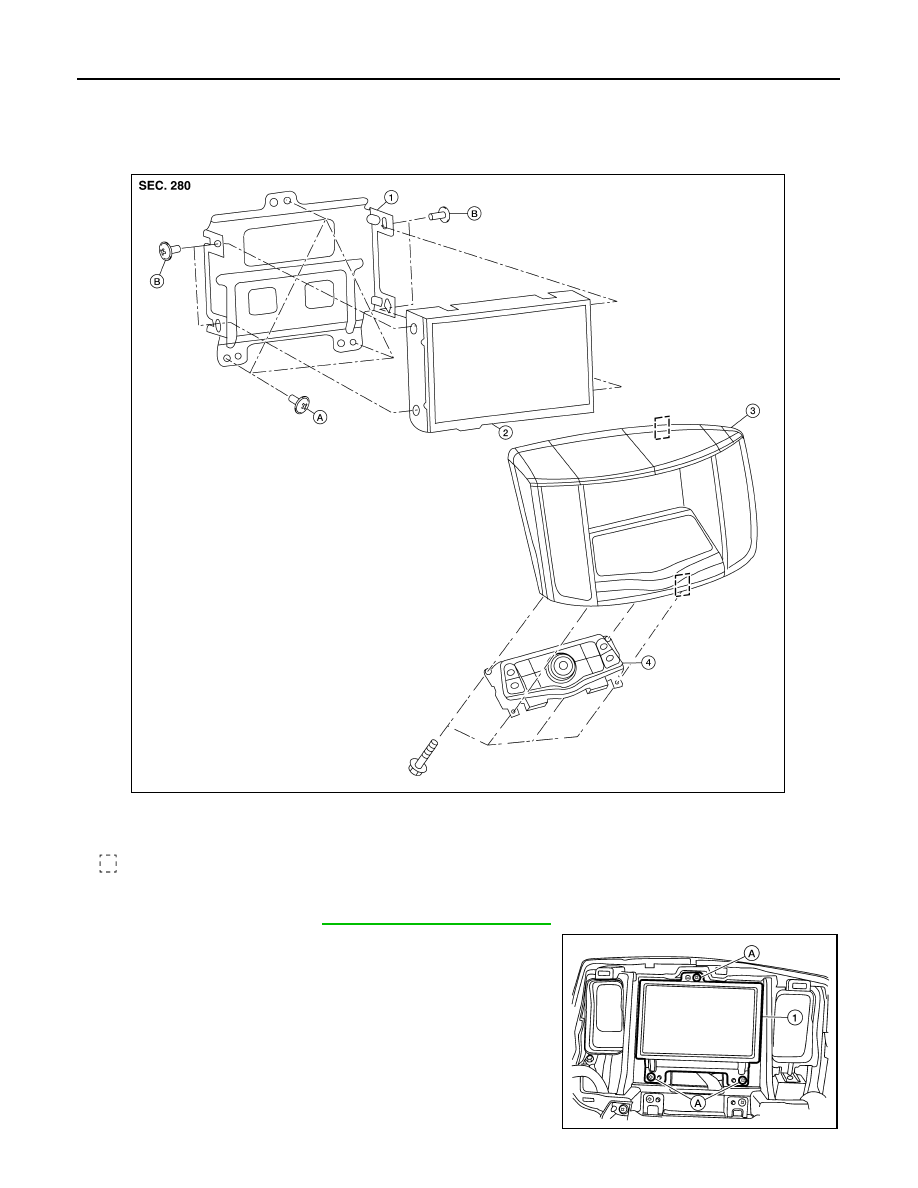

AUDIO DISPLAY UNIT

AUDIO DISPLAY UNIT

Removal and Installation

INFOID:0000000009471399

REMOVAL

1. Remove cluster lid D. Refer to

IP-18, "Removal and Installation"

.

2. Remove the audio display unit bracket screws (A).
3. Pull out the audio display unit and bracket assembly (1).
4. Disconnect the harness connectors from the audio display unit

and bracket assembly (1) and remove.

1.

Audio display unit bracket

2.

Audio display unit

3.

Cluster lid D

4.

Multifunction switch

A.

Audio display unit bracket screws

B.

Audio display unit screws

Metal Clip

AWNIA1928ZZ

ALNIA1139ZZ

AV

AUDIO DISPLAY UNIT

AV-485

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

5. Remove the audio display unit screws on the sides and the audio display unit from the audio display unit

brackets.

INSTALLATION

Installation is in the reverse order of removal.

AV-486

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/ BOSE]

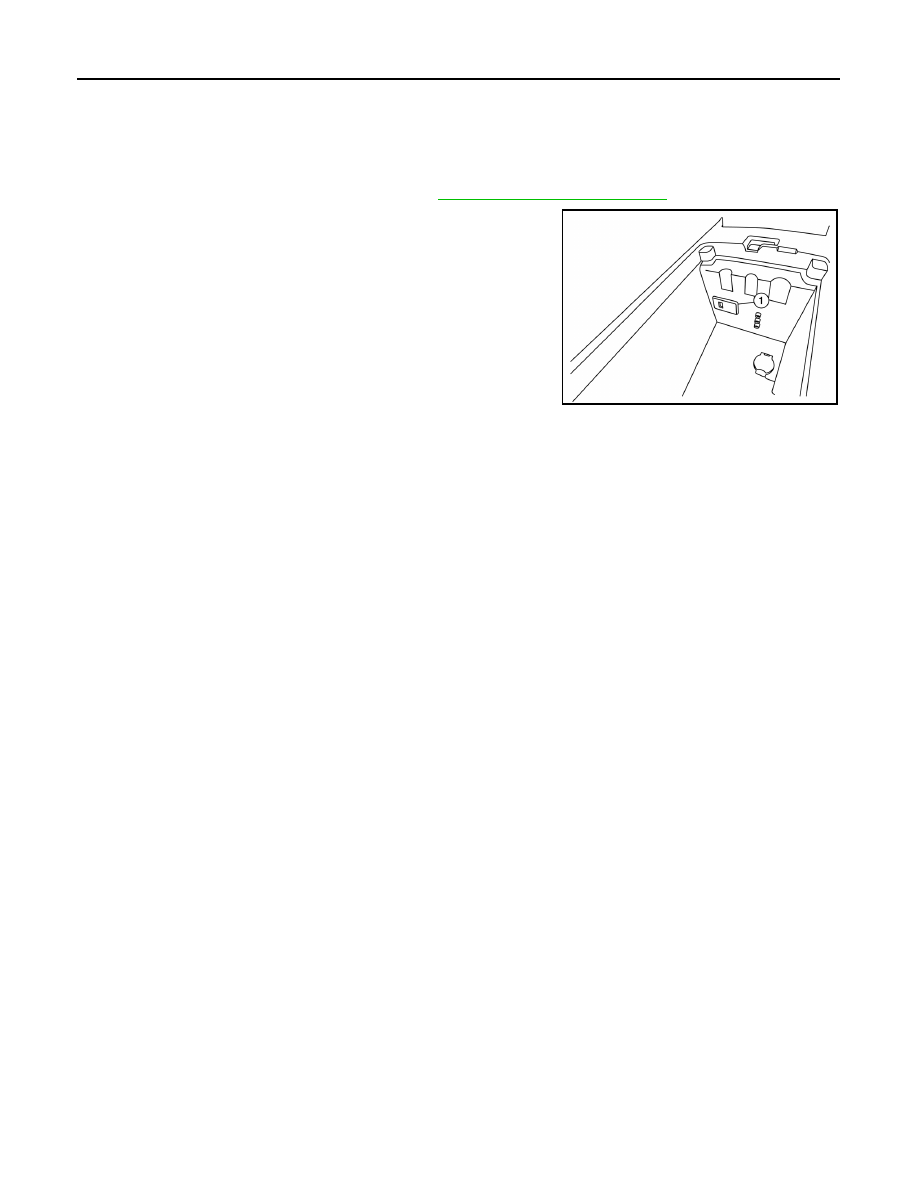

USB CONNECTOR

USB CONNECTOR

Removal and Installation

INFOID:0000000009471400

REMOVAL

1. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

2. Release the pawl from the back of the center console to remove

the USB interface (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1401ZZ

AV

AUX IN JACK

AV-487

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

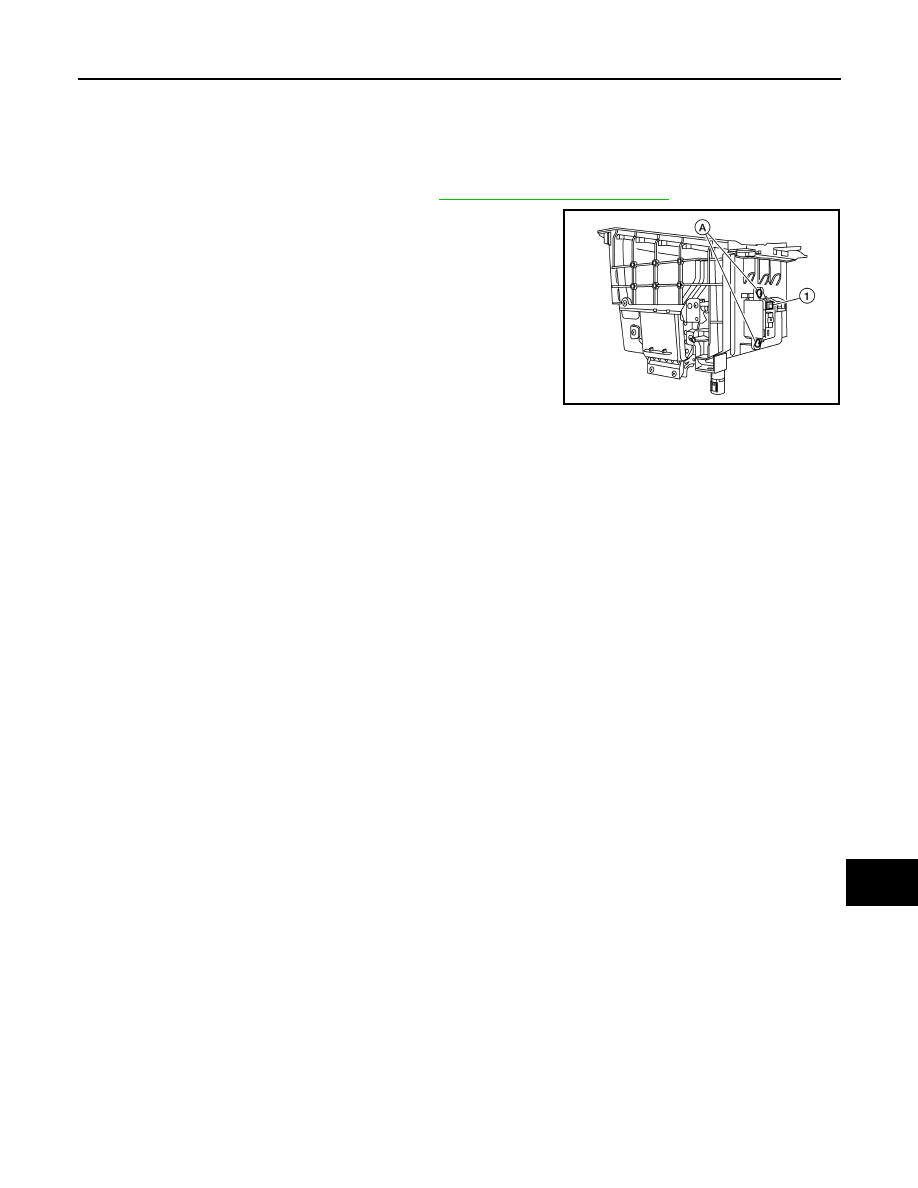

AUX IN JACK

Removal and Installation

INFOID:0000000009471401

REMOVAL

1. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

2. Remove the auxiliary input jacks screws (A) and auxiliary input

jack (1).

INSTALLATION

Installation is in the reverse order of removal.
