REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010064936

REMOVAL

1. Remove the rear door finisher. Refer to

INT-21, "Removal and Installation"

.

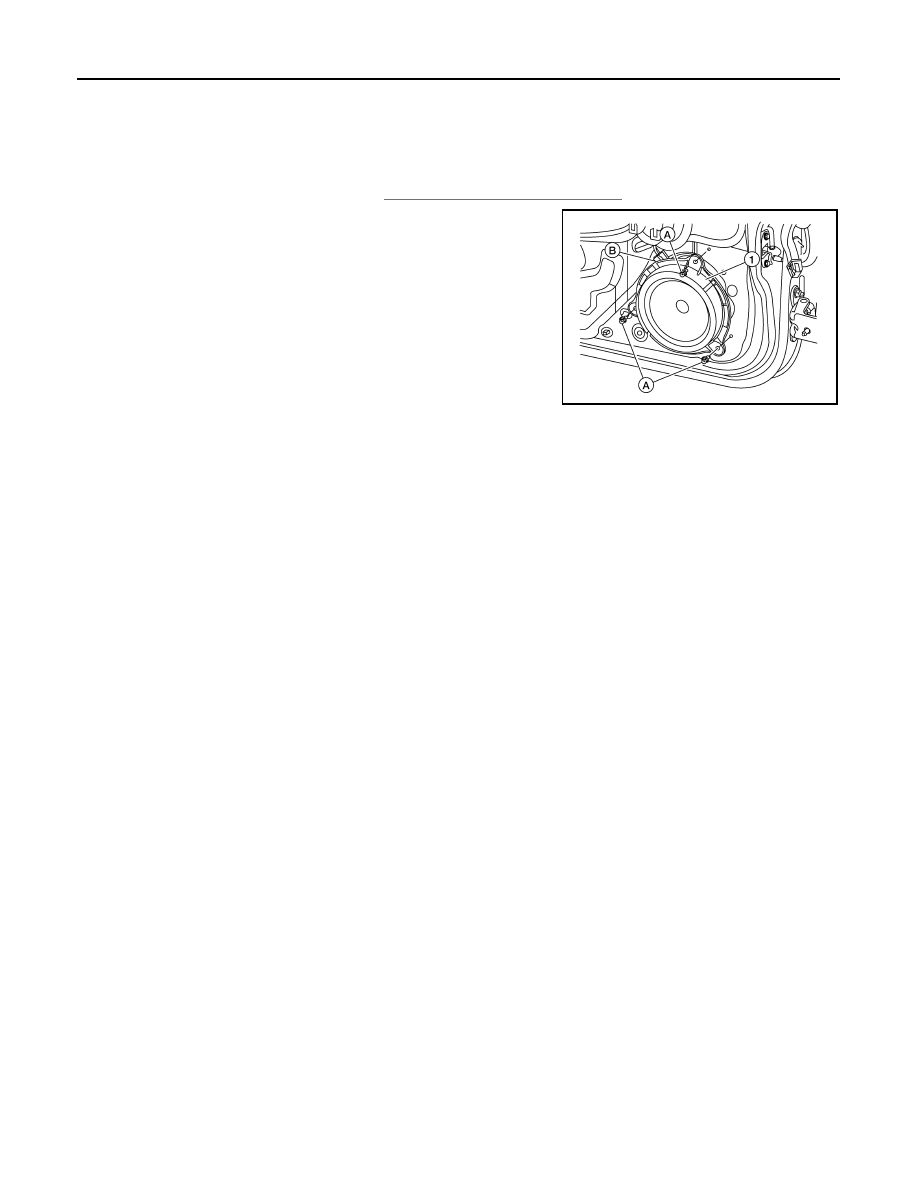

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1135ZZ

AV

SUBWOOFER

AV-321

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000010064937

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-36, "Removal and Installation"

.

2. Remove the subwoofer screws.
3. Pull out the subwoofer, disconnect the harness connector from the subwoofer and remove.

INSTALLATION

Installation is in the reverse order of removal.

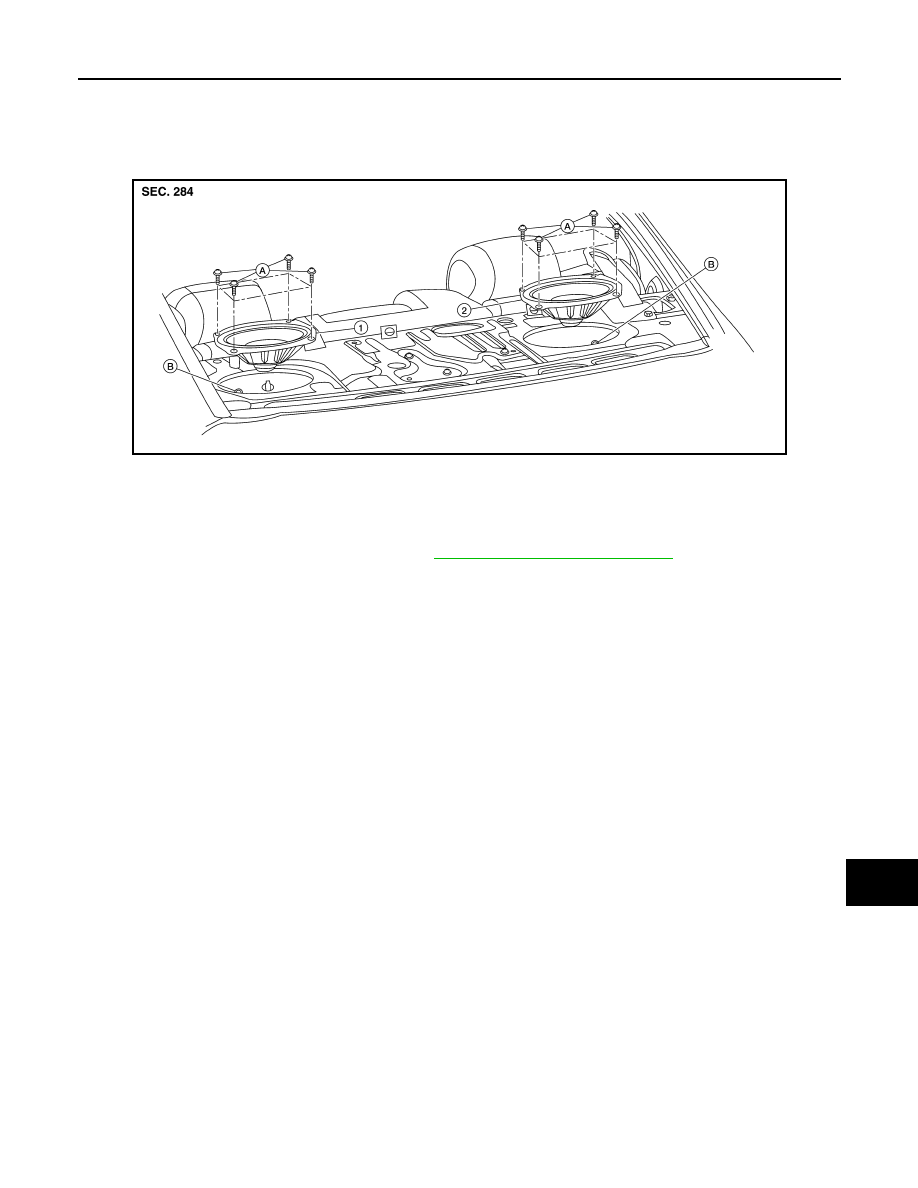

ALNIA1134ZZ

1.

Subwoofer LH

2.

Subwoofer RH

A.

Subwoofer screws

B.

Subwoofer connectors

AV-322

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

SUBWOOFER AMP

SUBWOOFER AMP

Removal and Installation

INFOID:0000000010075142

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

NOTE:

The subwoofer amp. can be removed without removing the parcel amp finisher. If moving the subwoofer

amp. and bracket, it is necessary to remove the parcel shelf finisher.

3. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

4. Remove the subwoofer amp. screws.
5. Disconnect the harness connectors from the subwoofer amp. and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Subwoofer amp. and bracket

A.

Subwoofer amp. bracket screws

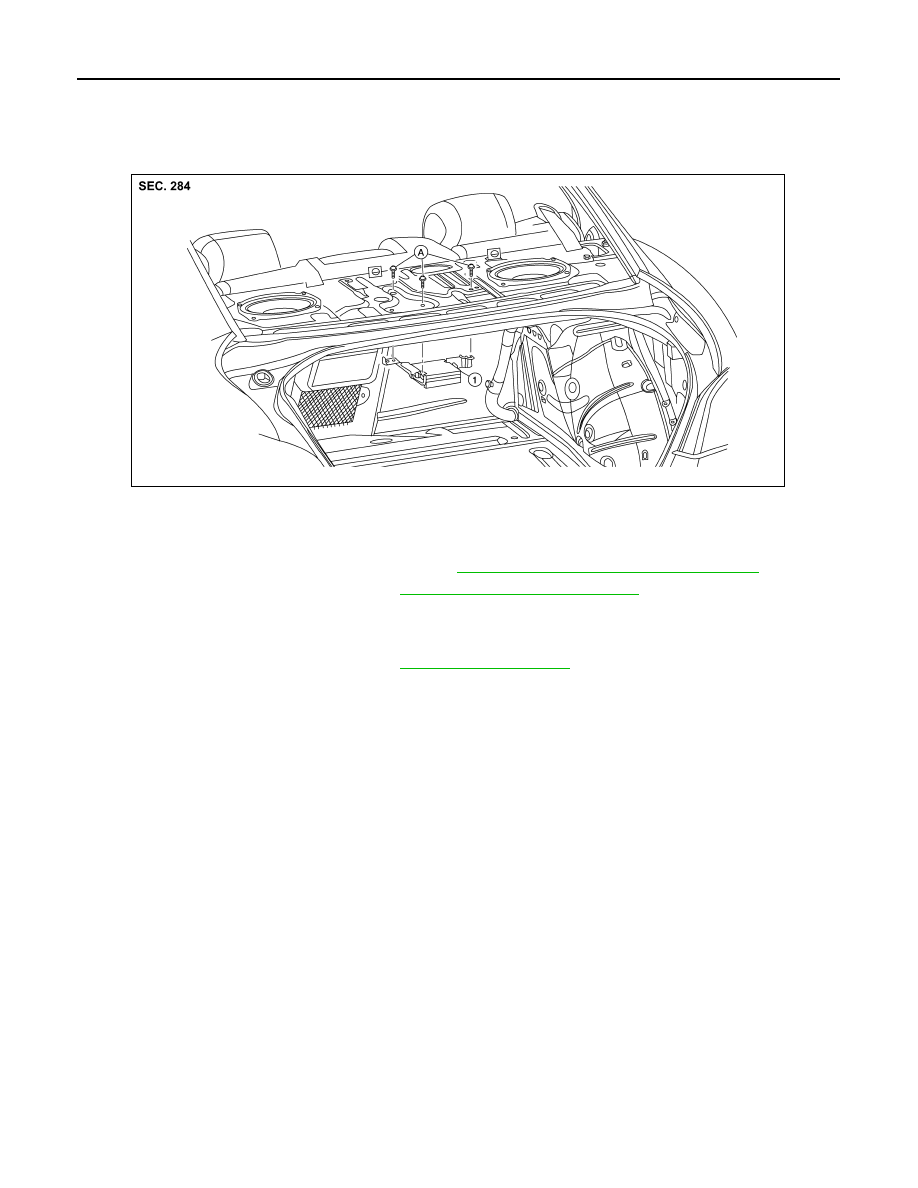

ALNIA1136ZZ

AV

BOSE SPEAKER AMP

AV-323

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000010064938

REMOVAL

NOTE:

If removing the BOSE speaker amp. bracket, it is necessary to remove the parcel shelf finisher. The BOSE

speaker amp. can be removed without removing the BOSE speaker amp. bracket.
1. Disconnect the battery negative terminal.
2. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

3. Remove the Bose speaker amp. screws.
4. Disconnect the Bose speaker amp. connectors and remove the Bose speaker amp.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bose speaker amp.

A.

Screws

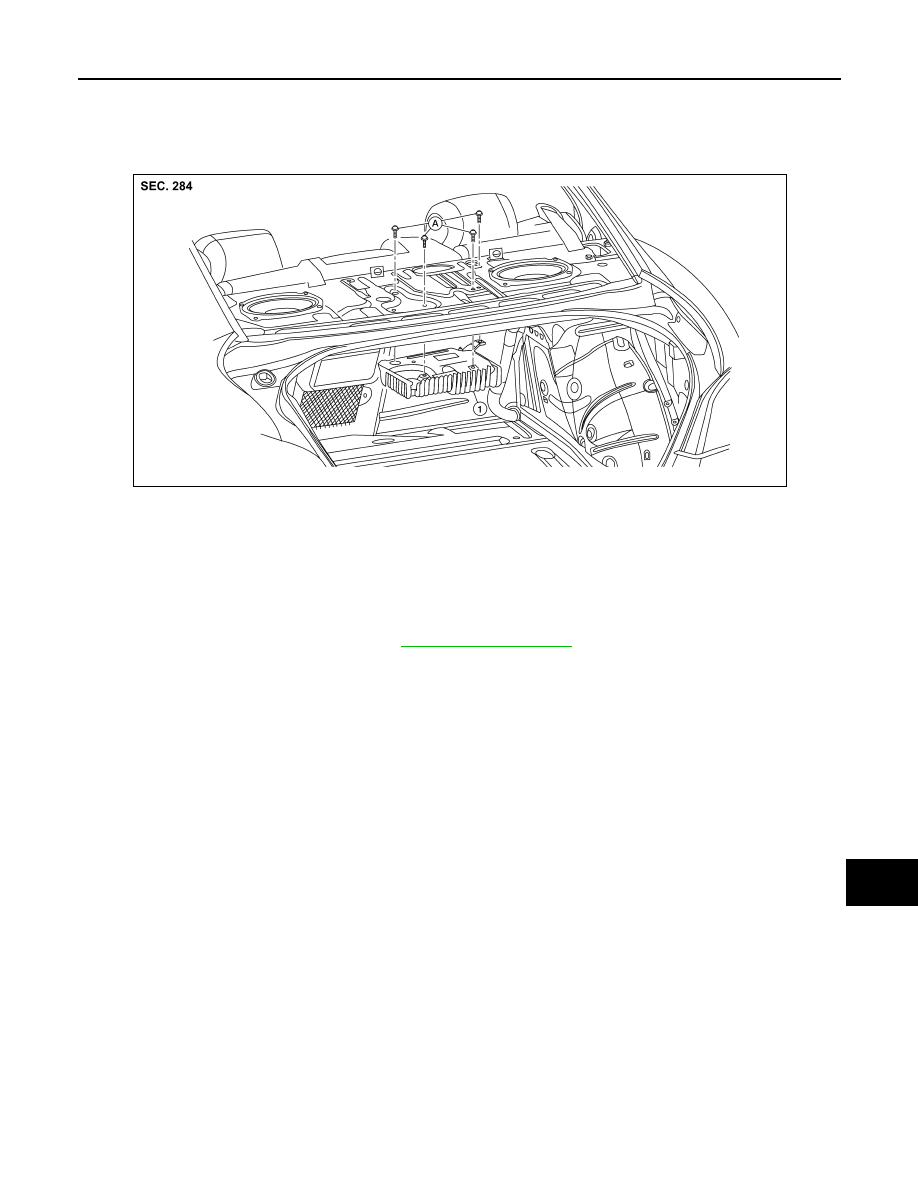

ALNIA1137ZZ
