Nissan Maxima. Manual - part 124





AV-316

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

USB CONNECTOR

USB CONNECTOR

Removal and Installation

INFOID:0000000010064931

REMOVAL

1. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

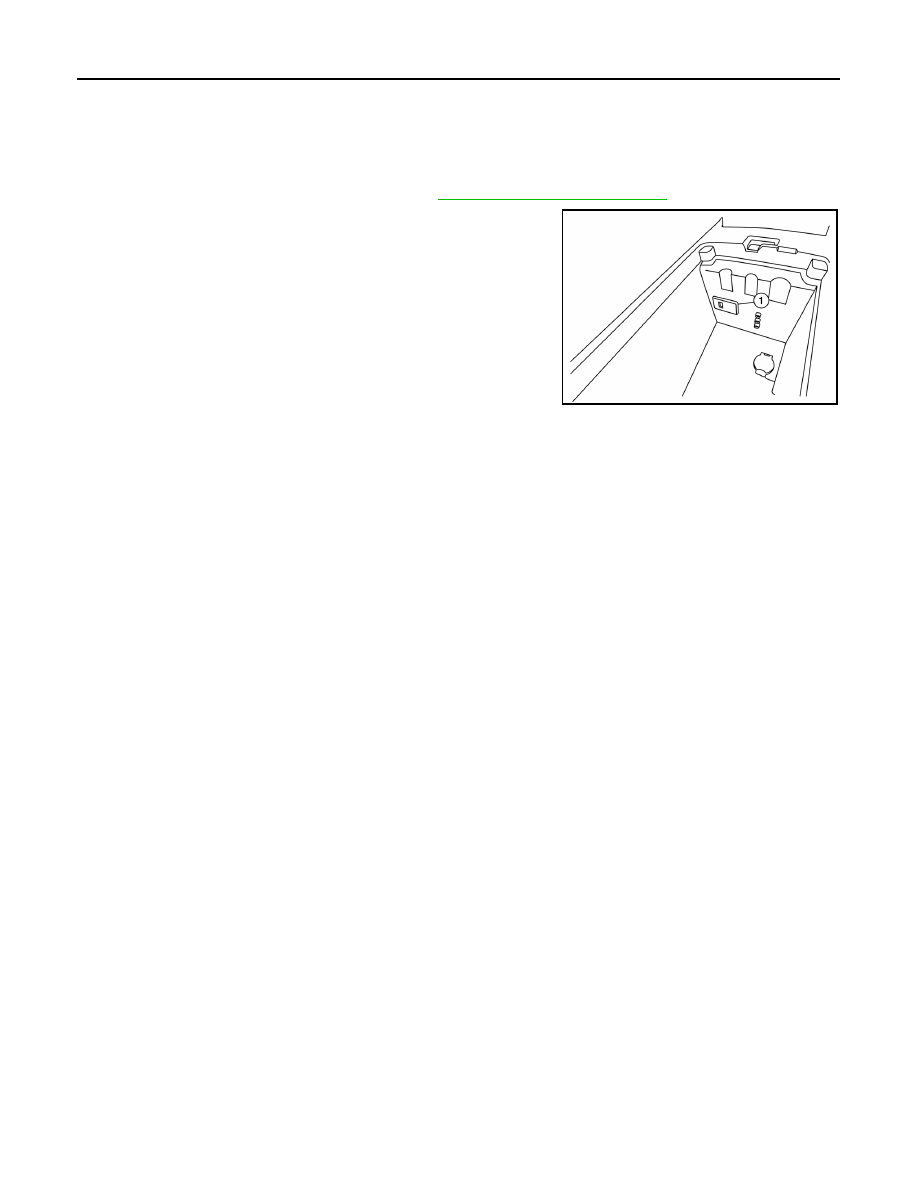

2. Release the pawl from the back of the center console to remove

the USB interface (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1401ZZ

AV

AUX IN JACK

AV-317

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUX IN JACK

Removal and Installation

INFOID:0000000010064932

REMOVAL

1. Remove the center console. Refer to

IP-14, "Removal and Installation"

.

2. Remove the center console bin box.

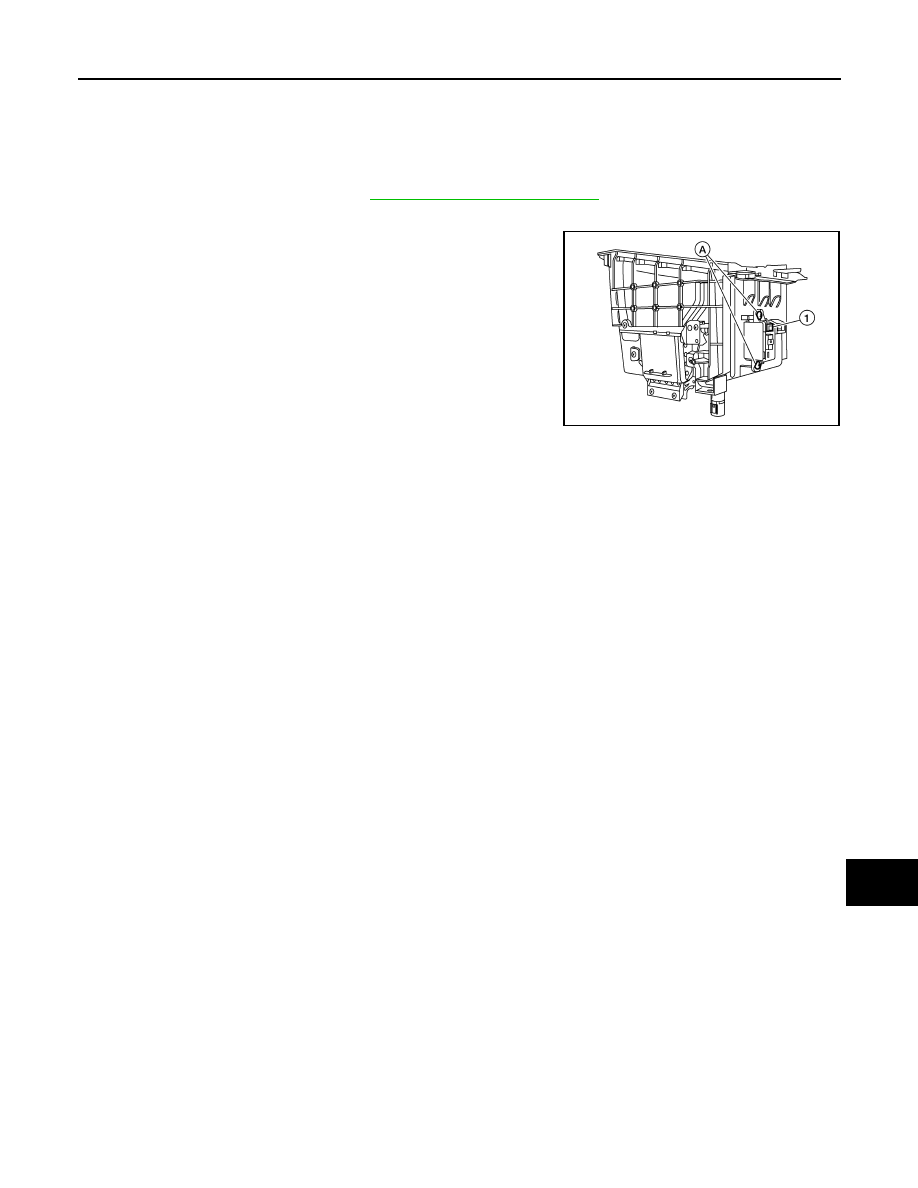

3. Remove the auxiliary input jacks screws (A), then remove the

auxiliary input jacks (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1162ZZ

AV-318

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

FRONT TWEETER

 FRONT TWEETER

Removal and Installation

INFOID:0000000010064933

REMOVAL

1. Remove the front pillar finisher. Refer to

INT-24, "Removal and Installation"

.

2. Remove the front tweeter speaker grille. Refer to

IP-10, "Exploded View"

.

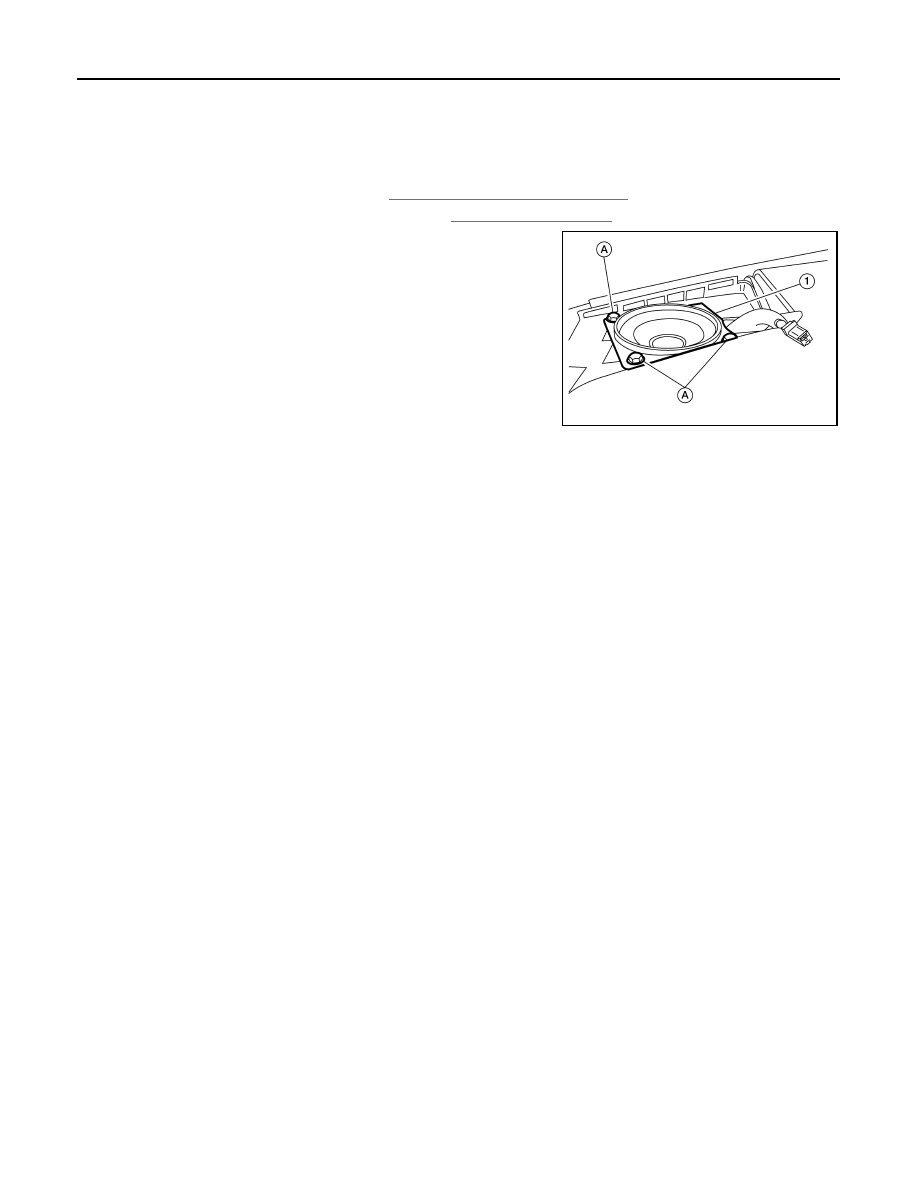

3. Remove the front tweeter speaker screws (A).
4. Pull out front tweeter speaker (1), disconnect the harness con-

nector from the front tweeter speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2220ZZ

AV

FRONT DOOR SPEAKER

AV-319

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010064935

REMOVAL

1. Remove the front door finisher. Refer to

INT-18, "Removal and Installation"

.

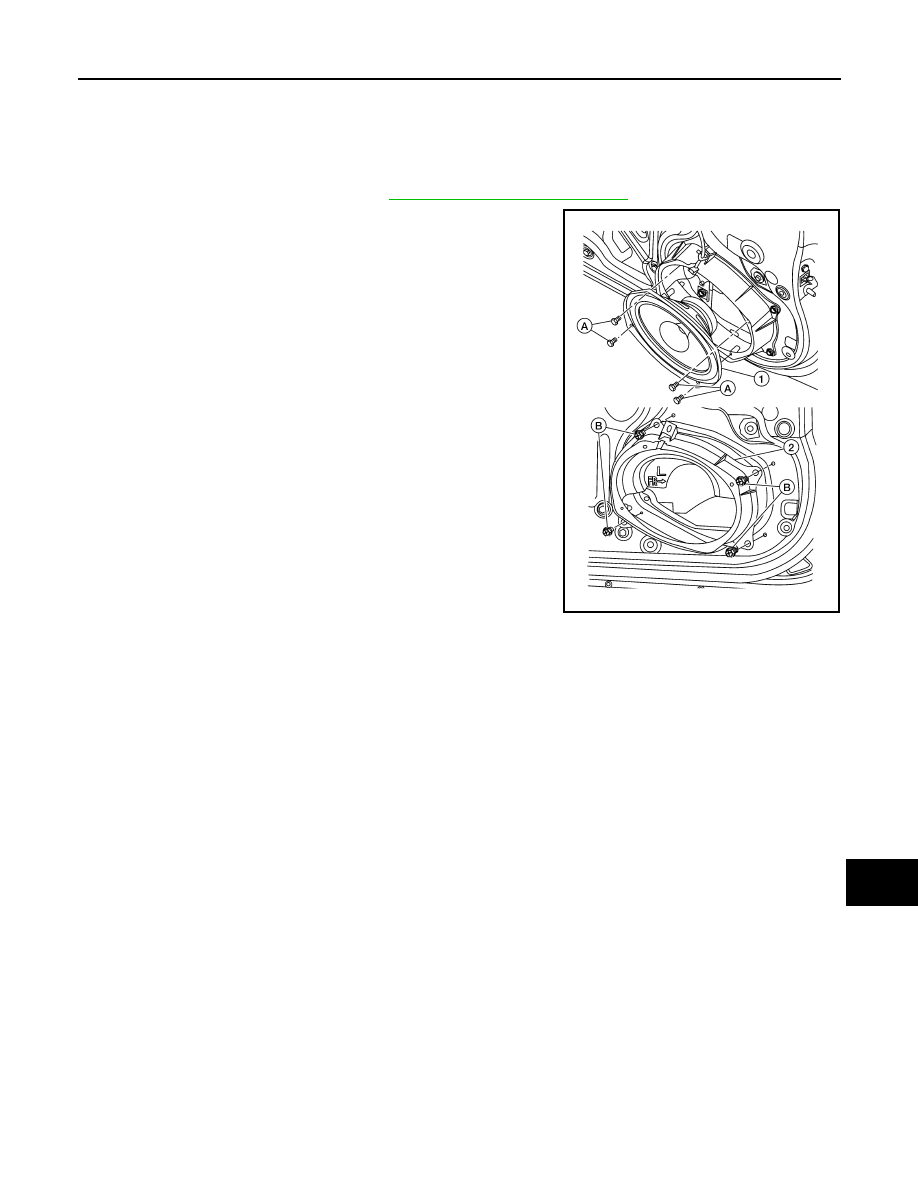

2. Remove the front door speaker screws (A).
3. Disconnect the harness connector from the front door speaker

(1) and remove.

4. Remove the front door speaker spacer screws (B) and remove

the front door speaker spacer (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1133ZZ
