FRONT WIPER MOTOR HI CIRCUIT

FRONT WIPER MOTOR HI CIRCUIT

Component Function Check

INFOID:0000000010048952

1.

 CHECK FRONT WIPER HI OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

.

2. Check that the front wiper operates at the HI operation.

CONSULT ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper HI operation and OFF.

Does the front wiper operate?

YES

>> The front wiper motor HI circuit is normal.

NO

>> Refer to

WW-20, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010048953

Regarding Wiring Diagram information, refer to

WW-63, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR (HI) OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Turn the ignition switch ON.

4. Select "FRONT WIPER" of IPDM E/R active test item.

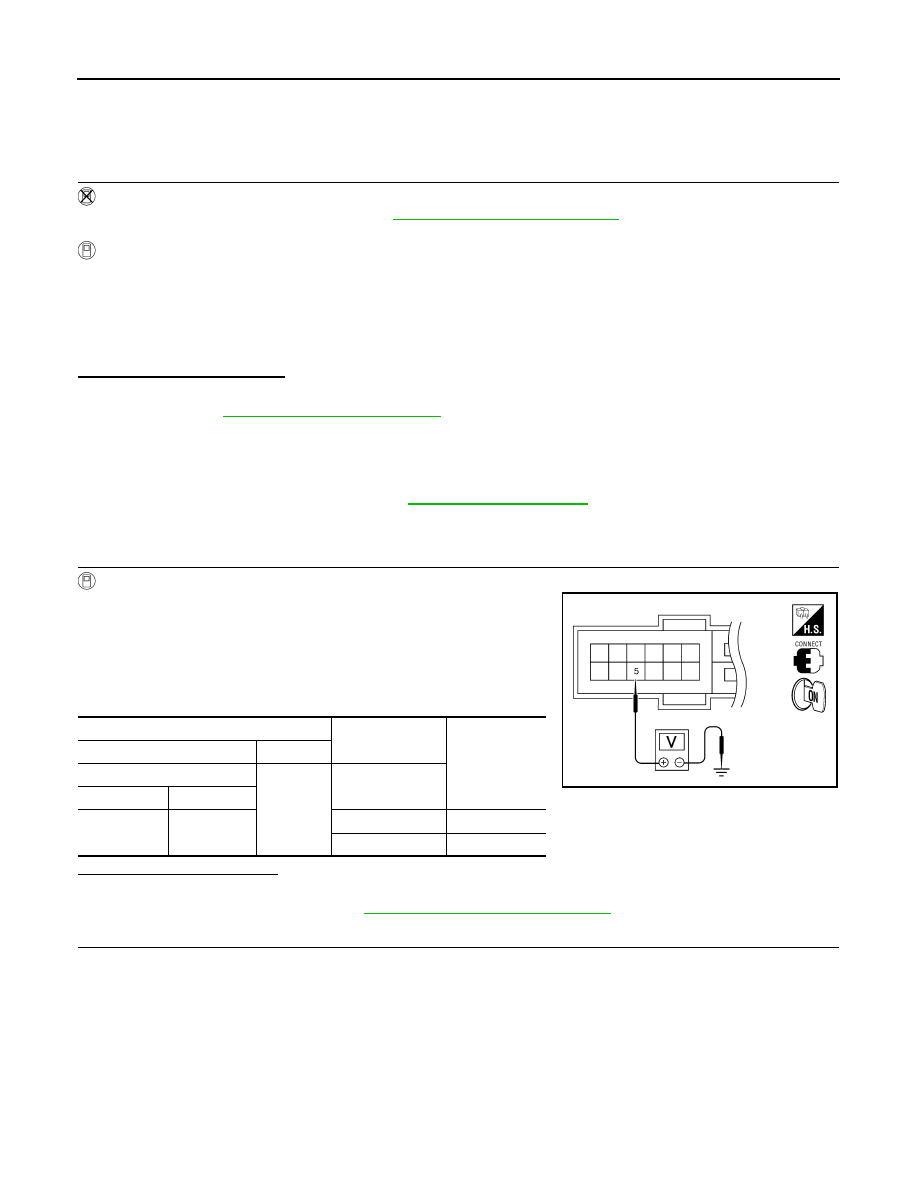

5. While operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement normal?

YES

>> GO TO 2

NO

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

2.

 CHECK FRONT WIPER MOTOR (HI) OPEN CIRCUIT

HI

: Front wiper HI operation

OFF

: Stop the front wiper.

Terminals

Test item

Voltage (V)

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E18

5

HI

Battery voltage

OFF

0V

ALLIA0209ZZ

FRONT WIPER MOTOR HI CIRCUIT

WW-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R.

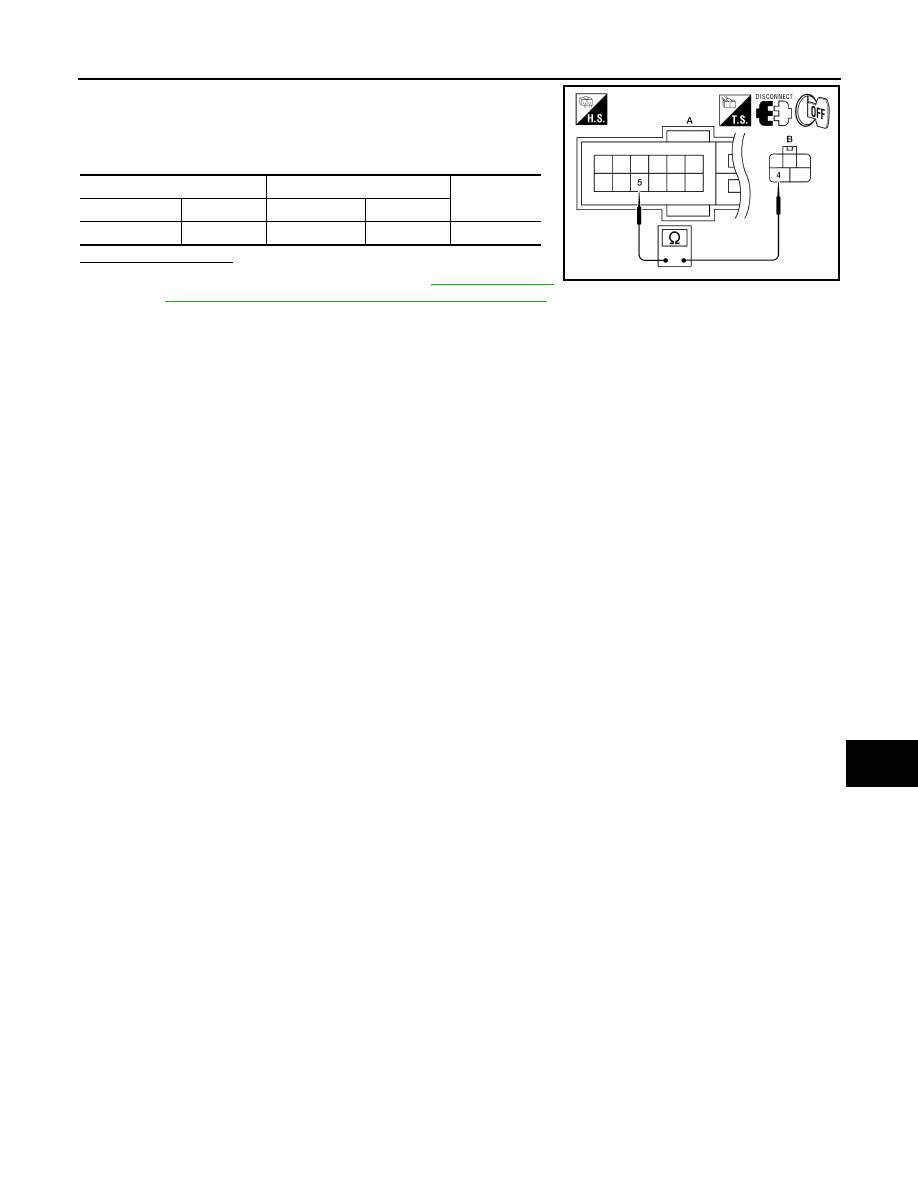

3. Check continuity between IPDM E/R harness connector (A) and

front wiper motor harness connector (B).

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-78, "FRONT

WIPER DRIVE ASSEMBLY : Removal and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E18 (A)

5

E25 (B)

4

Yes

ALLIA0817ZZ

WW-22

< DTC/CIRCUIT DIAGNOSIS >

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000010048954

1.

 CHECK FRONT WIPER (AUTO STOP) OPERATION

CONSULT DATA MONITOR

1. Select "WIP AUTO STOP" of IPDM E/R DATA MONITOR item.

2. Operate the front wiper.

3. With the front wiper operation, check the monitor status.

Is the status of item normal?

YES

>> Auto stop signal circuit is normal.

NO

>> Refer to

WW-22, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010048955

Regarding Wiring Diagram information, refer to

WW-63, "Wiring Diagram"

.

1.

 CHECK IPDM E/R OUTPUT VOLTAGE

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Turn the ignition switch ON.

4. Check voltage between front wiper motor harness connector and ground.

Is the measurement normal?

YES

>> Replace front wiper motor. Refer to

WW-78, "FRONT WIPER DRIVE ASSEMBLY : Removal and

Installation"

.

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (AUTO STOP) CIRCUIT CONTINUITY

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector E18.

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

4. Check continuity between IPDM E/R harness connector and ground.

Monitor item

Condition

Monitor status

WIP AUTO STOP

Front wiper motor

Stop position

STOP P

Except stop position

ACT P

Terminals

Voltage (V) (Approx.)

(+)

(-)

Front wiper motor

Ground

Connector

Terminal

E25

5

Battery voltage

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E18

16

E25

5

Yes

IPDM E/R

Ground

Continuity

Connector

Terminal

E18

16

No

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

WW-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Repair or replace harness.
