ROAD WHEEL TIRE ASSEMBLY

WT-61

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

4. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top another.

5. Start balancer machine again.

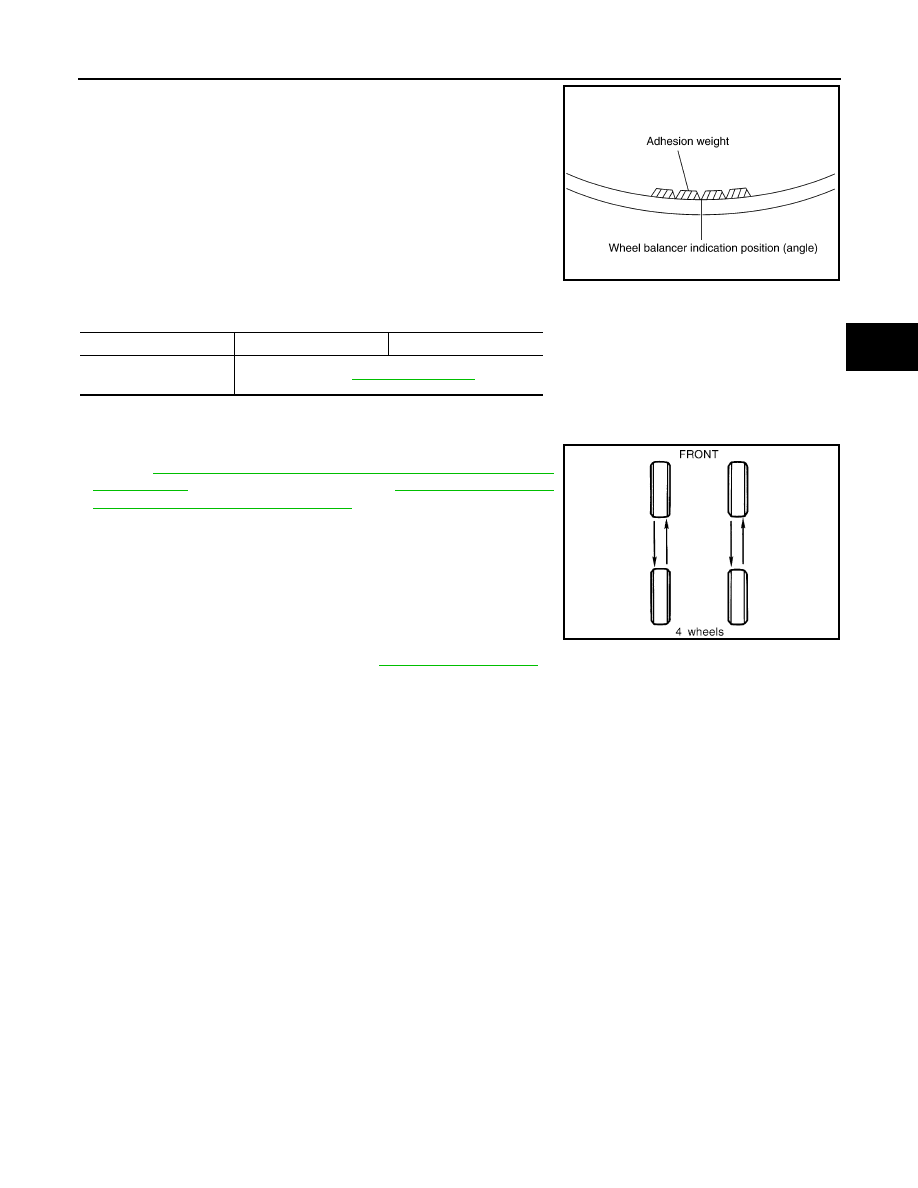

6. Install balance weight on inner side of road wheel in the bal-

ancer machine indication position (angle).

CAUTION:

Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual

imbalance values are 5 g (0.17 oz) each or below.

8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Use power tool to remove wheel and tire assembly.

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-5, "FOR USA AND CANADA : Explanation of General

Maintenance"

 (United States and Canada),

MA-7, "FOR MEXICO :

Explanation of General Maintenance"

 (Mexico).

CAUTION:

• Do not include the T-type spare tire when rotating the tires.

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels

from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria for preventing strain of disc rotor.

Wheel balance

Dynamic (At flange)

Static (At flange)

Maximum allowable im-
balance

Refer to

WT-65, "Road Wheel"

.

PEIA0033E

Wheel nut tightening
torque

: Refer to

WT-65, "Road Wheel"

.

SMA829C

WT-62

< UNIT REMOVAL AND INSTALLATION >

TRANSMITTER

UNIT REMOVAL AND INSTALLATION

TRANSMITTER

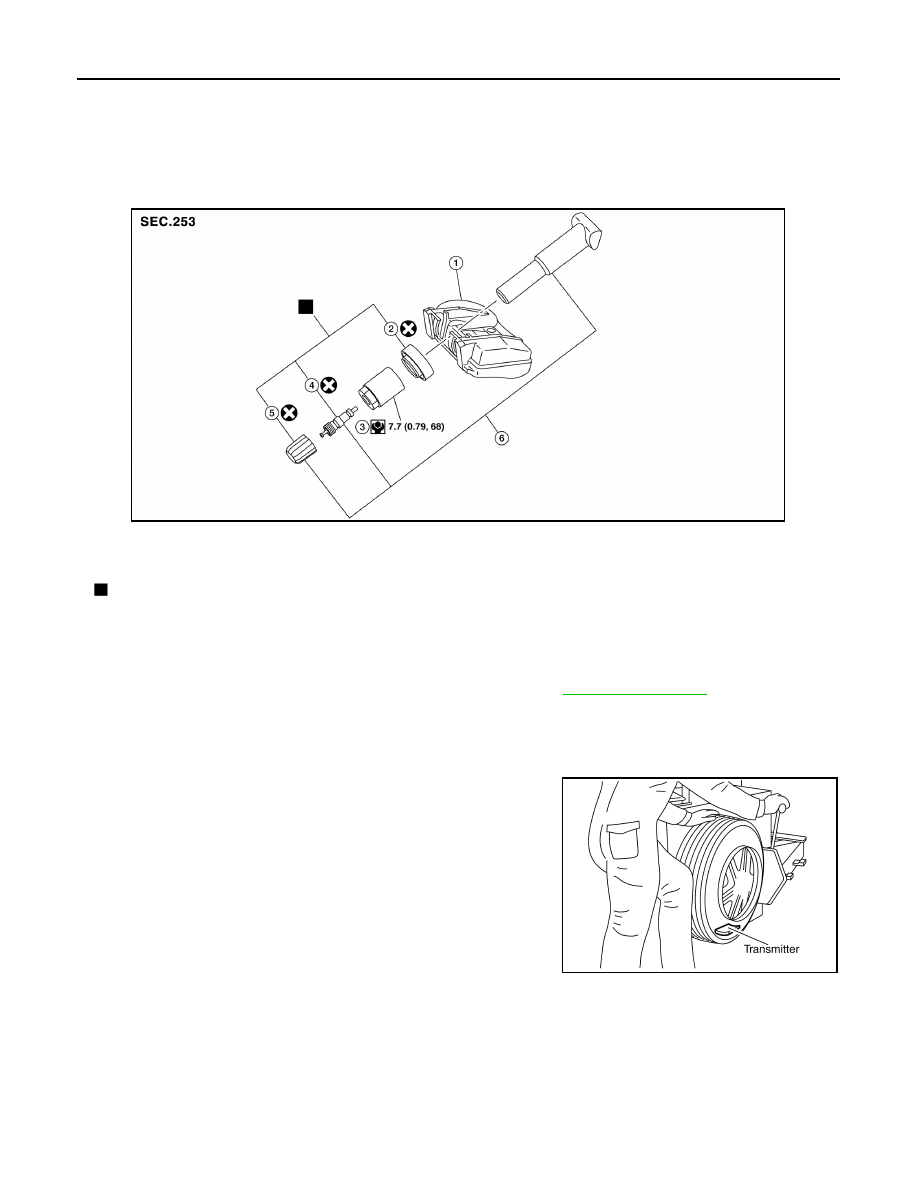

Exploded View

INFOID:0000000009466855

Removal and Installation

INFOID:0000000009466856

REMOVAL

1. Remove road wheel and tire assembly using power tool. Refer to

WT-60, "Adjustment"

.

2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the road wheel valve

stem assembly for the purpose of road wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow transmitter to fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone lubricant, and remove outside of tire from

the road wheel. Reach inside the tire and remove the transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

• Be sure not to damage the road wheel or transmitter.

• Do not allow lubricant to make contact with transmitter.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

road wheel.

1.

Transmitter (tire pressure sensor)

2.

O-ring

3.

Valve stem nut

4.

Valve core

5.

Valve cap

6.

Valve stem assembly

:

Parts that are replaced as a set when the tire is replaced.

AWEIA0212GB

SEIA0047E

TRANSMITTER

WT-63

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

• Be sure not to damage the road wheel.

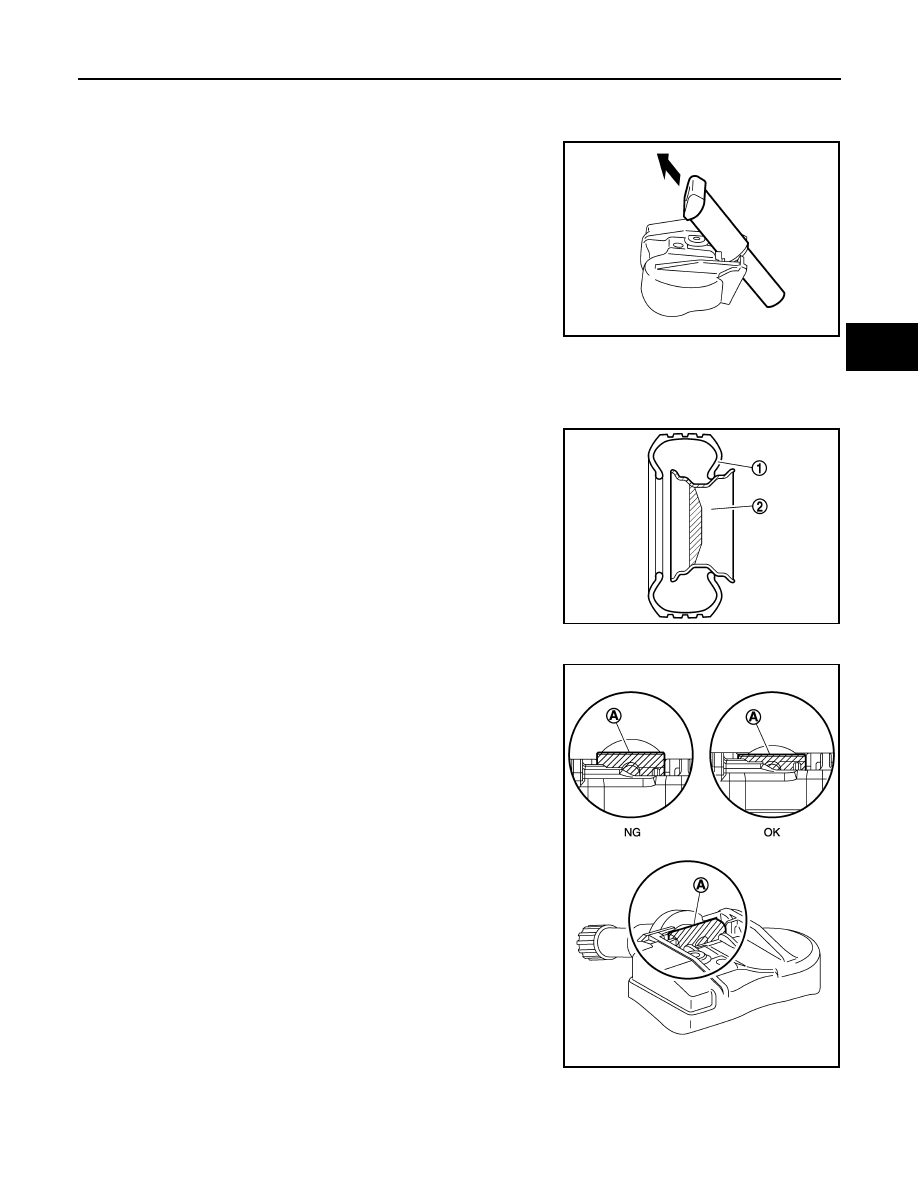

6. Remove the valve stem from the transmitter as shown.

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

2. Install the tire inside bead (1) onto the road wheel (2) in the posi-

tion shown.

3. Install the valve stem to the transmitter.
4. Install the O-ring to the transmitter.

CAUTION:

• Do not reuse O-ring

• Insert O-ring to the base of the transmitter.

• The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

JSEIA0378ZZ

JPEIC0105ZZ

JSEIA0376GB

WT-64

< UNIT REMOVAL AND INSTALLATION >

TRANSMITTER

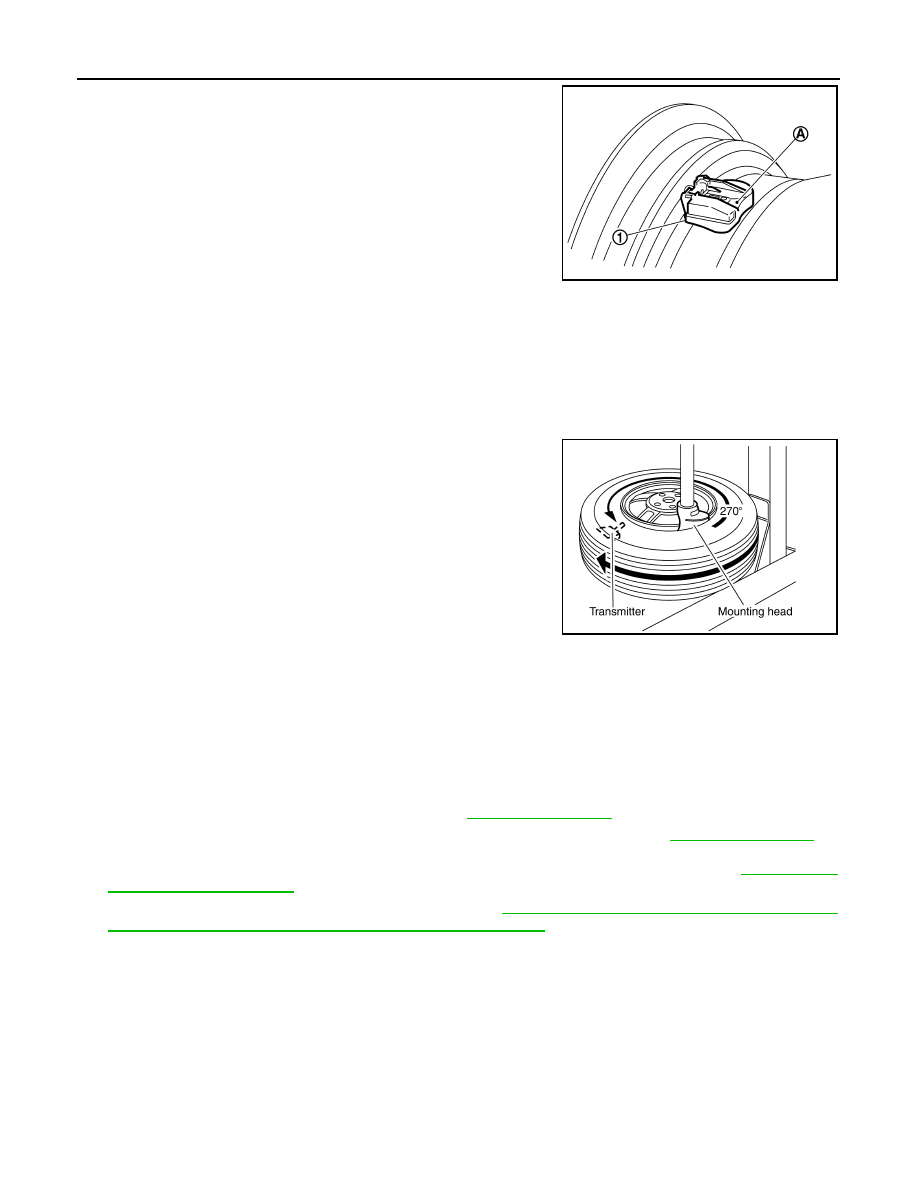

5. Install transmitter (1) to road wheel while pressing at position

(A).

CAUTION:

• Check that O-ring contacts horizontally with road wheel.

• Check that the base of the valve stem is positioned in the

groove of the metal plate.

6. Install and tighten the valve stem nut to the specified torque.

CAUTION:

Do not use power tool for installation.

7. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

8. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Do not allow lubricant to make contact with transmitter.

9. Install the tire outside bead onto the road wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on

the tire with the position of the road wheel valve stem assembly for the purpose of road wheel and tire bal-

ance adjustment after installation. Ensure that the tire does not rotate relative to road wheel.

10. Install the valve core and inflate tire.

CAUTION:

Do not reuse valve core.

11. Install the valve cap.

CAUTION:

Do not reuse valve cap.

12. Balance the road wheel and tire assembly. Refer to

WT-60, "Adjustment"

.

13. Install wheel and tire assembly in appropriate wheel position on vehicle. Refer to

WT-60, "Adjustment"

.

NOTE:

If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-5, "Trans-

mitter Wake Up Operation"

.

14. Adjust neutral position of steering angle sensor. Refer to

BRC-6, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

JSEIA0377ZZ

Valve stem nut
tightening torque

: 7.7 N·m (0.79 kg-m, 68 in-lb)

WEIA0046E
