BCM (BODY CONTROL MODULE)

WT-45

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-

diagnosis results are erased automatically by turning the ignition switch OFF.

Flash Code

Malfunction part

Reference

page

15
16
17
18

Tire pressure dropped below specified value. Refer to

WT-8, "System De-

scription"

.

—

21
22
23
24

Transmitter no data (FL)
Transmitter no data (FR)
Transmitter no data (RR)
Transmitter no data (RL)

WT-13

31
32
33
34

Transmitter checksum error (FL)
Transmitter checksum error (FR)
Transmitter checksum error (RR)
Transmitter checksum error (RL)

WT-15

35
36
37
38

Transmitter pressure data error (FL)
Transmitter pressure data error (FR)
Transmitter pressure data error (RR)
Transmitter pressure data error (RL)

WT-17

41
42
43
44

Transmitter function code error (FL)
Transmitter function code error (FR)
Transmitter function code error (RR)
Transmitter function code error (RL)

WT-15

45
46
47
48

Transmitter battery voltage low (FL)
Transmitter battery voltage low (FR)
Transmitter battery voltage low (RR)
Transmitter battery voltage low (RL)

WT-15

52

Vehicle speed signal

WT-19

53

TPMS malfunction in BCM

WT-20

WT-46

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

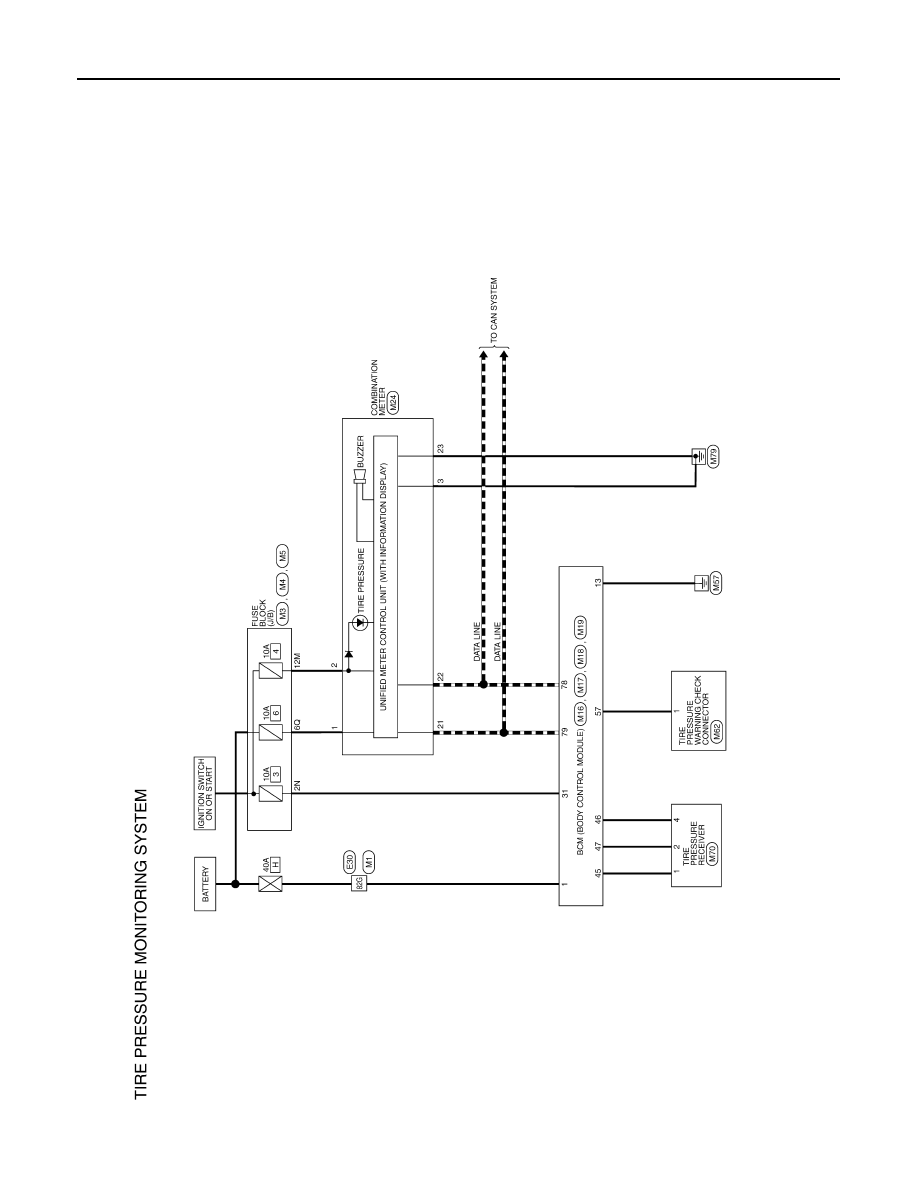

WIRING DIAGRAM

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

INFOID:0000000010046361

ABEWA0082GB

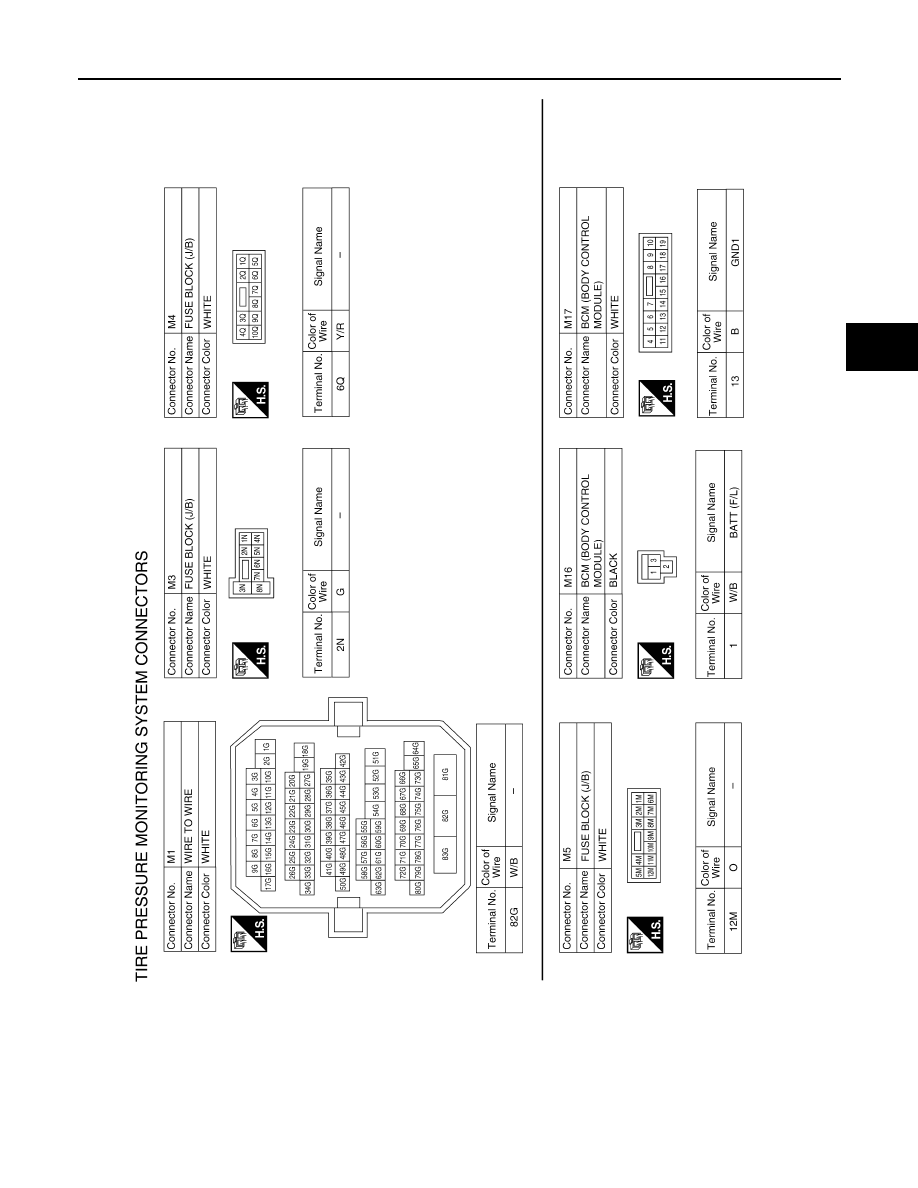

TIRE PRESSURE MONITORING SYSTEM

WT-47

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ABEIA0165GB

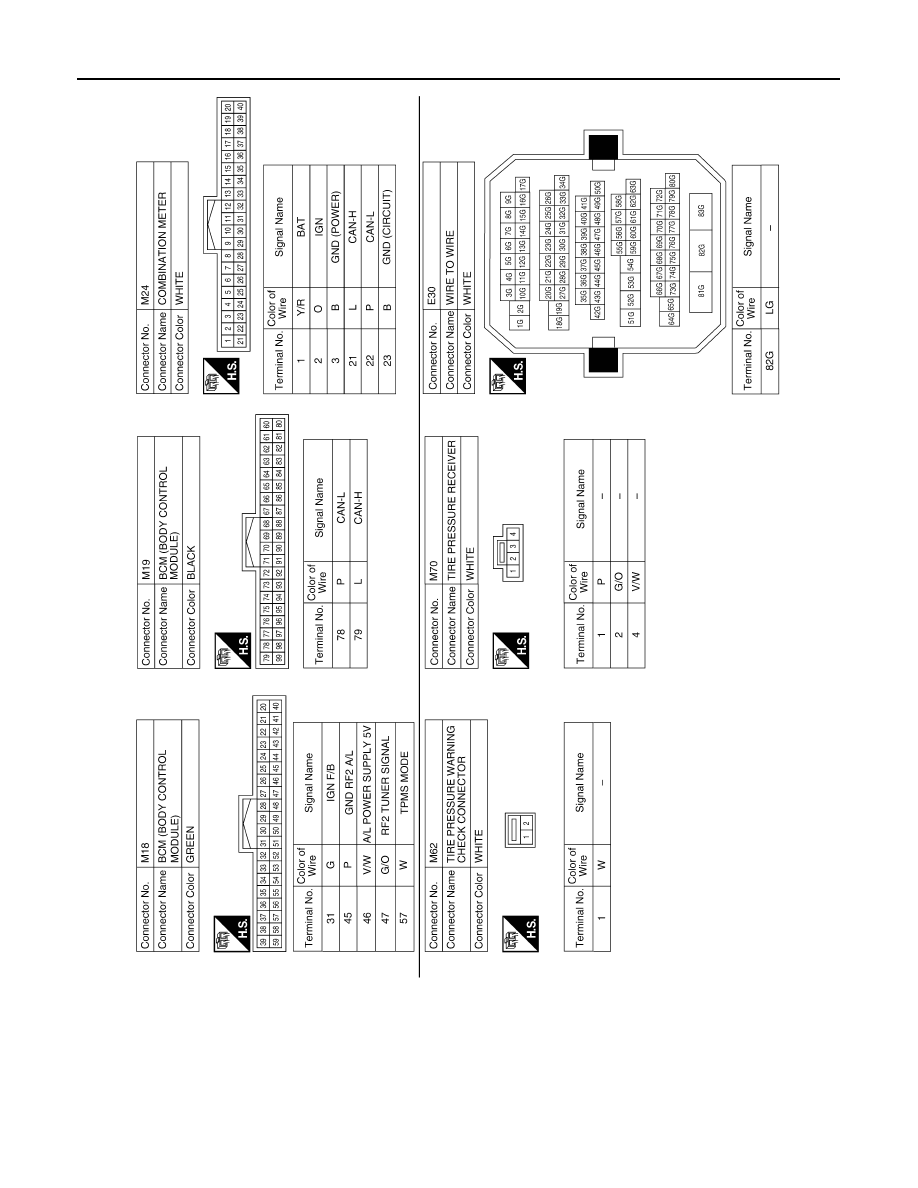

WT-48

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0164GB
