WCS-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (METER)

NOTE:
Some items are not available due to vehicle specification.
*: The monitor will indicate “OFF” even though the brake warning lamp is on if either of the following conditions exist.
• The parking brake is engaged
• The brake fluid level is low

ST SFT DWN SW [ON/OFF]

X

Displays [ON/OFF] condition of steering shift-down switch.

AT SFT UP SW [ON/OFF]

X

Displays [ON/OFF] condition of CVT shift-up switch.

AT SFT DWN SW [ON/OFF]

X

Displays [ON/OFF] condition of CVT shift-down switch.

PKB SW [ON/OFF]

X

Displays [ON/OFF] condition of parking brake switch.

BUCKLE SW [ON/OFF]

X

Status of seat belt buckle switch LH.

BRAKE OIL SW [ON/OFF]

X

Displays [ON/OFF] condition of brake fluid level switch.

MODE A SW [ON/OFF]

X

Displays [ON/OFF] condition of mode switch A.

MODE B SW [ON/OFF]

X

Displays [ON/OFF] condition of mode switch B.

DISTANCE [km] or [mile]

X

Displays the value, which is calculated by vehicle speed signal, fuel
gauge and fuel consumption from ECM.

OUTSIDE TEMP [

°C]

X

Displays the ambient air temperature, which is input from ambient
sensor.

FUEL LOW SIG [ON/FF]

X

Displays [ON/OFF] condition of low-fuel warning signal.

BUZZER [ON/OFF]

X

X

Displays [ON/OFF] condition of buzzer.

TPMS PRESS L [ON/FF]

X

Status of low tire pressure warning judged from low tire pressure
warning lamp signal received from BCM with CAN communication
line.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

WCS

DIAGNOSIS SYSTEM (BCM)

WCS-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (BCM)

BUZZER
BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000010054753

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

PUSH -SW [On/Off]

Indicates condition of push button ignition switch

UNLK SEN -DR [On/Off]

Indicates condition of door unlock sensor

VEH SPEED 1 [km/h]

Indicates vehicle speed signal received from ABS on CAN communication line

KEY SW -SLOT [On/Off]

Indicates condition of key slot

TAIL LAMP SW [On/Off]

Indicates condition of combination switch

FR FOG SW [On/Off]

Indicates condition of front fog lamp switch

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH

Test Item

Description

IGN KEY WARN ALM

This test is able to check key warning chime operation [On/Off].

SEAT BELT WARN TEST

This test is able to check seat belt warning chime operation [On/Off].

ID REGIST WARNING

This test is able to check ID regist warning chime operation [On/Off].

LIGHT WARN ALM

This test is able to check light warning chime operation [On/Off].

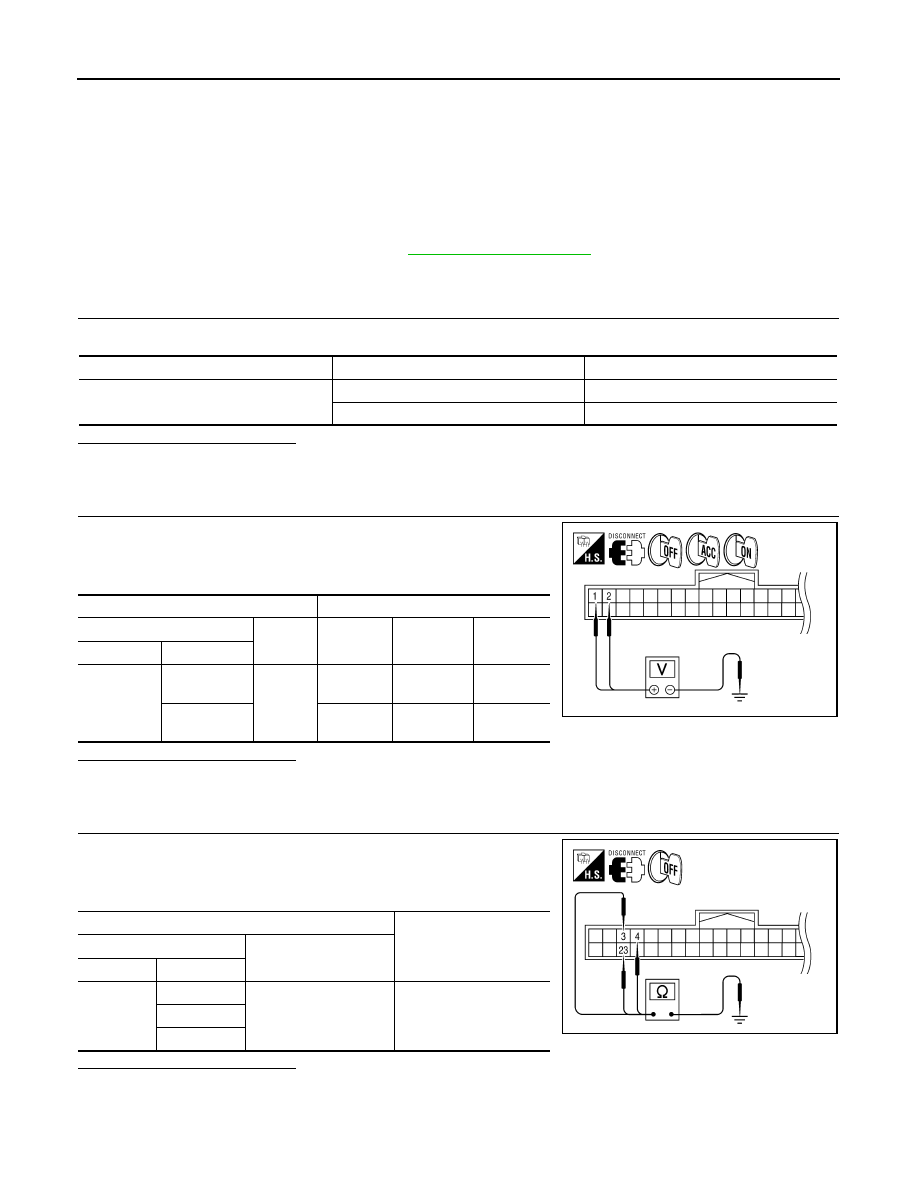

WCS-18

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER
COMBINATION METER : Diagnosis Procedure

INFOID:0000000010054754

Regarding Wiring Diagram information, refer to

MWI-87, "Wiring Diagram"

.

1.

CHECK FUSES

Check for blown combination meter fuses.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect combination meter connector.

2. Check voltage between combination meter harness connector

M24 terminals 1, 2, and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check harness for open between combination meter and fuse.

3.

GROUND CIRCUIT CHECK

1. Turn ignition switch OFF.

2. Check continuity between combination meter harness connector

terminals 3, 4, 23 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connector.

BCM (BODY CONTROL MODULE)

Unit

Power source

Fuse No.

Combination meter

Battery 6

Ignition switch ON or START

4

Terminals

Ignition switch position

(+)

(–)

OFF

ON

START

Connector

Terminal

M24

1

Ground

Battery
voltage

Battery
voltage

Battery
voltage

2

0V

Battery

 voltage

Battery
voltage

AWNIA1766ZZ

Terminals

Continuity

(+)

(–)

Connector

Terminal

M24

3

Ground

Yes

4

23

AWNIA1767ZZ

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000010054755

Regarding Wiring Diagram information, refer to

BCS-67, "Wiring Diagram"

.

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuses or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

H

11

10

24

7

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

M18

24

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes
