TM-172

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

CVT SHIFT SELECTOR

4. Check that CVT shift selector stops at each position with the feel of engagement when it is moved through

all the positions. Check that the actual position of CVT shift selector matches the position shown by shift

position indicator and manual lever on the transaxle.

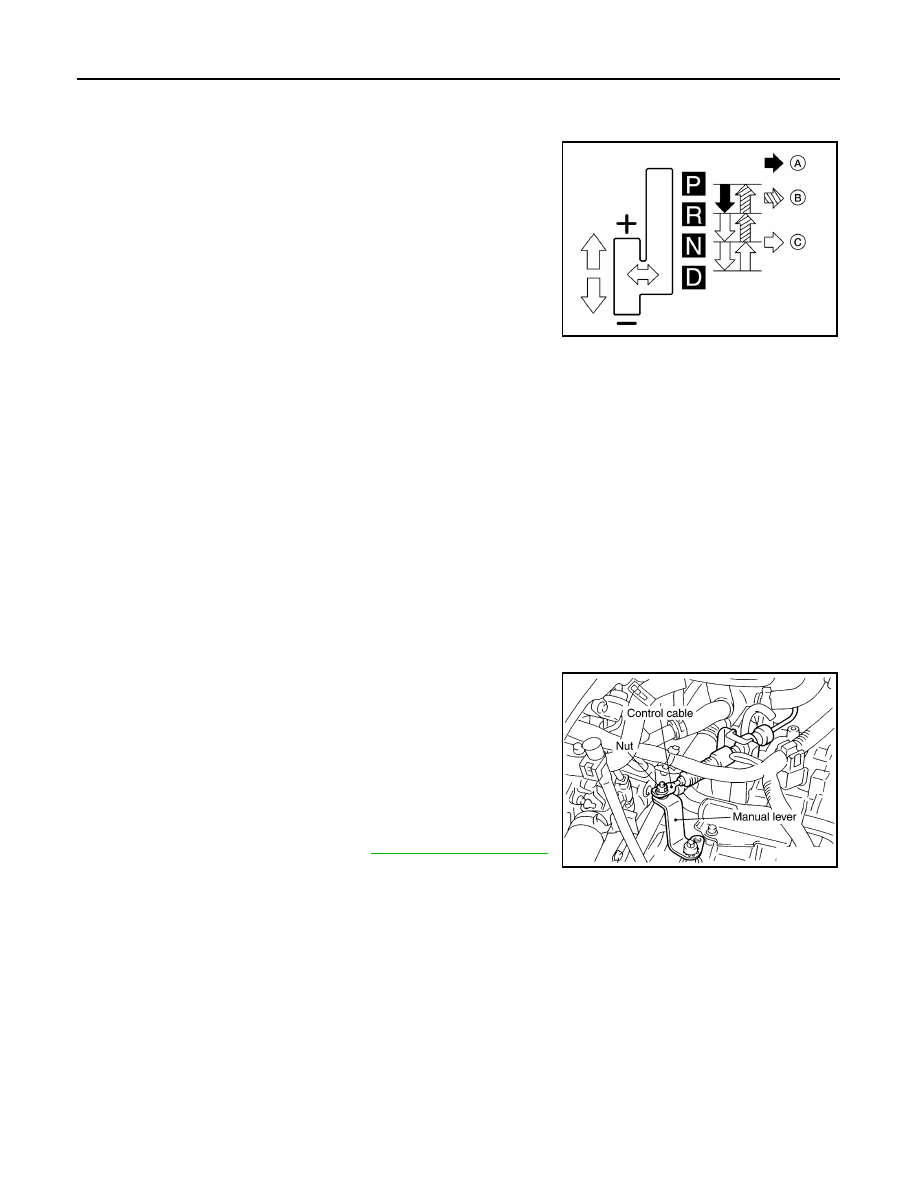

5. The method of operating CVT shift selector to individual posi-

tions correctly should be as shown.

• (A): Press shift selector handle button to operate CVT shift

selector, while depressing the brake pedal.

• (B): Press shift selector handle button to operate CVT shift

selector.

• (C): CVT shift selector can be operated without pressing shift

selector handle button.

6. When shift selector handle button is pressed in “P”, “R”, “N” or

“D” position without applying forward/backward force to CVT

shift selector, check shift selector handle button operation for

sticking.

7. Check that back-up lamps illuminate only when CVT shift selector is placed in the “R” position.
8. Check that back-up lamps do not illuminate when CVT shift selector is pushed toward the “R” position

when in the “P” or “N” position.

CAUTION:

Check the lighting without pressing shift selector handle button.

9. Check that the engine can only be started with CVT shift selector in the “P” and “N” positions.
10. Check that transaxle is locked completely when CVT shift selector is in “P” position.
11. Check the operation of manual mode.

1. When CVT shift selector is set to manual shift gate, make sure manual mode is displayed on combi-

nation meter.

2. Shift CVT shift selector to "+" and "-" sides, and make sure set shift position changes.

ADJUSTMENT

1. Set the park brake.

CAUTION:

Make sure the vehicle cannot move with parking brake set.

2. Loosen the control cable nut and place the manual lever in "P"

position.

3. Place the CVT shift selector in “P” position.
4. Push the control cable in with a load of 9.8 N (approximately 1

kg, 2.2 lb). Release the cable and temporarily tighten the control

cable nut.

NOTE:

Do not move the manual lever. Make sure the manual lever

stays in the "P" position.

5. Tighten the control cable nut. Refer to

TM-173, "Exploded View"

.

CAUTION:

Secure manual lever when tightening nut.

6. Check the operation of the CVT.

ALDIA0216GB

SCIA2001E

CONTROL CABLE

TM-173

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL CABLE

Exploded View

INFOID:0000000009469200

Removal and Installation

INFOID:0000000009469201

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.
1. Remove front air duct. Refer to

EM-24, "Removal and Installation"

.

2. Remove air cleaner case assembly. Refer to

EM-24, "Removal and Installation"

.

3. Remove control cable nut (

).

4. Remove control cable (1) from manual lever (A).
5. Remove lock plate (2) from control cable.
6. Remove control cable from bracket (3).
7. Remove center console. Refer to

IP-14, "Removal and Installa-

tion"

.

8. Remove control cable (1) from CVT shift selector assembly (2).

• (A): Ribbed surface

1.

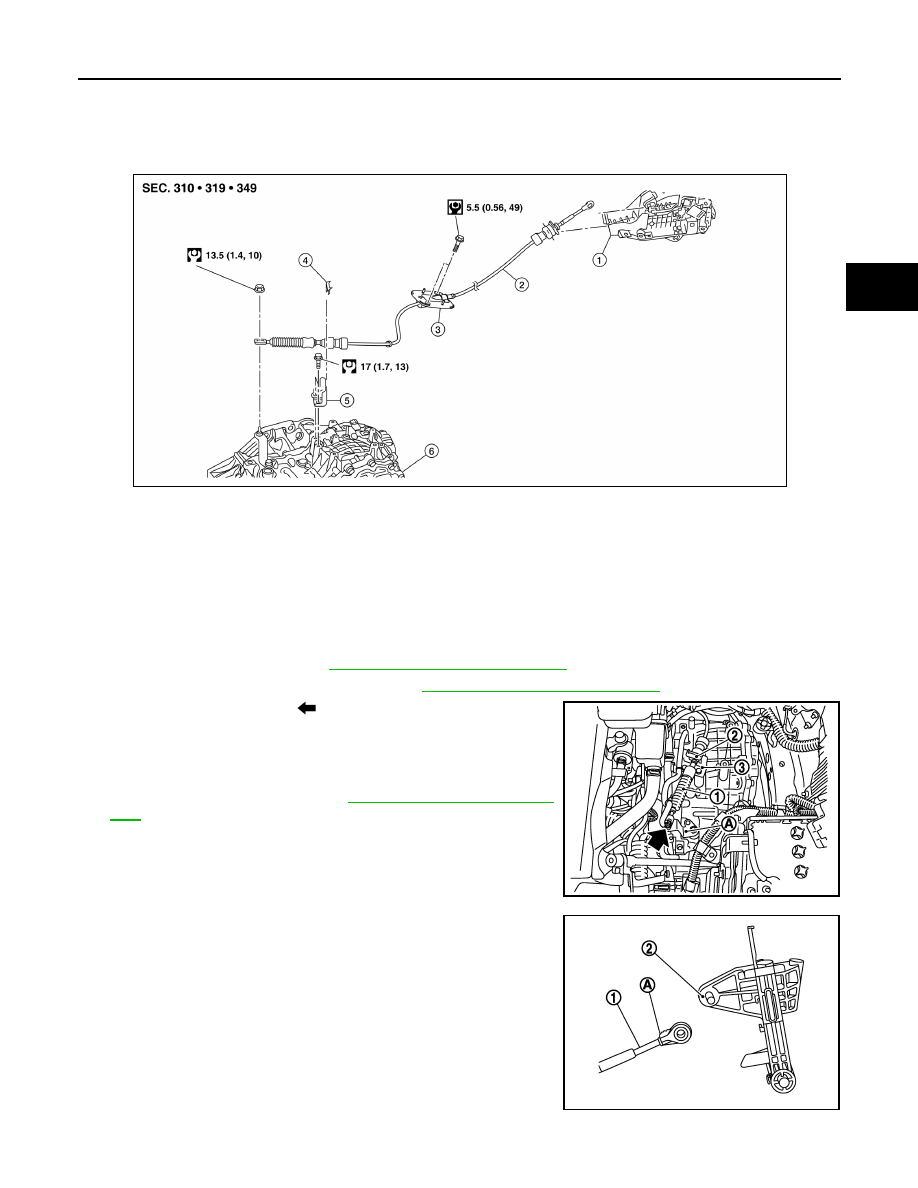

CVT shift selector assembly

2.

Control cable

3.

Retainer grommet

4.

Lock plate

5.

Bracket

6.

Transaxle assembly

AWDIA1023ZZ

JPDIA0601ZZ

JPDIA0609ZZ

TM-174

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

CONTROL CABLE

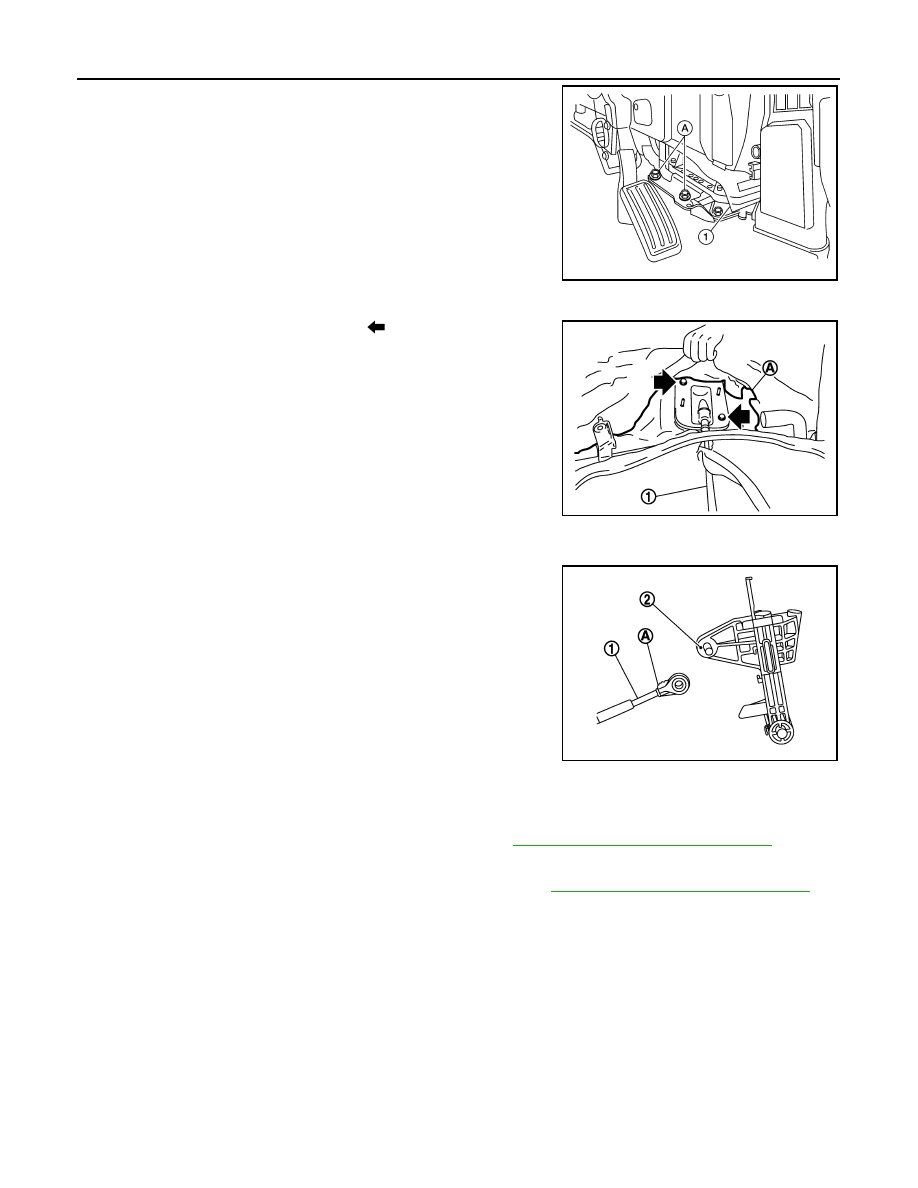

9. Remove the bolts (A) from the support bracket (1) (if equipped).

10. Remove bracket covering the retainer grommet.
11. Remove the retainer grommet bolts (

) and the retainer grom-

met.

12. Remove the control cable (1) from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• When installing control cable (1) to CVT shift selector assembly

(2), make sure that control cable is fully pressed in with the ribbed

surface (A) facing upward.

Inspection and Adjustment

INFOID:0000000009469202

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-171, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-171, "Inspection and Adjustment"

.

ALCIA0087ZZ

(A)

: Dash trim

JPDIA0629ZZ

JPDIA0609ZZ

PADDLE SHIFTER

TM-175

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PADDLE SHIFTER

Exploded View

INFOID:0000000009469203

Removal and Installation

INFOID:0000000009469204

REMOVAL

1. Park the vehicle on a level surface.
2. Remove the driver air bag module. Refer to

SR-12, "Exploded View"

.

3. Remove the steering wheel. Refer to

ST-17, "Removal and Installation"

.

4. Remove the column cover. Refer to

IP-13, "Removal and Installation"

.

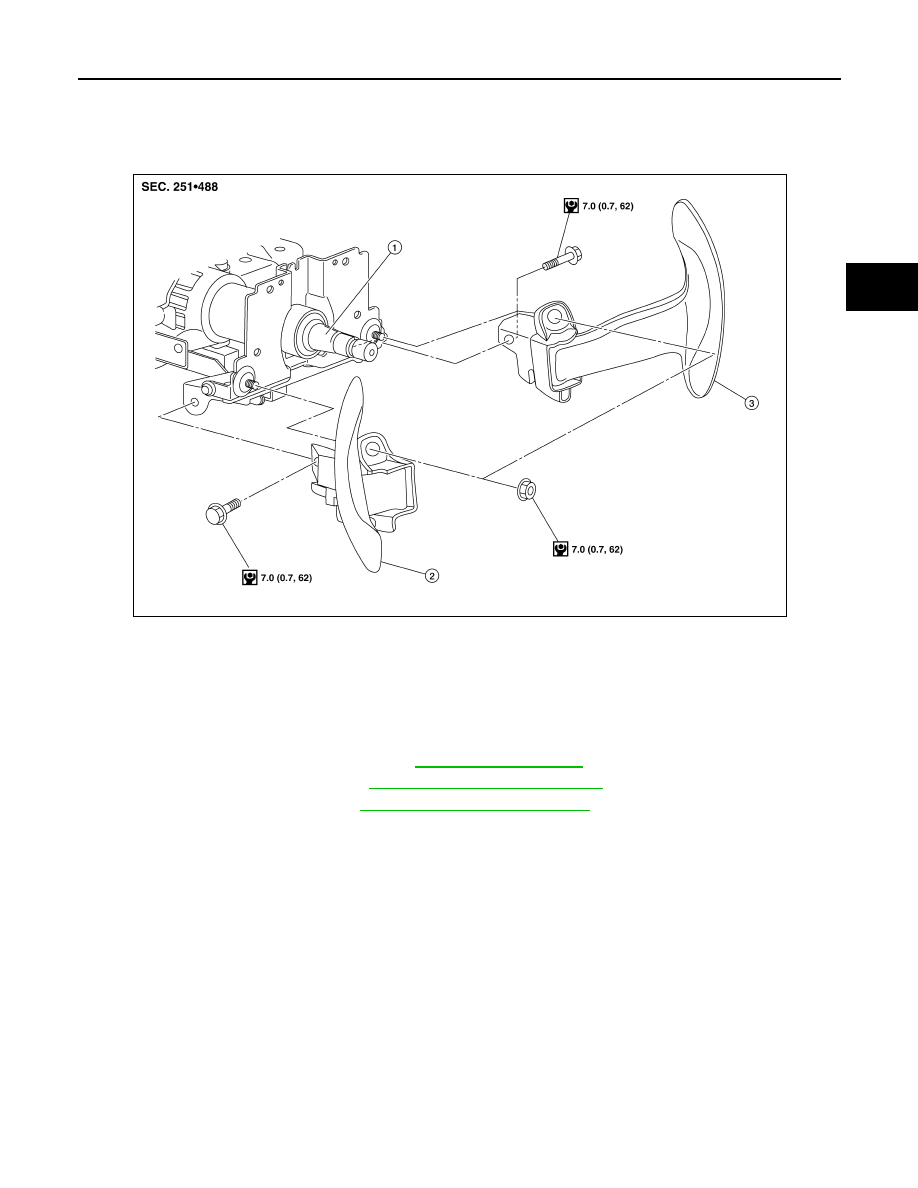

1.

Steering column assembly

2.

Paddle shifter (shift-down)

3.

Paddle shifter (shift-up)

AWDIA0557GB
