TM-132

< WIRING DIAGRAM >

[CVT: RE0F09B]

CVT CONTROL SYSTEM

ABDIA1175GB

CVT CONTROL SYSTEM

TM-133

< WIRING DIAGRAM >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

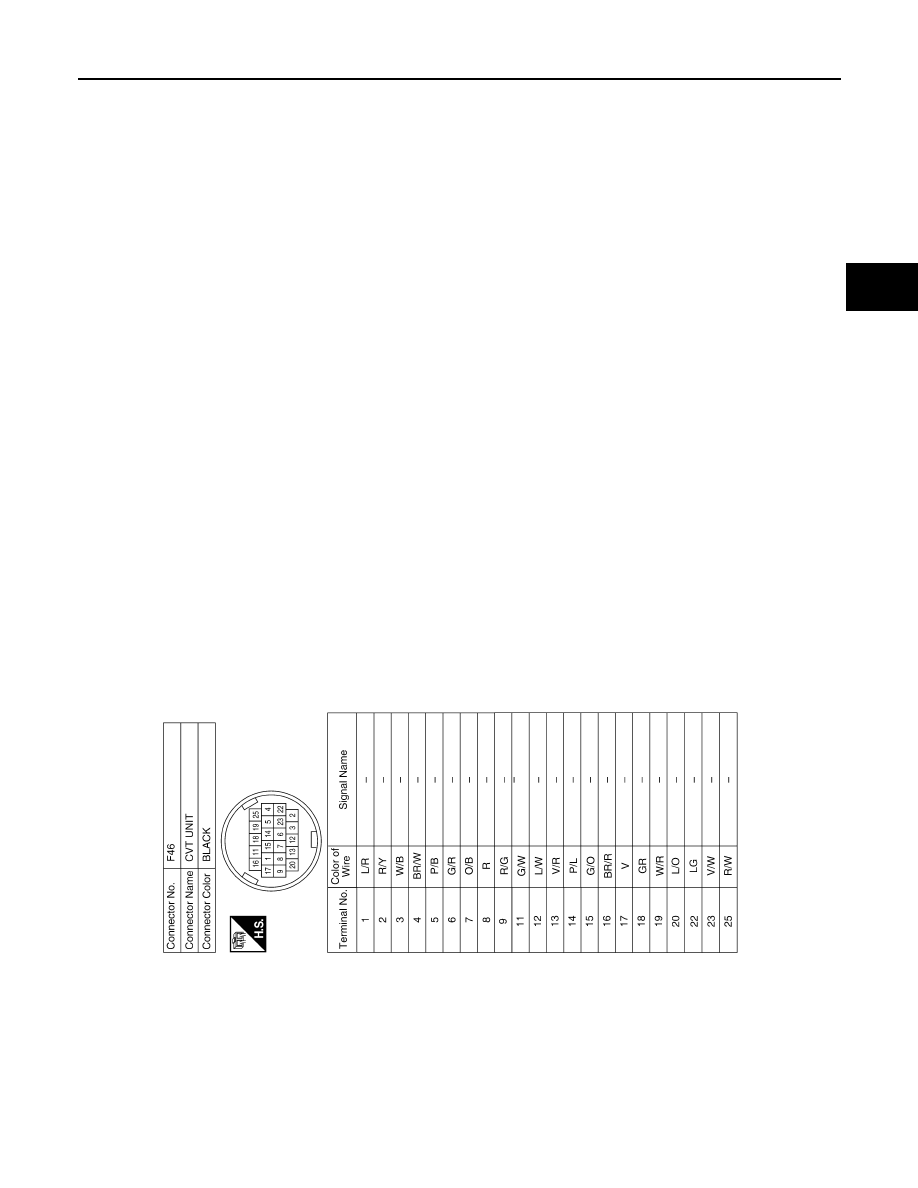

ABDIA1176GB

TM-134

< WIRING DIAGRAM >

[CVT: RE0F09B]

CVT SHIFT LOCK SYSTEM

CVT SHIFT LOCK SYSTEM

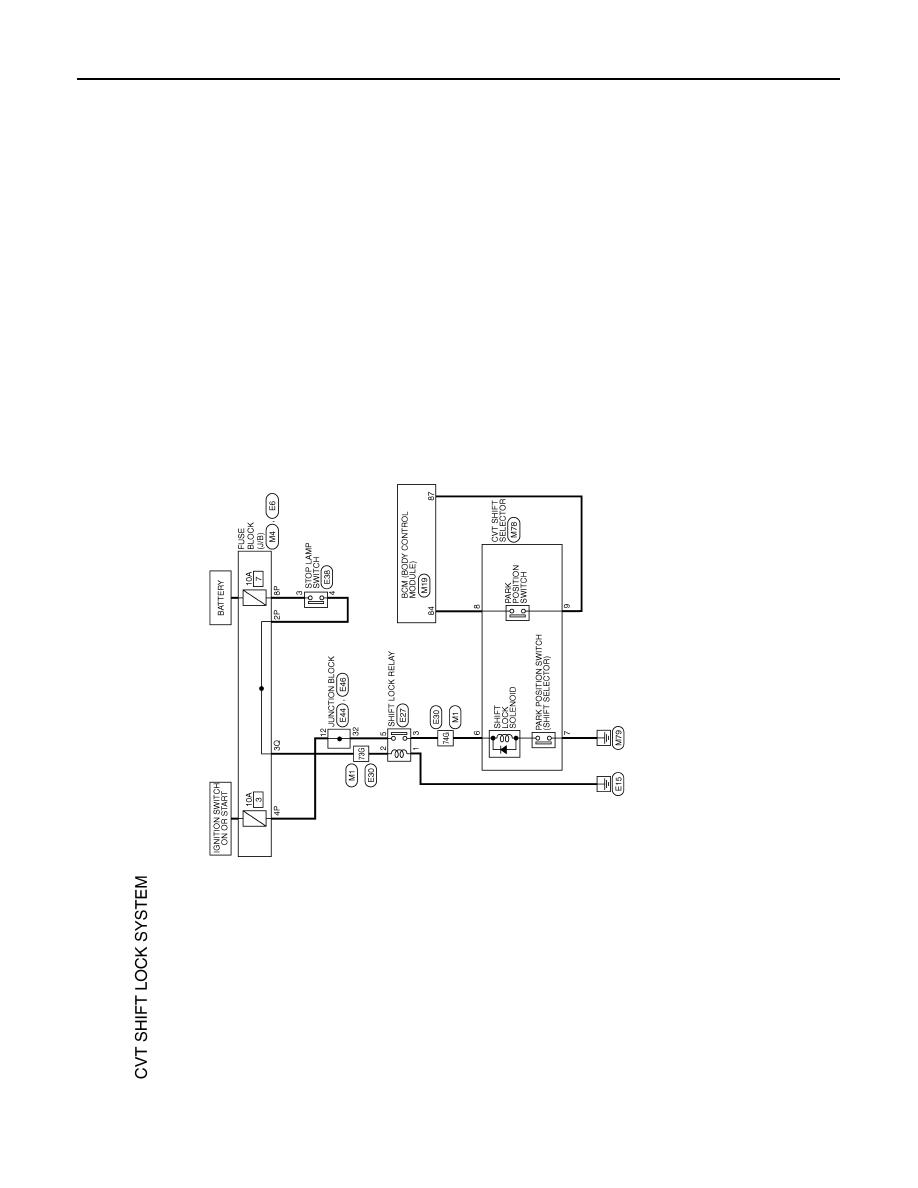

Wiring Diagram

INFOID:0000000009469172

ABDWA0706GB

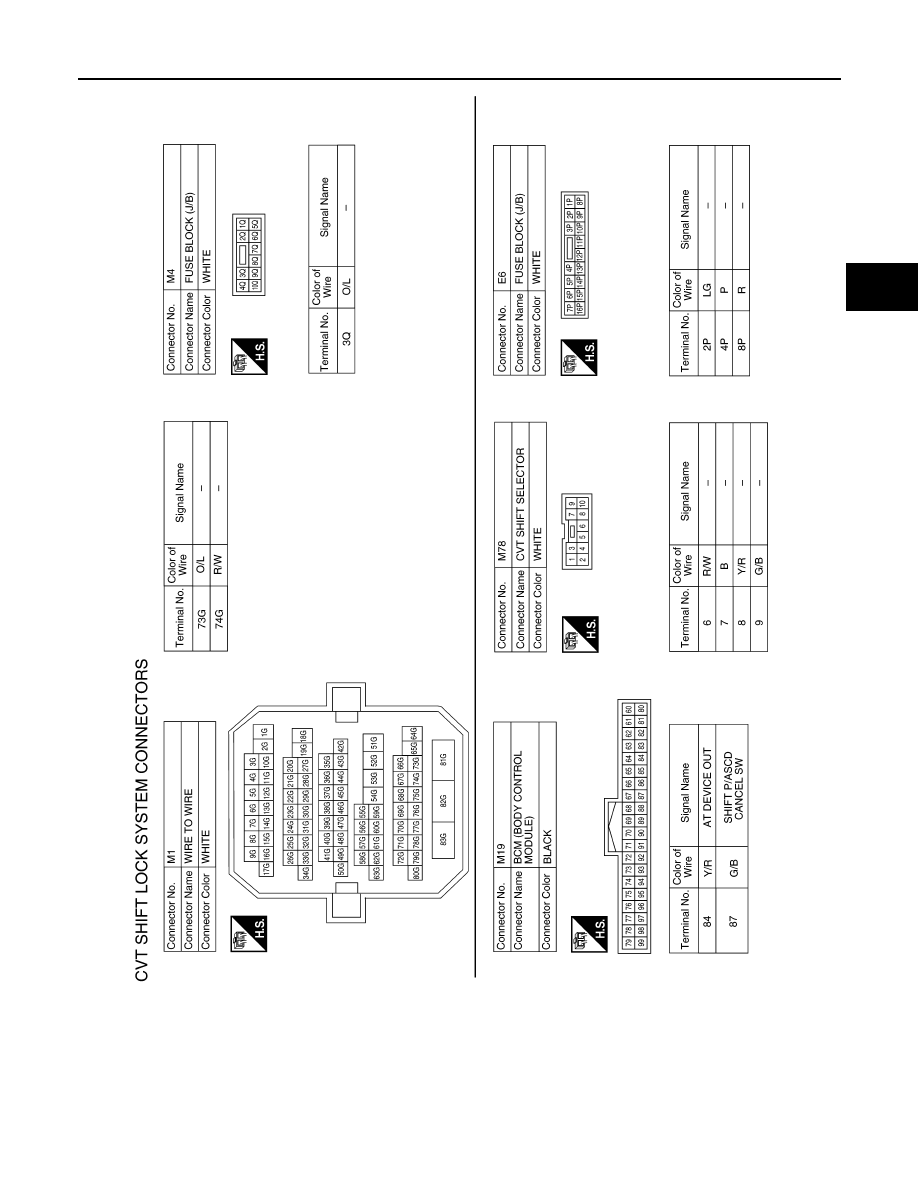

CVT SHIFT LOCK SYSTEM

TM-135

< WIRING DIAGRAM >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

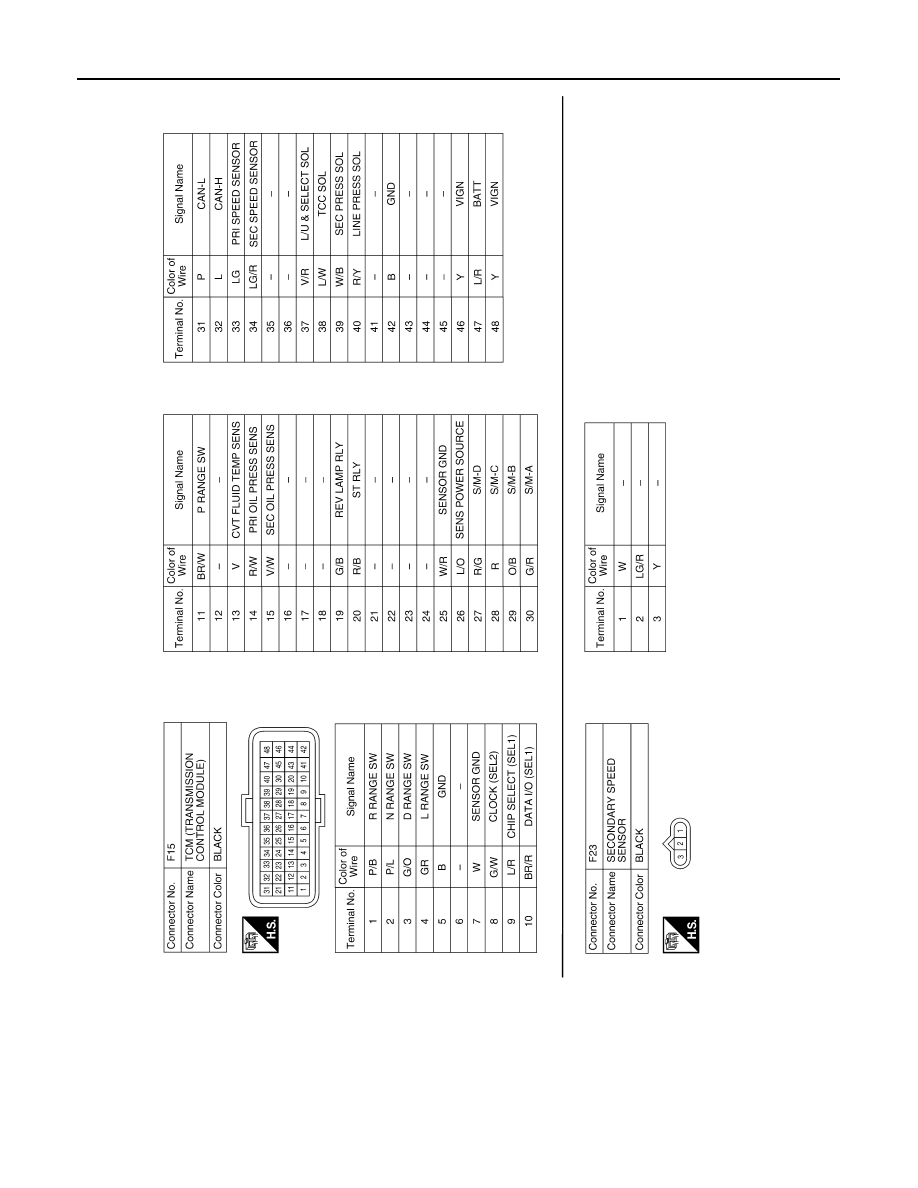

ABDIA1178GB
