SERVICE DATA AND SPECIFICATIONS (SDS)

ST-37

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

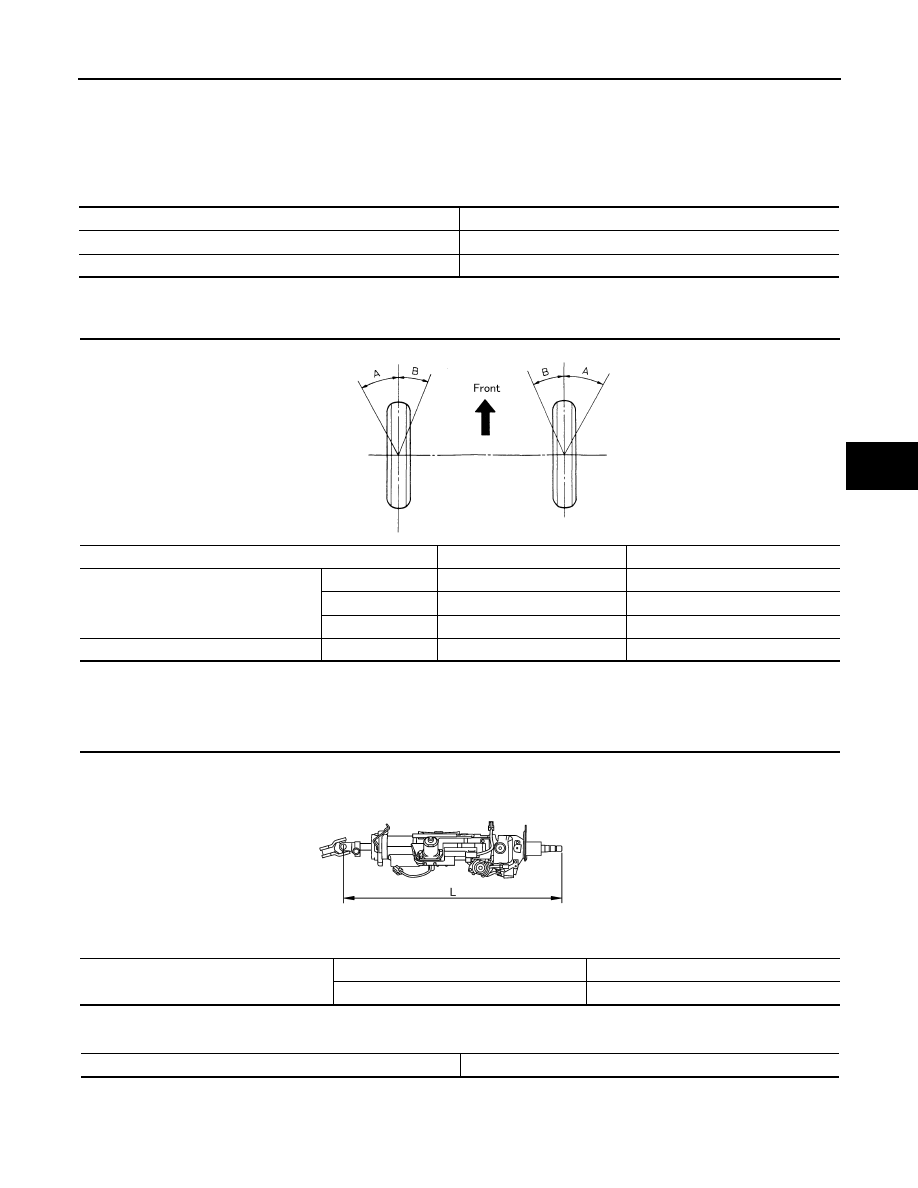

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000009465792

Steering Angle

INFOID:0000000009465793

Unit: Degree minute (Decimal Degree)

Steering Column

INFOID:0000000009465794

STEERING COLUMN LENGTH

Unit: mm (in)

STEERING COLUMN ROTATING TORQUE

 Unit: N·m (kg-m, in-lb)

TILT MECHANISM OPERATING RANGE

Steering wheel axial end play

0 mm (0 in)

Steering wheel play

0 - 35 mm (0 - 1.38 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Tire size

P245/45R18

P245/40R19

Inner wheel angle (A)

Minimum

33

° 30′ (33.5°)

33

° 30′ (33.5°)

Nominal

36

° 30′ (36.5°)

36

° 30′ (36.5°)

Maximum

37

° 30′ (37.5°)

37

° 30′ (37.5°)

Outer wheel angle (B)

Nominal

31

° 0′ (31.0°)

31

° 0′ (31.0°)

SGIA0055E

Steering column length (L)

Telescopic maximum

513 - 543 (20.20 - 21.38)

Telescopic minimum

503 - 513 (19.80 - 20.20)

SGIA1177E

Rotating torque

0 - 0.25 (0 - 0.03, 0 - 2)

ST-38

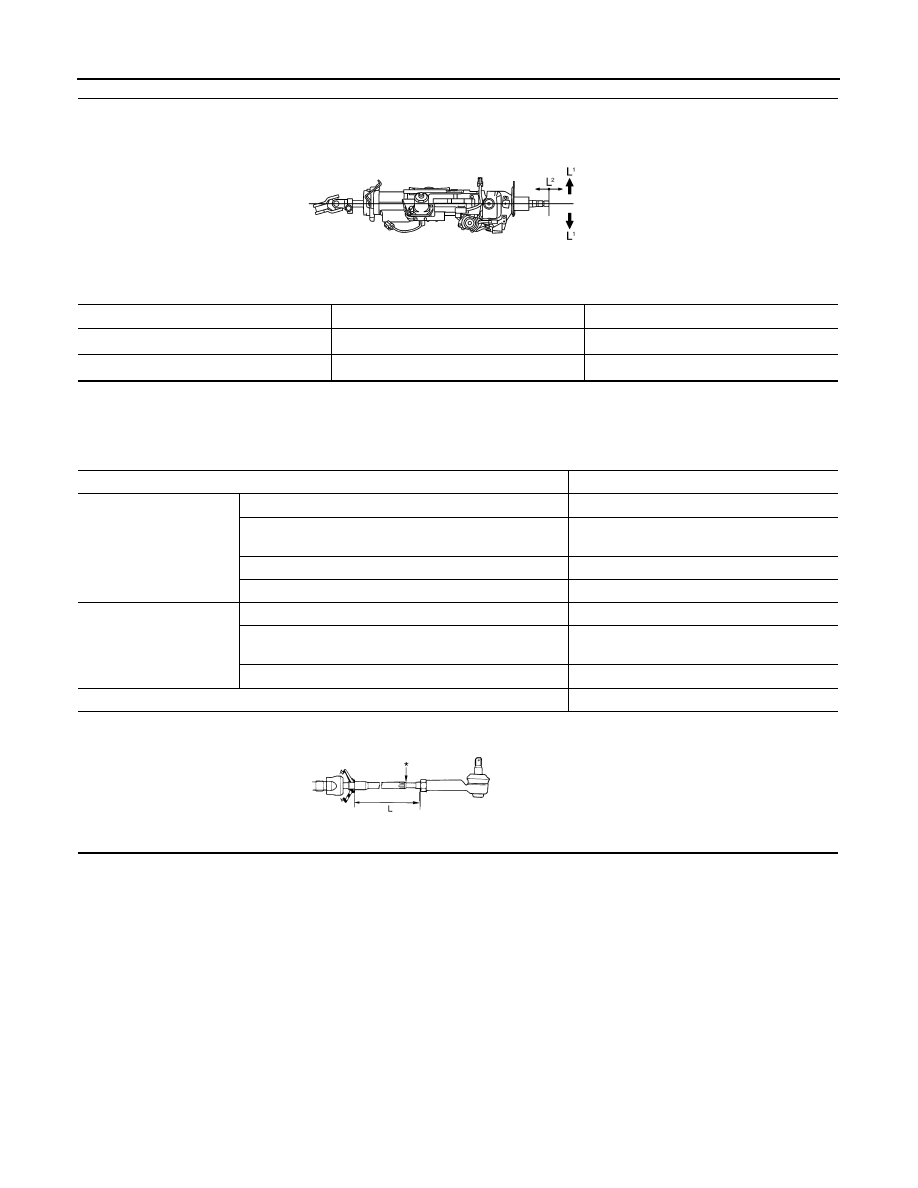

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

Steering Gear

INFOID:0000000009465795

STEERING OUTER SOCKET AND INNER SOCKET

RACK STROKE

Without electric motor

With electric motor

Tilt operating range (L

1

)

41 (1.61)

49.63 (1.95)

Telescopic operating range (L

2

)

40 (1.57)

40 (1.57)

SGIA1179E

Steering gear type

PR26AF

Outer socket

Swinging torque

0.1 - 2.9 N·m (0.01 - 0.29 kg-m, 1.0 - 25 in-lb)

• Measurement on spring balance
• Measuring point: cotter pin hole of stud

1.4 - 42.7 N (0.14 - 4.4 kg, 12 - 31 lb)

Rotating torque

0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3.0 - 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket

Swinging torque

0.1 - 7.8 N·m (0.01 - 0.79 kg-m, 1.0 - 69 in-lb)

• Measurement on spring balance
• Measuring point at * mark shown

0.8 - 64 N (0.082 - 6.5 kg, 0.18 - 14.4 lb)

Axial end play

0.2 mm (0.008 in) or less

Inner socket length (L)

119.5 mm (4.705 in) or less

SGIA0950E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-39

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

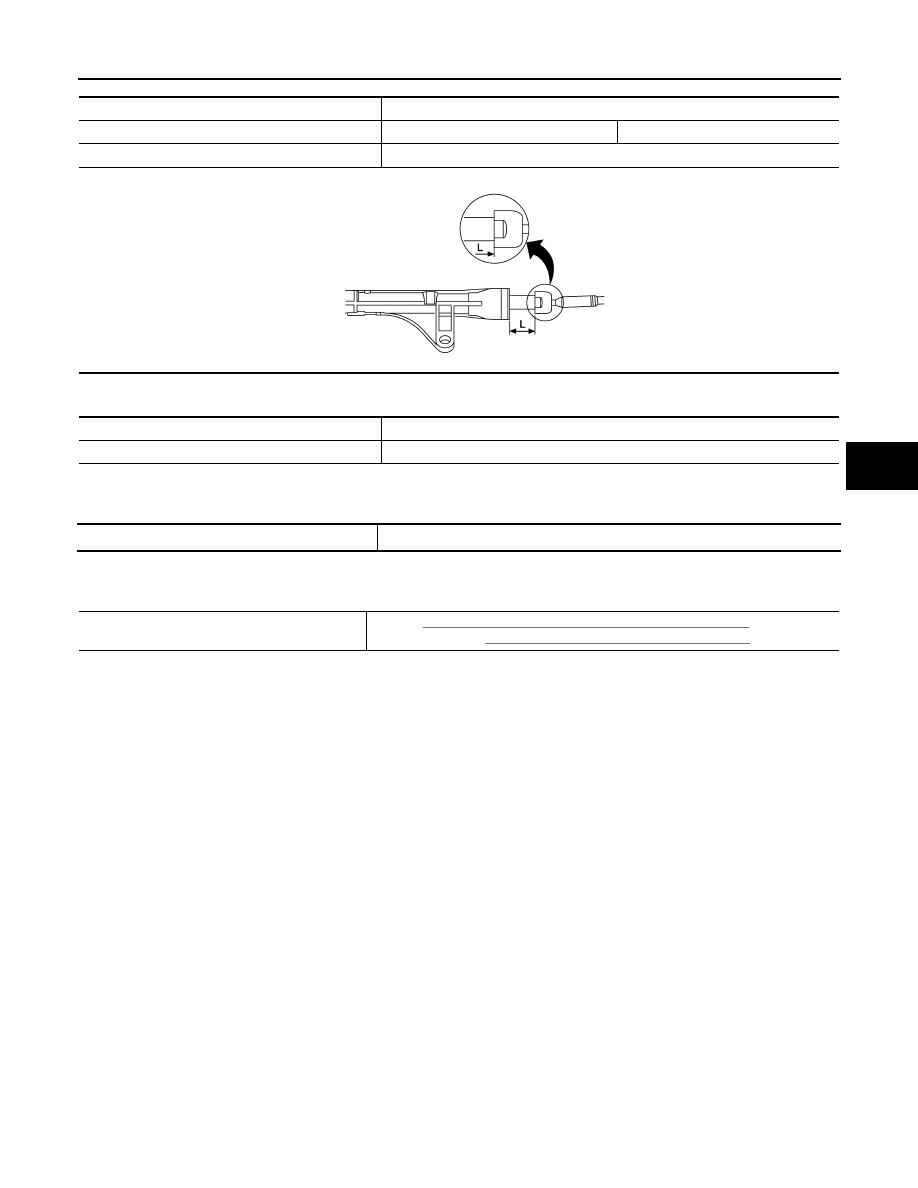

RACK SLIDING FORCE

Oil Pump

INFOID:0000000009465796

Steering Fluid

INFOID:0000000009465797

Steering gear model

PR26AF

Tire size

P245/45R18

P245/40R19

Rack stroke in neutral position (L)

69.5

±0.75 mm (2.735 ± 0.030 in)

AWGIA0003GB

Standard

301

± 49 N (30.7 ± 5 kg-f, 67.7 ± 11 lb-f)

Minimum

210 N (21.4 kg-f, 47.2 lb-f)

Relief oil pressure at 1,000 rpm

9,800 + 500/ - 300 kPa (99.96 + 5.10/ - 3.06 kg/cm

2

, 1,421.0 + 72.5/ - 43.5 psi)

Fluid type and capacity

Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubricants"

 (United States

and Canada),

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

STC-1

STEERING

C

D

E

F

H

I

J

K

L

M

SECTION

STC

A

B

STC

N

O

P

CONTENTS

STEERING CONTROL SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Work Flow  .................................................................

2

SYSTEM DESCRIPTION  ..............................

3

EPS SYSTEM  ......................................................

3

System Diagram ........................................................

3

System Description  ...................................................

3

Component Parts Location ........................................

4

Component Description .............................................

5

DTC/CIRCUIT DIAGNOSIS  ..........................

6

POWER SUPPLY AND GROUND CIRCUIT .......

6

Description ................................................................

6

Diagnosis Procedure .................................................

6

POWER STEERING SOLENOID VALVE  ...........

7

Description ................................................................

7

Diagnosis Procedure .................................................

7

Component Inspection  ..............................................

8

ENGINE SPEED SIGNAL CIRCUIT ...................

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

VEHICLE SPEED SIGNAL CIRCUIT  .................

13

Description ..............................................................

13

Diagnosis Procedure ...............................................

13

ECU DIAGNOSIS INFORMATION ..............

15

POWER STEERING CONTROL UNIT ..............

15

Reference Value ......................................................

15

Fail Safe  ..................................................................

16

WIRING DIAGRAM ......................................

17

ELECTRONICALLY CONTROLLED POWER
STEERING SYSTEM .........................................

17

Wiring Diagram ........................................................

17

SYMPTOM DIAGNOSIS  ..............................

20

UNBALANCE STEERING WHEEL TURNING
FORCE (TORQUE VARIATION) .......................

20

Description ...............................................................

20

Diagnosis Procedure  ...............................................

20

PRECAUTION ..............................................

21

PRECAUTIONS .................................................

21

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

21

Precaution for Work .................................................

21

UNIT REMOVAL AND INSTALLATION ......

22

EPS CONTROL UNIT .......................................

22

Removal and Installation  .........................................

22
