HYDRAULIC LINE

ST-29

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

HYDRAULIC LINE

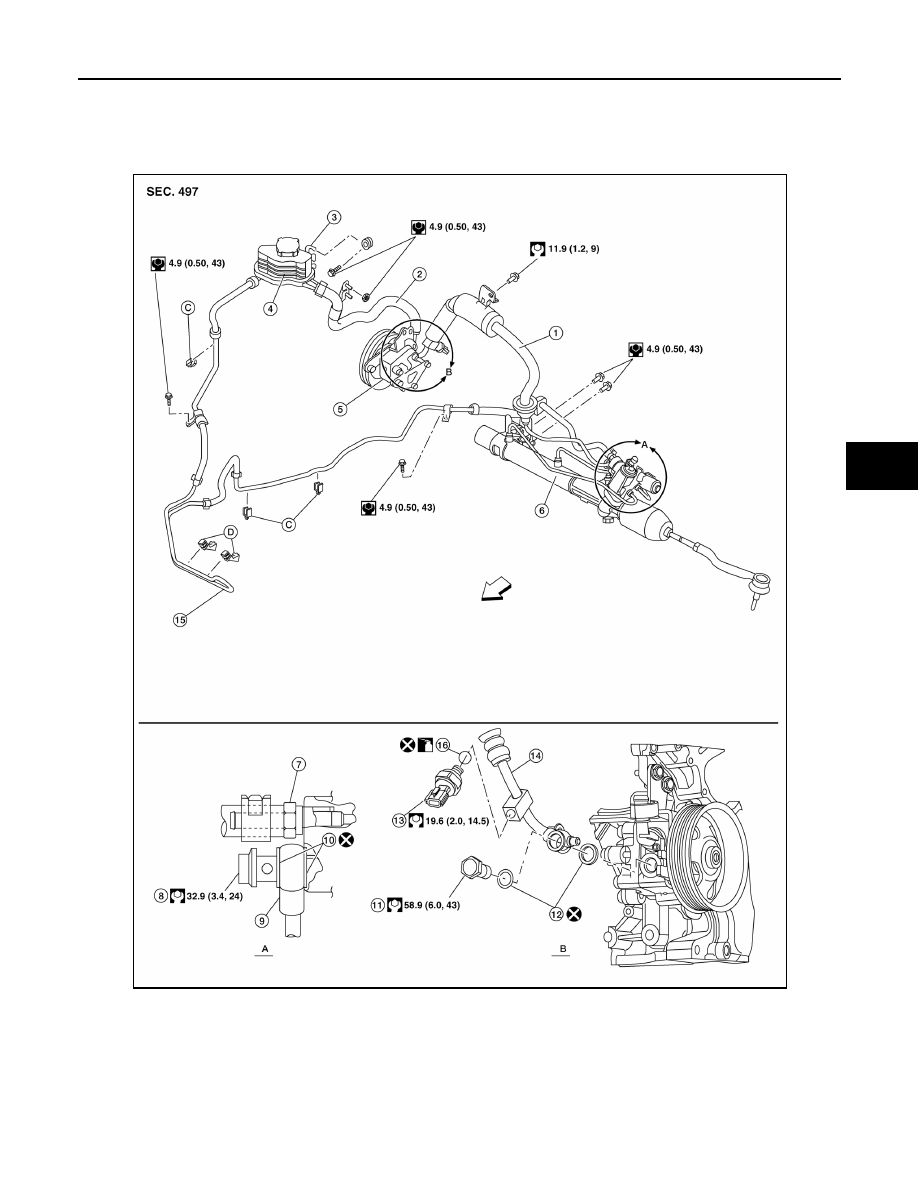

Exploded View

INFOID:0000000009465784

1.

High pressure hose

2.

Suction hose

3.

Reservoir tank bracket

4.

Reservoir tank

5.

Oil pump assembly

6.

Steering gear assembly

7.

Low pressure piping

8.

Eye bolt

9.

High pressure piping

10. Copper sealing washers

11. Eye bolt

12.

Copper sealing washers

13. Power steering pressure sensor

14. High pressure hose piping

15.

Power steering fluid cooler

AWGIA0189GB

ST-30

< REMOVAL AND INSTALLATION >

HYDRAULIC LINE

Removal and Installation

INFOID:0000000009465785

CAUTION:

• Securely insert harness connector to pressure sensor.

• Do not reuse O-rings or copper sealing washers.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

Refer to

ST-29, "Exploded View"

 for removal.

INSTALLATION

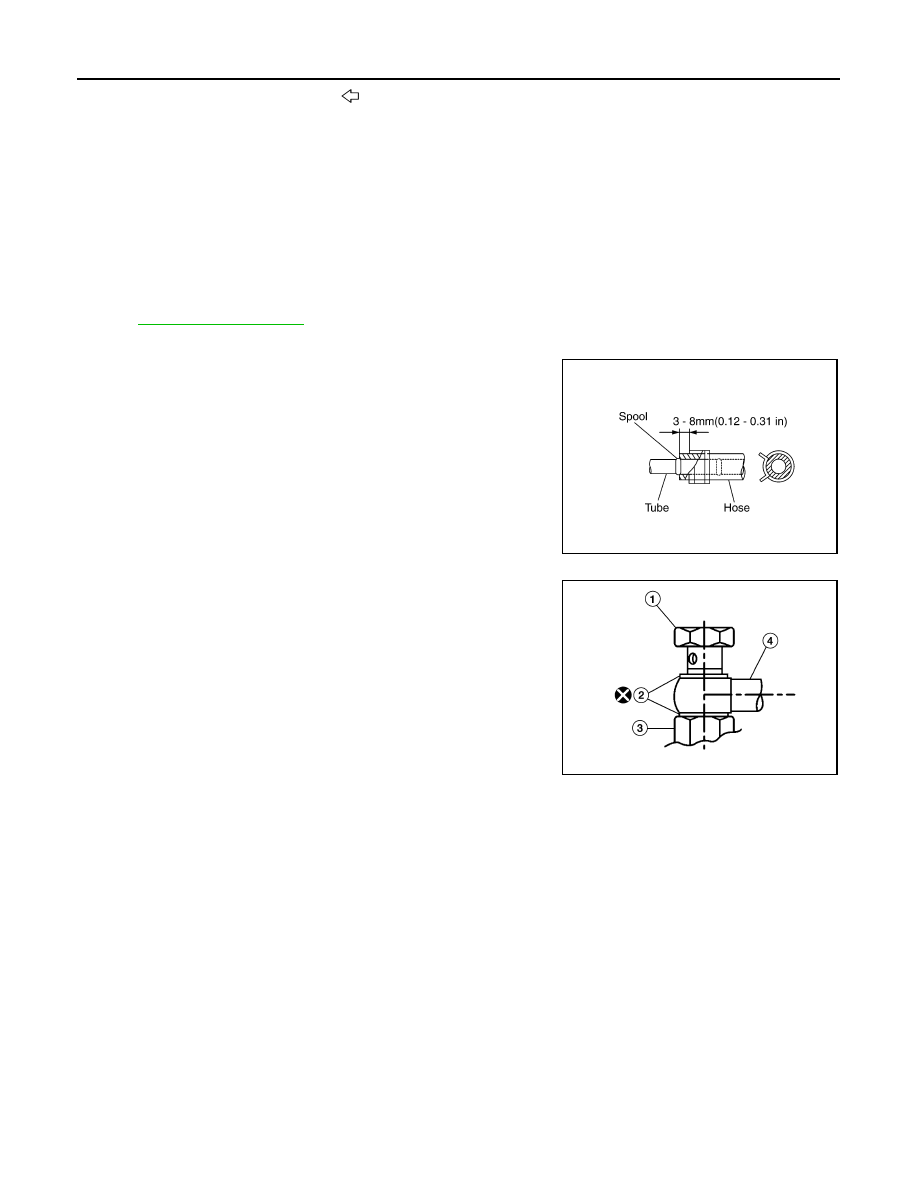

• Insert hose securely until it contacts tube spool.

CAUTION:

Do not use lubricant on hose or fitting.

• Install eye-bolt (1), copper sealing washers (2) and eye-joint

(assembled to high-pressure hose) (4) onto oil pump assembly (3),

and temporarily tighten the eye-bolt, then tighten it to the specified

torque.

CAUTION:

Do not reuse copper sealing washers.

16. O-ring

Front

A.

View A

B.

View B

SGIA0514E

AWGIA0106ZZ

STEERING COLUMN

ST-31

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

STEERING COLUMN

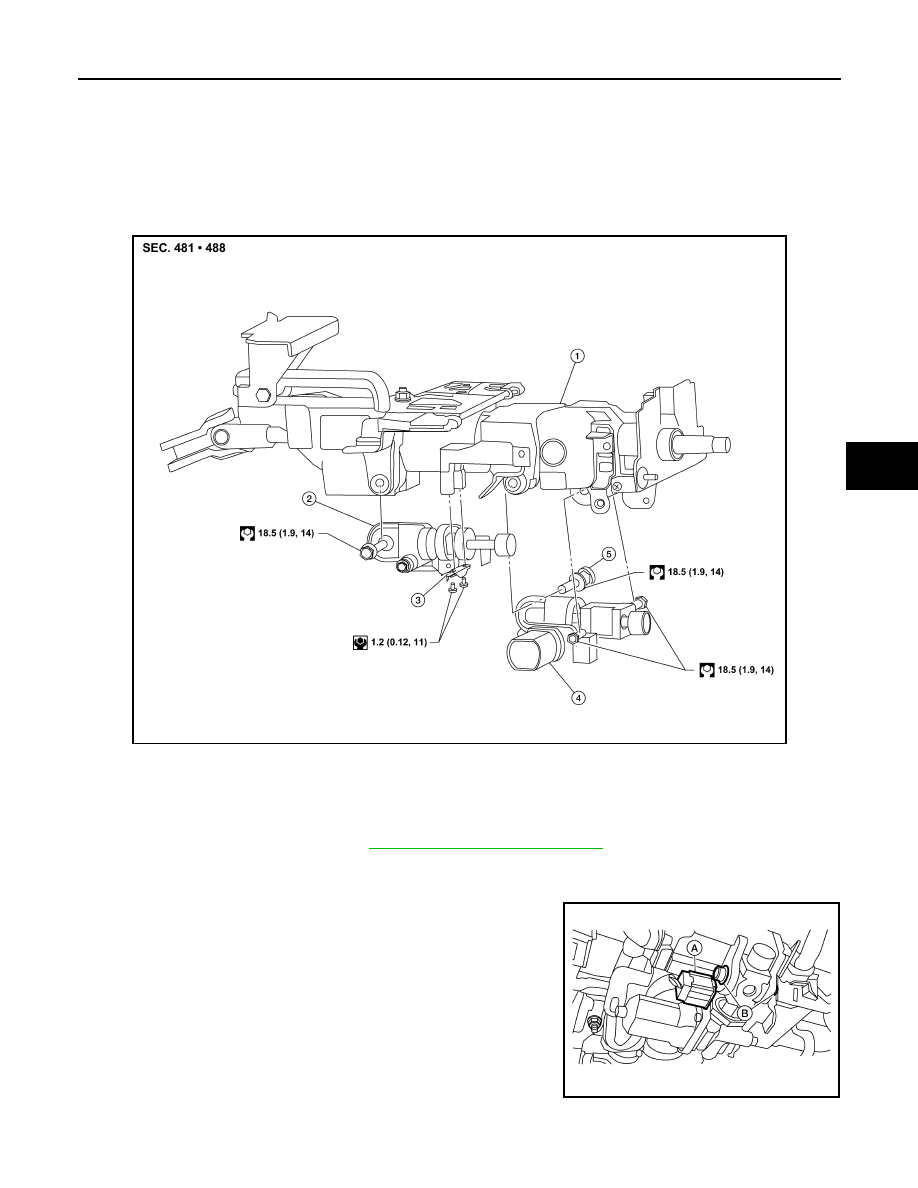

Disassembly and Assembly

INFOID:0000000009465786

The steering column assembly without electric motor is not serviceable and must be replaced as an assembly.

With Electric Motor

DISASSEMBLY

1. Remove the steering wheel. Refer to

ST-17, "Removal and Installation"

.

Tilt motor

1. Remove the tilt motor as follows.

1. Disconnect the harness connector (A) from the tilt motor.

2. Remove the tilt motor link bolts (B).

ALGIA0054GB

1.

Steering column assembly

2.

Telescope motor

3.

Telescope motor link bracket

4.

Tilt motor

5.

Tilt motor bolt cap

ALGIA0051ZZ

ST-32

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING COLUMN

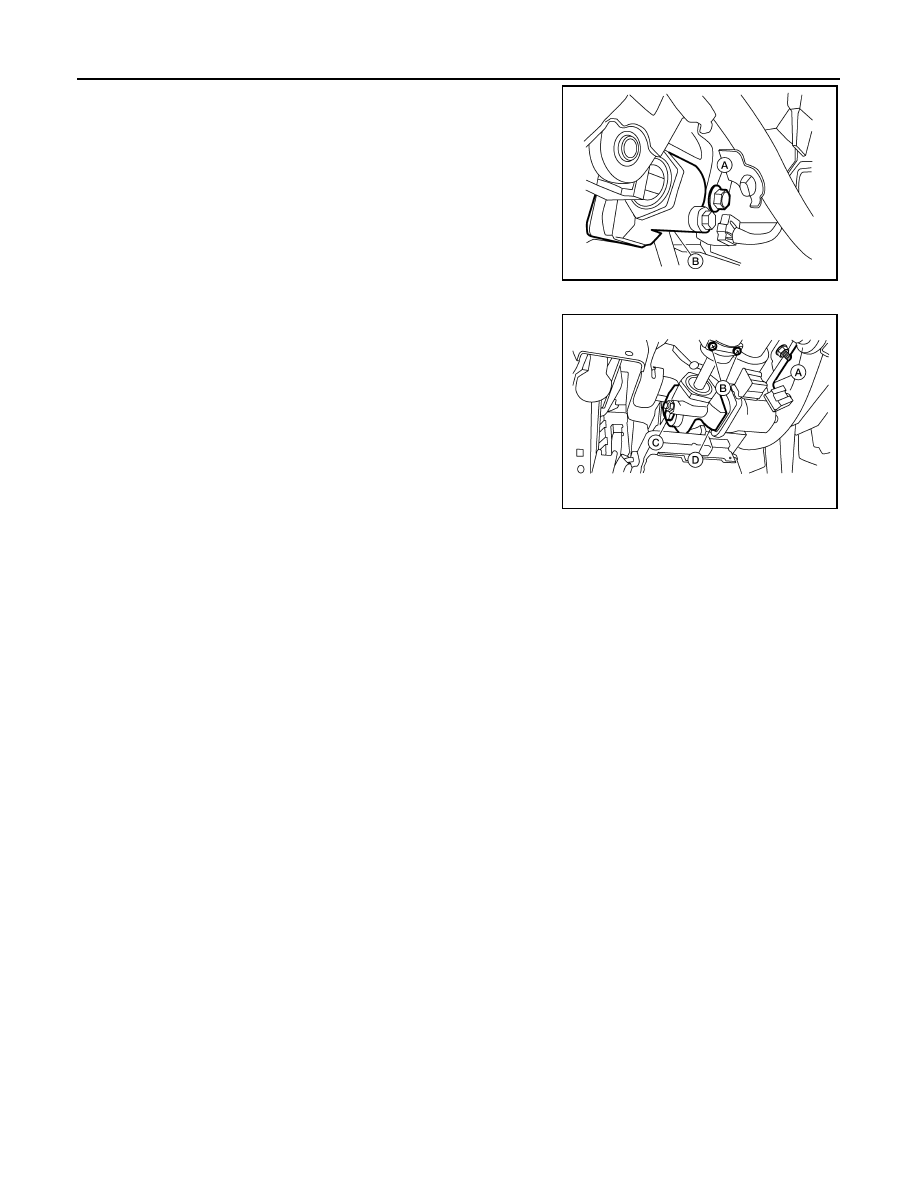

3. Remove the tilt motor bolt (A) from the RH side of column.

4. Remove the tilt motor (B).

NOTE:

If the steering wheel could not be tilted to the highest position,

manually tilt steering wheel to the highest position.

Telescope motor

1. Remove telescope motor as follows.

1. Disconnect the harness connector (A) from the telescope

motor.

2. Remove the two telescope motor link screws (B) and tele-

scope motor link bracket.

3. Remove telescope motor bolt (C).

4. Remove the telescope motor (D).

NOTE:

If the steering wheel could not be telescoped to full out posi-

tion manually pull steering wheel to the full out position

ASSEMBLY

Assembly is in the reverse order of removal

NOTE:

• Upon installation of the tilt motor link bolts manually move steering wheel up and down to align the bolts.

• Adjust the telescope motor link to full out position and adjust as needed to fit into proper installed position.

• Inform customer that they will need to reset their Automatic Drive Positioner (ADP) settings.
