B210F TRANSMISSION RANGE SWITCH

SEC-77

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

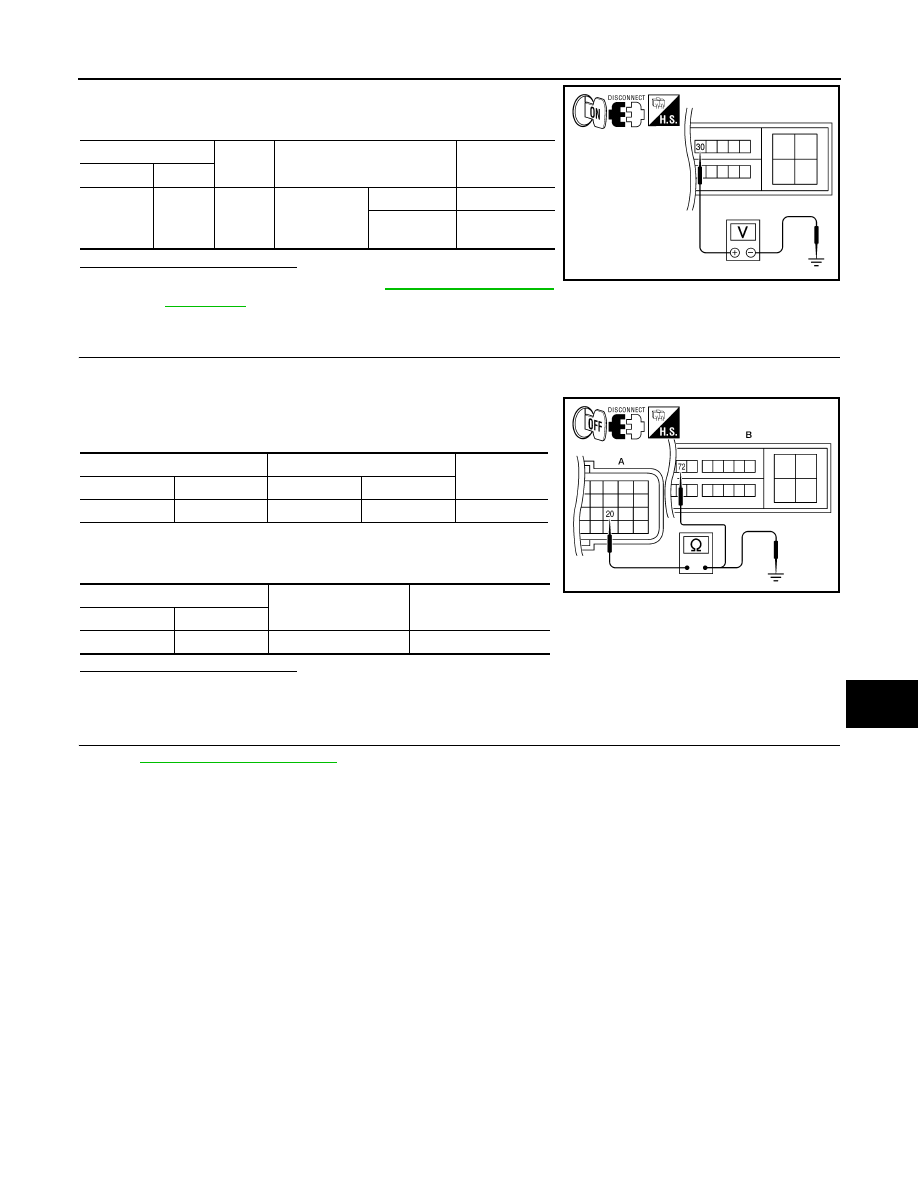

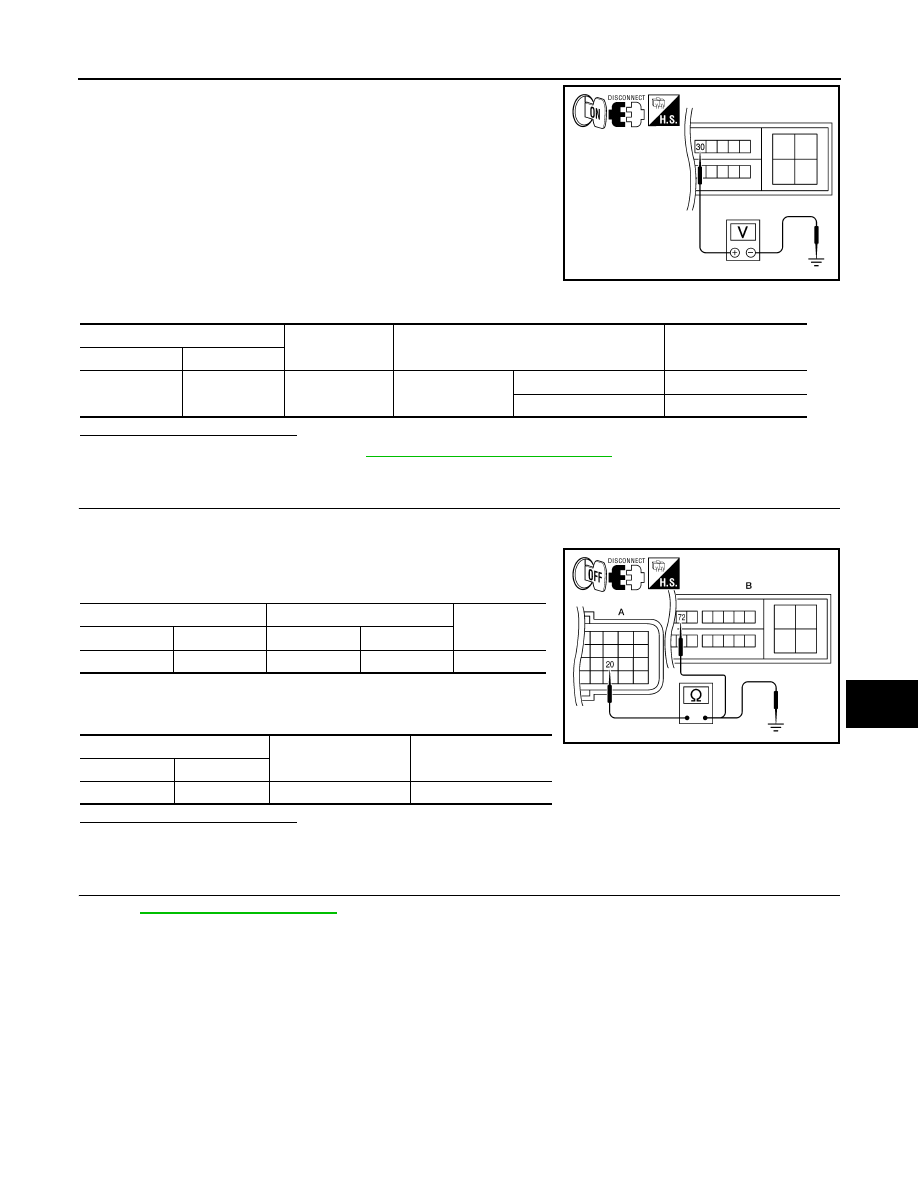

4. Check voltage between IPDM E/R harness connector E18 termi-

nal 30 and ground under following condition.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and

Installation"

.

NO

>> GO TO 3.

3.

CHECK TRANSMISSION RANGE SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect TCM harness connector.

3. Check continuity between IPDM E/R harness connector E18 (B)

terminal 72 and TCM harness connector F15 (A) terminal 20.

4. Check continuity between TCM harness connector F15 (A) ter-

minal 20 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

IPDM E/R

Ground

Condition

Voltage (V)

Connector Terminal

E18

30

Ground

CVT selector

lever

P or N

Battery voltage

Other than

above

0

ALKIA1308ZZ

TCM

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A:  F15

20

B:  E18

72

Yes

TCM

Ground

Continuity

Connector

Terminal

A: F15

20

Ground

No

ALKIA1309ZZ

SEC-78

< DTC/CIRCUIT DIAGNOSIS >

B2110 TRANSMISSION RANGE SWITCH

B2110 TRANSMISSION RANGE SWITCH

Description

INFOID:0000000010052002

IPDM E/R confirms the shift position with the following signals.

• Transmission range switch

• Shift position signal from BCM (CAN)

DTC Logic

INFOID:0000000010052003

DTC DETECTION LOGIC

NOTE:

• If DTC B2110 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-29, "DTC Logic"

.

• If DTC B2110 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-30, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the ignition switch ON under the following conditions and wait for at least 1 second.

-

CVT selector lever is in the P or N position

-

Do not depress the brake pedal

2. Check “Self diagnostic result” with CONSULT.
Is DTC detected?

YES

>> Refer to

SEC-78, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000010052004

Regarding Wiring Diagram information, refer to

SEC-147, "Wiring Diagram"

 or

SEC-128, "Wiring Diagram"

.

1.

CHECK DTC WITH BCM

Refer to

BCS-64, "DTC Index"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace malfunctioning parts.

2.

CHECK TRANSMISSION RANGE SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Turn ignition switch ON.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2110

TRANSMISSION
RANGE SWITCH

IPDM E/R detects mismatch between the signal
below for 1 second or more.
• Transmission range switch input signal

• Harness or connectors

Transmission range switch circuit is
open or shorted

• Transmission range switch

B2110 TRANSMISSION RANGE SWITCH

SEC-79

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

4. Check voltage between IPDM E/R harness connector E18 termi-

nal 30 and ground under following condition.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> GO TO 3.

3.

CHECK TRANSMISSION RANGE SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect TCM harness connector.

3. Check continuity between IPDM E/R harness connector E18 (B)

terminal 72 and TCM harness connector F15 (A) terminal 20.

4. Check continuity between TCM harness connector F15 (A) ter-

minal 20 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

ALKIA1308ZZ

IPDM E/R

Ground

Condition

Voltage (V)

Connector

Terminal

E18

30

Ground

CVT selector lever

P or N

Battery voltage

Other than above

0

TCM

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: F15

20

B: E18

72

Yes

TCM

Ground

Continuity

Connector

Terminal

A: F15

20

Ground

No

ALKIA1309ZZ

SEC-80

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

BCM
BCM : Diagnosis Procedure

INFOID:0000000010068741

Regarding Wiring Diagram information, refer to

BCS-67, "Wiring Diagram"

.

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuses or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM : Special Repair Requirement

INFOID:0000000010068742

1.

 REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to

BCS-5, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) :

Work Procedure"

.

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

H

11

10

24

7

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

M18

24

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes
