• Inspect seatback pad, trim cover and trim cover chutes. Replace if damaged.

• Replace any deformed or damaged parts.

• Replace any deformed or damaged hog rings. Ensure any old hog ring pieces are removed from

seat.

• Use only one hog ring in each designated location.

• Ensure hog rings are correctly fastened around both the seatback trim and pad trim wires.

NOTE:

Use NISSAN standard hog rings and tools to assemble.

SE-146

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

REAR SEAT

REAR SEAT

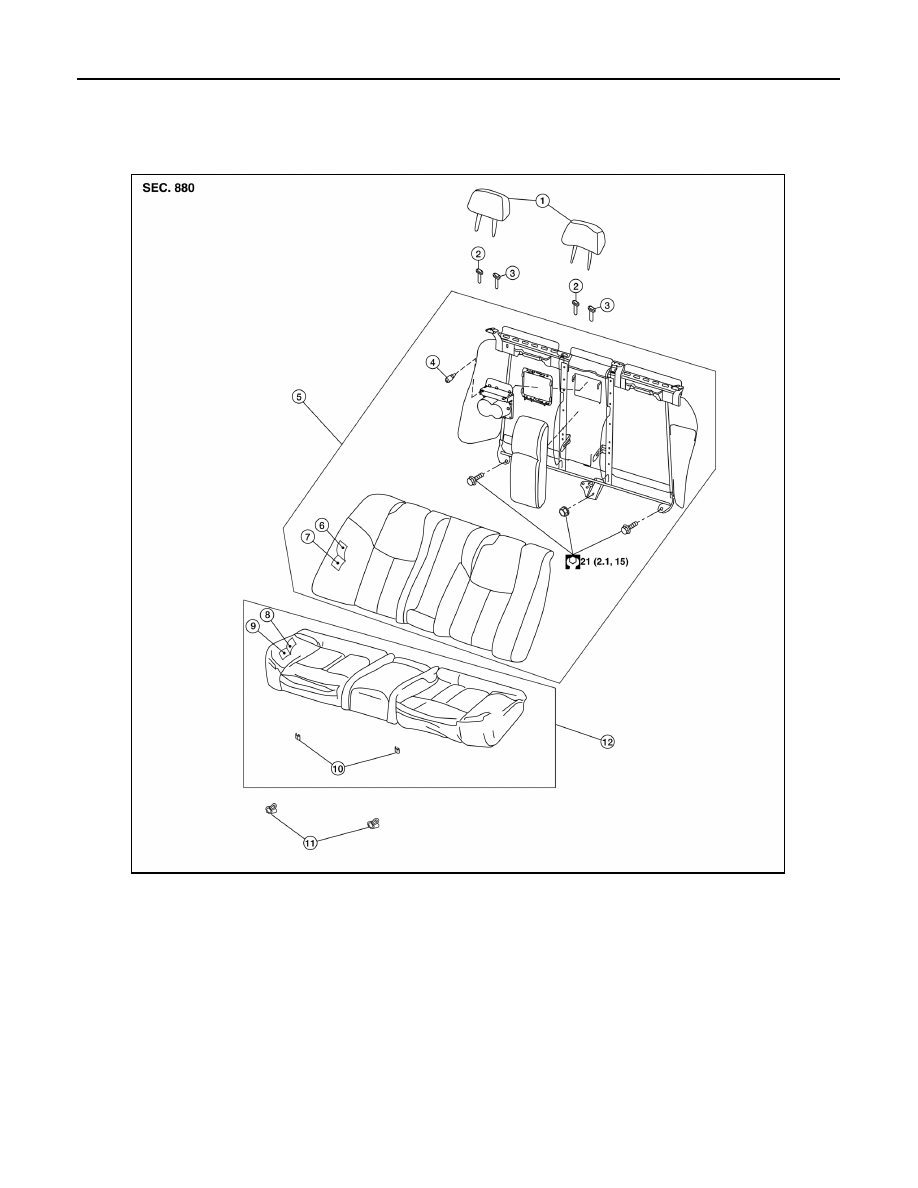

Exploded View - Fixed Seatback

INFOID:0000000009468180

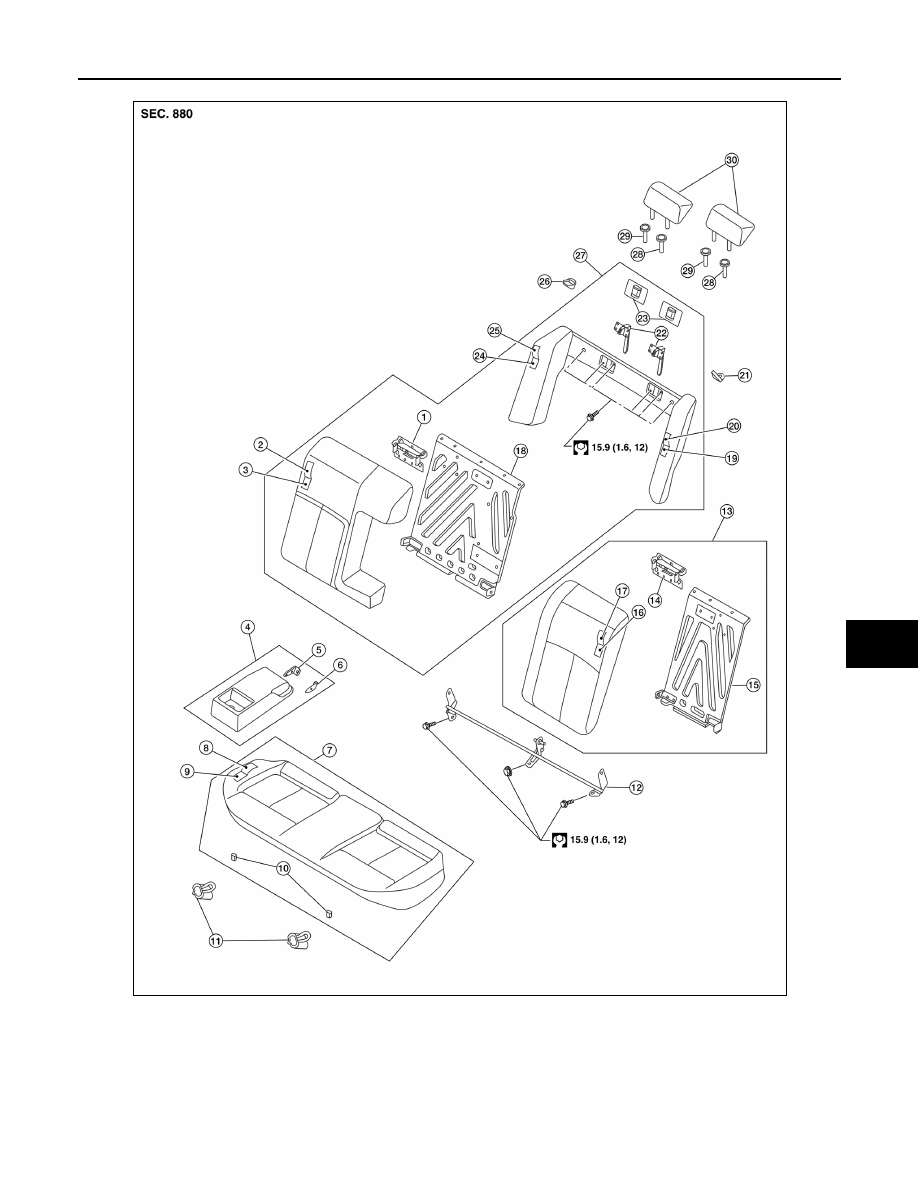

Exploded View - 60:40 Split Seatback

INFOID:0000000009468181

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Bumper

5.

Seatback assembly

6.

Seatback trim

7.

Seatback pad

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seat cushion assembly

AWJIA0941ZZ

REAR SEAT

SE-147

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Seatback latch striker (RH)

2.

Seatback trim (RH)

3.

Seatback pad (RH)

4.

Armrest assembly

5.

Inner armrest bracket (RH)

6.

Inner armrest bracket (LH)

7.

Seat cushion assembly

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seatback hinge assembly

13. Seatback assembly (LH)

14. Seatback latch striker (LH)

15. Seatback frame (LH)

16. Seatback pad (LH)

17. Seatback trim (LH)

18. Seatback frame (RH)

AWJIA0939ZZ

SE-148

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

REAR SEAT

19. Side bolster pad (LH)

20. Side bolster trim (LH)

21. Seat belt guide (LH)

22. Seatback latch assembly

23. Seatback latch cover

24. Side bolster pad (RH)

25. Side bolster trim (RH)

26. Seat belt guide (RH)

27. Seatback assembly (RH)

28. Headrest holder (locked)

29. Headrest holder (free)

30. Headrest
