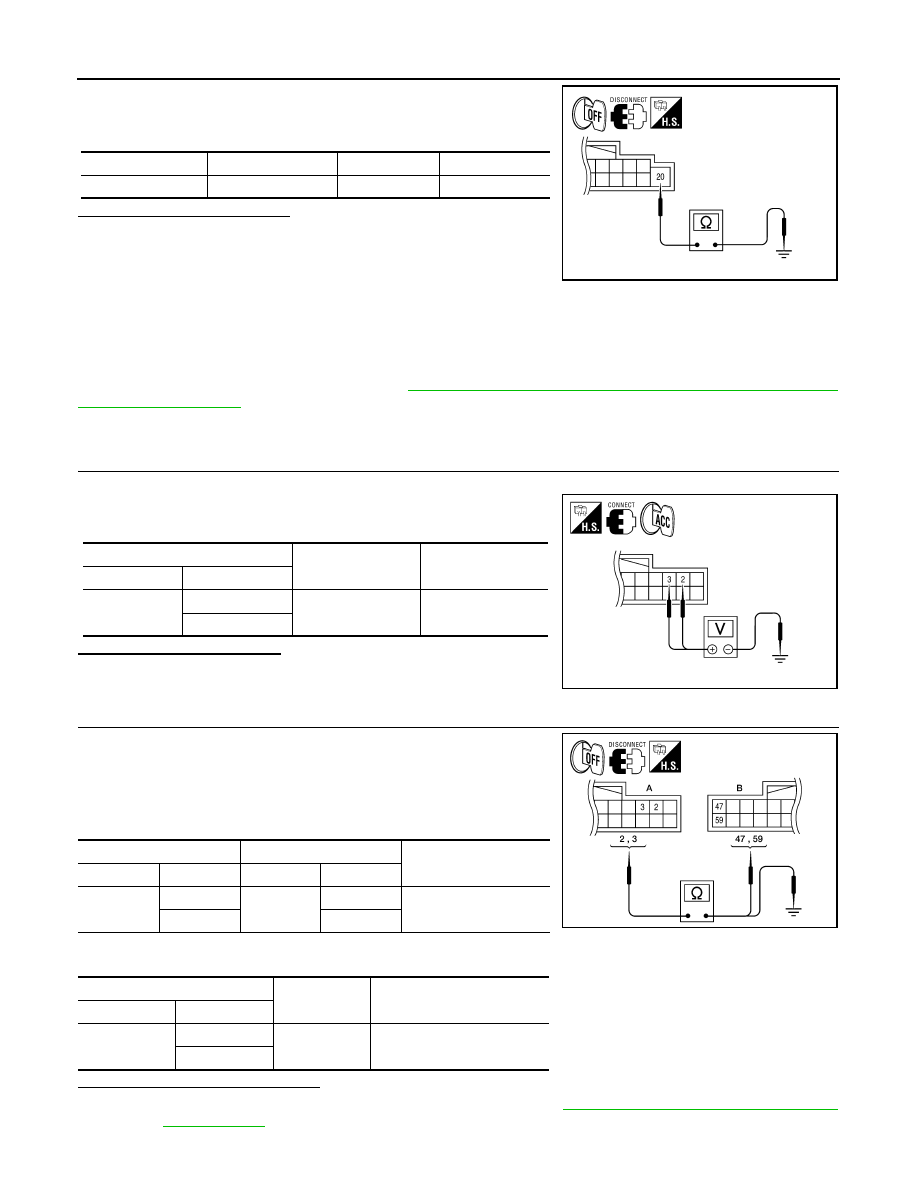

AV-232

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

POWER SUPPLY AND GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between AV control unit harness connector

and ground.

Are the inspection results OK?

YES

>> Inspection End.

NO

>> Repair AV control unit ground.

DISPLAY UNIT
DISPLAY UNIT : Diagnosis Procedure

INFOID:0000000010064874

Regarding Wiring Diagram information, refer to

AV-282, "Wiring Diagram - Without BOSE Audio System With-

out Navigation System"

.

1.

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch to ACC.

2. Check voltage between display unit harness connector M141

and ground.

Does specified voltage exist?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect the display unit connector M141 and the AV control

unit connector M117.

3. Check continuity between the display unit harness connector

M141 (A) and the AV control unit connector M117 (B).

4. Check continuity between the display unit harness connector M141 (A) and ground.

Are continuity results as specified?

YES

>> Check AV control unit power and ground supply. Refer to

AV-231, "AV CONTROL UNIT : Diagno-

sis Procedure"

.

NO

>> Repair harness or connector.

Connector

Terminal

Continuity

M115

20

Ground

Yes

AWNIA1930ZZ

(+)

(-)

Value (Approx.)

Connector

Terminal

M141

2

Ground

9V

3

ALNIA0317GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

M141

2

M117

59

Yes

3

47

A

Continuity

Connector

Terminal

M141

2

Ground

No

3

ALNIA0318GB

AV

POWER SUPPLY AND GROUND CIRCUIT

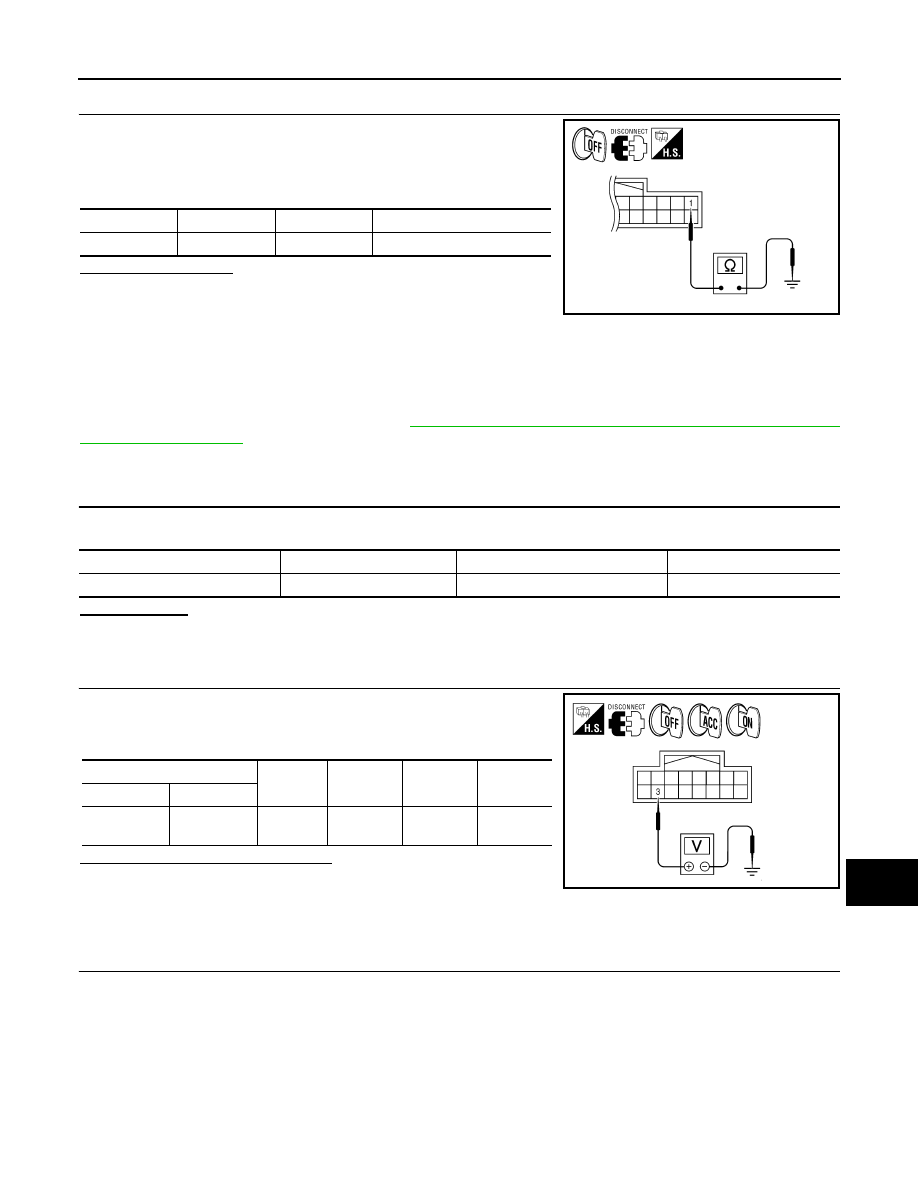

AV-233

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect display unit connector.

3. Check continuity between display unit harness connector and

ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair harness or connector.

A/C AND AV SWITCH ASSEMBLY
A/C AND AV SWITCH ASSEMBLY : Diagnosis Procedure

INFOID:0000000010064875

Regarding Wiring Diagram information, refer to

AV-282, "Wiring Diagram - Without BOSE Audio System With-

out Navigation System"

.

1.

CHECK FUSE

Check that the fuse of the AC and AV switch assembly is not blown.

Is the fuse OK?

YES

>> GO TO 2.

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect A/C and AV switch assembly connector M98.

2. Check voltage between the A/C and AV switch assembly con-

nector M98 and ground.

Are the voltage results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose

terminals.

• Repair harness or connector.

3.

GROUND CIRCUIT CHECK

Connector

Terminal

Continuity

M141

1

Ground

Yes

ALNIA0319GB

Unit

Terminal

Signal name

Fuse No.

A/C and AV switch assembly

3

Ignition switch ACC or ON

17

(+)

(-)

OFF

ACC

ON

Connector

Terminal

M98

3

Ground

0V

Battery
voltage

Battery
voltage

AWNIA1718ZZ

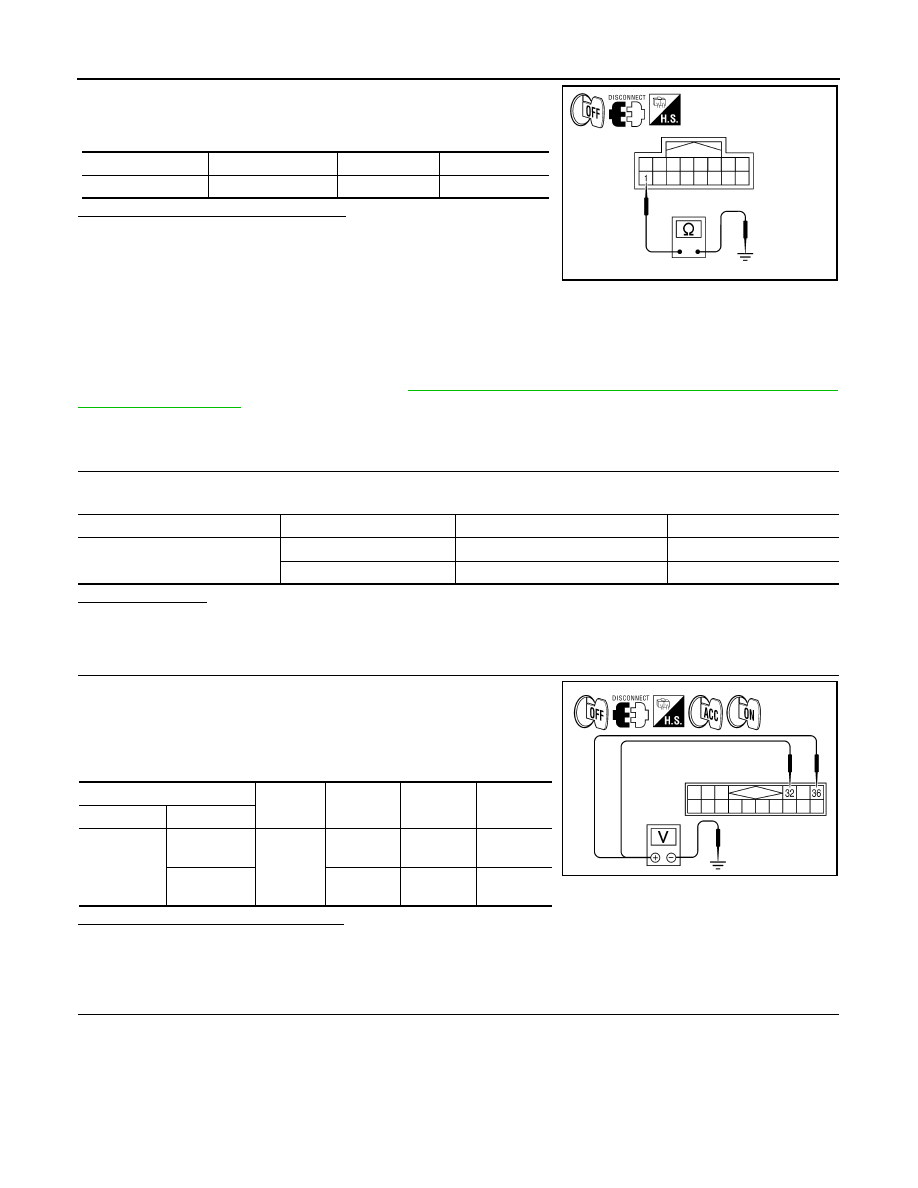

AV-234

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

POWER SUPPLY AND GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between A/C and AV switch assembly harness

connector M98 and ground.

Are the continuity results as specified?

YES

>> Inspection End.

NO

>> Repair harness or ground.

SATELLITE RADIO TUNER
SATELLITE RADIO TUNER : Diagnosis Procedure

INFOID:0000000010064877

Regarding Wiring Diagram information, refer to

AV-282, "Wiring Diagram - Without BOSE Audio System With-

out Navigation System"

.

1.

CHECK FUSES

Check that the following fuses of the satellite radio tuner (factory installed) are not blown.

Are the fuses OK?

YES

>> GO TO 2.

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Turn ignition switch OFF.

2. Disconnect satellite radio tuner (factory installed) connector

B111.

3. Check voltage between the satellite radio tuner (factory

installed) and ground.

Are the voltage readings as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

GROUND CIRCUIT CHECK

Connector

Terminal

Continuity

M98

1

Ground

Yes

ALNIA0316GB

Unit

Terminals

Signal name

Fuse No.

Satellite radio tuner (factory in-

stalled)

32

Battery power

24

36

Ignition switch ACC or ON

17

(+)

(-)

OFF

ACC

ON

Connector

Terminal

B111

32

Ground

Battery
voltage

Battery
voltage

Battery
voltage

36

0V

Battery
voltage

Battery
voltage

WKIA4539E

AV

POWER SUPPLY AND GROUND CIRCUIT

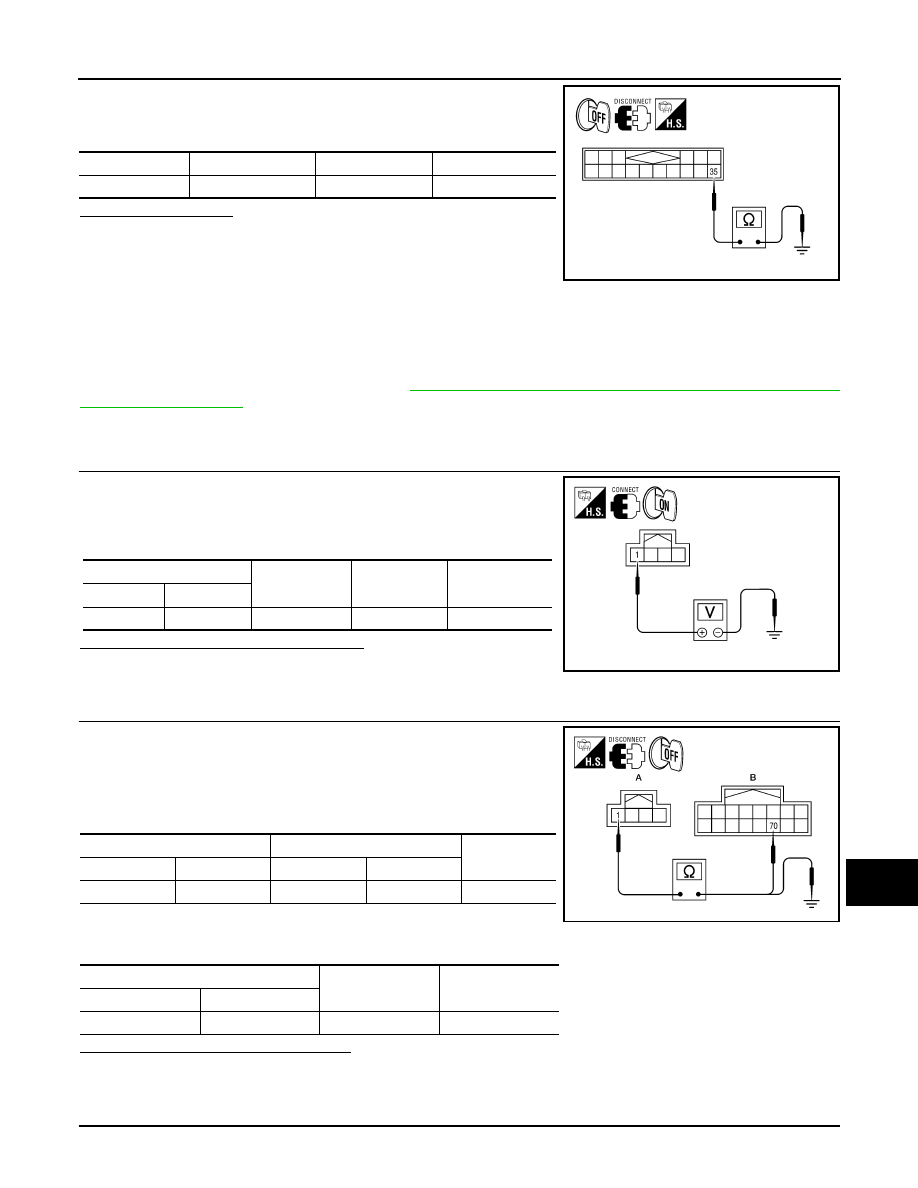

AV-235

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Turn ignition switch OFF.

2. Check continuity between satellite radio tuner (factory installed)

harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair satellite radio tuner (factory installed) harness or

connector.

REAR VIEW CAMERA
REAR VIEW CAMERA : Diagnosis Procedure

INFOID:0000000010064878

Regarding Wiring Diagram information, refer to

AV-282, "Wiring Diagram - Without BOSE Audio System With-

out Navigation System"

.

1.

CHECK POWER SUPPLY CIRCUIT (REAR VIEW CAMERA SIDE)

1. Turn ignition switch ON.

2. Shift transmission into Reverse.

3. Check voltage between rear view camera harness connector

T101 and ground.

Is voltage reading approximately 6 volts?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT (CONTINUITY)

1. Turn ignition switch OFF.

2. Disconnect rear view camera and AV control unit connectors.

3. Check continuity between rear view camera harness connector

T101 (A) terminal 1 and AV control unit harness connector M118

(B) terminal 70.

4. Check continuity between rear view camera harness connector

T101 (A) terminal 1 and ground.

Are continuity test results as specified?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK REVERSE POSITION INPUT SIGNAL

1. Connect AV control unit connector.

Connector

Terminal

Continuity

B111

35

Ground

Yes

AWNIA1721ZZ

(+)

(-)

Transmission

position

Value (Approx.)

Connector

Terminal

T101

1

Ground

Reverse

6V

AWNIA1722ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

T101

1

M118

70

Yes

A

Continuity

Connector

Terminal

T101

1

Ground

No

AWNIA1969ZZ
