< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/O BOSE]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

SELECTION FROM MENU

Allows the technician to select which vehicle signals should be displayed and displays the status of the

selected vehicle signals.

WORK SUPPORT

CONFIGURATION

Configuration has three functions as follows.

ILLUM SIG

On

Block the light beam from the auto
light optical sensor when the light
SW is ON.

—

Off

Expose the auto light optical sensor
to light when the light SW is OFF or
ON.

IGN SIG

On

Ignition switch ON

Off

Ignition switch in ACC position

REV SIG

On

Selector lever in R position

Changes in indication may be delayed. This is
normal.

Off

Selector lever in any position other
than R

Display Item

Display

Vehicle status

Remarks

Item to be selected

Description

VHCL SPD SIG

The same as when “ALL SIGNALS” is selected.

PKB SIG

ILLUM SIG

IGN SIG

REV SIG

Conditions

Description

ST ANGLE SENSOR ADJUSTMENT

Steering angle sensor neutral position adjustment can be per-
formed. Refer to

BRC-6, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Description"

.

Function

Description

READ CONFIGURATION

• Reads the vehicle configuration of current AV control unit.
• Saves the read vehicle configuration.

WRITE CONFIGURATION-Manual selection

Writes the vehicle configuration with manual selection.

WRITE CONFIGURATION-Config file

Writes the vehicle configuration with saved data.

AV

DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

AV-205

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

Diagnosis Description

INFOID:0000000010064831

The Bluetooth

®

 control unit has two diagnostic checks. The first diagnostic check is performed automatically

every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-

cian using the steering wheel audio control switches prior to trouble diagnosis.

BLUETOOTH

®

 CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure
• Bluetooth

®

 antenna connection open or shorted

• Steering wheel audio control switches [

 (PHONE/SEND),

 (PHONE/END)] stuck closed

• Vehicle speed pulse count

• Microphone connection test (with playback to operator)
• Bluetooth

®

 inquiry check

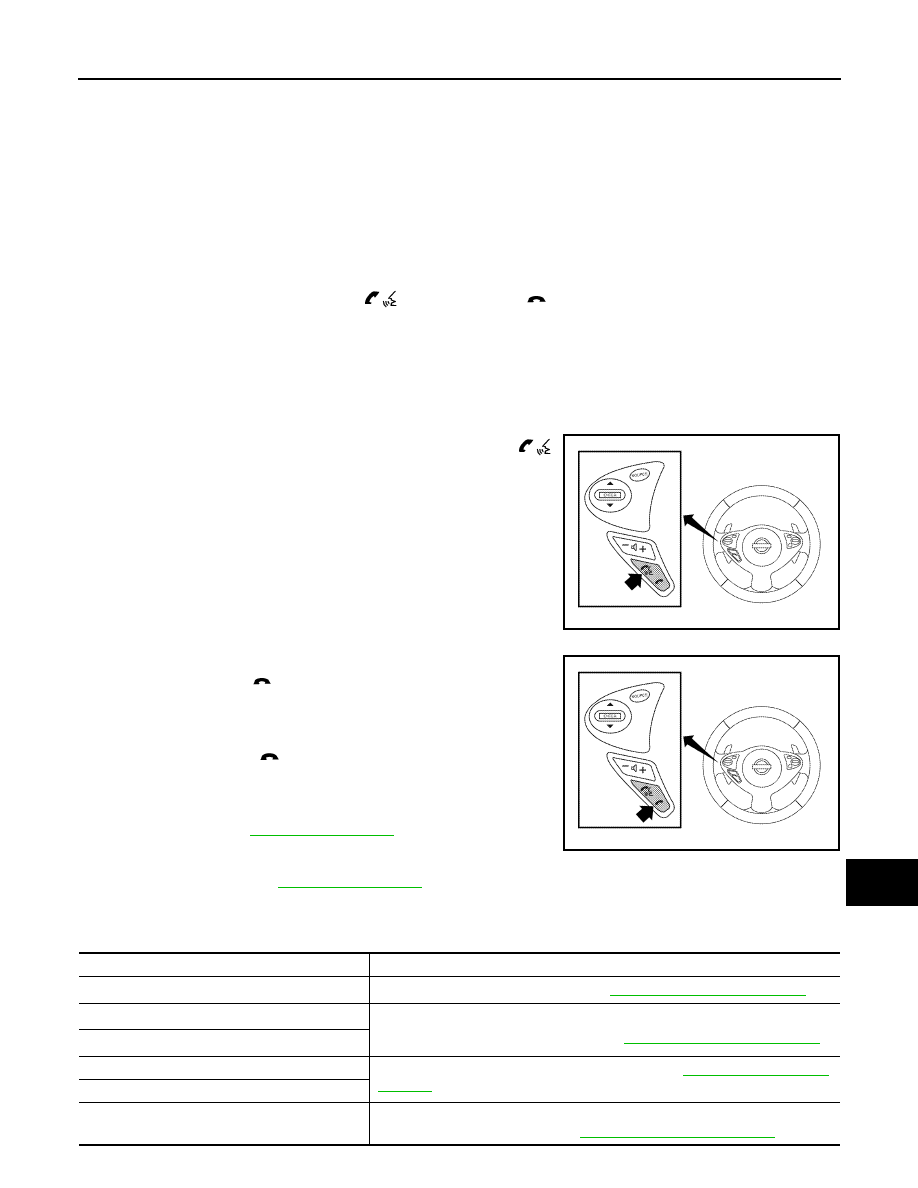

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth

®

 system to complete initialization. This may take up to 20 seconds.

3. Press and hold the steering wheel audio control switch

(PHONE/SEND) button for at least 5 seconds. The Bluetooth

®

system will begin to play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel

audio control switch   (PHONE/END) button until you hear the
“Diagnostics mode” prompt. The Bluetooth

®

 system will sound a

5-second beep.

5. While the beep is sounding, press and hold the steering wheel

audio control switch

 (PHONE/END) button again until you

hear prompts.

6. The Bluetooth

®

 system has now entered into the diagnostic

mode. Results of the diagnostic checks will be verbalized to the

technician. Refer to

AV-205, "Work Flow"

.

7. After the failure records are reported, an interactive microphone

test will be performed. Follow the voice prompt. If the micro-

phone test fails, refer to

AV-205, "Work Flow"

.

Work Flow

INFOID:0000000010064832

AWNIA1979ZZ

AWNIA1980ZZ

Failure Message

Action

“Internal failure”

Replace Bluetooth

®

 control unit. Refer to

AV-333, "Removal and Installation"

.

“Bluetooth

®

 antenna open”

1.

Inspect harness connection.

2.

Replace Bluetooth

®

 antenna. Refer to

AV-332, "Removal and Installation"

.

“Bluetooth

®

 antenna shorted”

“Phone/Send for Hands Free System is stuck”

Check steering wheel audio control switches. Refer to

AV-326, "Removal and In-

stallation"

.

“Phone/End for the Hands Free System is stuck”

“Microphone test” (failed interactive test)

1.

Inspect harness between Bluetooth

®

 control unit and microphone.

2.

Replace microphone. Refer to

AV-331, "Removal and Installation"

 .

AV-206

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000010064833

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Many elec-

tronic control units are equipped on a vehicle and each control unit shares information and links with other

control units during operation (not independent). In CAN communication, control units are connected with 2

communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring. Each

control unit transmits/receives data but selectively reads required data only.

DTC Logic

INFOID:0000000010064834

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010064835

1.

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result” of “AV Control Unit”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to “LAN system”. Refer to

LAN-15, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to GI section. Refer to

GI-41, "Intermittent Incident"

.

DTC

Display contents of CON-

SULT

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

When AV control unit is not transmitting or re-
ceiving CAN communication signal for 2 sec-
onds or more.

CAN communication system.

AV

U1010 CONTROL UNIT (CAN)

AV-207

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000010064836

Initial diagnosis of AV control unit.

DTC Logic

INFOID:0000000010064837

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010064838

1.

REPLACE AV CONTROL UNIT

When DTC U1010 is detected, replace AV control unit. Refer to

AV-311, "Removal and Installation"

.

>> Inspection End.

DTC

Display contents of CON-

SULT

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected.

AV control unit.
