Nissan Maxima. Manual - part 50





AV-20

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/O BOSE]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000009471165

Part name

Description

Audio unit

• Receives telephone voice signal from Bluetooth

®

 control unit.

• Sends telephone voice signals to the speakers.

Front door speaker

Receives telephone voice signals from the audio unit.

Tweeter

Steering wheel audio control switches

• Start a voice recognition session.
• Answer and end telephone calls.
• Adjust the volume level.

Microphone

Sends voice signals to Bluetooth

®

 control unit.

Bluetooth

®

 control unit

• Controls hands-free phone functions.
• Receives display signals from audio unit.
• Outputs display signals to the display unit.

Display unit

• Receives display signals from Bluetooth

®

 control unit.

• Displays audio system information.

Bluetooth

®

 antenna

Sends telephone voice signal to Bluetooth

®

 control unit.

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-21

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AUDIO UNIT)

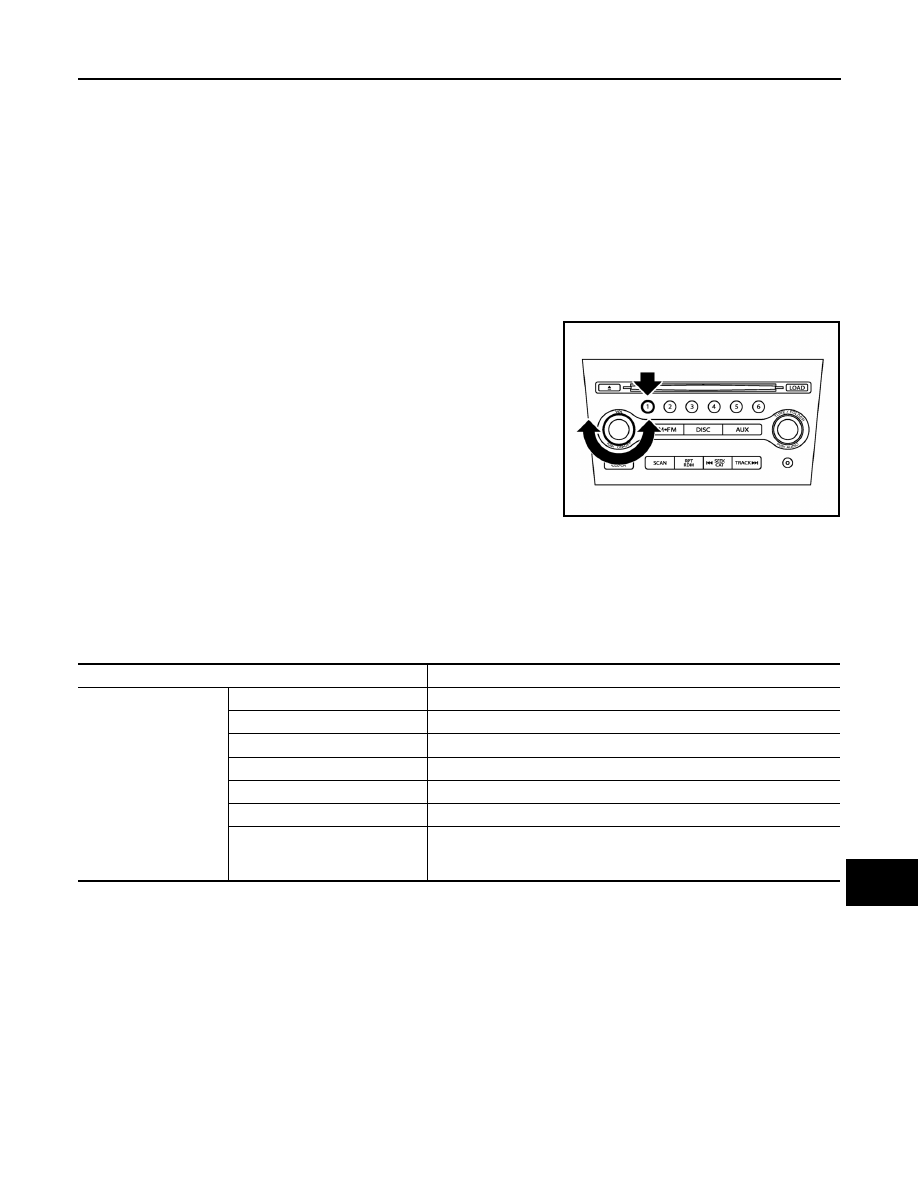

Diagnosis Description

INFOID:0000000009471166

Self-diagnosis mode can perform the following items.

• Versions display

• Channel check diagnosis

• Key check diagnosis

• AV communication diagnosis

VERSIONS DISPLAY FUNCTION

1. Turn ignition switch ON.
2. Turn the audio unit off.
3. While pressing “1” button, turn volume control dial clockwise or

counterclockwise for 30 clicks or more.

4. Diagnosis default screen of audio display unit is displayed.

NOTE:

Diagnosis default screen = All icons and segments of the audio display unit are turned on.

5. Pressing the AUDIO switch briefly displays the version display mode. Pressing the AUDIO switch briefly

switches to each version display. Pressing and holding the AUDIO switch when displaying each software

version returns to the diagnosis default screen.

Version display item

6. Self-diagnosis mode is canceled when the ignition switch is turned OFF.

CHANNEL CHECK DIAGNOSIS FUNCTION

1. Turn ignition switch ON.
2. Turn the audio unit off.

AWNIA2479GB

Mode

Description

Versions display

Software V######

Audio unit software version is displayed.

Hardware V######

Audio unit hardware version is displayed.

CD Mech V######

Audio unit CD mechanism version is displayed.

EEPROM V######

Audio unit EEPROM version is displayed.

Disp SW V######

Display unit software version is displayed.

Disp HW V######

Display unit hardware version is displayed.

SDARS V######

Audio unit SDARS version is displayed.
NOTE:
“VFFFFFF” is displayed when SDARS is not available.

AV-22

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/O BOSE]

DIAGNOSIS SYSTEM (AUDIO UNIT)

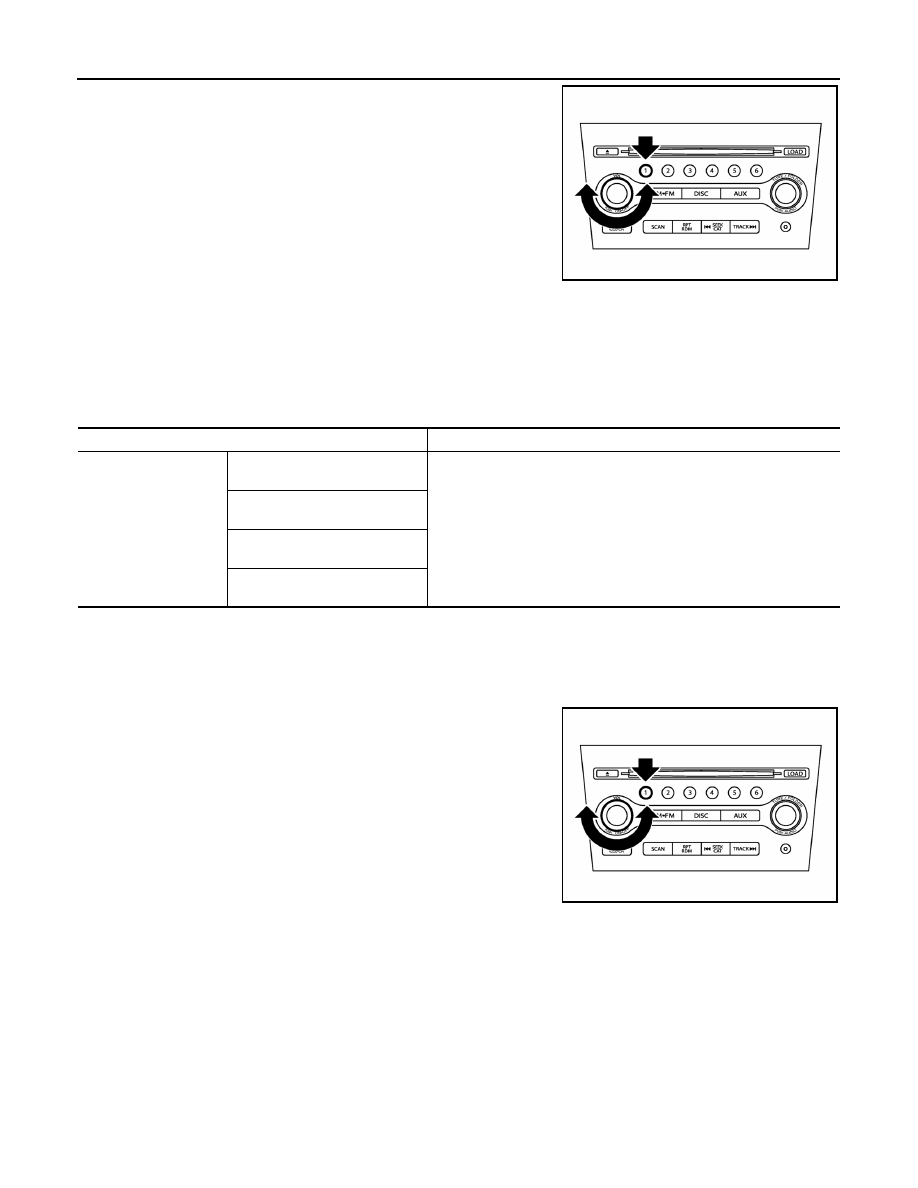

3. While pressing the “1” button, turn the volume control dial clock-

wise or counterclockwise for 30 clicks or more.

4. The diagnosis default screen of audio display unit is displayed.

NOTE:

Diagnosis default screen = All icons and segments of the audio display unit are turned on.

5. Turning the TUNE/FOLDER dial clockwise displays the channel check mode. Pressing and holding the

AUDIO switch during each channel check or waiting approximately 1 second after finishing all channel

checks returns to the diagnosis default screen.

Channel check item

6. Self-diagnosis mode is canceled when the ignition switch is turned OFF.

KEY CHECK DIAGNOSIS FUNCTION

1. Turn ignition switch ON.
2. Turn the audio unit off.
3. While pressing the “1” button, turn the volume control dial clock-

wise or counterclockwise for 30 clicks or more.

4. The diagnosis default screen of audio display unit is displayed.

NOTE:

Diagnosis default screen = All icons and segments of the audio display unit are turned on.

5. Turning the TUNE/FOLDER dial counterclockwise displays the key check mode, and the pressed switch

name is shown. Pressing and holding the AUDIO switch during the key check mode returns to the diagno-

sis default screen.

AWNIA2479GB

Mode

Description

Channel check

Channel Check
Front Left

Connection of a speaker can be confirmed by test tone.

Channel Check
Front Right

Channel Check
Rear Right

Channel Check
Rear Left

AWNIA2479GB

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-23

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

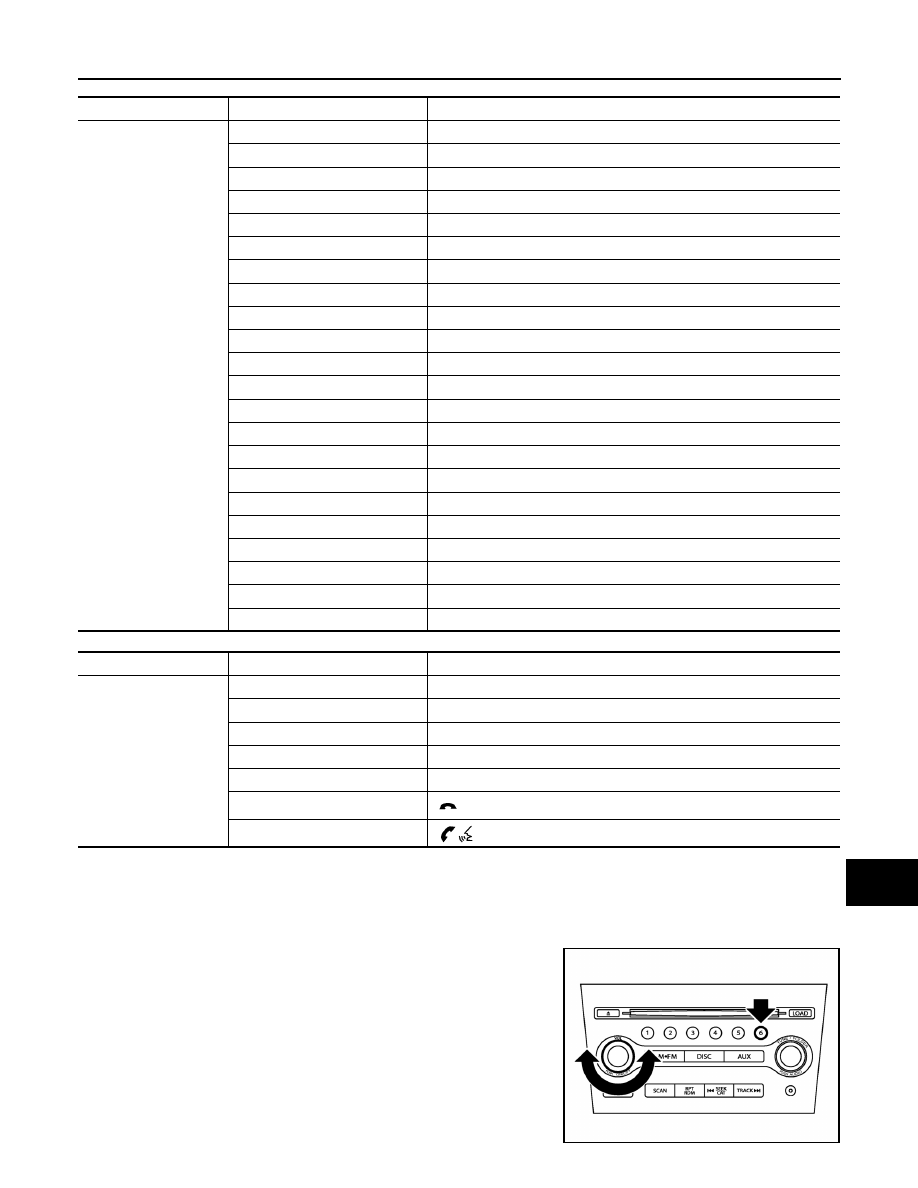

Key check item (audio unit)

Key check item (steering switch)

6. Self-diagnosis mode is canceled when the ignition switch is turned OFF.

AV COMMUNICATION DIAGNOSIS FUNCTION

1. Turn ignition switch ON.
2. Turn the audio unit off.
3. While pressing the “6” button, turn the volume control dial clock-

wise or counterclockwise for 30 clicks or more.

Mode

Display item

Switch name

Key check

1

Preset button “1” switch

2

Preset button “2” switch

3

Preset button “3” switch

4

Preset button “4” switch

5

Preset button “5” switch

6

Preset button “6” switch

POWER

ON-OFF switch

VOLUME up

VOL up switch

VOLUME down

VOL down switch

AM·FM

AM-FM switch

DISC

DISC switch

AUX

AUX switch

AUDIO

AUDIO switch

TUNE/FOLDER up

TUNE/FOLDER up switch

TUNE/FOLDER down

TUNE/FOLDER up switch

DISP CLOCK

DISP CLOCK switch

SCAN

SCAN switch

RPT/RDM

RPT RDM switch

SEEK/TRACK up

SEEK CAT switch

SEEK/TRACK down

TRACK switch

LOAD

LOAD switch

EJECT

EJECT switch

Mode

Display item

Switch name

Key check

STR SOURCE

SOURCE switch

STR VOL UP

VOL up switch

STR VOL DOWN

VOL down switch

STR UP

MENU up switch

STR DOWN

MENU down switch

STR TEL END



switch

STR TEL SEND



switch

AWNIA2480GB
