Nissan Maxima. Manual - part 48

DIAGNOSIS AND REPAIR WORKFLOW

AV-13

< BASIC INSPECTION >

[MONOCHROME DISPLAY - W/O BOSE]

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009471157

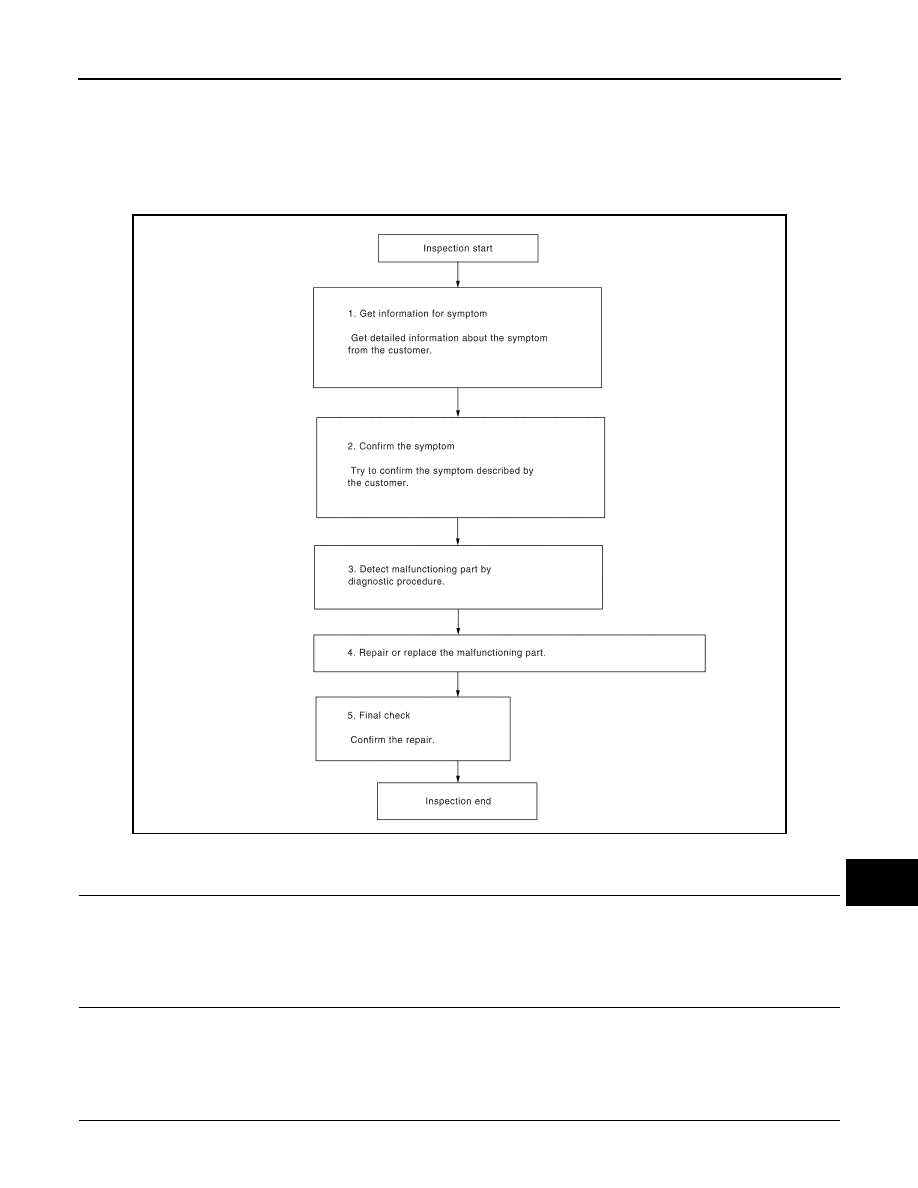

OVERALL SEQUENCE

DETAILED FLOW

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV-14

< BASIC INSPECTION >

[MONOCHROME DISPLAY - W/O BOSE]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4.

>> GO TO 2.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Has the symptom been repaired?

YES

>> Inspection End.

>> GO TO 2.

AUDIO SYSTEM

AV-15

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/O BOSE]

SYSTEM DESCRIPTION

AUDIO SYSTEM

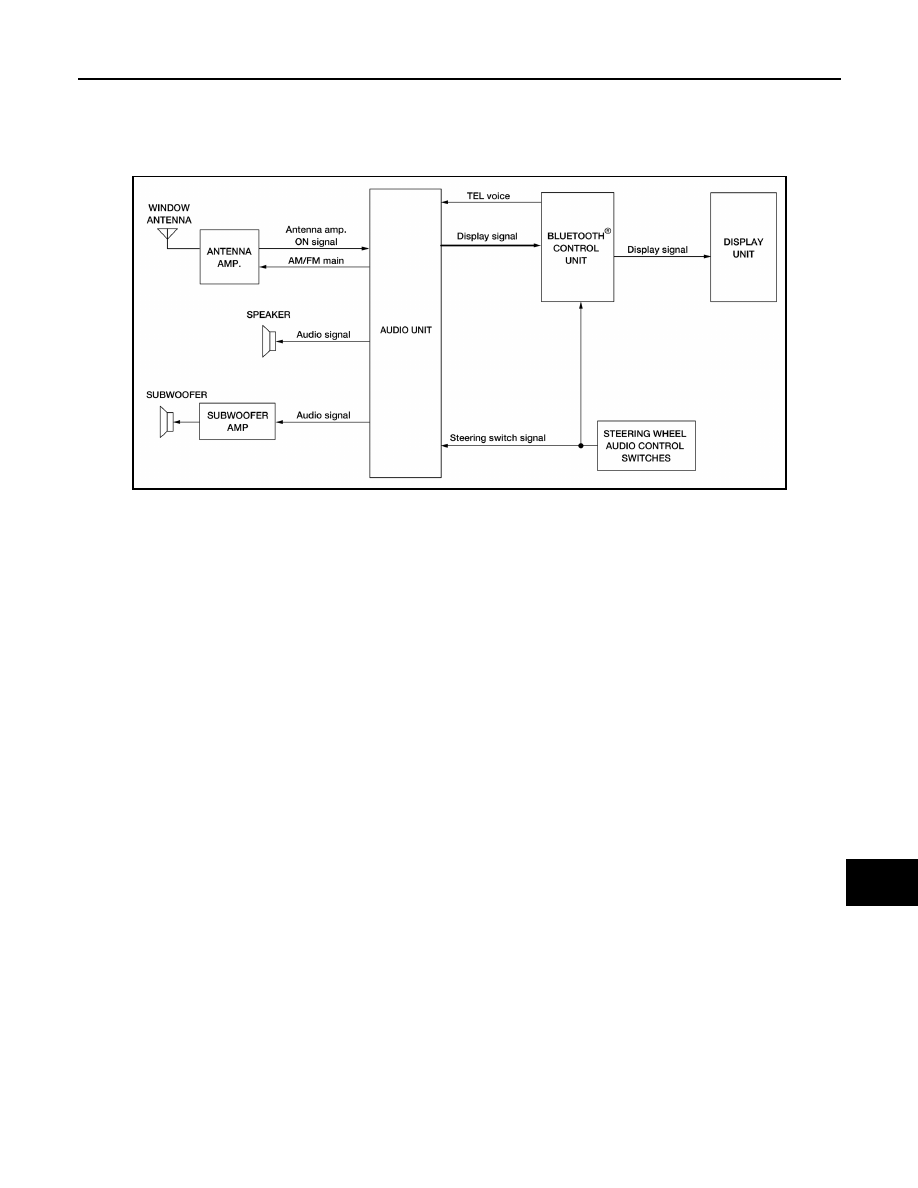

System Diagram

INFOID:0000000009471158

System Description

INFOID:0000000009471159

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Display unit
• Bluetooth

control unit

• Window antenna

• Steering wheel audio control switches

• Front door speakers

• Tweeters

• Rear door speakers

• Subwoofer amp.

• Subwoofers

When the audio system is on, radio signals are received by the window antenna. The audio unit then sends

audio signals to the front door speakers, tweeters, rear door speakers, subwoofer amp. and subwoofers.

Refer to Owner's Manual for audio system operating instructions.

AWNIA2690GB
