ADP-168

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009466227

The actual shapes of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

DRIVER SEAT CONTROL UNIT

ADP-169

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

REMOVAL AND INSTALLATION

DRIVER SEAT CONTROL UNIT

Removal and Installation

INFOID:0000000009466228

REMOVAL

NOTE:

The driver seat control unit is part of the driver seat.
1. Remove driver seat. Refer to

SE-68, "Removal and Installation"

 (with climate controlled seats) or

SE-126,

"Removal and Installation"

 (without climate controlled seats).

2. Disconnect the harness connector from the driver seat control unit.
3. Remove driver seat control unit using a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to install the harness in the right place.

NOTE:

After installing the driver seat, perform additional service when replacing control unit. Refer to

ADP-8, "Special

Repair Requirement"

.

ADP-170

< REMOVAL AND INSTALLATION >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation

INFOID:0000000009466229

REMOVAL

1. Remove audio unit. Refer to

AV-73, "Removal and Installation"

 (BASE AUDIO),

AV-161, "Removal and

Installation"

 (BOSE W/MONOCHROME DISPLAY),

AV-481, "Removal and Installation"

 (BOSE W/

COLOR DISPLAY),

AV-652, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/NAVIGATION).

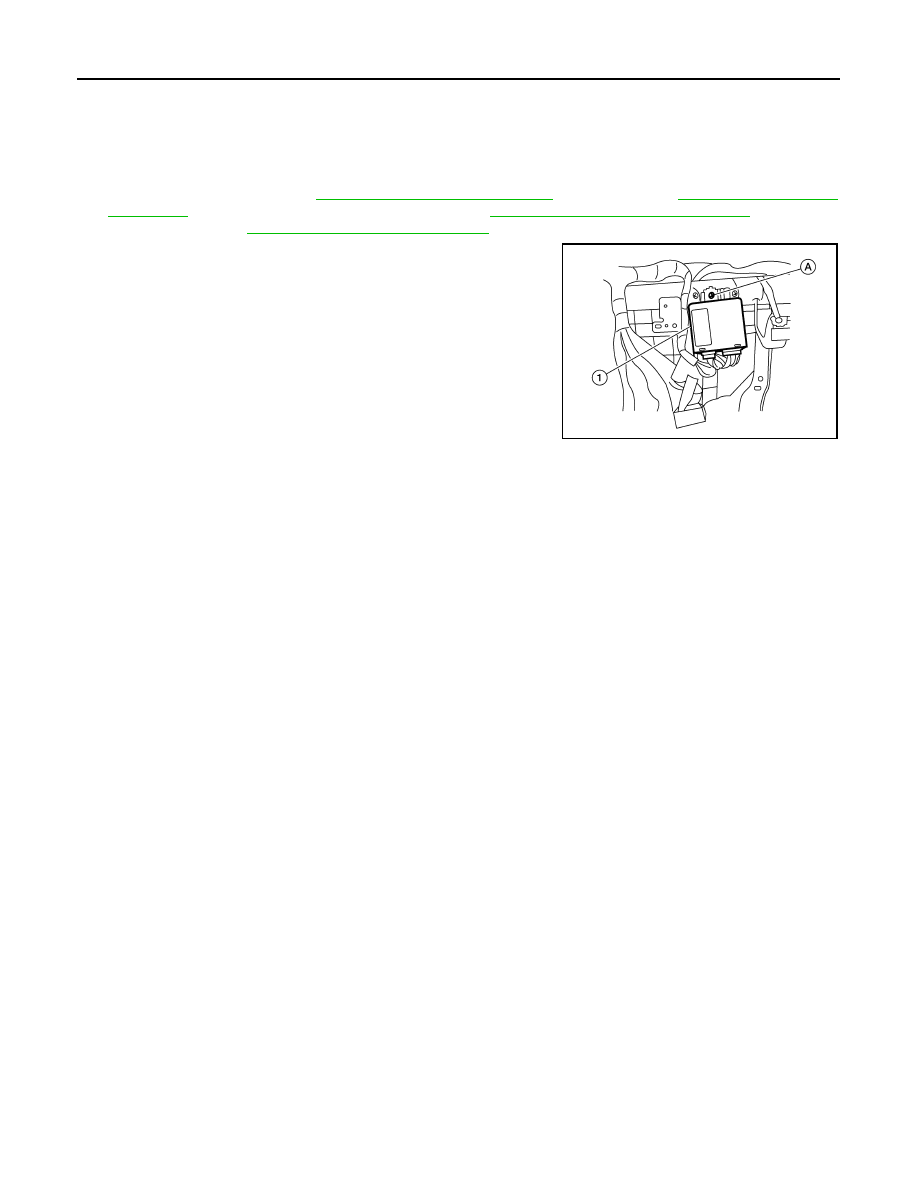

2. Remove the automatic drive positioner control unit screw (A).
3. Remove automatic drive positioner control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to install the harness in the right place.

ALJIA0353ZZ

SEAT MEMORY SWITCH

ADP-171

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000009466230

REMOVAL

1. Remove the seat memory finisher using a suitable tool (1). Refer

to

INT-18, "Removal and Installation"

.

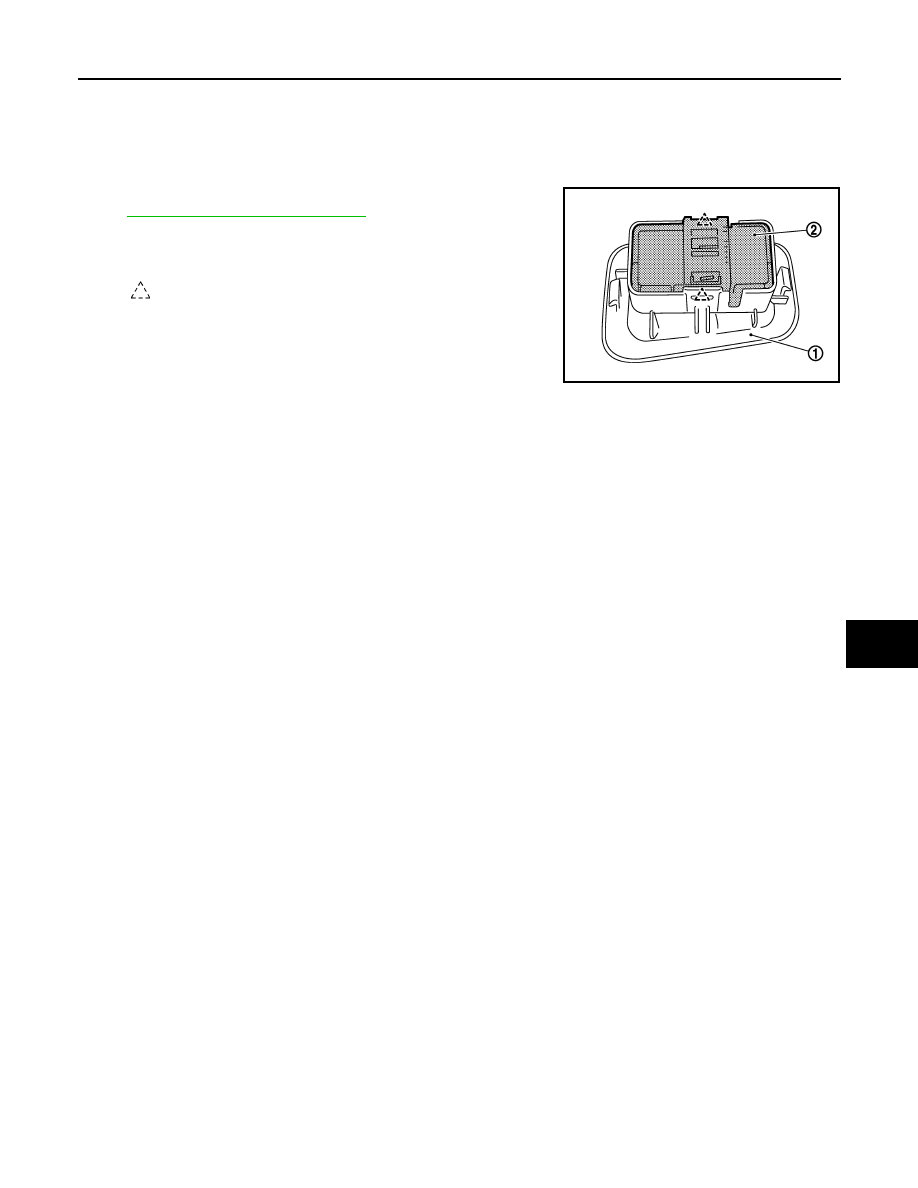

2. Release the pawls and remove seat memory switch (2) from

seat memory finisher (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to install the harness in the right place.

: Pawl

JMJIA1450ZZ
