ADP-112

< DTC/CIRCUIT DIAGNOSIS >

SEAT MEMORY INDICATOR LAMP

SEAT MEMORY INDICATOR LAMP

Description

INFOID:0000000010051819

• Memory switch is equipped on the seat memory switch installed to the driver side door trim. The operation

signal is input to the driver seat control unit when the memory switch is operated.

• The status of automatic drive positioner system can be checked according to the illuminating/flashing status.

Component Function Check

INFOID:0000000010051820

1.

 CHECK FUNCTION

1. Select “MEMORY SW INDCTR” in “ACTIVE TEST” mode with CONSULT.

2. Check the memory indicator operation.

Is the operation of relevant parts normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-112, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010051821

Regarding Wiring Diagram information, refer to

ADP-150, "Wiring Diagram"

.

1.

 CHECK SEAT MEMORY INDICATOR CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit and seat memory switch.

3. Check continuity between driver seat control unit harness connector and seat memory switch harness

connector.

4. Check continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK MEMORY INDICATOR POWER SUPPLY

Test item

Description

MEMORY SW INDCTR

OFF

Memory switch indicator

OFF

ON-1

Indicator 1: ON

ON-2

Indicator 2: ON

Driver seat control unit con-

nector

Terminal

Seat memory switch connector

Terminal

Continuity

B203

10

D13

7

Yes

26

6

Driver seat control unit connector

Terminal

Ground

Continuity

B203

10

No

26

SEAT MEMORY INDICATOR LAMP

ADP-113

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

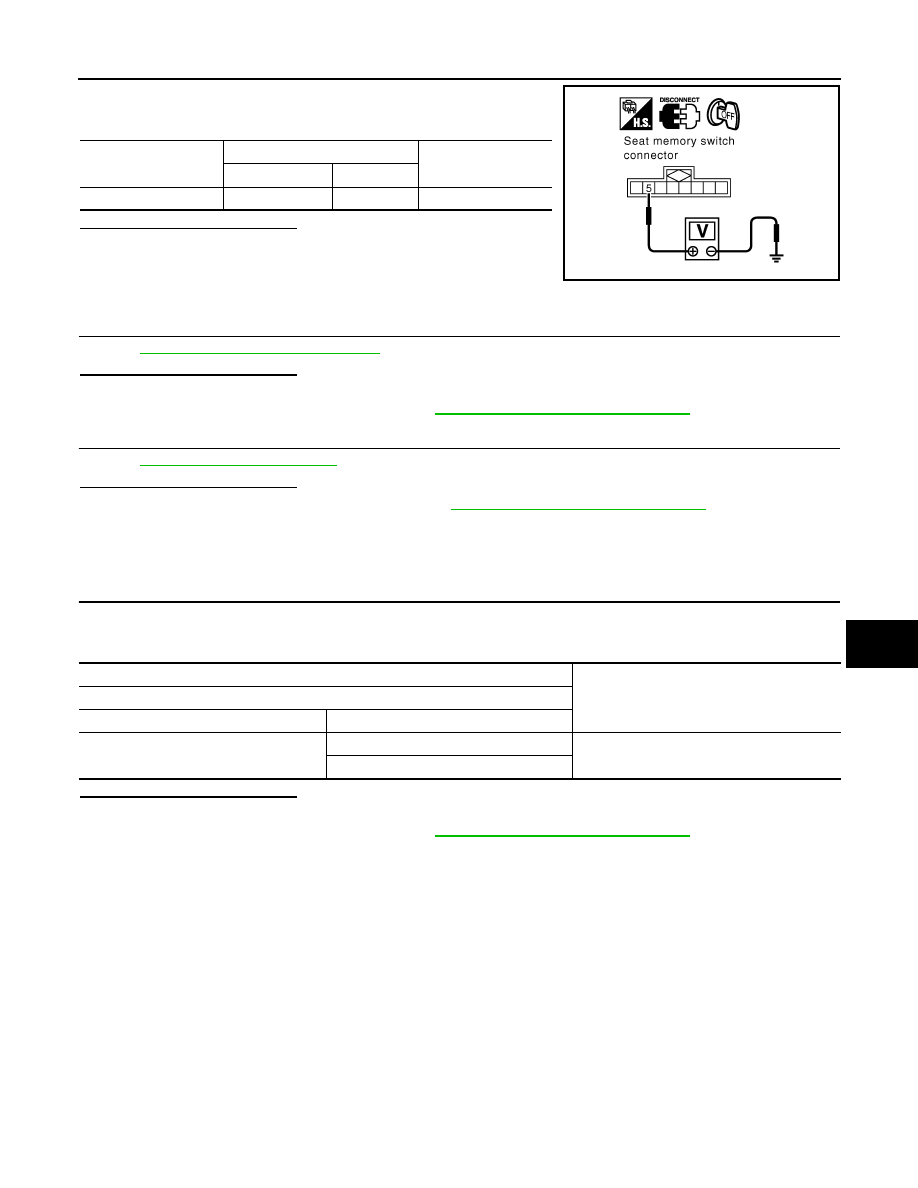

Check voltage between seat memory switch harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check the following:

• 10A Fuse no.10.

• Harness for open or short between memory indicator and fuse.

3.

 CHECK MEMORY INDICATOR

Refer to

ADP-113, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace seat memory switch. Refer to

ADP-171, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-169, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000010051822

1.

 CHECK SEAT MEMORY INDICATOR

1. Disconnect seat memory switch.

2. Check continuity between seat memory switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace seat memory switch. Refer to

ADP-171, "Removal and Installation"

.

Seat memory switch

connector

Terminals

Voltage (V)

(Approx.)

(+)

(–)

D13

5

Ground

Battery voltage

PIIA4595E

Terminal

Continuity

Seat memory switch

(+)

(-)

5

6

Yes

7

ADP-114

< ECU DIAGNOSIS INFORMATION >

DRIVER SEAT CONTROL UNIT

ECU DIAGNOSIS INFORMATION

DRIVER SEAT CONTROL UNIT

Reference Value

INFOID:0000000010051823

VALUES ON THE DIAGNOSIS TOOL

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

SET SW

Set switch

Push

ON

Release

OFF

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SLIDE SW–FR

Sliding switch (forward)

Operate

ON

Release

OFF

SLIDE SW–RR

Sliding switch (backward)

Operate

ON

Release

OFF

RECLN SW–FR

Reclining switch (forward)

Operate

ON

Release

OFF

RECLN SW–RR

Reclining switch (back-
ward)

Operate

ON

Release

OFF

LIFT FR SW–UP

Lifting switch front (up)

Operate

ON

Release

OFF

LIFT FR SW–DN

Lifting switch front (down)

Operate

ON

Release

OFF

LIFT RR SW–UP

Lifting switch rear (up)

Operate

ON

Release

OFF

LIFT RR SW–DN

Lifting switch rear (down)

Operate

ON

Release

OFF

MIR CON SW–UP

Mirror switch

Up

ON

Other than above

OFF

MIR CON SW–DN

Mirror switch

Down

ON

Other than above

OFF

MIR CON SW–RH

Mirror switch

Right

ON

Other than above

OFF

MIR CON SW–LH

Mirror switch

Left

ON

Other than above

OFF

MIR CHNG SW–R

Changeover switch

Right

ON

Other than above

OFF

MIR CHNG SW–L

Changeover switch

Left

ON

Other than above

OFF

TILT SW-UP

Tilt switch

Upward

ON

Other than above

OFF

TILT SW-DOWN

Tilt switch

Downward

ON

Other than above

OFF

DRIVER SEAT CONTROL UNIT

ADP-115

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

TELESCO SW-FR

Telescopic switch

Forward

ON

Other than above

OFF

TELESCO SW-RR

 Telescopic switch

Backward

ON

Other than above

OFF

DETENT SW

CVT selector lever

P position

OFF

Other than above

ON

STARTER SW

Ignition position

Cranking

ON

Other than above

OFF

SLIDE PULSE

Seat sliding

Forward

The numeral value decreases *

Backward

The numeral value increases*

Other than above

No change to numeral value*

RECLN PULSE

Seat reclining

Forward

The numeral value decreases*

Backward

The numeral value increases

*

Other than above

No change to numeral value

*

LIFT FR PULSE

Seat lifter (front)

Up

The numeral value decreases

*

Down

The numeral value increases

*

Other than above

No change to numeral value

*

LIFT RR PULSE

Seat lifter (rear)

Up

The numeral value decreases

*

Down

The numeral value increases

*

Other than above

No change to numeral value

*

MIR/SEN RH U–D

Door mirror (passenger side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN RH R–L

Door mirror (passenger side)

Change between 3.4 (close to left edge)

0.6 (close to right edge)

MIR/SEN LH U–D

Door mirror (driver side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN LH R–L

Door mirror (driver side)

Change between 0.6 (close to left edge)

3.4 (close to right edge)

TILT PULSE

Tilt position

Upward

The numeral value decreases

*

Downward

The numeral value increases

*

Other than above

No change to numeral value

*

TELESCO PULSE

Telescopic position

Forward

The numeral value decreases

*

Backward

The numeral value increases

*

Other than above

No change to numeral value

*

VEHICLE SPEED

The condition of vehicle speed is displayed

km/h

P RANG SW CAN

CVT selector lever

P position

ON

Other than above

OFF

R RANGE (CAN)

CVT selector lever

R position

ON

Other than above

OFF

STEERING STATUS

Steering lock unit

Lock

LOCK

Unlock

UNLOCK

DOOR SW-FL

Driver door

Open

OPEN

Close

CLOSED

Monitor Item

Condition

Value/Status
