SE-26

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

2. The seatback board is attached to the seat frame with the follow-

ing:

• 2 top clips (A) (must be replaced)

• 2 side hooks (B)

• 2 bottom hooks (C)

3. Hold the seatback board as shown and push in the side hooks to

release them from the seat back frame.

4. Carefully pull up on the seatback board to release the bottom

hooks.

5. Reach in from the bottom of the seatback board to release the

top clips. Squeeze the clips at the location shown (A) using suit-

able tool.

Assembly

Assembly is in the reverse order of disasembly.

PASSENGER SIDE

ALIIA0363ZZ

ALIIA0364ZZ

ALIIA0365ZZ

FRONT SEAT

SE-27

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER SIDE : Exploded View

INFOID:0000000004215462

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback board

5.

Seatback assembly

6.

Slide cover

7.

Seat belt buckle

8.

Seat harness

9.

Frame cushion support

10. Seat cushion

11. Seat trim

12. Front leg covers

13. Seat cushion frame

14. Recline lever finisher

15. Manual seat outer lower finisher

16. Manual seat recline lever

17. Manual seat outer finisher

18. Seat slide switch

19. Seat reclining switch

20. Power seat outer finisher

21. Seat switch assembly

22. LH seat bracket

23. Front seat finisher

24. Cushion bracket

ALIIA0272GB

SE-28

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

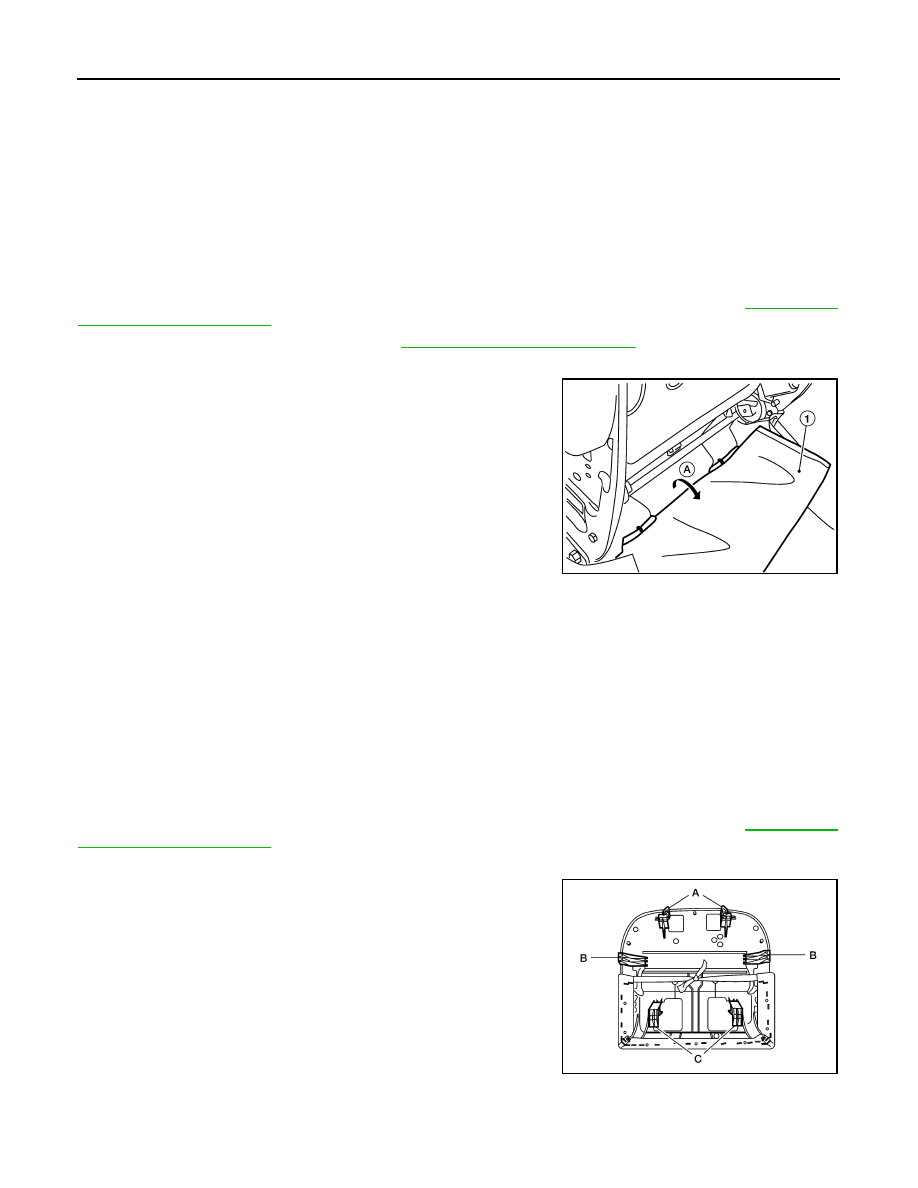

PASSENGER SIDE : Disassembly

INFOID:0000000004215463

SEAT CUSHION TRIM AND PAD

Disassembly

CAUTION:

• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

NOTE:

If the vehicle has been involved in a collision, the seat must be inspected for damage. Refer to

SRS-20, "For

Side and Rollover Collision"

.

1. Remove the front seat assembly. Refer to

SE-21, "Removal and Installation"

.

2. Remove the front seat finishers and seat outer finisher.
3. Pull up (A) on the seat cushion trim flap (1).
4. Remove two rear clips retaining the seat cushion trim flap,

remove seat cushion assembly.

5. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heater.
6. After removing the seat cushion trim and pad, remove the hog rings to separate the trim from the pad and

seat cushion heater unit.

Assembly

Assembly is in the reverse order of disasembly.

SEATBACK BOARD

Disassembly

CAUTION:

• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

NOTE:

If the vehicle has been involved in a collision, the seat must be inspected for damage. Refer to

SRS-20, "For

Side and Rollover Collision"

.

1. Slide the seat to forward position.
2. The seatback board is attached to the seat frame with the follow-

ing:

• 2 top clips (A) (must be replaced)

• 2 side hooks (B)

• 2 bottom hooks (C)

25. Inner seat cover

26. Seat frame assembly

27. Cushion finishers

28. Rear leg covers

ALIIA0277ZZ

ALIIA0363ZZ

FRONT SEAT

SE-29

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

3. Hold the seatback board as shown and push in the side hooks to

release them from the seat back frame.

4. Carefully pull up on the seatback board to release the bottom

hooks.

5. Reach in from the bottom of the seatback board to release the

top clips. Squeeze the clips at the location shown (A) using suit-

able tool.

Assembly

Assembly is in the reverse order of disasembly.

ALIIA0364ZZ

ALIIA0365ZZ
