DOOR SWITCH

Description

INFOID:0000000004215918

Detects door open/close condition and transmits the signal to BCM.

Component Function Check

INFOID:0000000004215919

1.

 CHECK FRONT DOOR SWITCH INPUT SIGNAL

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III. Refer to

BCS-

33, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)"

.

Is the inspection result normal?

YES

>> Front door switch circuit is OK.

NO

>> Refer to

PWC-133, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004215920

1.

 CHECK HARNESS CONTINUITY

Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect BCM and front door switch.

3. Check continuity between BCM connector (A) and front door

switch connector (B).

4. Check continuity between BCM connector (A) and ground.

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

 connector

Terminal

M18

32

Ground

Front door

RH

OPEN

0

CLOSE

Battery voltage

58

Front door

LH

OPEN

0

CLOSE

Battery voltage

ALKIA0269ZZ

BCM connector

Terminal

Front door switch

 connector

Terminal

Continuity

M18 (A)

32

RH: B108 (B)

2

Yes

58

LH: B8 (B)

ALKIA0270ZZ

PWC-134

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

DOOR SWITCH

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 4

NO

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

4.

 CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

PWC-134, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace front door switch.

Component Inspection

INFOID:0000000004215921

1.

 CHECK FRONT DOOR SWITCH

Check front door switches.

Is the inspection result normal?

YES

>> Front door switch is OK.

NO

>> Replace front door switch.

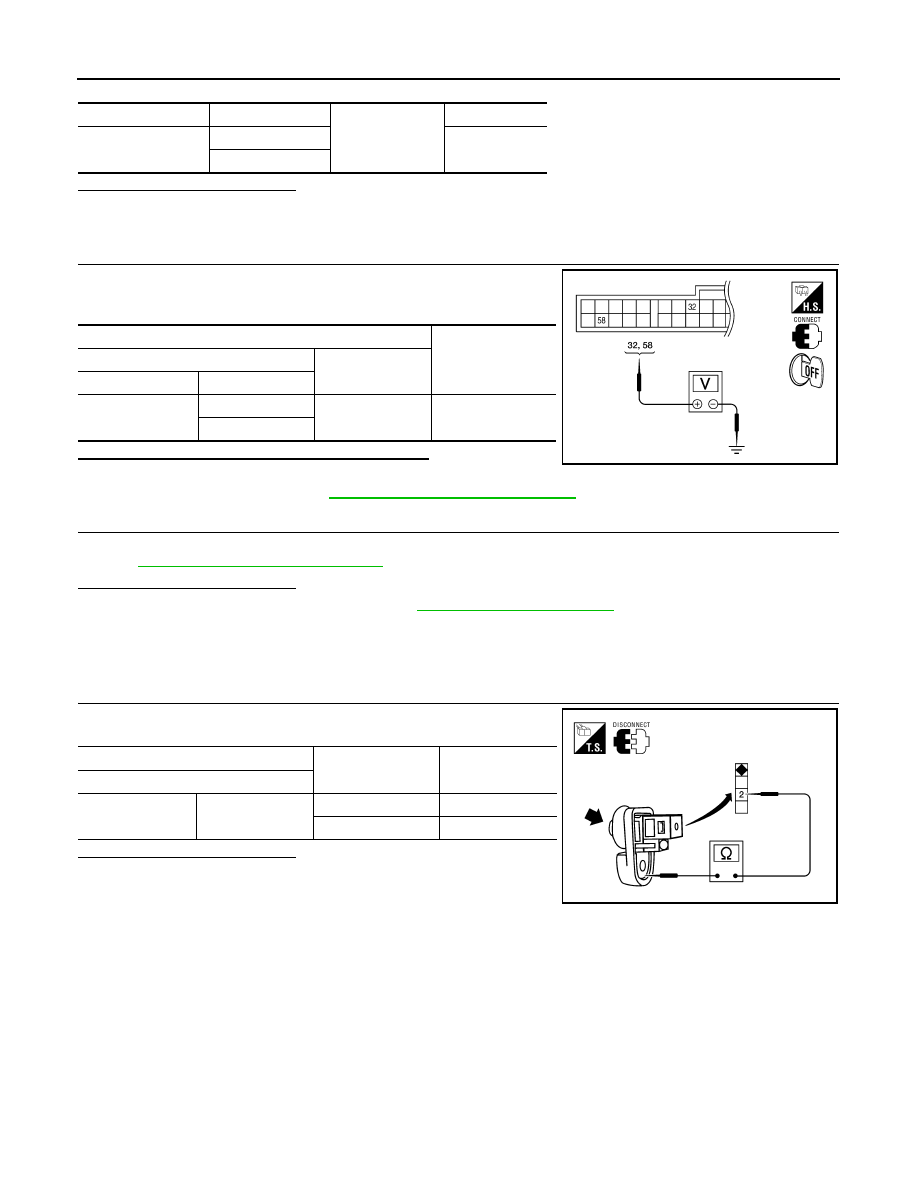

BCM connector

Terminal

Ground

Continuity

M18 (A)

32

No

58

Terminal

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M18

32

Ground

Battery voltage

58

ALKIA0271ZZ

Terminal

Door switch

Continuity

Door switches

2

Ground part of

door switch

Pressed

No

Released

Yes

LIIA2377E

DOOR KEY CYLINDER SWITCH

PWC-135

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DOOR KEY CYLINDER SWITCH

Description

INFOID:0000000004215922

Main power window and door lock/unlock switch detects condition of the door key cylinder and transmits to

BCM as the LOCK or UNLOCK signals.

Component Function Check

INFOID:0000000004215923

1.

 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

Check (“KEY CYL LK-SW”, “KEY CYL UN-SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-

TEM” with CONSULT-III. Refer to

BCS-19, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Key cylinder switch is OK.

NO

>> Refer to

PWC-135, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004215924

1.

 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between main power window and door lock/

unlock switch connector and ground.

Is the measurement value within the specification?

YES

>> Replace main power window and door lock/unlock switch. After that, refer to

PWC-114, "POWER

WINDOW MAIN SWITCH : Special Repair Requirement"

.

NO

>> GO TO 2

2.

 CHECK DOOR KEY CYLINDER SIGNAL CIRCUIT

Monitor item

Condition

KEY CYL LK-SW

Lock

: ON

Neutral / Unlock

: OFF

KEY CYL UN-SW

Unlock

: ON

Neutral / Lock

: OFF

Terminals

Key position

Voltage (V)

(Approx.)

(+)

(–)

Main power window

and door lock/unlock

switch connector

Terminal

D7

4

Ground

Lock

0

Neutral/Unlock

5

6

Unlock

0

Neutral/Lock

5

ALKIA0309ZZ

PWC-136

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

DOOR KEY CYLINDER SWITCH

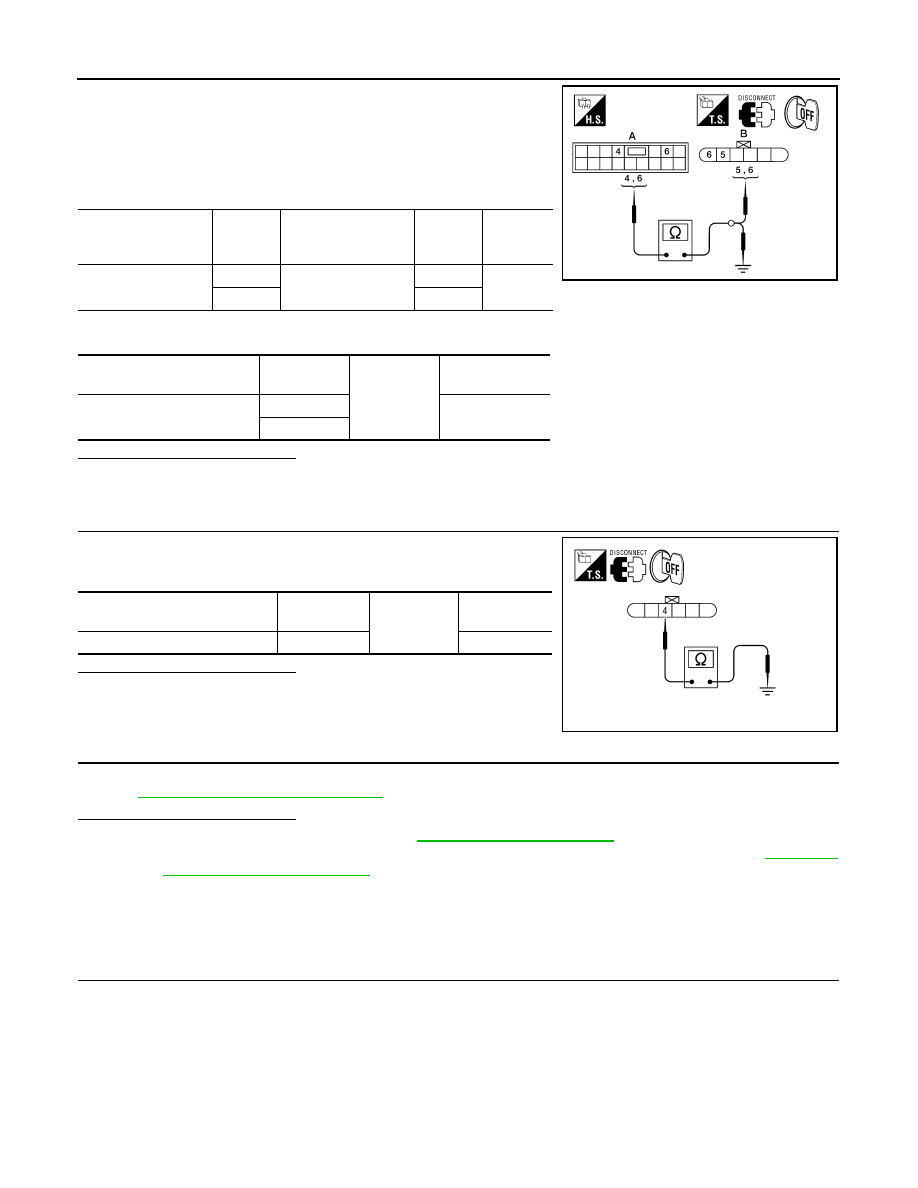

1. Turn ignition switch OFF.

2. Disconnect main power window and door lock/unlock switch and

front door lock assembly LH (key cylinder switch).

3. Check continuity between main power window and door lock/

unlock switch connector (A) and front door lock assembly LH

(key cylinder switch) connector (B).

4. Check continuity between main power window and door lock/unlock switch connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

Check continuity between front door lock assembly LH (key cylinder

switch) connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK DOOR KEY CYLINDER SWITCH

Check door key cylinder switch.

Refer to

PWC-136, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace front door lock assembly LH (door key cylinder switch). After that, refer to

PWC-137,

"Special Repair Requirement"

.

Component Inspection

INFOID:0000000004215925

COMPONENT INSPECTION

1.

 CHECK DOOR KEY CYLINDER SWITCH

Main power window

and door lock/unlock

switch connector

Terminal

Front door lock as-

sembly LH (key cylin-
der switch) connector

Terminal

Continuity

D7 (A)

4

D10 (B)

6

Yes

6

5

Main power window and door

lock/unlock switch connector

Terminal

Ground

Continuity

D7 (A)

4

No

6

ALKIA0347ZZ

Front door lock assembly LH (key

cylinder switch) connector

Terminal

Ground

Continuity

D10

4

Yes

ALKIA0348ZZ
