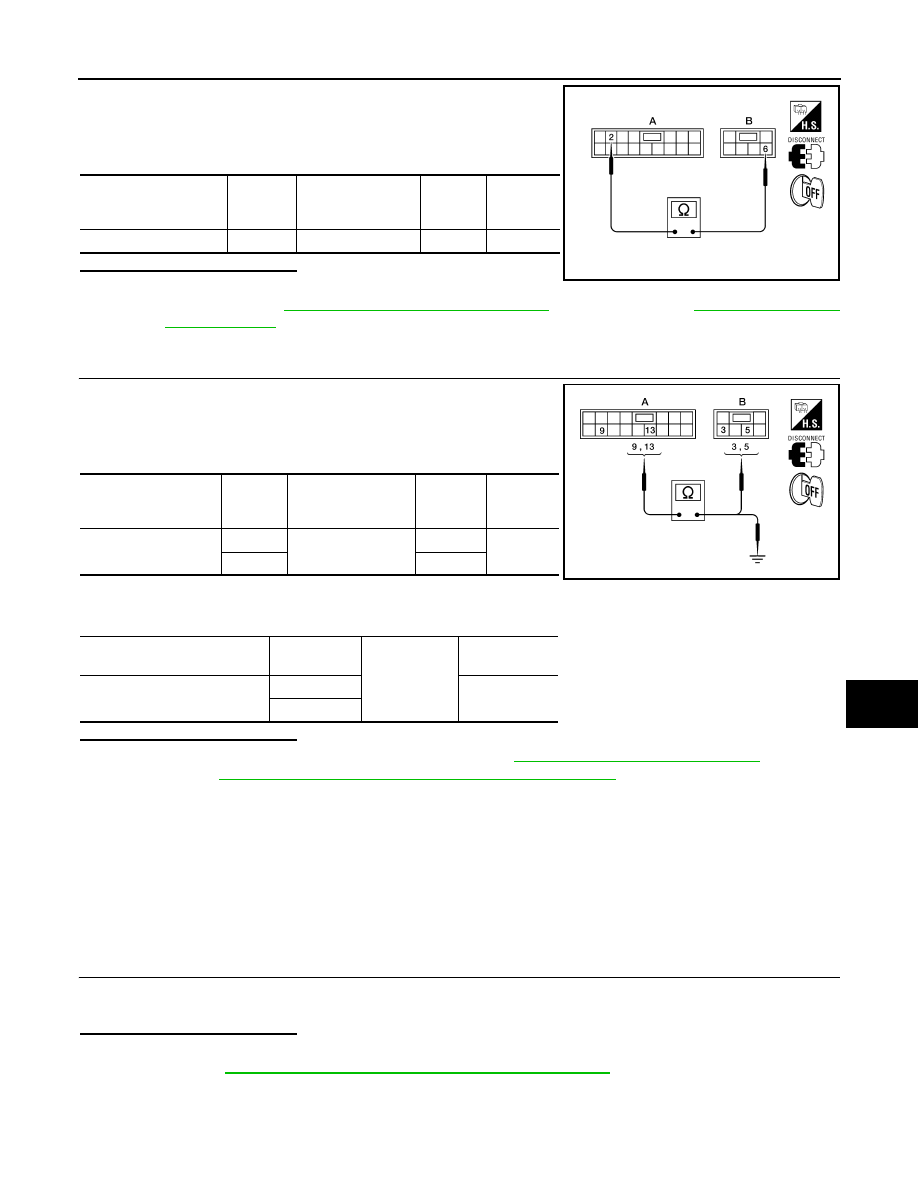

ENCODER

PWC-129

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1. Disconnect main power window and door lock/unlock switch.

2. Check continuity between main power window and door lock/

unlock switch connector (A) and front power window motor LH

connector (B).

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock

switch. Refer to

PWC-215, "Removal and Installation"

. After that, refer to

PWC-215, "Removal

and Installation"

.

NO

>> Repair or replace harness.

6.

 CHECK HARNESS CONTINUITY 3

1. Disconnect main power window and door lock/unlock switch.

2. Check continuity between main power window and door lock/

unlock switch connector (A) and front power window motor LH

connector (B).

3. Check continuity between main power window and door lock/

unlock switch connector (A) and ground.

Is the inspection result normal?

YES

>> Replace front power window motor LH. Refer to

GW-17, "Removal and Installation"

. After that,

refer to

PWC-121, "DRIVER SIDE : Special Repair Requirement"

.

NO

>> Repair or replace harness.

PASSENGER SIDE
PASSENGER SIDE : Description

INFOID:0000000004215915

Detects condition of the front power window motor RH operation and transmits to power window and door

lock/unlock switch RH as pulse signal.

PASSENGER SIDE : Component Function Check

INFOID:0000000004215916

1.

CHECK ENCODER OPERATION

Does front door glass RH perform AUTO open/close operation normally when operating power window and

door lock/unlock switch RH?
Is the inspection result normal?

YES

>> Encoder operation is OK.

NO

>> Refer to

PWC-130, "PASSENGER SIDE : Diagnosis Procedure"

.

Main power window and

door lock/unlock switch

connector

Terminal

Front power win-

dow motor LH con-

nector

Terminal

Continuity

D7 (A)

2

D9 (B)

6

Yes

ALKIA0299ZZ

Main power window

and door lock/unlock

switch connector

Terminal

Front power window

motor LH connector

Terminal

Continuity

D7 (A)

9

D9 (B)

3

Yes

13

5

Main power window and door

lock/unlock switch connector

Terminal

Ground

Continuity

D7 (A)

9

No

13

ALKIA0300ZZ

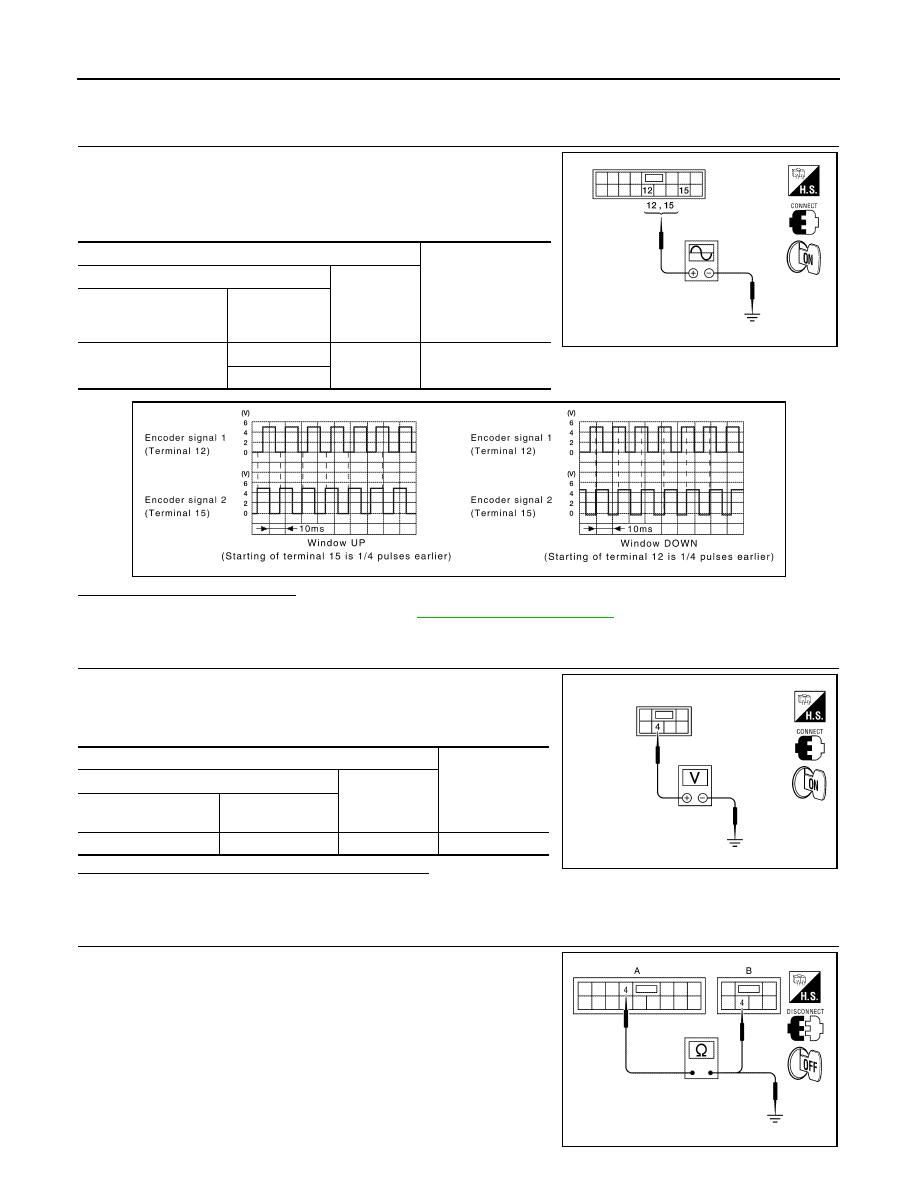

PWC-130

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

ENCODER

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000004215917

1.

 CHECK ENCODER SIGNAL

1. Connect front power window motor RH.

2. Turn ignition switch ON.

3. Check signal between power window and door lock/unlock

switch RH connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> GO TO 2

2.

 CHECK FRONT POWER WINDOW MOTOR RH POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between front power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK HARNESS CONTINUITY 1

1. Turn ignition switch OFF.

2. Disconnect power window and door lock/unlock switch RH and

front power window motor RH.

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

Terminals

Signal

(Reference value)

(+)

(–)

 Power window and door

lock/unlock switch RH

connector

Terminal

D105

12

Ground

Refer to following

signal

15

ALKIA0322ZZ

ALKIA0305GB

Terminal

Voltage (V)

(Approx.)

(+)

(–)

 Front power window

motor RH connector

Terminal

D105

4

Ground

10

ALKIA0296ZZ

ALKIA0306ZZ

ENCODER

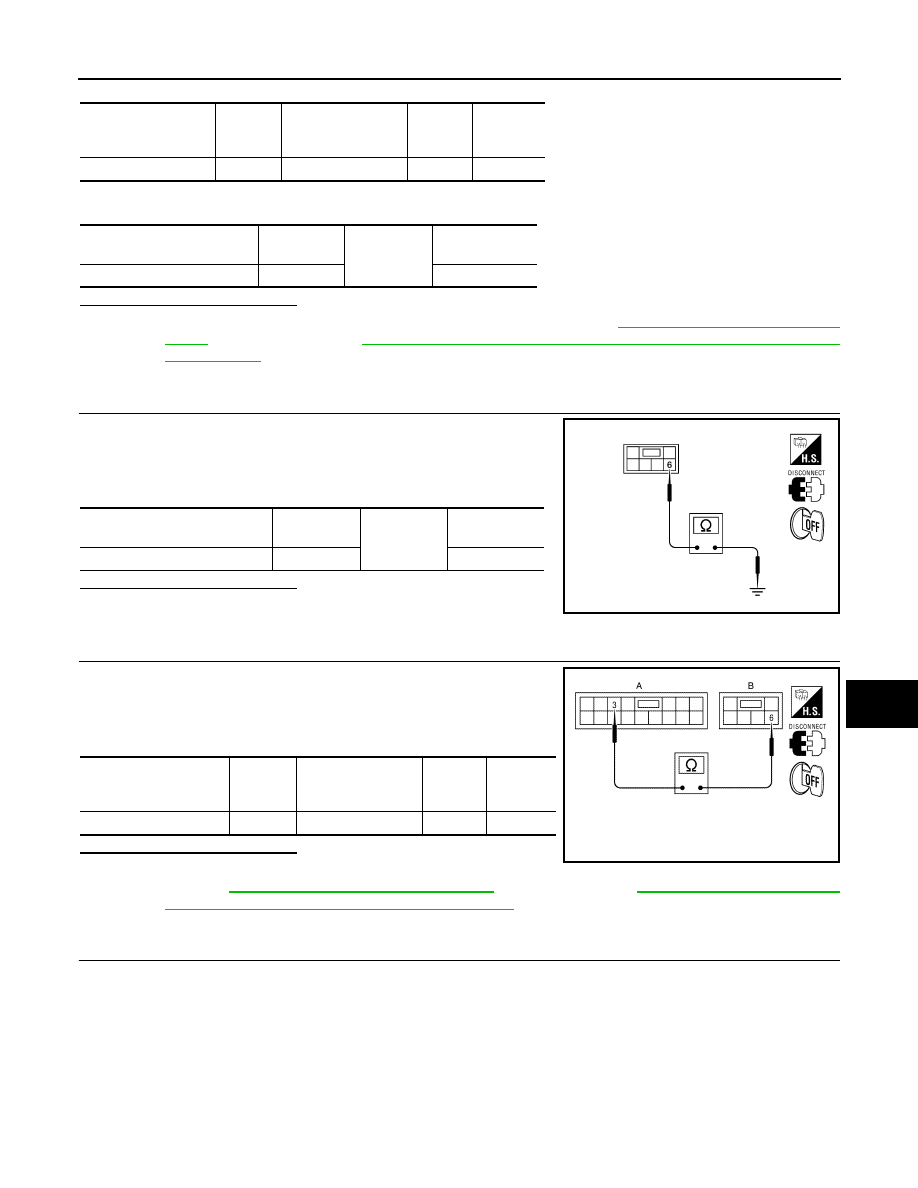

PWC-131

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

4. Check continuity between power window and door lock/unlock switch RH connector (A) and ground.

Is the inspection result normal?

YES

>> Replace power window and door lock/unlock switch RH. Refer to

PWC-215, "Removal and Instal-

lation"

. After that, refer to

PWC-116, "FRONT POWER WINDOW SWITCH : Special Repair

Requirement"

.

NO

>> Repair or replace harness.

4.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect front power window motor RH.

3. Check continuity between front power window motor RH con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 5

5.

 CHECK HARNESS CONTINUITY 2

1. Disconnect power window and door lock/unlock switch RH.

2. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

Is the inspection result normal?

YES

>> Replace power window and door lock/unlock switch RH.

Refer to

PWC-215, "Removal and Installation"

. After that, refer to

PWC-116, "FRONT POWER

WINDOW SWITCH : Special Repair Requirement"

.

NO

>> Repair or replace harness.

6.

 CHECK HARNESS CONTINUITY 3

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

4

D104 (B)

4

Yes

Power window and door lock/

unlock switch RH connector

Terminal

Ground

Continuity

D105 (A)

4

No

Front power window motor RH

connector

Terminal

Ground

Continuity

D104

6

Yes

ALKIA0298ZZ

Power window and door

lock/unlock switch RH

connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

3

D104 (B)

6

Yes

ALKIA0307ZZ

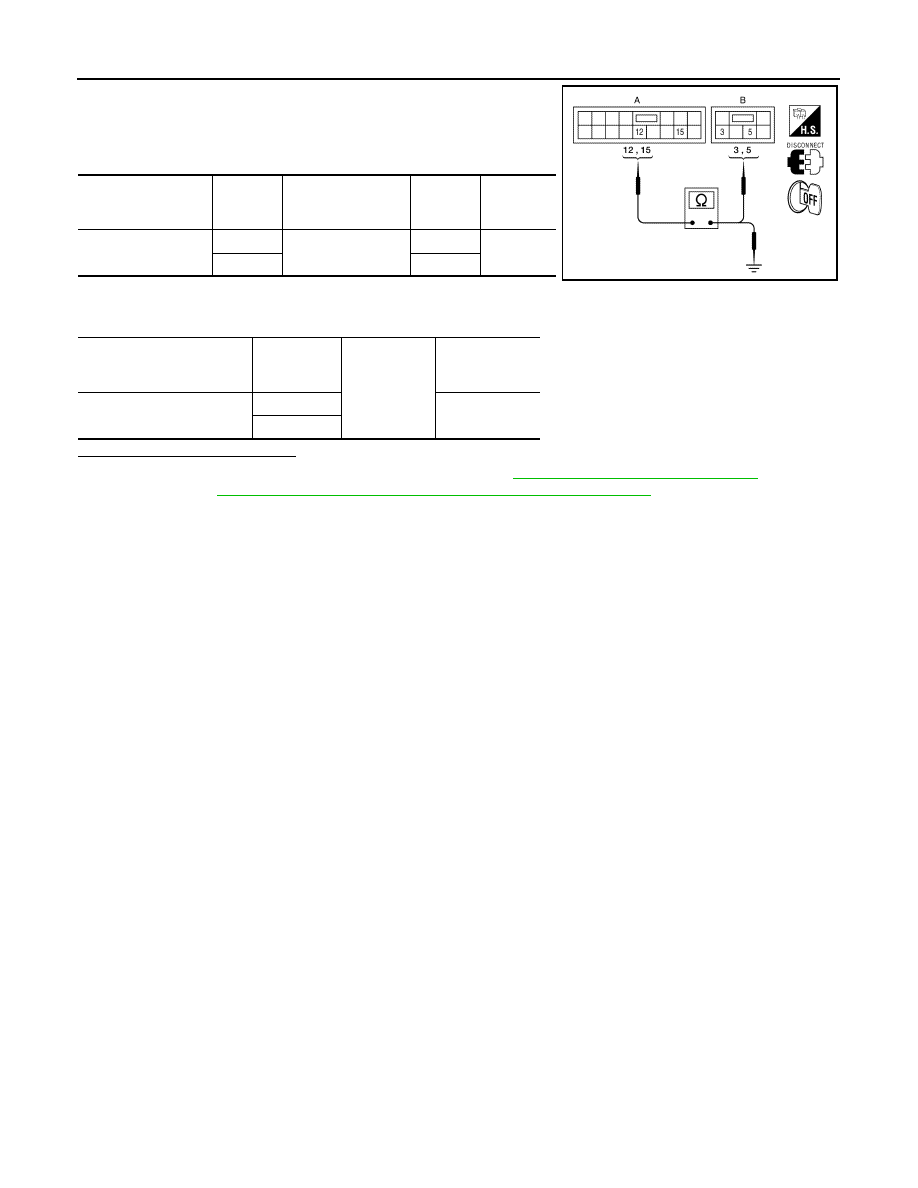

PWC-132

< COMPONENT DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

ENCODER

1. Disconnect power window and door lock/unlock switch RH.

2. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and ground.

Is the inspection result normal?

YES

>> Replace front power window motor RH. Refer to

GW-17, "Removal and Installation"

. After that,

refer to

PWC-123, "PASSENGER SIDE : Special Repair Requirement"

.

NO

>> Repair or replace harness.

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

12

D104 (B)

5

Yes

15

3

Power window and door

lock/unlock switch RH con-

nector

Terminal

Ground

Continuity

D105 (A)

12

No

15

ALKIA0308ZZ
