POWER WINDOW SYSTEM

PWC-105

< FUNCTION DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.

• Power window and door lock unlock switch RH & rear power window switches LH and RH can open/close

the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT LH & RH)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch &

power window and door lock/unlock switch RH turns to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON.

• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock

switch is ON. This inhibits power window switch operation except with the main power window and door lock/

unlock switch.

ANTI-PINCH OPERATION (FRONT LH & RH)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 150 mm or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm or 2 seconds after it detects encoder

pulse signal frequency change.

OPERATION CONDITION

• When all door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the

door glass closes and is fully closed)

NOTE:

Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it

may lower.

KEY CYLINDER SWITCH OPERATION

Hold the door key cylinder to the LOCK or UNLOCK direction for more than 1 second to OPEN or CLOSE front

power windows when ignition switch is OFF. In addition, it stops when key position is moved to NEUTRAL

when operating.

OPERATION CONDITION

• Ignition switch OFF

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Power window control

Front power window motor RH

Encoder

Encoder pulse signal

BCM

RAP signal

PWC-106

< FUNCTION DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

POWER WINDOW SYSTEM

• Hold door key cylinder to LOCK position for more than 1 second to perform CLOSE operation of the door

glass.

• Hold door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of the door

glass.

KEYLESS POWER WINDOW DOWN OPERATION (FRONT LH & RH)

Front power windows open when the unlock button on Intelligent Key is activated and kept pressed for more

than 3(NOTE) seconds with the ignition switch OFF. The windows keep opening if the unlock button is contin-

uously pressed.

The power window opening stops when the following operations are performed:

• When the unlock button is kept pressed more than 15 seconds.

• When the ignition switch is turned ON while the power window opening is operated.

• When the unlock button is released.

While retained power operation activate, keyless power window down function cannot be operated.

NOTE:

Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-

PORT”. Refer to

BCS-26, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

NOTE:

Use CONSULT-III to change settings.

MODE 1 (3sec) / MODE 2 (OFF) / MODE 3 (5sec)

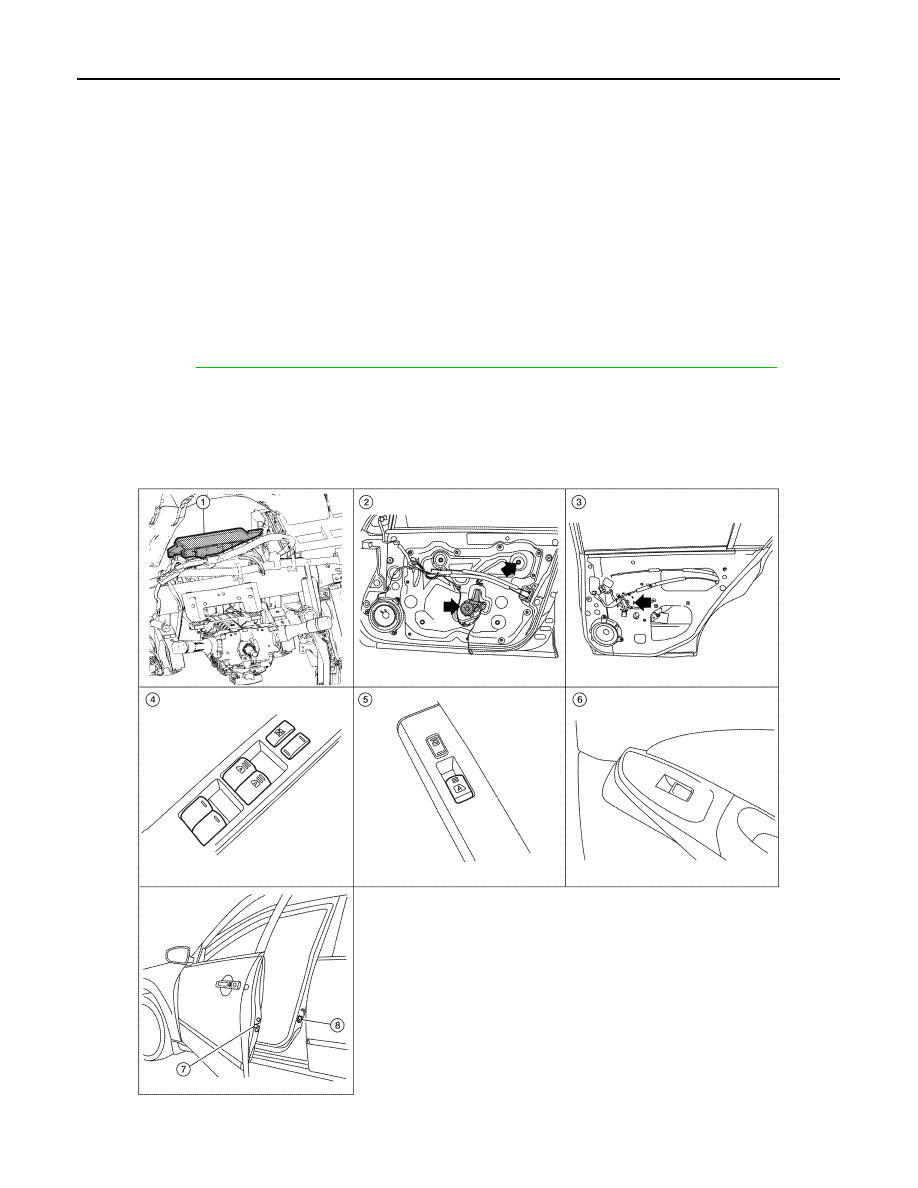

Component Parts Location

INFOID:0000000004215877

ALCIA0039ZZ

POWER WINDOW SYSTEM

PWC-107

< FUNCTION DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Component Description

INFOID:0000000004215878

FRONT WINDOW ANTI-PINCH SYSTEM

1.

BCM M16, M17, M18, M19 (view
with instrument panel removed)

2.

Front power window motor LH D9,
RH D104

3.

Rear power window motor LH D204,
RH D304

4.

Main power window and door lock/
unlock switch D7, D8

5.

Power window and door lock/unlock
switch RH D105

6.

Rear power window switch LH D203,
RH D303

7.

Front door lock assembly LH (key
cylinder switch) D10

8.

Front door switch LH B8, RH B108

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Main power window and door lock/un-
lock switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.

Power window and door lock/unlock
switch RH

• Controls front power window motor RH.
• Controls anti-pinch operation of front power window RH.

Rear power window switch

• Controls rear power window motors LH and RH.

Front power window motor LH

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door lock assembly LH (key cylin-
der switch)

Transmits operation condition of key cylinder switch to power window main switch.

Front door switch LH or RH

Detects door open/close condition and transmits to BCM.

PWC-108

< FUNCTION DIAGNOSIS >

[LH&RH FRONT WINDOW ANTI-PINCH]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : Diagnosis Description

INFOID:0000000004479186

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000004479187

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

BCS-81, "DTC Index"

.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×
