FRONT DOOR LH HARNESS

ALMIA0026GB

D1

W/16

: To M11

D6

B/4

: Front outside handle LH

D2

W/16

: To M12

D7

W/16

: Main power window and door lock/unlock
  switch

D3

BR/2

: Front door speaker LH (with BOSE audio
  system)

D8

W/3

: Main power window and door lock/unlock
  switch

D3

W/2

: Front door speaker LH (with base audio
  system)

D9

W/6

: Front power window motor LH

D4

W/8

: Door mirror LH

D10

GR/6

: Front door lock assembly LH

D5

W/16

: Door mirror remote control switch

D11

W/2

: Front step lamp LH

PG-52

< COMPONENT DIAGNOSIS >

HARNESS

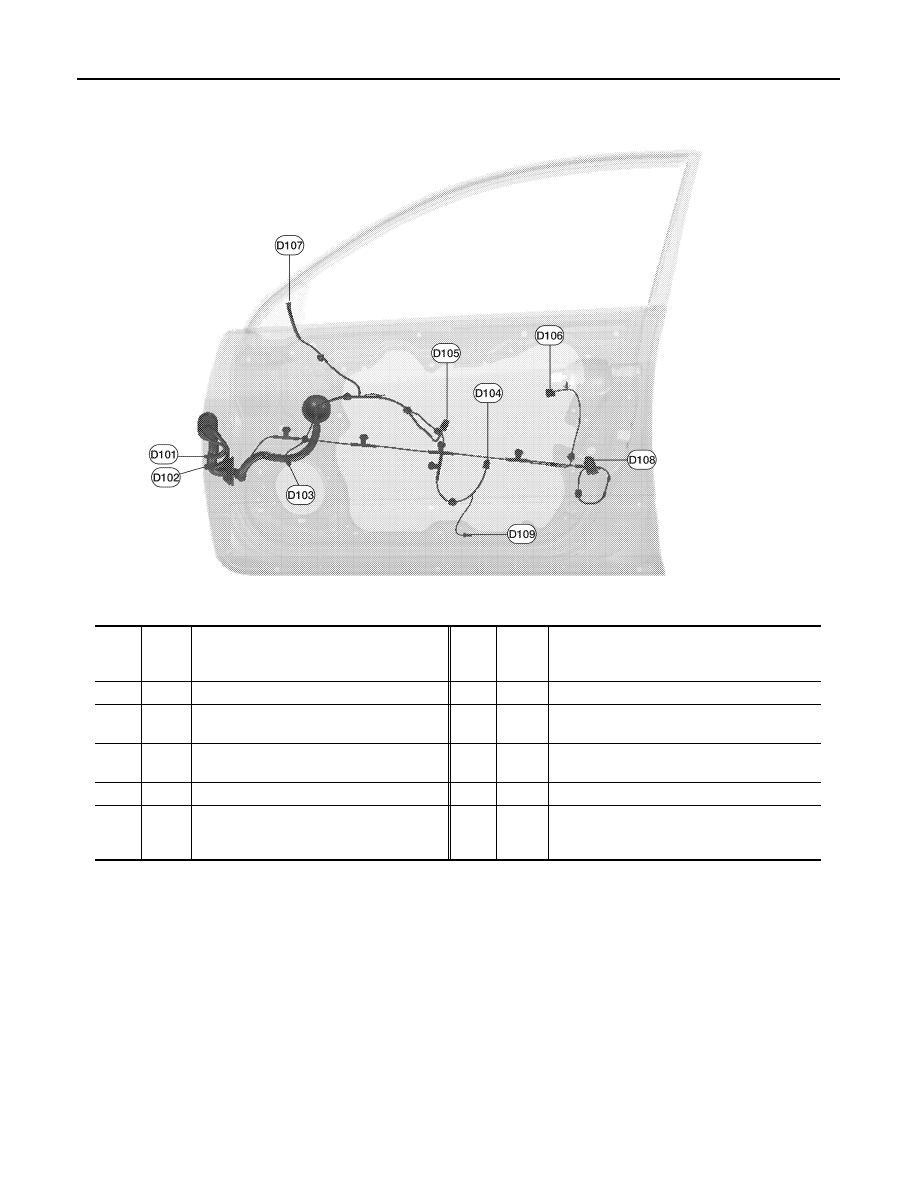

FRONT DOOR RH HARNESS

ALMIA0027GB

D101

W/10

: To M14

D105

W/16

: Power window and door lock/unlock
  switch RH (with left and right front power
  window anti -pinch system)

D102

W/16

: To M15

D106

B/4

: Front outside handle RH

D103

W/2

: Front door speaker LH (with base audio
  system)

D107

W/8

: Door mirror RH

D103

BR/2

: Front door speaker LH (with BOSE audio
  system)

D108

GR/8

: Front door lock actuator RH

D104

W/6

: Front power window motor RH

D109

W/2

: Front step lamp RH

D105

W/12

: Power window and door lock/unlock
  switch RH (with left front only power
  window anti -pinch system)

PG

HARNESS

PG-53

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR DOOR LH HARNESS

ALMIA0028GB

D201

W/8

: To B6

D202

BR/2

: Rear door speaker LH

D203

W/8

: Rear power window switch LH

D204

G/6

: Rear power window motor LH

D205

GR/6

: Rear door lock actuator LH

PG-54

< COMPONENT DIAGNOSIS >

HARNESS

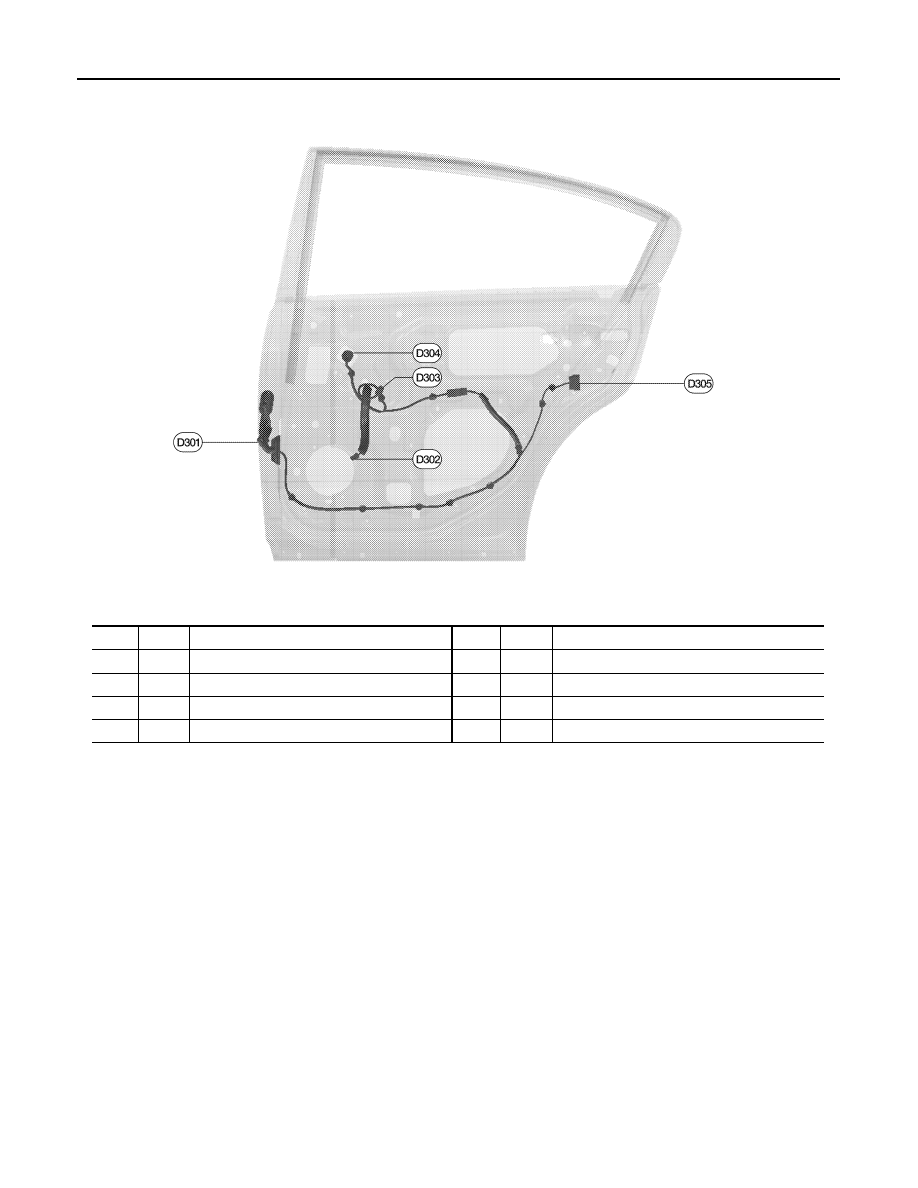

REAR DOOR RH HARNESS

ALMIA0029GB

D301

W/8

: To B106

D302

BR/2

: Rear door speaker RH

D303

W/8

: Rear power window switch RH

D304

G/6

: Rear power window motor RH

D305

GR/6

: Rear door lock actuator RH
