Nissan Altima HL32 Hybrid. Manual - part 816

MWI

COMPASS

MWI-51

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPASS

Wiring Diagram

INFOID:0000000004219305

ABNWA0216GB

MWI-52

< COMPONENT DIAGNOSIS >

COMPASS

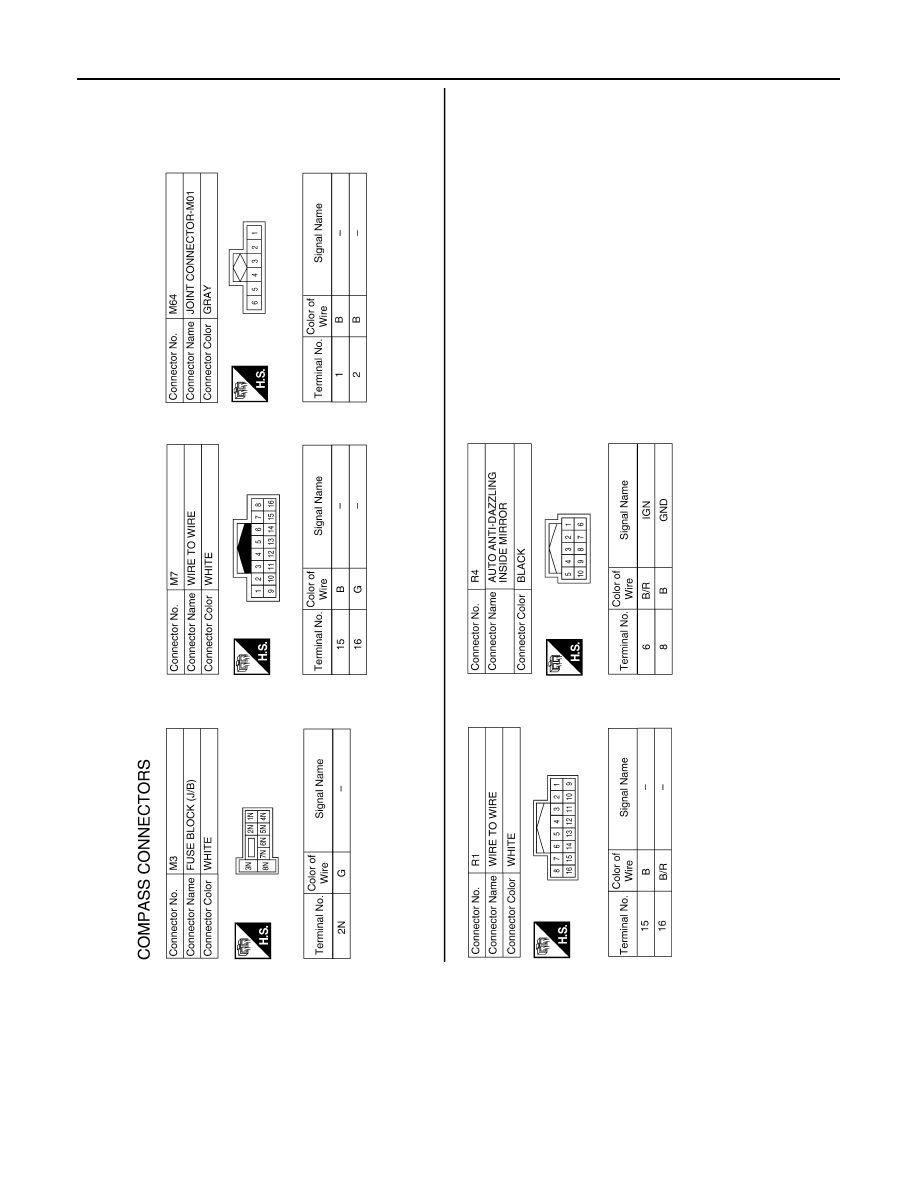

ABNIA0704GB

MWI

COMBINATION METER

MWI-53

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000004219306

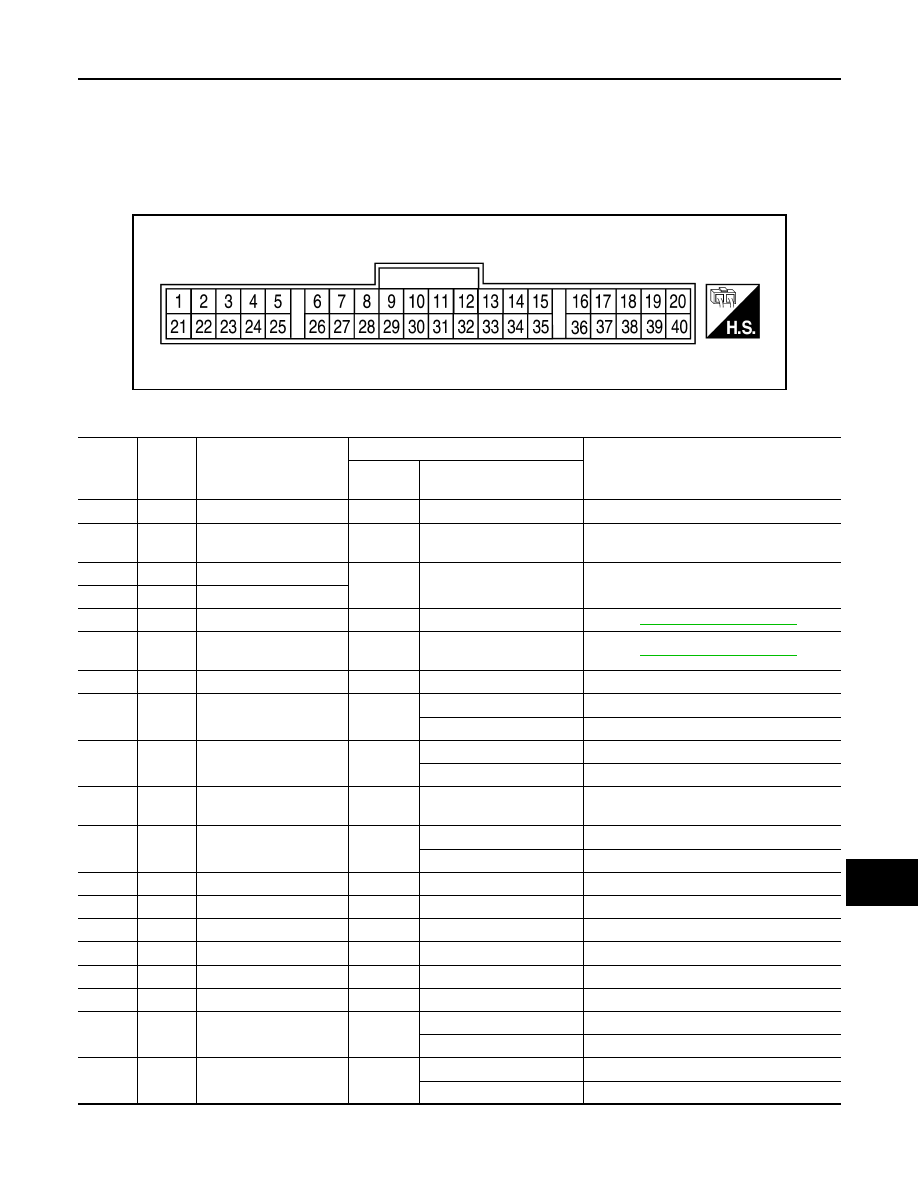

TERMINAL LAYOUT

PHYSICAL VALUES

WKIA5832E

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

1

W/L

Battery power supply

—

—

Battery voltage

2

O

Ignition switch ON or
START

ON

—

Battery voltage

3

B

Ground (Power)

—

—

0

4

B

Ground (Illumination)

5

R/Y

Illumination output

—

—

Refer to

INL-9, "System Description"

.

9

GR/W

Illumination switch pow-
er

—

—

Refer to

INL-9, "System Description"

.

10

O/L

Mode switch ground

ON

—

0

11

L/R

Mode switch A

ON

Switch pressed

0

Switch released

5

12

B/R

Mode switch B

ON

Switch pressed

0

Switch released

5

14

V/Y

Ignition switch ACC or
ON

ON

—

Battery voltage

15

BR/W

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

3

Air bag warning lamp OFF

0

18

O/B

Ambient sensor signal

ON

—

0 - 5 (Based on ambient temperature)

20

B/Y

Ambient sensor ground

ON

—

0

21

L

CAN-H

—

—

—

22

P

CAN-L

—

—

—

23

B

Ground (Circuit)

—

—

0

24

B/W

Fuel level sensor ground

ON

—

0

26

G/R

Parking brake switch

ON

Parking brake applied

0

Parking brake released

Battery voltage

28

L/O

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage

MWI-54

< ECU DIAGNOSIS >

COMBINATION METER

29

R

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

30

L/B

Vehicle speed signal out-
put (2-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 20 km/h (12 MPH)]

240 Hz

31

V/W

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
Maximum voltage may be 12V due to spec-
ifications (connected units).

34

G/B

Fuel level sensor signal

—

—

Refer to

MWI-13, "FUEL GAUGE : System

Description"

.

35

W/B

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

36

L/W

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

PKIC0643E
