Nissan Altima HL32 Hybrid. Manual - part 815

MWI

WASHER LEVEL SWITCH SIGNAL CIRCUIT

MWI-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

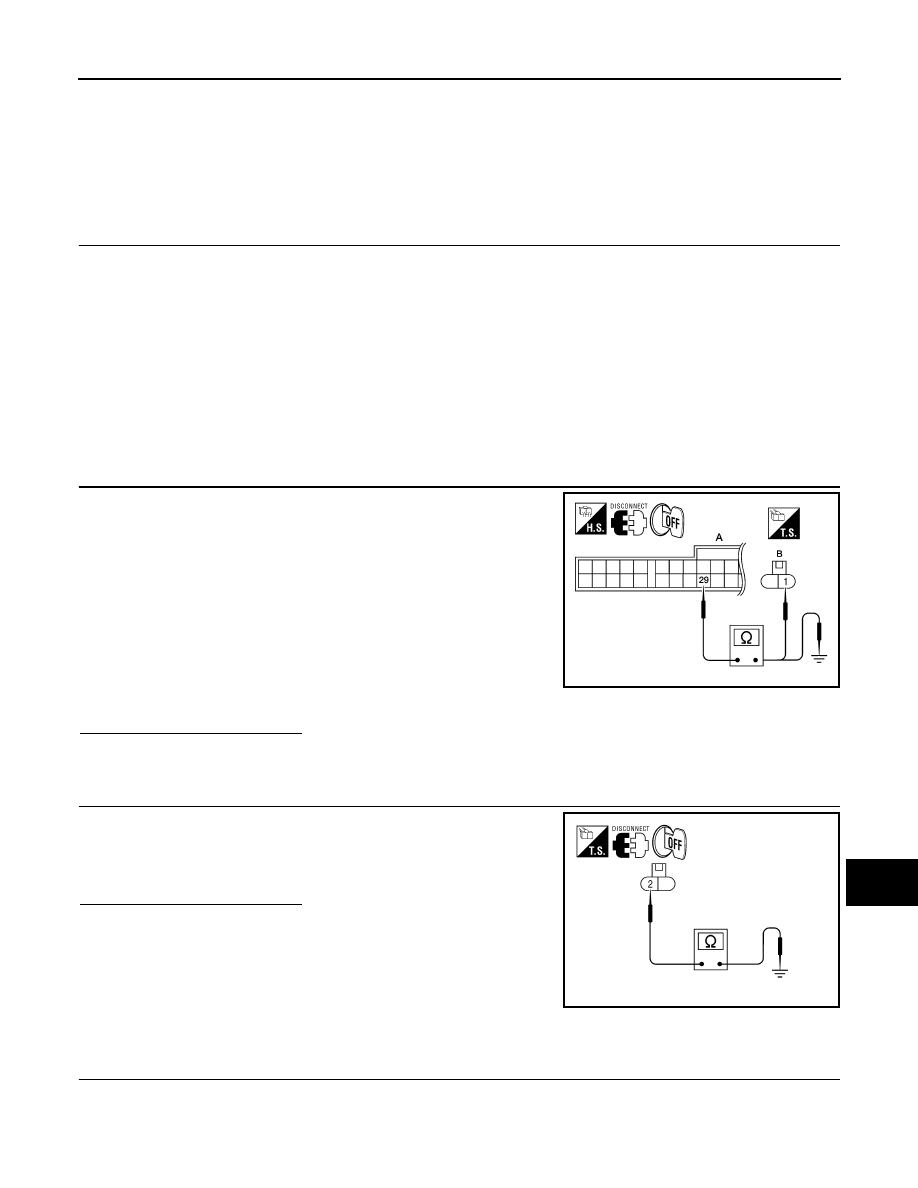

WASHER LEVEL SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000004219297

Transmits the washer level switch signal to the combination meter.

Component Function Check

INFOID:0000000004219298

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Monitor “WASHER W/L” of “DATA MONITOR” under the following conditions.

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004219299

1.

CHECK WASHER LEVEL SWITCH SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter connector and washer level

switch connector.

3. Check continuity between combination meter harness connector

M24 (A) terminal 29 and washer level switch harness connector

E208 (B) terminal 1.

4. Check continuity between combination meter harness connector

M24 (A) terminal 29 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK WASHER LEVEL SWITCH GROUND CIRCUIT

Check continuity between washer fluid level switch harness connec-

tor E208 terminal 2 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000004219300

1.

CHECK WASHER FLUID LEVEL SWITCH

WASHER W/L
Washer fluid level low

: ON

Washer fluid level other : OFF

29 - 1

: Continuity should exist.

29 - Ground

: Continuity should not exist.

AWNIA0311ZZ

2 - Ground

: Continuity should exist.

AWNIA0312ZZ

MWI-48

< COMPONENT DIAGNOSIS >

WASHER LEVEL SWITCH SIGNAL CIRCUIT

Check continuity between washer level switch terminals 1 and 2.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace washer level switch.

Terminal

Washer fluid level

Continuity

1 - 2

Low

Yes

Other

No

AWNIA0310ZZ

MWI

AMBIENT SENSOR SIGNAL CIRCUIT

MWI-49

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

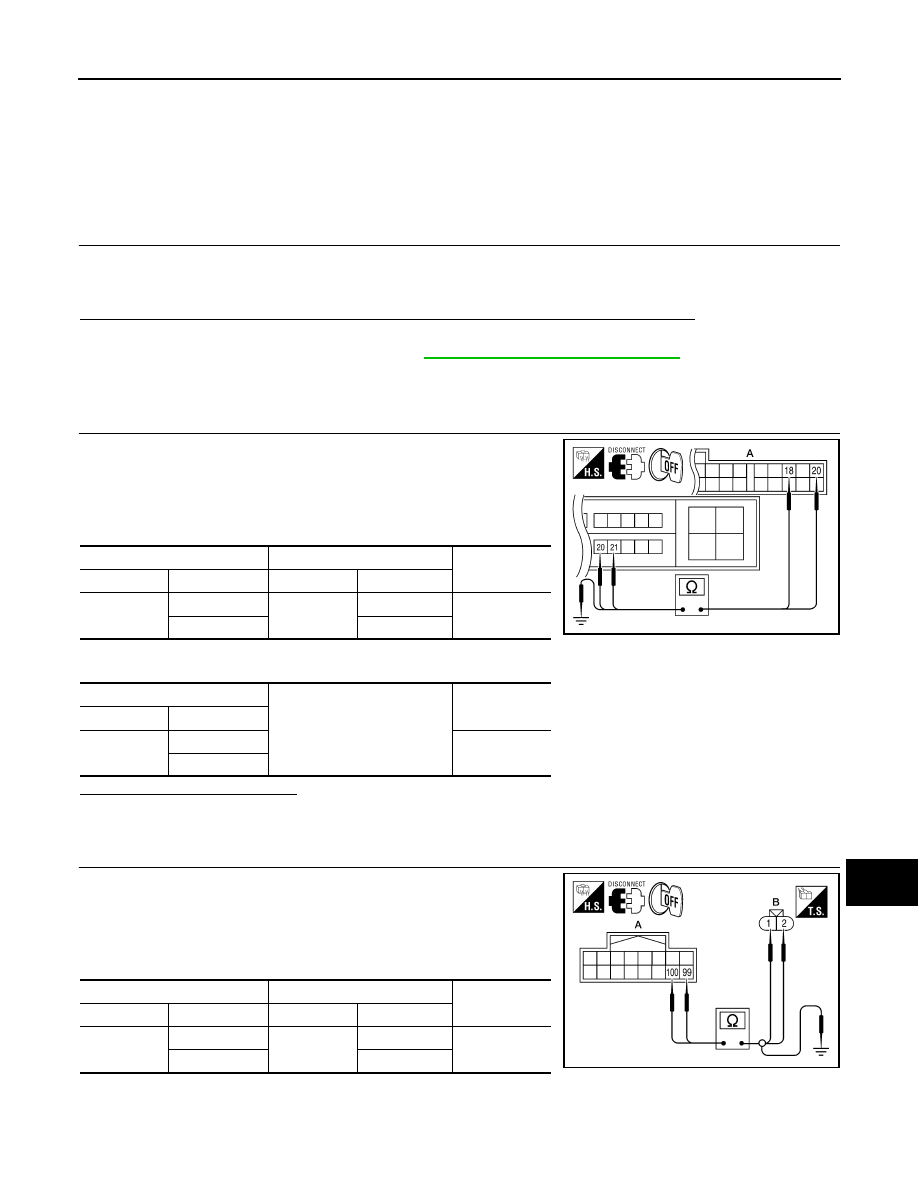

AMBIENT SENSOR SIGNAL CIRCUIT

Description

INFOID:0000000004219301

Transmits the ambient sensor signal to the combination meter.

Component Function Check

INFOID:0000000004219302

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Using “OUTSIDE TEMP” on “DATA MONITOR”, compare the value of DATA MONITOR with temperature

display on combination meter. DATA MONITOR and combination meter indications should be close.

Does the data monitor value approximately match the display on the combination meter?

YES

>> Inspection End.

NO

>> Replace combination meter. Refer to

MWI-135, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000004219303

1.

CHECK AMBIENT SENSOR CIRCUITS BETWEEN COMBINATION METER AND IPDM E/R

1. Disconnect combination meter connector M24 and IPDM E/R

connector E18.

2. Check continuity between combination meter harness connector

M24 (A) terminals 18, 20 and IPDM E/R harness connector E18

(B) terminals 20 and 21.

3. Check continuity between combination meter harness connector M24 (A) terminals 18, 20 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK AMBIENT SENSOR CIRCUITS BETWEEN IPDM E/R AND AMBIENT SENSOR

1. Disconnect IPDM E/R connector E201 and ambient sensor con-

nector E211.

2. Check continuity between IPDM E/R harness connector E201

(A) terminals 99, 100 and ambient sensor harness connector

E211 terminals 1 and 2.

3. Check continuity between IPDM E/R harness connector E201 (A) terminals 99, 100 and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M24

18

E18

21

Yes

20

20

A

Ground

Continuity

Connector

Terminal

M24

18

No

20

AWNIA0024ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

E201

99

E211

2

Yes

100

1

AWNIA0025ZZ

MWI-50

< COMPONENT DIAGNOSIS >

AMBIENT SENSOR SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-39, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000004219304

After disconnecting ambient sensor (1) connector E211, measure

resistance between terminals 1 and 2 at sensor side. Refer to table

below.

If NG, replace ambient sensor.

A

Ground

Continuity

Connector

Terminal

E201

99

No

100

Temperature

°C (°F)

Resistance k

Ω

−15 (5)

12.73

−10 (14)

9.92

−5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

JPIIA0042ZZ
