METER SYSTEM

MWI-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AWNIA0066GB

MWI-16

< FUNCTION DIAGNOSIS >

METER SYSTEM

FUEL GAUGE : Component Description

INFOID:0000000004219252

ODO/TRIP METER
ODO/TRIP METER : System Diagram

INFOID:0000000004219253

ODO/TRIP METER : System Description

INFOID:0000000004219254

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-

nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

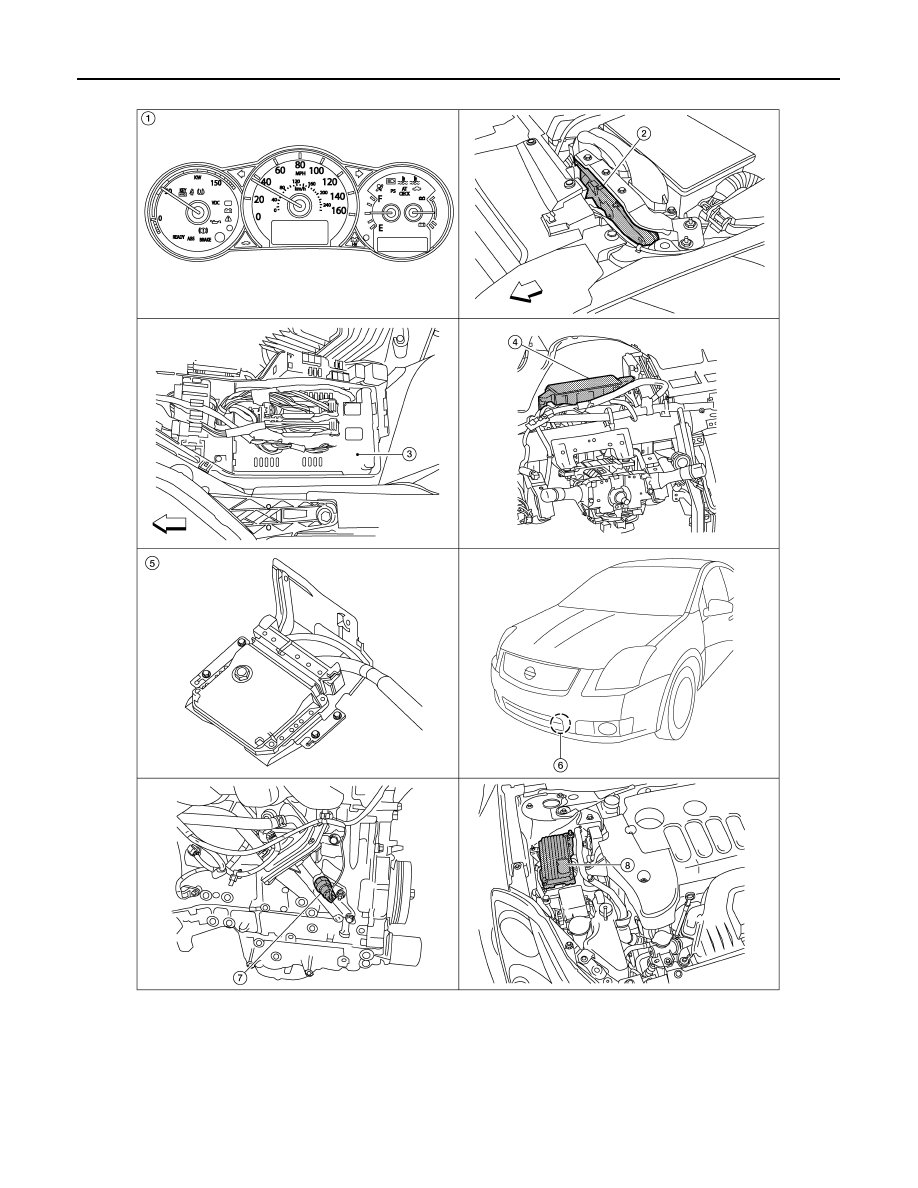

1.

Combination meter M24

2.

ECM E10

3.

IPDM E/R E17, E18, E201, F10

4.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

5.

Hybrid vehicle control ECU E66

6.

Ambient sensor E211

7.

Oil pressure switch F41 (view with en-
gine removed)

8.

Brake ECU E61

9.

Parking brake switch E35 (view with in-
strument lower cover LH removed)

10. Fuel level sensor unit and fuel pump

(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

AWNIA0067GB

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-43, "Description"

.

AWNIA0786GB

MWI

METER SYSTEM

MWI-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Parts Location

INFOID:0000000004499261

MWI-18

< FUNCTION DIAGNOSIS >

METER SYSTEM

AWNIA0066GB
