Nissan Altima HL32 Hybrid. Manual - part 805

MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

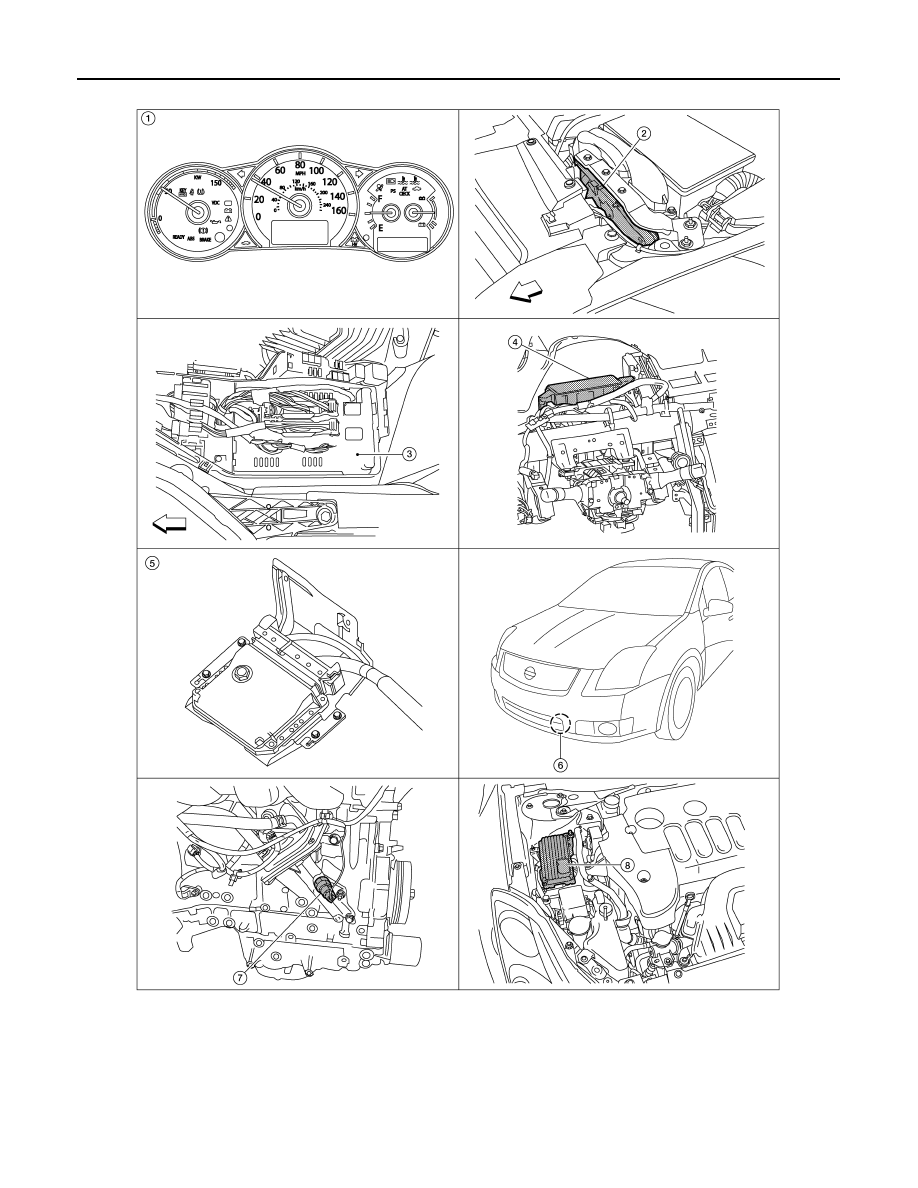

METER SYSTEM : Component Parts Location

INFOID:0000000004219243

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

AWNIA0066GB

MWI

METER SYSTEM

MWI-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Component Description

INFOID:0000000004219244

SPEEDOMETER

1.

Combination meter M24

2.

ECM E10

3.

IPDM E/R E17, E18, E201, F10

4.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

5.

Hybrid vehicle control ECU E66

6.

Ambient sensor E211

7.

Oil pressure switch F41 (view with en-
gine removed)

8.

Brake ECU E61

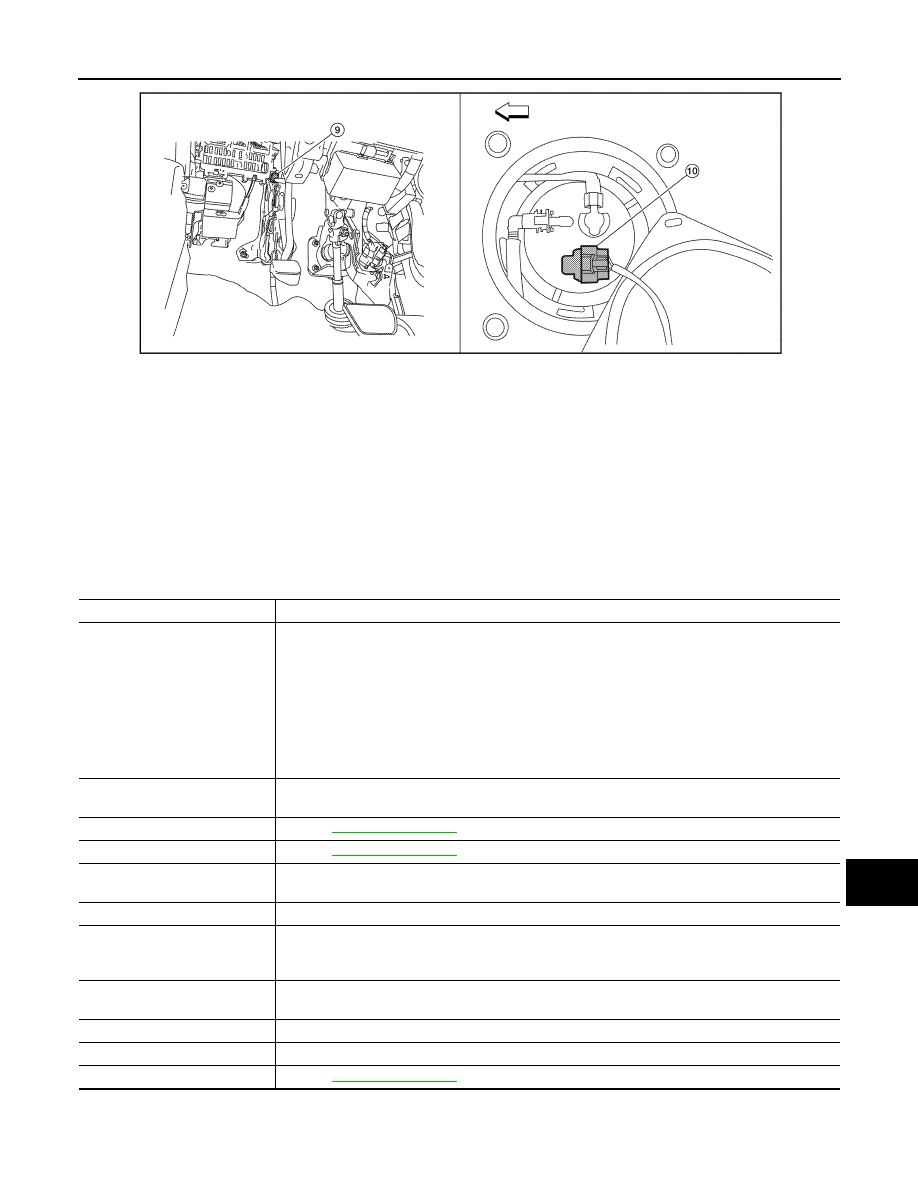

9.

Parking brake switch E35 (view with in-
strument lower cover LH removed)

10. Fuel level sensor unit and fuel pump

(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

AWNIA0067GB

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Power meter

• High voltage battery status meter

• Fuel gauge

• Odo/trip meter

• Warning lamps

• Indicator lamps

• Warning chime

• Information display

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-43, "Description"

.

Oil pressure switch

Refer to

MWI-45, "Description"

.

ECM

Transmits the fuel consumption monitor signals to the combination meter with CAN communication
line.

Brake ECU

Transmits the vehicle speed signal to the hybrid vehicle control ECU with CAN communication line.

BCM

• Transmits signals provided by various units to the combination meter with CAN communication

line.

• Transmits the security signal to the combination meter.

Hybrid vehicle control ECU

• Transmits the vehicle speed signal to the combination meter with CAN communication line.
• Transmits shift position signal to the combination meter with CAN communication line.

Washer level switch

Transmits the washer level signal to the combination meter.

Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Parking brake switch

Refer to

MWI-46, "Description"

.

MWI-10

< FUNCTION DIAGNOSIS >

METER SYSTEM

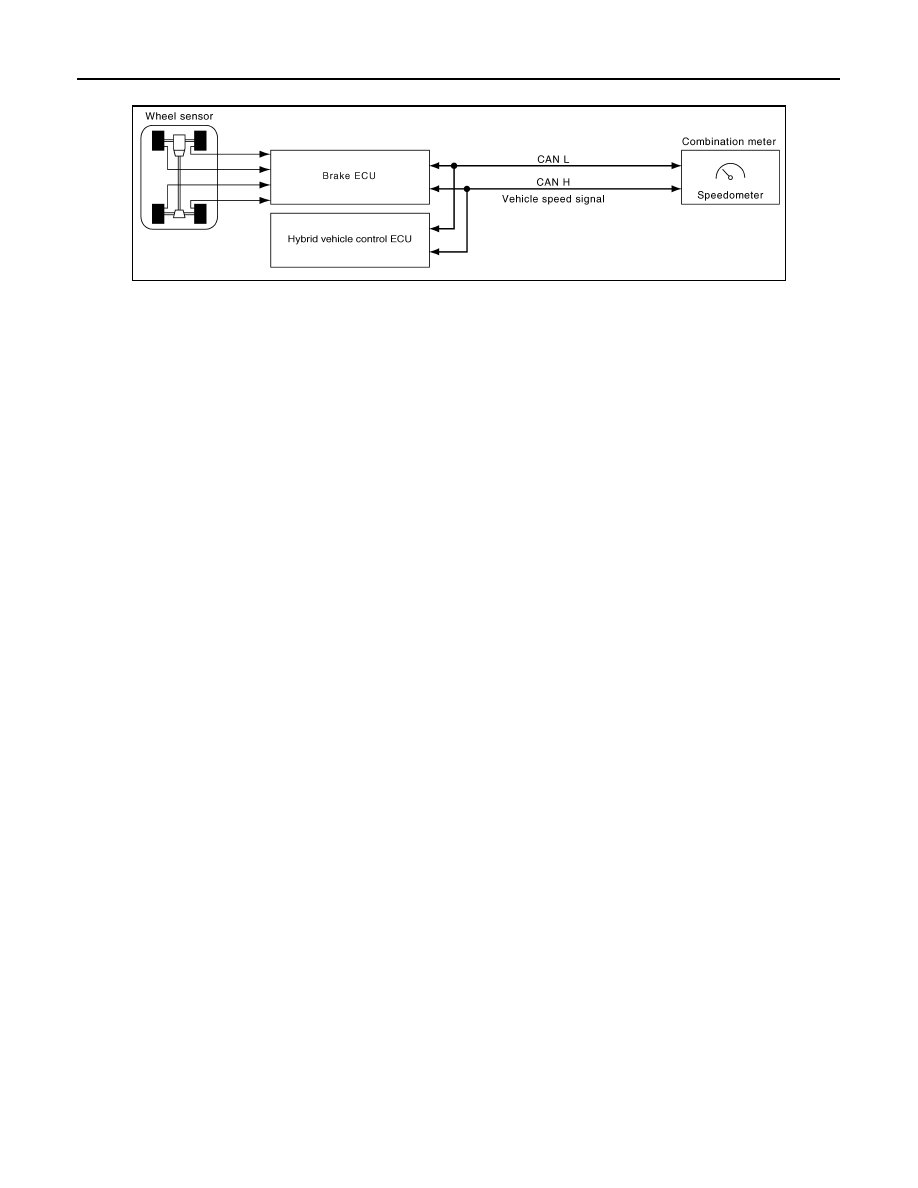

SPEEDOMETER : System Diagram

INFOID:0000000004219245

SPEEDOMETER : System Description

INFOID:0000000004219246

The brake ECU provides a vehicle speed signal to the hybrid vehicle control ECU via CAN communication

lines. The hybrid vehicle control ECU then sends the vehicle speed signal to the combination meter via CAN

communication lines.

AWNIA0785GB
