DOOR MIRROR

MIR-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

Exploded View

INFOID:0000000004216310

Disassembly

INFOID:0000000004216311

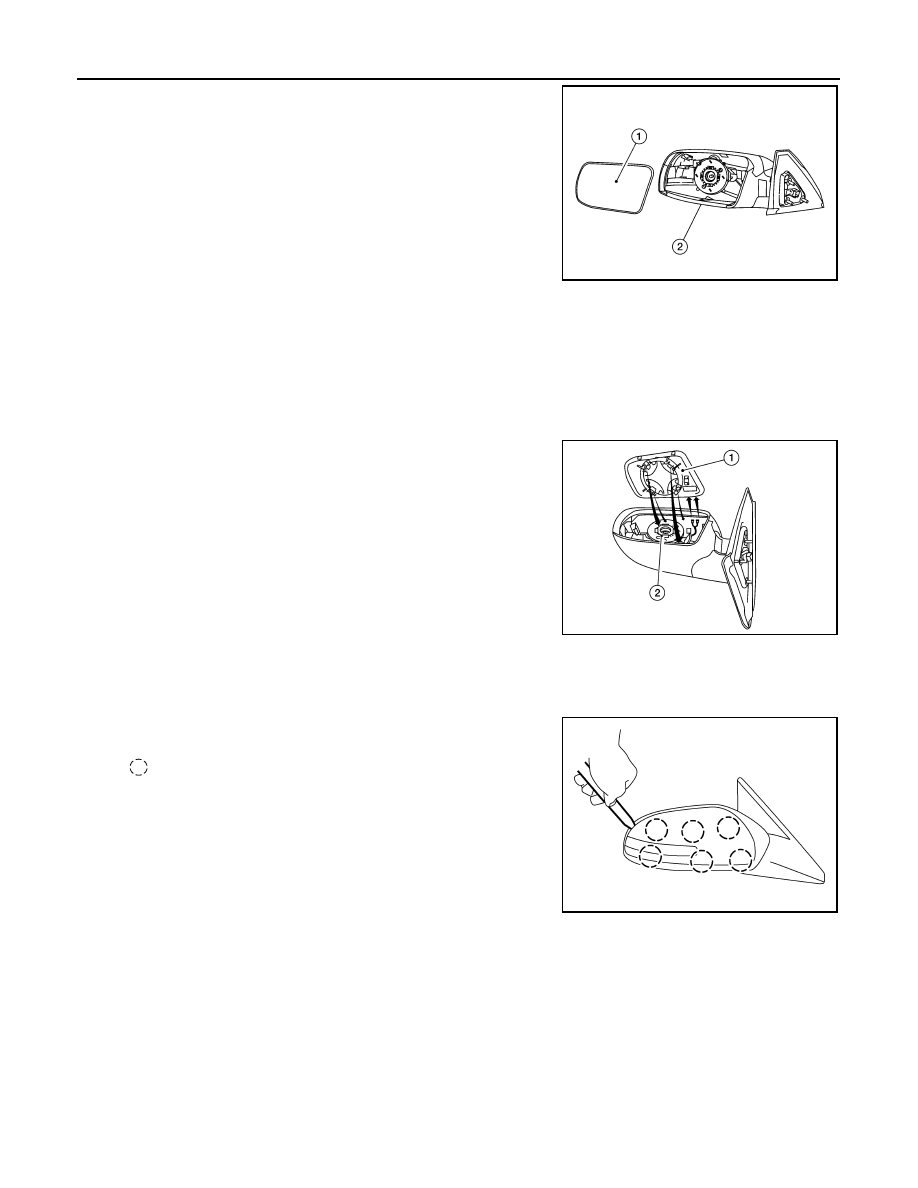

1. Turn the mirror glass surface upward.
2. Apply protective tape (A) to mirror housing.
3. Insert a suitable tool (B) into the concave gap between the mir-

ror glass and holder (1) and mirror motor (2) and push up tabs

(3) (two locations), remove the mirror glass and holder.

NOTE:

When pushing up tabs (3), do not forcefully push up only one,

push up both tabs at the same time.

1.

Door mirror cover

2.

Mirror housing assembly

3.

Mirror glass and holder

ALLIA0929ZZ

LIIA2744E

MIR-18

< DISASSEMBLY AND ASSEMBLY >

DOOR MIRROR

4. Disconnect the electrical connectors from the mirror glass and

holder (1) and remove it from the mirror housing assembly (2).

Assembly

INFOID:0000000004216312

1. Place mirror housing assembly in a horizontal position.
2. Connect the electrical connectors to the mirror glass and holder.

CAUTION:

Make sure to insert the harness terminals into the correct connector. Do not confuse the loca-

tions.

3. Engage the upper tabs on the mirror glass and holder (1) onto

the mirror motor (2). Then press the lower side of mirror glass

and holder until a click sound is heard to engage the lower tabs.

CAUTION:

Visually make sure lower two tabs are securely engaged

from the bottom of mirror glass and holder.

DOOR MIRROR COVER
DOOR MIRROR COVER : Disassembly

INFOID:0000000004499023

1. Using a suitable tool disengage the upper mirror cover pawls.

2. Using a suitable tool disengage the lower mirror cover pawls

and remove mirror cover.

CAUTION:

Be careful not to damage the mirror or mirror cover with tool.

DOOR MIRROR COVER : Assembly

INFOID:0000000004499024

Installation is in the reverse order of removal.

CAUTION:

After installation, check that pawls are securely engaged.

ALKIA0075GB

ALKIA0078GB

Pawl

ALLIA0895ZZ

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P
