MA-20

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE

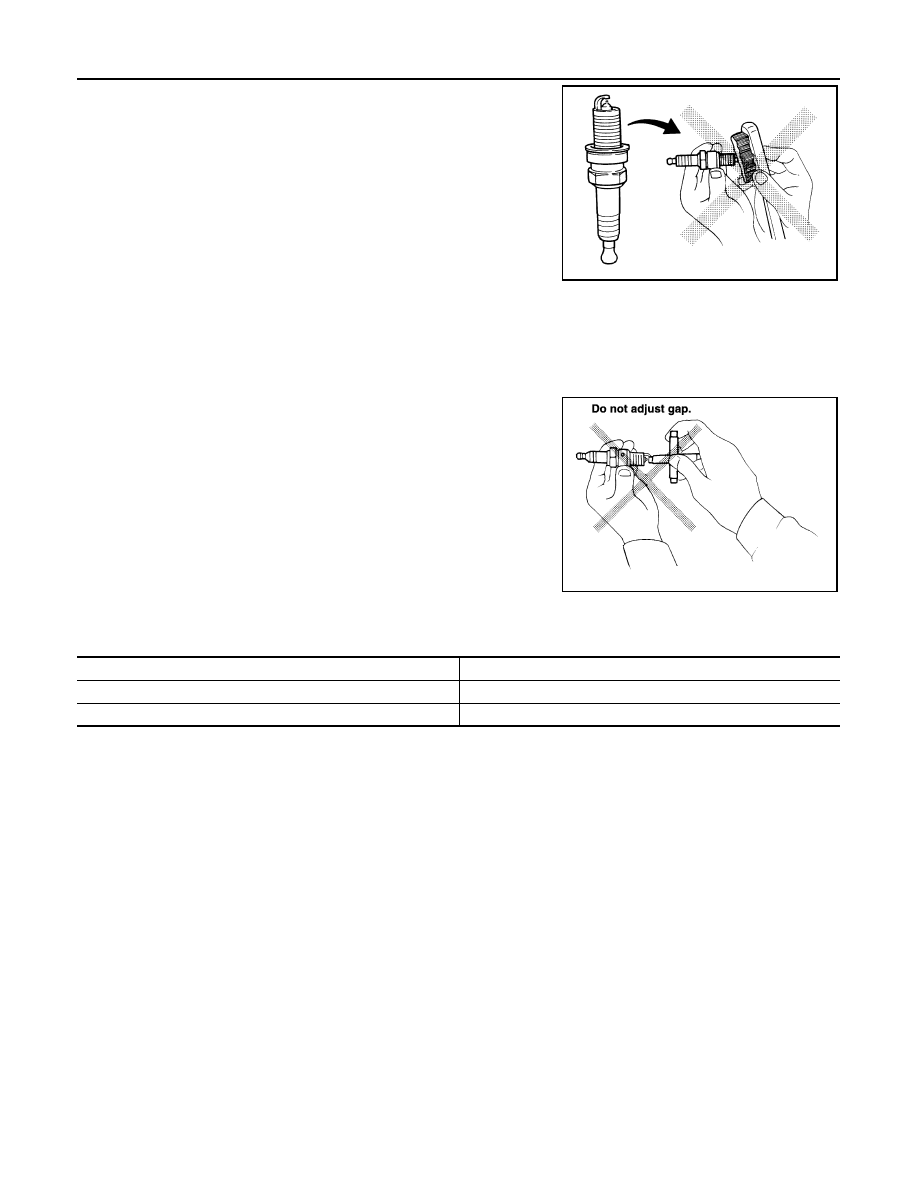

• Do not use a wire brush for cleaning the spark plugs. Replace as

necessary.

• If plug is covered with carbon, a spark plug cleaner may be used.

• Checking and adjusting plug gap is not required between change

intervals. If the gap is out of specification, replace the spark plug.

INSTALLATION

Installation is in the reverse order of removal.

EVAP VAPOR LINES
EVAP VAPOR LINES : Inspection

INFOID:0000000004219655

1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,

chafing and deterioration.

2. Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.

SMA773C

Cleaner air pressure : less than 588 kPa (6 kg/cm

, 85 psi)

Cleaning time

: less than 20 seconds

Gap (nominal)

: 1.1 mm (0.043 in)

SMA806CA

Temperature range

NGK

Standard type

DILKAR6A-11

Gap (nominal)

1.1 mm (0.043 in)

CHASSIS AND BODY MAINTENANCE

MA-21

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

IN-CABIN MICROFILTER
IN-CABIN MICROFILTER : Removal and Installation

INFOID:0000000004219656

REMOVAL

1. Remove the glove box assembly. Refer to

IP-12, "Removal and Installation"

2. Remove the console side finisher (RH). Refer to

IP-12, "Removal and Installation"

3. Disengage the filter cover tab (1) to remove the filter cover.
4. Remove the in-cabin microfilter from the blower unit by using the

pull tab on the bottom of the filter.

INSTALLATION

Installation is in the reverse order of removal.

EXHAUST SYSTEM
EXHAUST SYSTEM : Inspection

INFOID:0000000004219657

Check exhaust pipes, muffler and mounting for improper attachment,

leaks, cracks, damage, chafing or deterioration.

• If anything is found, repair or replace damaged parts.

CVT FLUID
CVT FLUID : Replacement

INFOID:0000000004533098

1. Remove the filler plug and gasket (1) from the transaxle.
2. Remove the drain plug and gasket (2) and drain the fluid from

the transaxle.

3. Install the drain plug with a new gasket to the transaxle.

CAUTION:

Do not reuse gasket.

ALIIA0016ZZ

SMA211A

ALDIA0137ZZ

MA-22

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

4. Fill the transaxle with specified fluid to the fluid level "A" as

shown.

CAUTION:

• Use only the specified Genuine Nissan fluid, using fluid

other than the Genuine Nissan specified fluid will deterio-

rate in driveability and durability, and may damage the

transaxle, which is not covered by the warranty.

• Do not spill fluid on heat generating parts such as exhaust manifold.

• Do not overfill the transaxle.

• Recheck the fluid level after driving the vehicle to warm up the fluid.

5. Install the filler plug with a new gasket to the transaxle.

CAUTION:

Do not reuse gasket.

WHEELS
WHEELS : Inspection

INFOID:0000000004219659

ALUMINUM WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from aluminum wheel and mount on a tire balance machine.
b. Set dial indicator as shown in the figure.

BRAKE LINES AND CABLES
BRAKE LINES AND CABLES : Inspection

INFOID:0000000004219661

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

BRAKE FLUID

Fluid grade and capacity: Refer to

MA-10, "Fluids and

Lubricants"

Oil level "A":

MAX 5 mm (0.20 in)

Filler plug:

: 39.2 N·m (4.0 kg-m, 29 ft-lb)

ALDIA0085ZZ

Wheel runout (Dial indicator value):

Refer to

WT-66

SFA975B

SBR389C

CHASSIS AND BODY MAINTENANCE

MA-23

< ON-VEHICLE MAINTENANCE >

BRAKE FLUID : Inspection

INFOID:0000000004219662

BRAKE FLUID LEVEL

• Make sure that a brake fluid level in reservoir tank is within the

standard (between MAX and MIN lines).

• Visually check around reservoir tank for fluid leakage.

• If the level is excessively low, check brake system for leakage.

• Release parking brake and see if brake warning lamp goes off. If

not, check brake system for fluid leakage.

BRAKE LINE

CAUTION:

If leakage occurs around joints, retighten or, if necessary, replace damaged parts.

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged parts.

BRAKE FLUID : Refilling

INFOID:0000000004219663

REFILLING

CAUTION:

• Refill with new brake fluid “DOT 3”.

• Never reuse drained brake fluid.

Make sure there is no foreign material in the reservoir tank, and refill with new brake fluid.

BRAKE FLUID : Bleeding Brake System

INFOID:0000000004219664

CAUTION:

• If any DTC is indicated, erase the indicated DTC.

• After the procedure of air bleed, perfrom initialization of linear solenoid valve. Refer to

BRC-7, "PER-

FORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION : Description"

NOTE:

The brake warning buzzer may be activated during the air bleed procedure. The work can be continued, as it

is normal.

AIR RELEASE OF STATIC PRESSURE SYSTEM (FRONT WHEEL)

CAUTION:

• Monitor the fluid level in the reservoir tank during the air bleeding.

• Always use new brake fluid for refilling. Never reuse the drained brake fluid.
1. Turn ignition switch OFF.
2. Connect CONSULT-III.
3. Turn ignition switch (READY).
4. When performing air bleed of the static pressure system and suction drain system, remove 2 relays for

brake actuator motor beforehand.

5. Connect a vinyl tube to the bleeder valve of the front brake.
6. When performing air bleed, following conditions are required.

• ABS relay No.1 and No.2: ON

• Parking brake: ON

• Shift position: P range

• Vehicle speed: 0 km/h (0 MPH)

• Normal power supply voltage

• Normal communication with HV

• No failure of brake system (except following items)

- Motor relay

- Accumulator

- Fluid level switch

- Calibration for each sensors and linear solenoid

JSFIA0079GB
