Nissan Altima HL32 Hybrid. Manual - part 788





LU-4

< PREPARATION >

[QR25DE]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000004211267

The actual shape of the Kent-Moore tools may differ from those tools illustrated here.

Commercial Service Tool

INFOID:0000000004211268

Tool number
(Kent Moore No.)
Tool name

Description

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

WS39930000
(—)
Tube presser

Pressing the tube of liquid gasket

S-NT050

S-NT559

S-NT772

S-NT046

S-NT052

PREPARATION

LU-5

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Tool name

Description

Power tool

Loosening bolts and nuts

Deep socket

Removing and installing oil pressure switch
Deep socket 26 mm, 3/8 drive

PBIC0190E

NT818

LU-6

< FUNCTION DIAGNOSIS >

[QR25DE]

LUBRICATION SYSTEM

FUNCTION DIAGNOSIS

LUBRICATION SYSTEM

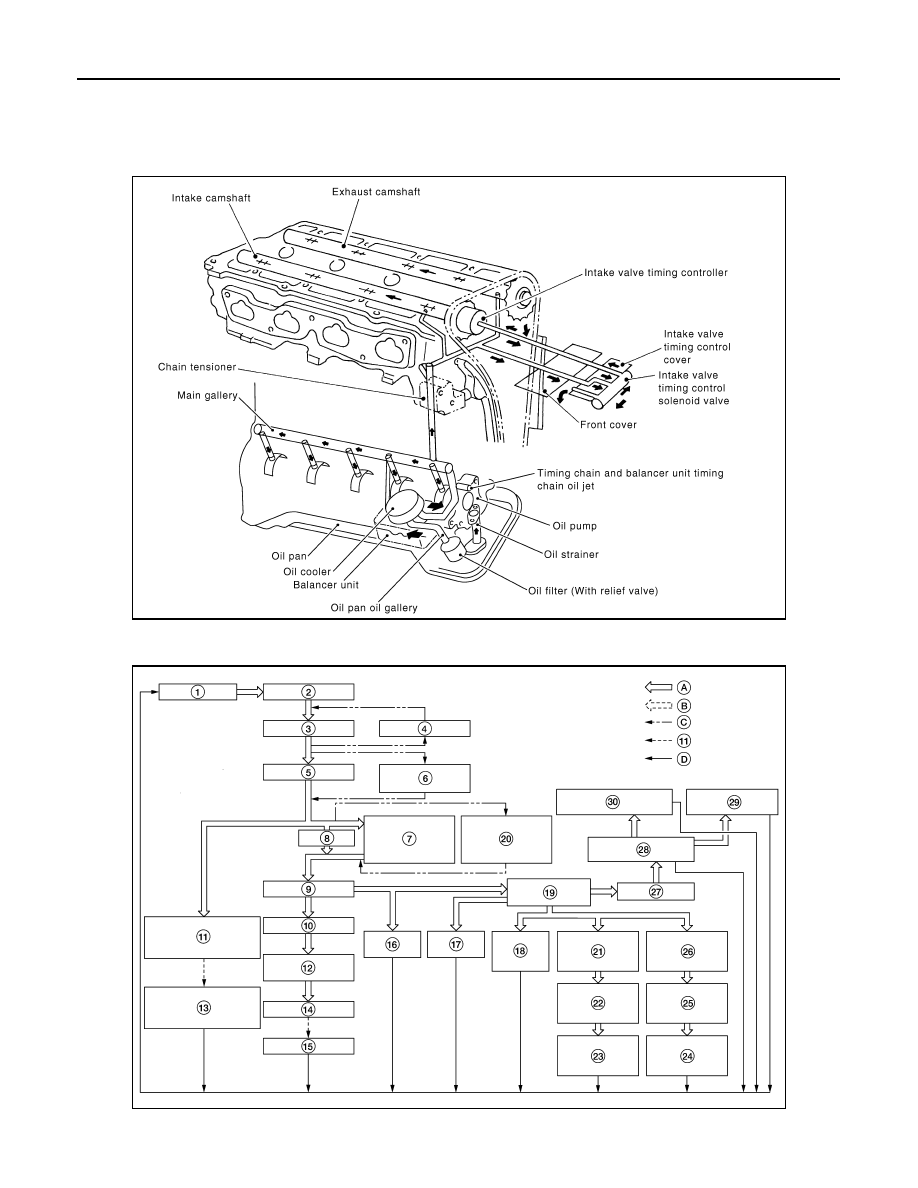

Lubrication Circuit

INFOID:0000000004211269

Schematic

INFOID:0000000004211270

PBIC2270E

AWBIA0035ZZ

LUBRICATION SYSTEM

LU-7

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

1.

Oil pan

2.

Oil strainer

3.

Oil pump

4.

Regulator valve

5.

Oil filter

6.

Relief valve (Built in oil filter)

7.

Oil cooler

8.

Bypass

9.

Main gallery

10. Main bearing

11. Timing chain and balancer unit tim-

ing chain oil jet

12. Connecting rod bearing

13. Timing chain and balancer unit tim-

ing chain

14. Connecting rod

15. Piston

16. Balancer unit

17. Chain tensioner

18. Camshaft bracket (No.1)

19. Cylinder head oil gallery

20. Relief valve

21. Intake camshaft bracket (No.2)

22. Intake camshaft oil passage

23. Intake camshaft journal

24. Exhaust camshaft journal

25. Exhaust camshaft oil passage

26. Exhaust camshaft bracket (No.2)

27. Front cover

28. Intake valve timing control cover

29. Intake valve timing controller

30. Intake valve timing control solenoid

valve

A.

Oil passage

B.

Return oil passage

C.

Bypass

D.

To oil pan
