LAN-18

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

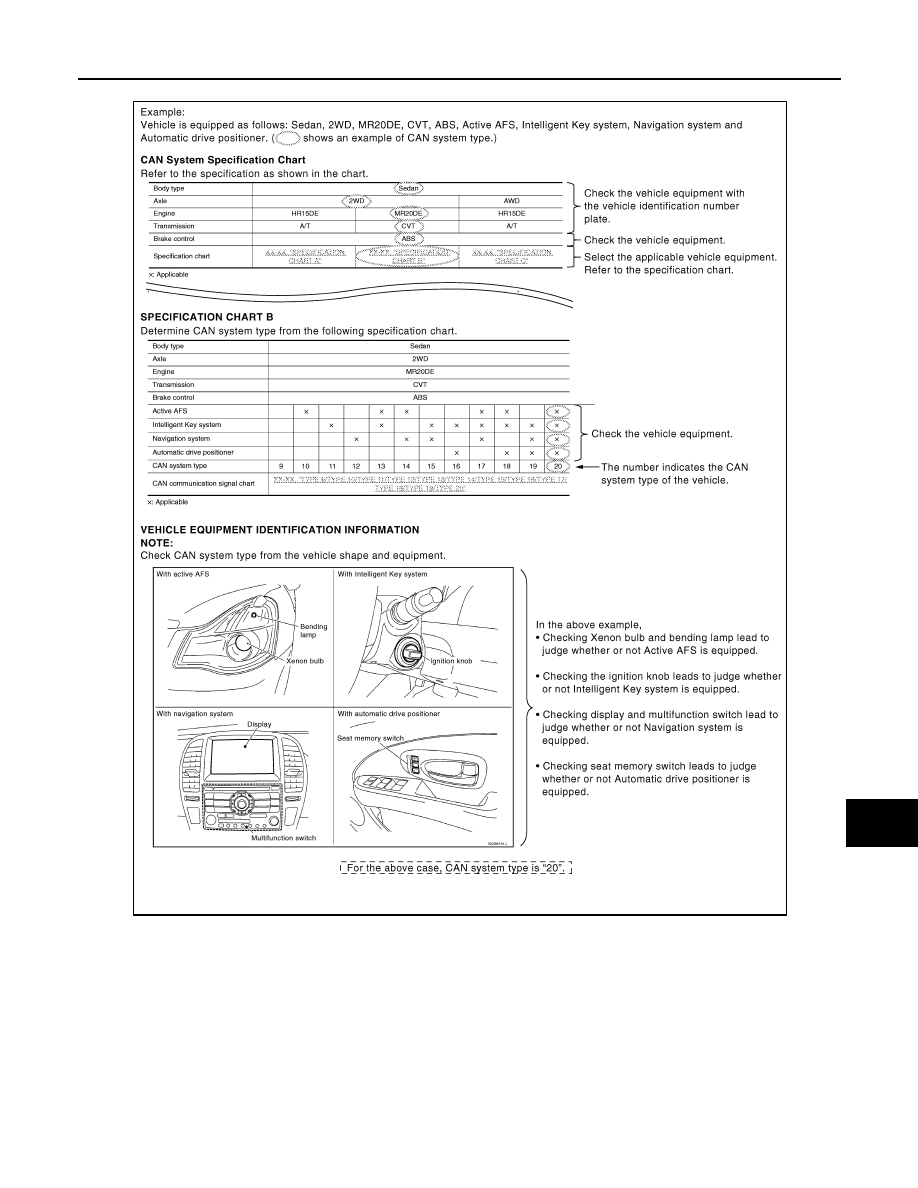

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CAN System Type Specification Chart (Style B)

NOTE:

JSMIA0017GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-19

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview

sheet.

JSMIA0018GB

LAN-20

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

Interview Sheet (Example)

DETECT THE ROOT CAUSE

CAN diagnosis function of CONSULT-III detects the root cause.

JSMIA0019GB

LAN

DESCRIPTION

LAN-21

< HOW TO USE THIS MANUAL >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HOW TO USE THIS MANUAL

DESCRIPTION

Description

INFOID:0000000004219024

This vehicle has two types of CAN communication systems; CAN and HEV SYSTEM CAN. For starting the

trouble diagnosis, refer to the following list.

NOTE:

• If the DTCs related to CAN and related to HEV SYSTEM CAN are displayed at the same time, diagnose

CAN first.

• After the diagnosis of HEV SYSTEM CAN or CAN, erase the DTCs of unit connected to HEV SYSTEM CAN

and CAN.

JPMIA0797GB
