POWER SUPPLY AND GROUND CIRCUIT

INL-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM
BCM : Diagnosis Procedure

INFOID:0000000004469737

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuse or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM : Special Repair Requirement

INFOID:0000000004469738

1.

 REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to CONSULT-III operation manual.

>> Work End.

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

J

11

10

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

ALCIA0025ZZ

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes

ALCIA0024ZZ

INL-16

< COMPONENT DIAGNOSIS >

BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT

BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT

Description

INFOID:0000000004216470

Provides the battery saver output/power supply. Also cuts the power supply when the interior room lamp bat-

tery saver is activating.

Component Function Check

INFOID:0000000004216471

1.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY FUNCTION

CONSULT-III

1. Turn ignition switch ON.

2. Turn each interior room lamp ON.

-

Front room/map lamps

-

Personal lamps rear

-

Step lamps

-

Vanity mirror lamps

-

Trunk room lamp

3. Select "BATTERY SAVER" of BCM (BATTERY SAVER) active test item.

4.  While operating the test item, check that each interior room lamp turns ON/OFF.

Is the inspection result normal?

YES

>> Interior room lamp power supply circuit is normal.

NO

>> Refer to

INL-16, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004216472

1.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT OUTPUT

CONSULT-III

1. Turn ignition switch ON.

2. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active test item.

3. While operating the test item, check voltage between BCM con-

nector M17 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

2.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT OPEN

1. Turn ignition switch OFF.

2. Disconnect the following connectors.

-

BCM  M17

-

Front room/map lamp assembly

-

Vanity mirror lamp LH

-

Vanity mirror lamp RH

-

Trunk room lamp

-

Step lamp LH

-

Step lamp RH

OFF

: Interior room lamp OFF

ON

: Interior room lamp ON

Terminals

Test item

Voltage

(+)

(-)

BCM

Ground

BATTERY

SAVER

Connector

Terminal

M17

4

OFF

0 V

ON

Battery voltage

ALLIA0102ZZ

BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT

INL-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

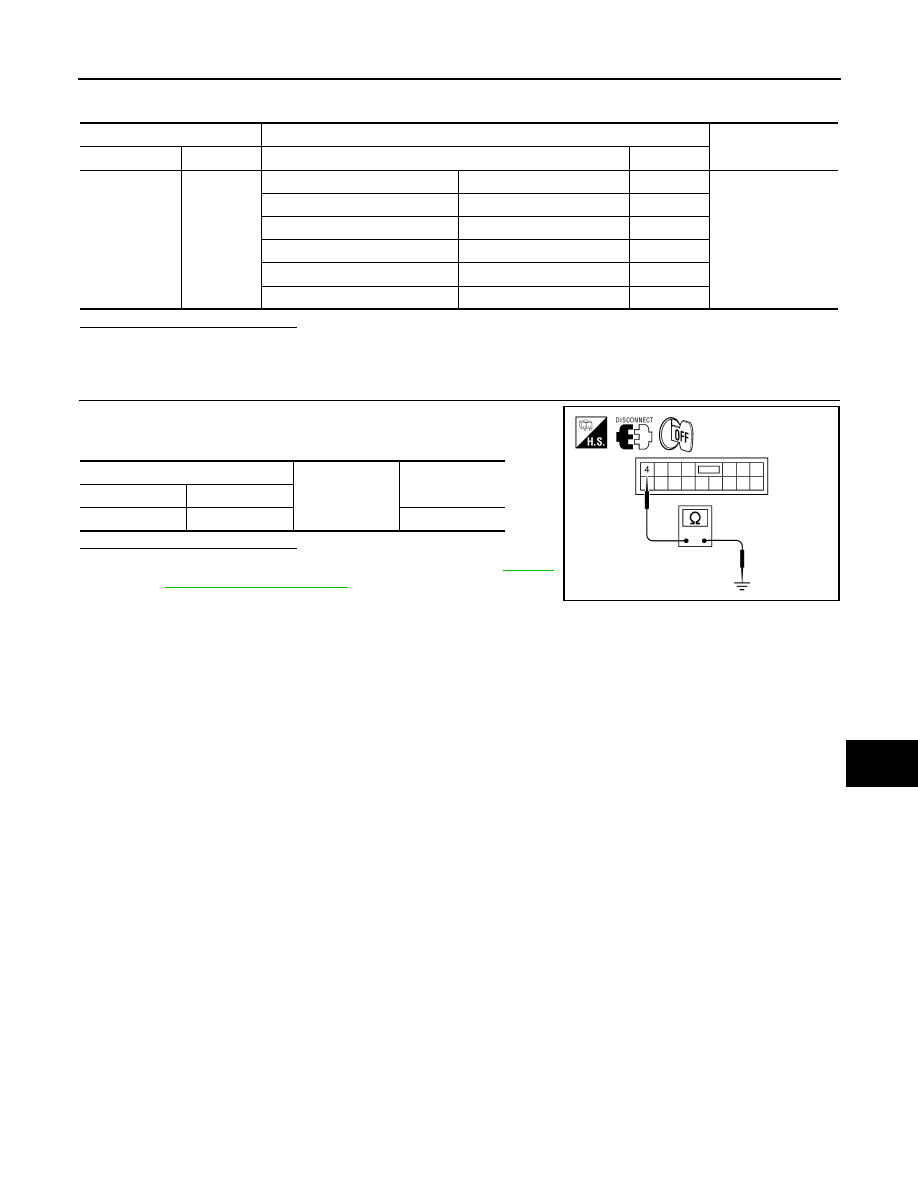

3. Check continuity between BCM connector M17 terminal 4 and each interior room lamp connector.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair the harness or connectors.

3.

CHECK BATTERY SAVER OUTPUT/POWER SUPPLY CIRCUIT SHORT

Check continuity between BCM connector M17 terminal 4 and

ground.

Is the inspection result normal?

YES

>> Replace the interior room lamp. Refer to

INL-88,

"Removal and Installation"

.

NO

>> Repair the harness or connectors.

BCM

Each interior room lamp

Continuity

Connector

Terminal

Connector

Terminal

M17

4

Front room/map lamp assembly

R50

1

Yes

Vanity mirror lamp LH

R3

2

Vanity mirror lamp RH

R9

2

Trunk room lamp

B36

1

Step lamp LH

D11

1

Step lamp RH

D109

1

BCM

Ground

Continuity

Connector

Terminal

M17

4

No

ALLIA0103ZZ

INL-18

< COMPONENT DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL CIRCUIT

INTERIOR ROOM LAMP CONTROL CIRCUIT

Description

INFOID:0000000004216473

Controls each interior room lamp (ground side) by PWM signal.

NOTE:

PWM signal control period is approximately 250 Hz (in the gradual brightening/dimming).

Component Function Check

INFOID:0000000004216474

CAUTION:

 Before performing the diagnosis, check that the following is normal.

• Battery saver output/power supply

• Front room/map lamp assembly bulbs

• Personal lamp rear bulbs

1.

CHECK INTERIOR ROOM LAMP CONTROL FUNCTION

CONSULT-III

1. Switch the front room/map lamp assembly switch to DOOR.

2. Turn ignition switch ON.

3. Select “INT LAMP” of BCM (INT LAMP) active test item.

4. While operating the test item, check that each interior room lamp turns ON/OFF (gradual brightening/dim-

ming).

Is the inspection result normal?

YES

>> Interior room lamp control circuit is normal.

NO

>> Refer to

INL-18, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004216475

1.

CHECK INTERIOR ROOM LAMP CONTROL OUTPUT

CONSULT-III

1. Turn ignition switch OFF.

2. Select “INT LAMP” of BCM (INT LAMP) active test item.

3. While operating the test item, check voltage between BCM con-

nector M17 terminal 19 and ground.

Is the inspection result normal?

YES

>> Interior room lamp control circuit is operating normally.

Fixed ON>>GO TO 3

Fixed OFF>>GO TO 2

2.

CHECK INTERIOR ROOM LAMP CONTROL OPEN CIRCUIT

ON

: Interior room lamp gradual brightening

OFF

: Interior room lamp gradual dimming

BCM

Ground

Test item

Voltage

Connector

Terminal

INT LAMP

M17

19

ON

0V

OFF

Battery voltage

ALLIA0104ZZ
