DIAGNOSIS SYSTEM (BCM)

INL-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : Diagnosis Description

INFOID:0000000004469733

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000004469734

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

INL-82, "DTC Index"

.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

INL-12

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

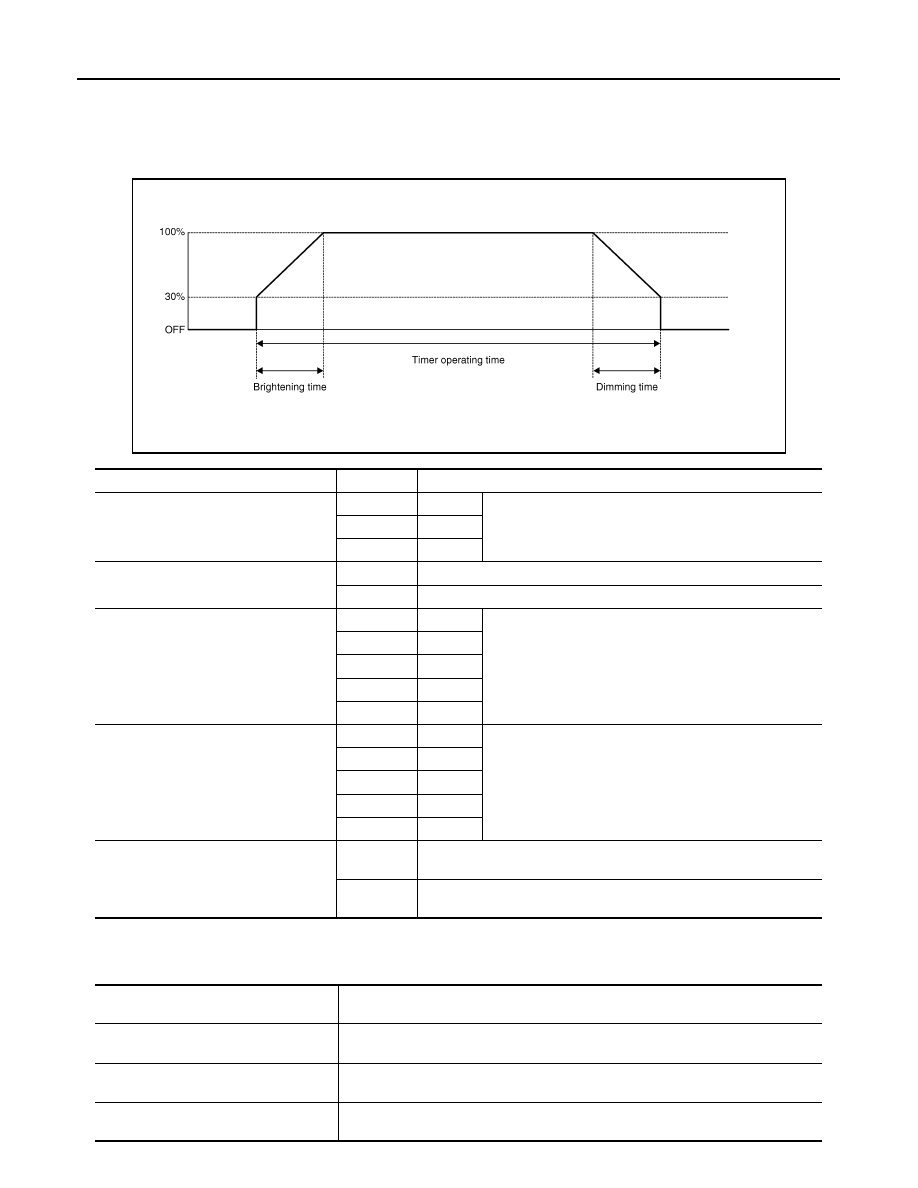

INT LAMP
INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000004469735

WORK SUPPORT

* : Initial setting

DATA MONITOR

JPLIA0093GB

Work Item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

ON*
(MODE 1)

Interior room lamp timer activates with synchronizing all doors.

OFF
(MODE 2)

Interior room lamp timer activates with synchronizing the front door LH
only.

Monitor item

[Unit]

Description

REQ SW-DR
[ON/OFF]

The switch status input from request switch (front LH)

REQ SW-AS
[ON/OFF]

The switch status input from front request switch (front RH)

PUSH SW
[ON/OFF]

The switch status input from push-button ignition switch

DIAGNOSIS SYSTEM (BCM)

INL-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ACTIVE TEST

BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000004469736

WORK SUPPORT

KEY SW-SLOT
[ON/OFF]

Key switch status input from key slot

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

DOOR SW-BK
[ON/OFF]

NOTE:
The item is indicated, not monitored.

CDL LOCK SW
[ON/OFF]

Lock switch status received from door lock/unlock switch by power window serial link

CDL UNLOCK SW
[ON/OFF]

Unlock switch status received from door lock/unlock switch by power window serial
link

KEY CYL LK-SW
[ON/OFF]

Lock switch status received from key cylinder switch by power window serial link

KEY CYL UN-SW
[ON/OFF]

Unlock switch status received from key cylinder switch by power window serial link

TRNK/HAT MNTR
[ON/OFF]

The switch status input from trunk room lamp switch

RKE-LOCK
[ON/OFF]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[ON/OFF]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

ON

Outputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).

OFF

Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.

STEP LAMP TEST

ON

Outputs the step lamp control signal to turn step lamp ON.

OFF

Stops the step lamp control signal to turn step lamp OFF.

LUGGAGE LAMP TEST

ON

Outputs the luggage room lamp control signal to turn step lamp ON.

OFF

Stops the luggage room lamp control signal to turn step lamp ON.

Work item

Setting item

Setting

BATTERY SAVER SET

ON*

With the exterior lamp battery saver function

OFF

Without the exterior lamp battery saver function

ROOM LAMP BAT SAV SET

ON*

With the interior room lamp battery saver function

OFF

Without the interior room lamp battery saver function

ROOM LAMP TIMER SET

MODE 1*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

INL-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

* : Initial setting

DATA MONITOR

ACTIVE TEST

* :  Each lamp switch is in ON position.

Monitor item

[Unit]

Description

REQ SW-DR
[ON/OFF]

The switch status input from request switch (front LH)

REQ SW-AS
[ON/OFF]

The switch status input from front request switch (front RH)

PUSH SW
[ON/OFF]

The switch status input from push-button ignition switch

UNLK SEN-DR
[ON/OFF]

Status of front door lock assembly LH (door unlock sensor)

KEY SW-SLOT
[ON/OFF]

Key switch status input from key slot

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW-RL
[ON/OFF]

The switch status input from rear door switch LH

DOOR SW-BK
[ON/OFF]

NOTE:
The item is indicated, not monitored.

CDL LOCK SW
[ON/OFF]

Lock switch status received from door lock/unlock switch by power window serial link

CDL UNLOCK SW
[ON/OFF]

Unlock switch status received from door lock/unlock switch by power window serial
link

KEY CYL LK-SW
[ON/OFF]

Lock switch status received from key cylinder switch by power window serial link

KEY CYL UN-SW
[ON/OFF]

Unlock switch status received from key cylinder switch by power window serial link

TRNK/HAT MNTR
[ON/OFF]

The switch status input from trunk room lamp switch

RKE-LOCK
[ON/OFF]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[ON/OFF]

Unlock signal status received from remote keyless entry receiver

Test item

Operation

Description

BATTERY SAVER

OFF

Cuts the interior room lamp power supply to turn interior room lamp OFF.

ON

Outputs the interior room lamp power supply to turn interior room lamp ON.*
