P0A3F-243, P0A40-500, P0A41-245

Description

INFOID:0000000004211885

A resolver is a sensor that detects the position of the magnetic poles, which are indispensable for ensuring

highly efficient control of MG2 and MG1.

The resolver stator contains an excitation coil and 2 detection coils. The gap between the stator and rotor

changes as the rotor turns because the rotor is oval shaped. An alternating current with a predetermined fre-

quency flows through the excitation coil, and detection coils S and C output alternating currents in accordance

with the sensor rotor position.

The MG ECU detects the absolute position of the rotor according to the phases of detection coils S and C and

the height of their waveforms. Furthermore, the CPU calculates the amount of change in the position within a

predetermined length of time, in order to use the resolver as a speed sensor.

The MG ECU monitors signals output from the motor resolver and detects malfunctions.

DTC Logic

INFOID:0000000004211886

DTC DETECTION LOGIC

The MG ECU monitors the motor resolver output signal. If the MG ECU detects output signals that are out of

the normal range or specification, it will conclude that there is a malfunction in the motor resolver. The hybrid

vehicle control ECU will illuminate the MIL and set a DTC.

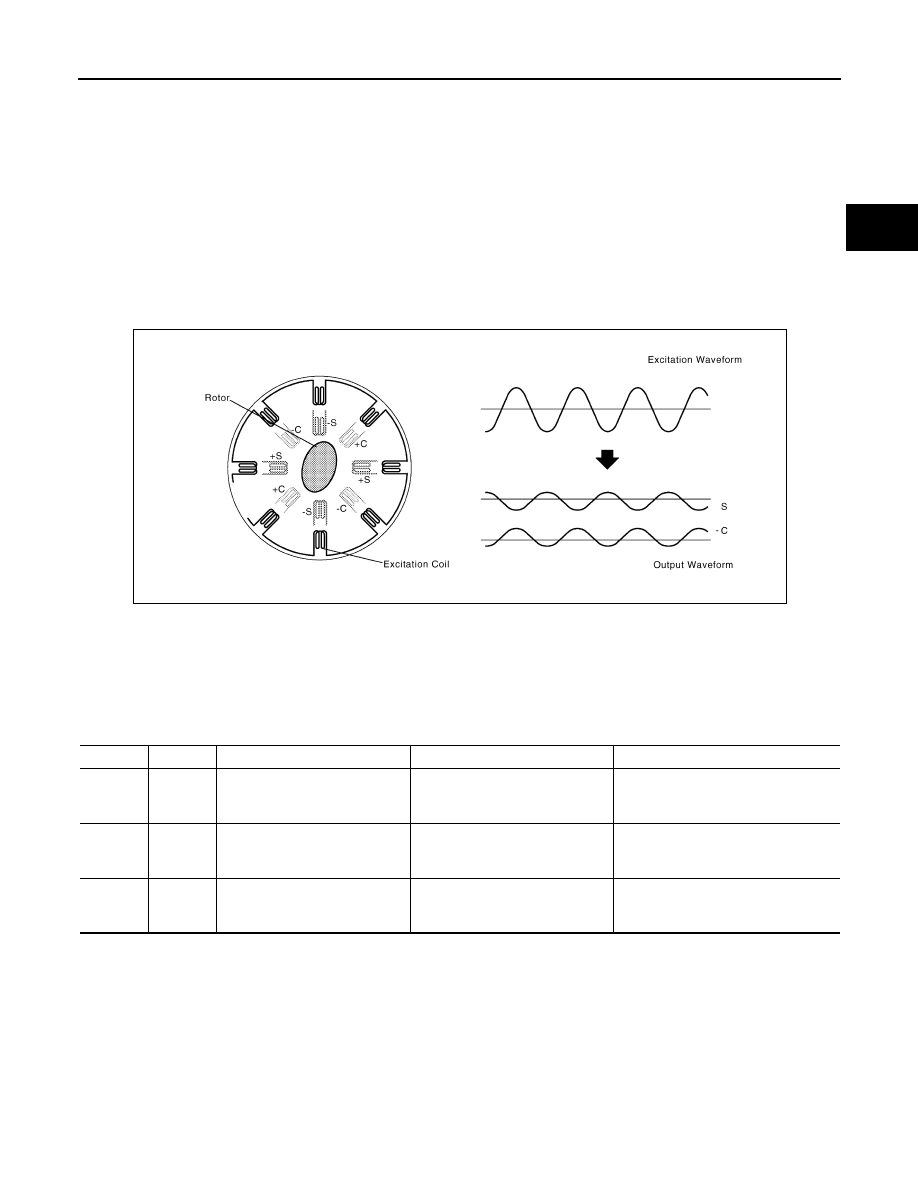

JMCIA0098GB

DTC No.

INF Code

Trouble diagnosis name

DTC detecting condition

Possible cause

P0A3F

243

Drive Motor “A” Position Sensor
Circuit

Interphase short in motor resolver
circuit

• Wire harness or connector
• Hybrid transaxle (Motor resolver)
• Inverter with converter assembly

P0A40

500

Drive Motor “A” Position Sensor
Circuit Range/Performance

Motor resolver output is out of nor-
mal range

• Wire harness or connector
• Hybrid transaxle (Motor resolver)
• Inverter with converter assembly

P0A41

245

Drive Motor “A” Position Sensor
Circuit Low

Open or short in motor resolver
circuit

• Wire harness or connector
• Hybrid transaxle (Motor resolver)
• Inverter with converter assembly

HBC-210

< COMPONENT DIAGNOSIS >

P0A3F-243, P0A40-500, P0A41-245

Diagnosis Procedure

INFOID:0000000004211887

1.

PRECONDITIONING

• Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with

converter assembly, take safety precautions such as wearing insulated gloves and removing the service

plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent

other technicians from accidentally reconnecting it while you are working on the high-voltage system.

• After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage

connectors or terminals. (Waiting for at least 10 minutes is required to discharge the high-voltage capacitor

inside the inverter with converter assembly.)

• Check for output DTCs again after the repair has been completed. If P0A78-286 or P0A7A-324 is output,

replace the inverter with converter assembly.

• Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with

converter assembly.

• If the problem symptom cannot be reproduced, performing a road test on a road on which the vehicle tends

to vibrate will make it easier to reproduce the symptom.

• If INF code 243 is output, there may be an interphase short in the motor resolver circuit due to an intrusion of

water into the resolver. Therefore, if the problem symptom cannot be reproduced, replace the hybrid tran-

saxle last.

>> GO TO 2.

2.

CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CON-

NECTOR)
See

HBC-109, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 3.

NG

>> Connect securely.

3.

CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLV-

ER)
See

HBC-171, "Diagnosis Procedure"

.

JMCIA0183GB

P0A3F-243, P0A40-500, P0A41-245

HBC-211

< COMPONENT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness or connector.

4.

CHECK MOTOR RESOLVER

See

HBC-171, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace inverter with converter assembly (See

HBC-638, "Removal and Installation"

)

5.

CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR)

See

HBC-171, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 6.

NG

>> Connect securely.

6.

CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLV-

ER)

See

HBC-171, "Diagnosis Procedure"

.

OK or NG

OK

>> Replace hybrid transaxle (See

TM-36, "Removal and Installation"

).

NG

>> Repair or replace harness or connector.

HBC-212

< COMPONENT DIAGNOSIS >

P0A4B-253, P0A4C-513, P0A4D-255

P0A4B-253, P0A4C-513, P0A4D-255

Description

INFOID:0000000004211888

A resolver is a sensor that detects the position of the magnetic poles, which are indispensable for ensuring

highly efficient control of MG2 and MG1.

The generator resolver structure and method of connection with the inverter with converter assembly are the

same as those of the motor resolver.

The inverter with converter assembly monitors output signals from the generator resolver and detects mal-

functions.

DTC Logic

INFOID:0000000004211889

DTC DETECTION LOGIC

The MG ECU monitors the generator resolver output signal. If the MG ECU detects output signals that are out

of the normal range or specification, it will conclude that there is a malfunction of the generator resolver. The

hybrid vehicle control ECU will illuminate the MIL and set a DTC.

Diagnosis Procedure

INFOID:0000000004211890

1.

PRECONDITIONING

DTC No.

INF Code

Trouble diagnosis name

DTC detecting condition

Possible cause

P0A4B

253

Generator Position Sensor
Circuit

Interphase short in the generator
resolver circuit

• Wire harness or connector
• Hybrid transaxle (Generator resolver)
• Inverter with converter assembly

P0A4C

513

Generator Position Sensor
Circuit Range / Performance

Generator resolver output is out of
the normal range

• Wire harness or connector
• Hybrid transaxle (Generator resolver)
• Inverter with converter assembly

P0A4D

255

Generator Position Sensor
Circuit Low

Open or short in the generator re-
solver circuit

• Wire harness or connector
• Hybrid transaxle (Generator resolver)
• Inverter with converter assembly

JMCIA0182GB
