P0A10-592

HBC-161

< COMPONENT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

3. Disconnect the hybrid vehicle converter (DC/DC converter) con-

nector n4.

4. Turn ignition switch ON.

5. Measure the voltage according to the value(s) in the table below.

NOTE:

Turning ignition switch ON with the hybrid vehicle control ECU connector disconnected causes other

DTCs to be stored. Clear the DTCs after performing this inspection.

OK or NG

OK

>> Replace hybrid vehicle control ECU (See

HBC-644, "Removal and Installation"

).

NG

>> Repair or replace harness or connector.

5.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY PACK WIRE

CONNECTOR)

1. Turn ignition switch OFF.

2. Disconnect E66 hybrid vehicle control ECU harness connector.

3. Turn ignition switch ON.

JMCIA0187GB

Battery pack wire

Ground

Voltage

Component

connector

Terminal

B130

7 (VLO)

Ground

Below 1V

Hybrid vehicle converter

(DC/DC converter)

Ground

Voltage

Harness

connector

Terminal

n4

3 (VLO)

Ground

Below 1V

JMCIA0188GB

HBC-162

< COMPONENT DIAGNOSIS >

P0A10-592

4. Measure the voltage according to the value(s) in the table below.

NOTE:

Turning ignition switch ON with the hybrid vehicle control ECU

connector disconnected causes other DTCs to be stored. Clear

the DTCs after performing this inspection.

OK or NG

OK

>> Replace hybrid vehicle control ECU (See

HBC-644, "Removal and Installation"

).

NG

>> Repair or replace harness or connector.

6.

CLEAR DTC

1. Turn ignition switch ON.

2. Read and record the DTCs and freeze frame data.

3. Clear the DTCs.

>> GO TO 7.

7.

RECONFIRM DTC OUTPUT (HYBRID SYSTEM)

1. Turn ignition switch ON.

2. Check DTC.
Is DTC P0A10-592 detected?

YES

>> Replace hybrid vehicle control ECU (See

HBC-644, "Removal and Installation"

).

NO

>> GO TO 8.

8.

CHECK FOR INTERMITTENT INCIDENT

1. Check for intermittent incident (See

GI-42, "Intermittent Incident"

).

OK or NG

OK

>> Replace hybrid vehicle control ECU (See

HBC-644, "Removal and Installation"

).

NG

>> Repair or replace malfunctioning parts, component and area.

Battery pack wire

Ground

Voltage

Component

connector

Terminal

B130

7 (VLO)

Ground

Below 1V

JMCIA0186GB

P0A1A-151, P0A1A-155, P0A1A-156, P0A1A-158, P0A1A-166

HBC-163

< COMPONENT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

P0A1A-151, P0A1A-155, P0A1A-156, P0A1A-158, P0A1A-166

Description

INFOID:0000000004211810

The inverter with converter assembly (MG ECU) monitors its internal operation and detects malfunctions.

DTC Logic

INFOID:0000000004211811

DTC DETECTION LOGIC

The MG ECU performs many diagnostic tests to verify proper operation of internal ECU systems. For one of

these diagnostics, the MG ECU checks the result of the generator CPU self-test. If the MG ECU detects a

“Fail” from the generator CPU self-test, it will conclude that there is an internal malfunction in the generator

CPU. The hybrid vehicle control ECU will illuminate the MIL and set a DTC.

Diagnosis Procedure

INFOID:0000000004211812

1.

PRECONDITIONING

• Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with

converter assembly, take safety precautions such as wearing insulated gloves and removing the service

plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent

other technicians from accidentally reconnecting it while you are working on the high-voltage system.

• After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage

connectors or terminals.

• Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with

converter assembly.ol Module

>> GO TO 2.

2.

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Refer to

HBC-638, "Removal and Installation"

.

>> COMPLETED

DTC No.

INF code

Trouble diagnosis name

DTC detecting condition

Possible cause

P0A1A

151

Generator Control Module

Run pulse error

Inverter with converter assembly
(MG ECU)

155

A/D error

156

ROM-RAM error

158

CPU recognition error

166

R/D converter NM stop error

658

ALU error

659

Communication error (from MG1 to MG2)

791

R/D converter communication error

HBC-164

< COMPONENT DIAGNOSIS >

P0A1A-200, P0A1A-792, P0A1A-793

P0A1A-200, P0A1A-792, P0A1A-793

Description

INFOID:0000000004211813

The inverter with converter assembly (MG ECU) monitors its internal operation and detects malfunctions.

DTC Logic

INFOID:0000000004211814

DTC DETECTION LOGIC

The MG ECU (in the inverter with converter assembly) performs many diagnostic tests to verify proper opera-

tion of internal ECU systems. For this diagnostic monitor, the MG ECU checks for an R/D (Resolver/Digital

converter) malfunction involving the generator resolver. If MG ECU detects an R/D error, it will conclude that

there is an internal malfunction involving the generator resolver. The hybrid vehicle control ECU will illuminate

the MIL and set a DTC.

Diagnosis Procedure

INFOID:0000000004211815

1.

PRECONDITIONING

• Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with

converter assembly, take safety precautions such as wearing insulated gloves and removing the service

plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent

other technicians from accidentally reconnecting it while you are working on the high-voltage system.

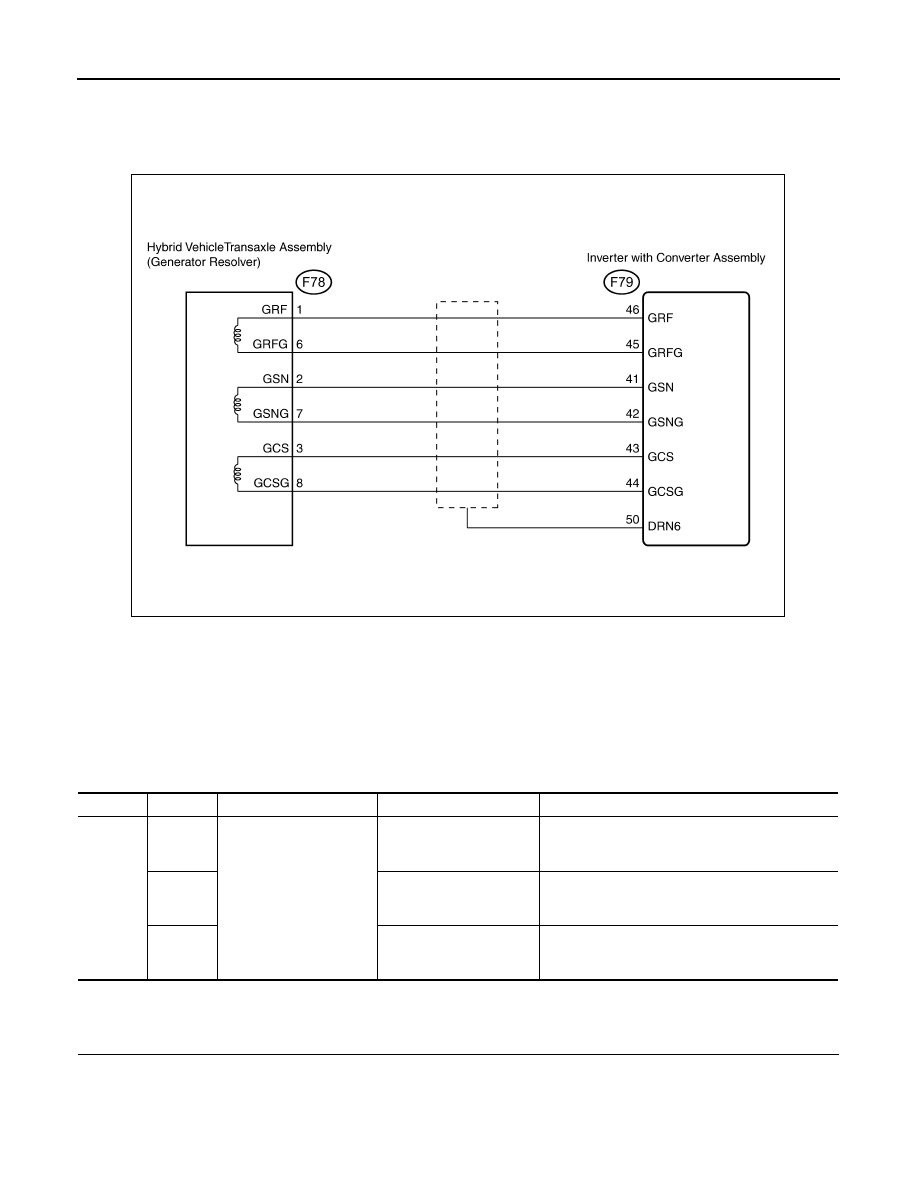

JMCIA0182GB

DTC No.

INF code

Trouble diagnosis name

DTC detecting condition

Possible cause

P0A1A

200

Generator Control Module

Generator R/D resolver
angle error

• Inverter with converter assembly (MG ECU)
• Hybrid transaxle (Generator resolver)
• Wire harness or connector

792

REF frequency error

• Inverter with converter assembly (MG ECU)
• Hybrid transaxle (Generator resolver)
• Wire harness or connector

793

REF signal open error

• Inverter with converter assembly (MG ECU)
• Hybrid transaxle (Generator resolver)
• Wire harness or connector
