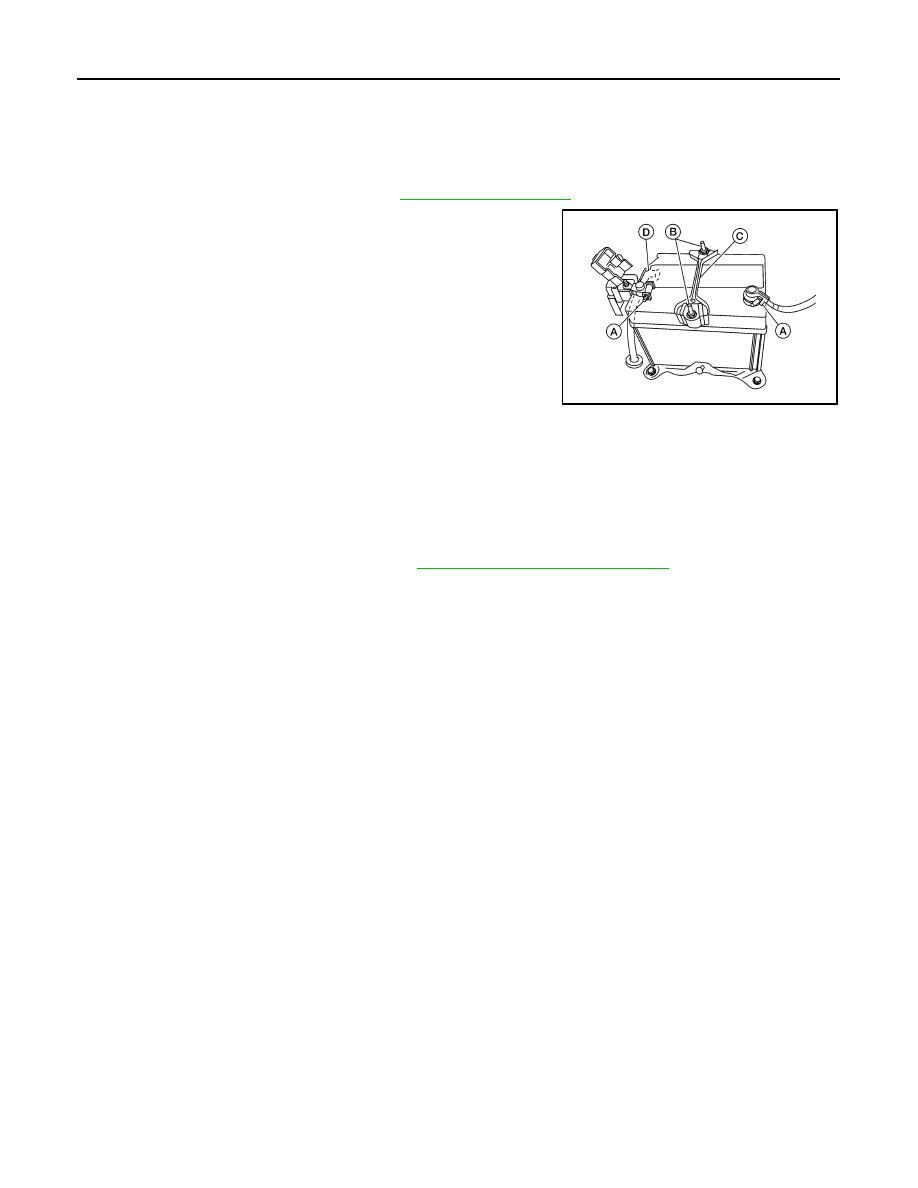

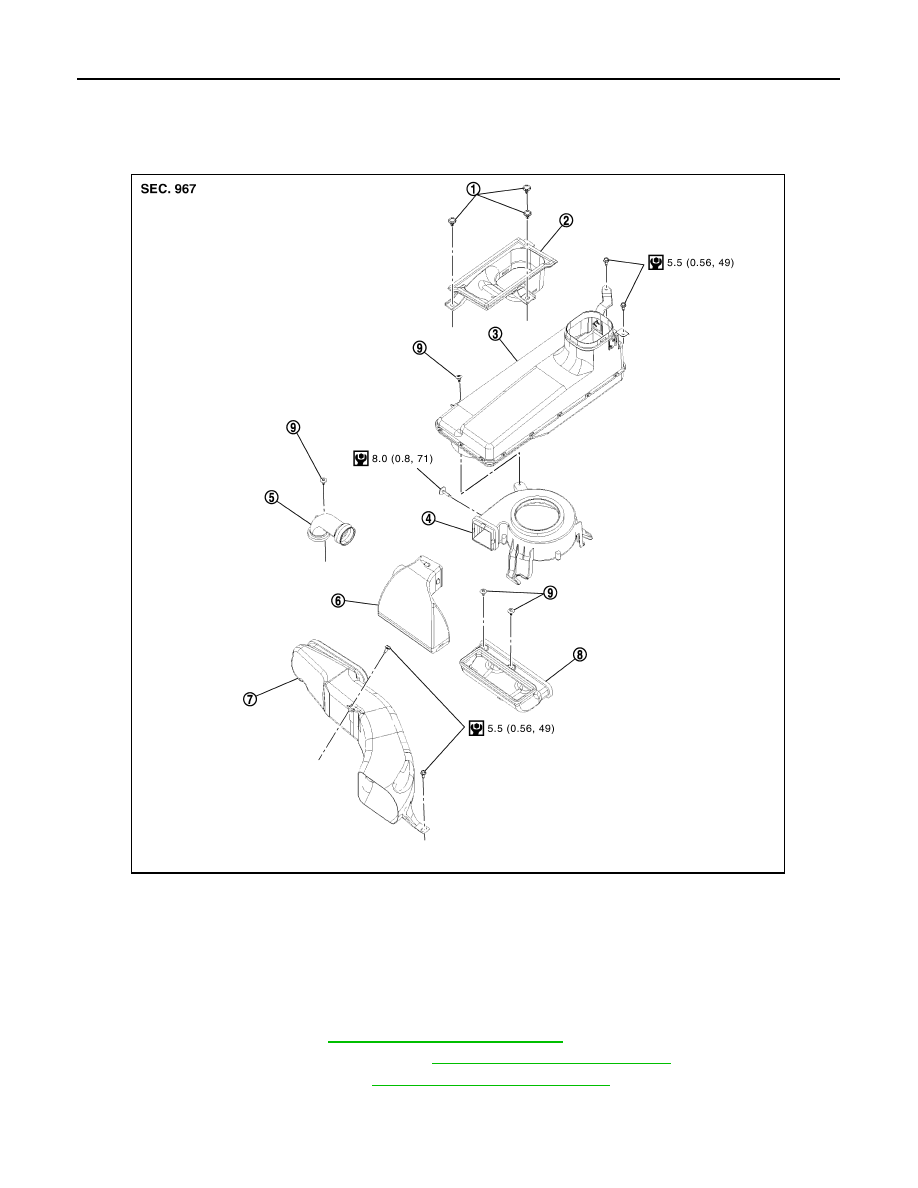

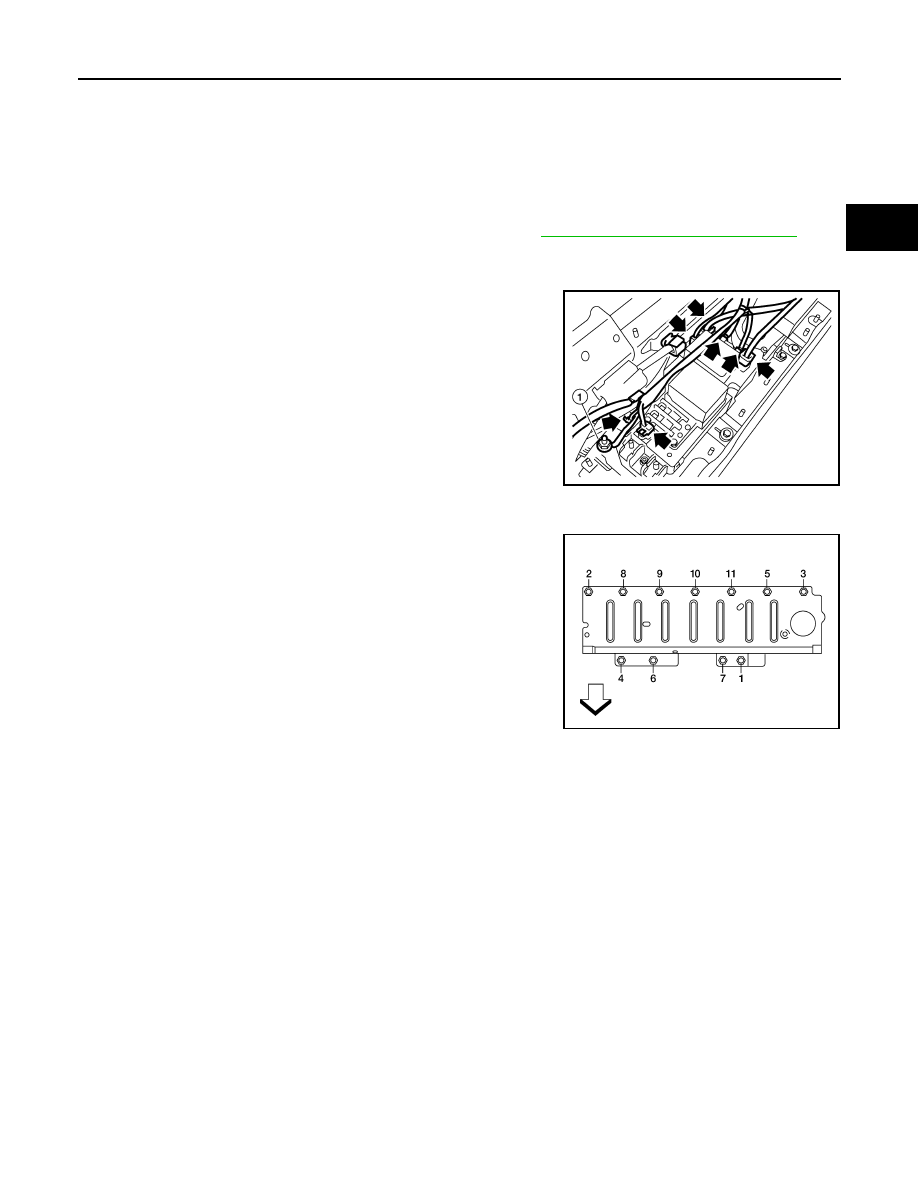

HV RELAY ASSEMBLY HBB-105 < REMOVAL AND INSTALLATION > D E F G H I J K L M A B HBB N O P Removal and Installation INFOID:0000000004212318 REMOVAL 1. Remove the HV wires from the HV battery assembly. Refer to HBC-648, "Removal and Installation" 2. Remove the side cover and LH cover from the HV battery assembly. relay assembly. 5. Remove the bolts and the HV relay assembly from the HV bat- tery assembly. INSTALLATION Installation is in the reverse order of removal. • When installing the LH cover, tighten the nuts to the specified torque in the order shown. • ⇐: Front 10. Clip 11. HV vehicle converter 12. Connector 13. Vent hose 14. HV battery assembly 15. Service plug grip 16. Battery smart unit 17. HV relay assembly A. Refer to installation. ALCIA0102ZZ LH cover nuts : 8.0 N·m (0.8 kg-m, 71 in-lb) ALCIA0100ZZ |
