Nissan Altima HL32 Hybrid. Manual - part 560





HV BATTERY ASSEMBLY

HBB-97

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

Removal and Installation

INFOID:0000000004212312

CAUTION:

• Do not tilt the HV battery more than 30

° for extremely long time.

• Do not tilt the HV battery more than 60

°.

REMOVAL

1. Remove the rear seat. Refer to

SE-22, "Removal and Installation"

.

2. Remove the rear parcel shelf. Refer to

INT-19, "Removal and Installation"

.

3. Remove the trunk room trim. Refer to

INT-27, "Removal and Installation"

.

4. Remove the inlet and outlet cooling ducts. Refer to

HBB-106, "Removal and Installation"

.

5. Disconnect the connector (1) from the HV battery blower motor

(2).

6. Remove the HV battery blower motor harness clips and HV bat-

tery blower motor harness from the HV battery.

7. Remove the lock (1) from the RH cover (6) on the HV battery

assembly (7) using the service plug grip (2).

8. Remove the nuts (3), bolts (4) and ground wires (5) from the RH

cover (6).

9. Remove the RH cover (6) from the HV battery assembly (7).

10. Remove the terminal cover and 12 volt terminal nut (1), then

remove the terminal cable (2) and 12 volt harness from the HV

battery assembly.

11. Remove the battery shield contact (4), HV wire nuts (6) and HV

wires (5) from the HV battery assembly.

12. Disconnect the body harness connector (3) from the HV battery

assembly.

13. Disconnect the EPS DC/DC converter connector (7) from the

HV battery assembly.

14. Remove the harnesses from the HV battery assembly.

1.

Battery shield contact

2.

HV wire

3.

Filter noise capacitor

4.

Ground wire

5.

Lock

6.

RH cover

7.

LH cover

8.

Side cover

9.

Duct

10. Clip

11. HV vehicle converter

12. Connector

13. Vent hose

14. HV battery assembly

15. Service plug grip

16. Battery smart unit

17. HV relay assembly

A.

Refer to installation.

AWCIA0002ZZ

AWCIA0003ZZ

AWCIA0004ZZ

HBB-98

< REMOVAL AND INSTALLATION >

HV BATTERY ASSEMBLY

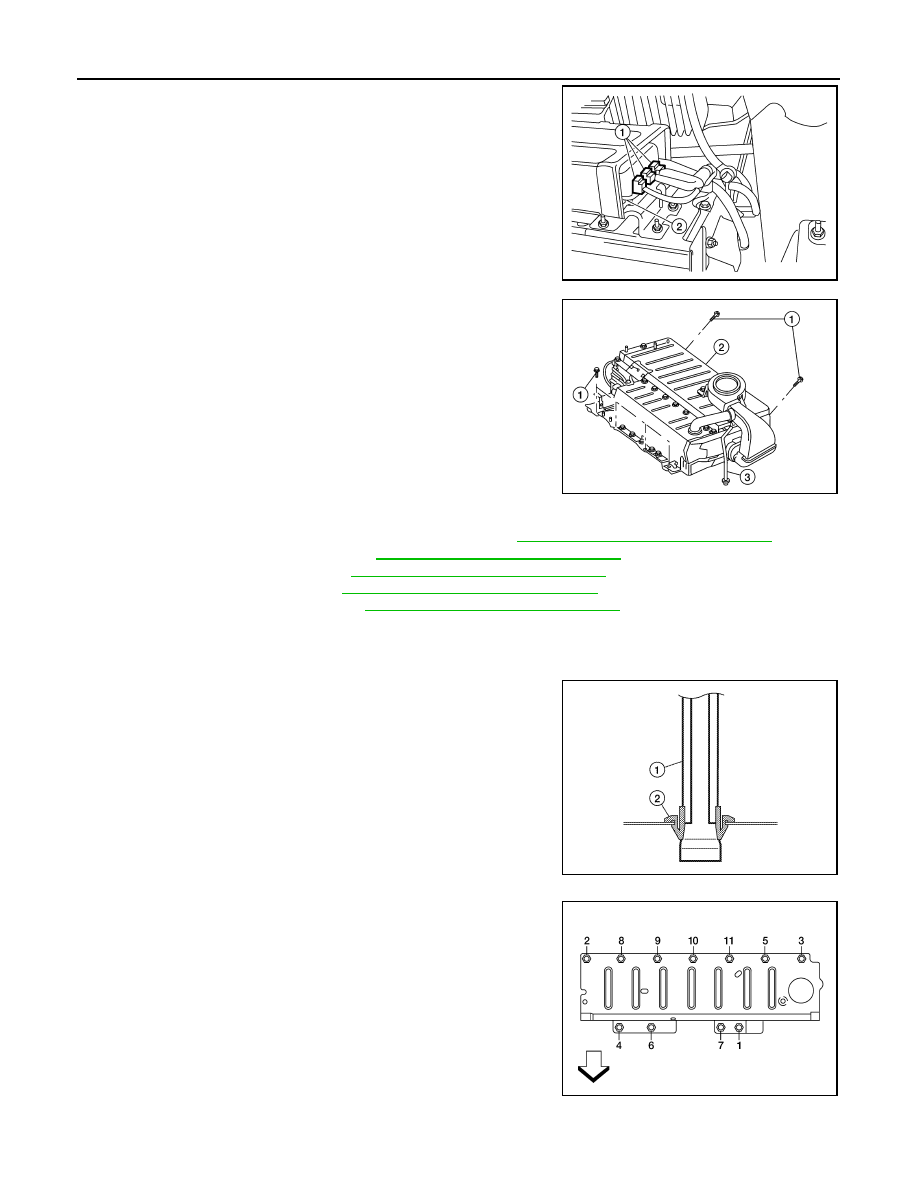

15. Disconnect the electrical connectors (1) from the EPS DC/DC

converter (2).

16. Remove the harness clips and harness from the HV battery

assembly.

17. Disconnect the vent hose (3) from the vehicle.
18. Remove the HV battery bolts (1) from the HV battery assembly

(2).

19. Remove the HV battery assembly from the vehicle.

20. If necessary, remove the following components from the HV battery assembly.

• The HV battery blower motor and cooling ducts. Refer to

HBB-106, "Removal and Installation"

.

• The EPS DC/DC converter. Refer to

STC-60, "Removal and Installation"

.

• The HV relay assembly. Refer to

HBB-105, "Removal and Installation"

.

• The battery smart unit. Refer to

HBB-101, "Removal and Installation"

.

• The HV vehicle converter. Refer to

HBB-103, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• When connecting the vent hose (1), make sure that there is no

clearance between the grommet (2) and body after installing the

grommet.

• When installing the LH cover, tighten the nuts to the specified

torque in the order shown.

-

⇐: Front

AWCIA0005ZZ

AWCIA0006ZZ

ALCIA0101ZZ

ALCIA0100ZZ

HV BATTERY ASSEMBLY

HBB-99

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

• When installing the battery shield contact (1), position as shown.

-

⇐: Front

- Top view (A)

- Side view (B)

- HV wires (2)

• When installing the lock to the RH cover, push the lock into the hole and ensure it is locked.

AWCIA0008ZZ

HBB-100

< REMOVAL AND INSTALLATION >

BATTERY SMART UNIT

BATTERY SMART UNIT

Exploded View

INFOID:0000000004212313

1.

Battery shield contact

2.

HV wire

3.

Filter noise capacitor

4.

Ground wire

5.

Lock

6.

RH cover

7.

LH cover

8.

Side cover

9.

Duct

ALCIA0097GB
