BOOST CONVERTER CONTROL

System Diagram

INFOID:0000000004212243

System Description

INFOID:0000000004212244

GENERAL

• The boost converter boosts DC 244.8 V, the nominal voltage of the boost converter, up to a maximum volt-

age of DC 650 V, in accordance with the signals provided by the hybrid vehicle control ECU via the MG

ECU.

• The inverter converts the alternating current generated by MG1 or MG2 into a direct current. The boost con-

verter drops the maximum voltage of DC 650 V to DC 244.8 V, the nominal voltage of the boost converter, in

accordance with the signals provided by the hybrid vehicle control ECU via the MG ECU.

• The boost converter consists of a boost IPM (Intelligent Power Module) with built-in IGBTs (Insulated Gate

Bipolar Transistors) that effect switching control, and a reactor that stores (and charges) electrical power.

VOLTAGE BOOST CONVERSION FUNCTION

• The function of the boost converter to boost DC 244.8 V, the nominal voltage of the boost converter, to max-

imum voltage of DC 650 V flows as described below.

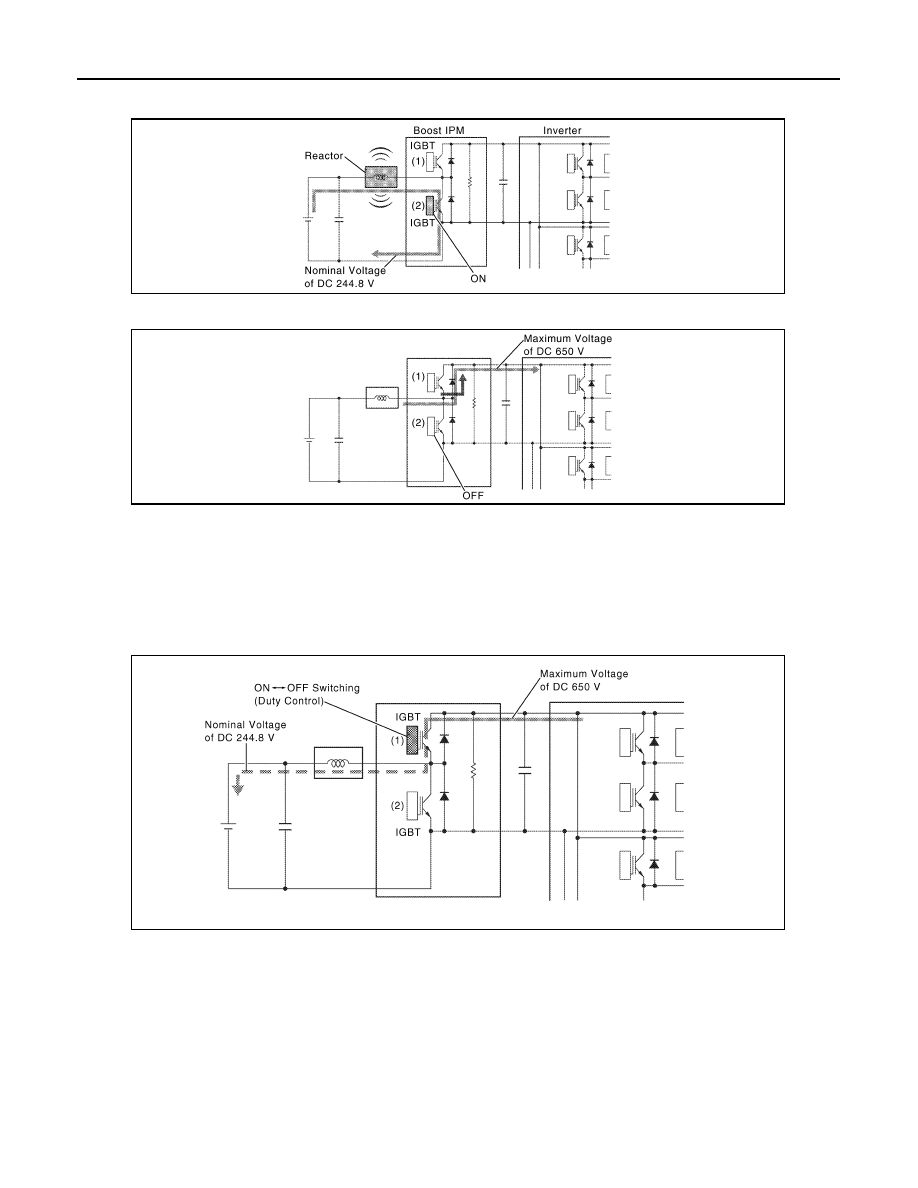

JMCIA0059GB

HBB-26

< FUNCTION DIAGNOSIS >

BOOST CONVERTER CONTROL

• The IGBT (2) turns ON, causing the electrical power of the HV battery to charge the reactor. As a result, the

voltage in the reactor rises.

• In the next stage, when the voltage in the reactor rises to maximum voltage of DC 650 V, the IGBT (2) turns

OFF, causing a counter electromotive force to be created.

• Induced by the counter electromotive force that is created, the electrical power (maximum voltage of DC 650

V) that is charging the reactor flows into the inverter.

VOLTAGE DROP CONVERSION FUNCTION

The alternating current, which is generated by MG1 or MG2 for the purpose of charging the HV battery, is con-

verted into maximum voltage of DC 650 V by the inverter. Then, a function of the boost converter drops the

voltage to DC 244.8 V, the nominal voltage of the boost converter. This is accomplished by the IGBT (1)

switching ON and OFF through duty cycle control, which intermittently interrupts the electrical power provided

by the inverter.

JMCIA0077GB

JMCIA0078GB

JMCIA0079GB

BOOST CONVERTER CONTROL

HBB-27

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

Component Parts Location

INFOID:0000000004212245

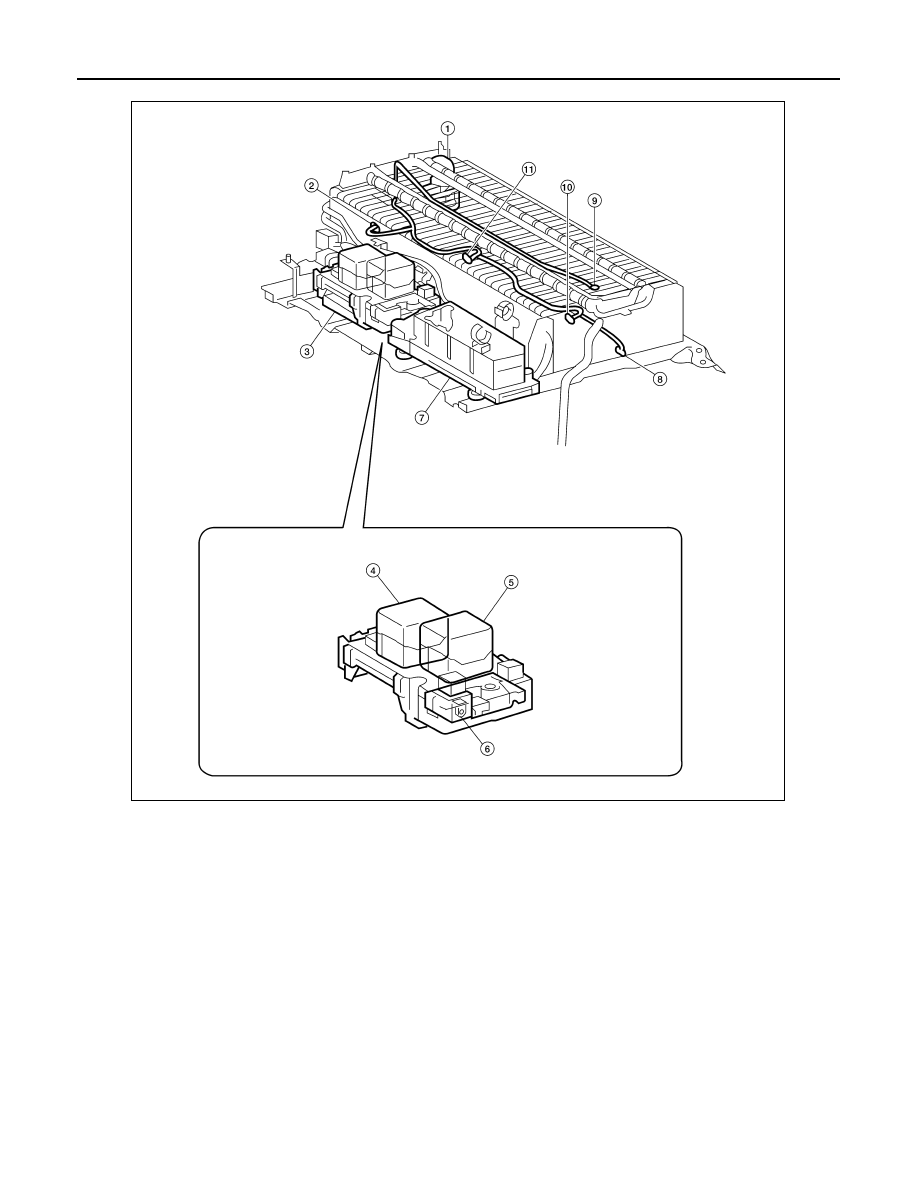

1.

Combination meter

2.

HV battery cooling fan

3.

HV battery pack

4.

HV battery cooling fan relay

5.

Hybrid vehicle control ECU
(located under heater box assembly)

ALCIA0003ZZ

HBB-28

< FUNCTION DIAGNOSIS >

BOOST CONVERTER CONTROL

1.

Service plug grip

2.

Battery temperature sensor 0

3.

Battery smart unit

4.

SMRG

5.

SMRB

6.

Battery current sensor

7.

Hybrid vehicle converter

8.

Battery temperature sensor 3

9.

Intake air temperature sensor

10. Battery temperature sensor 2

11. Battery temperature sensor 1

ALCIA0004ZZ
