Nissan Altima HL32 Hybrid. Manual - part 540





COOLING FAN CONTROL FOR HV BATTERY

HBB-17

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

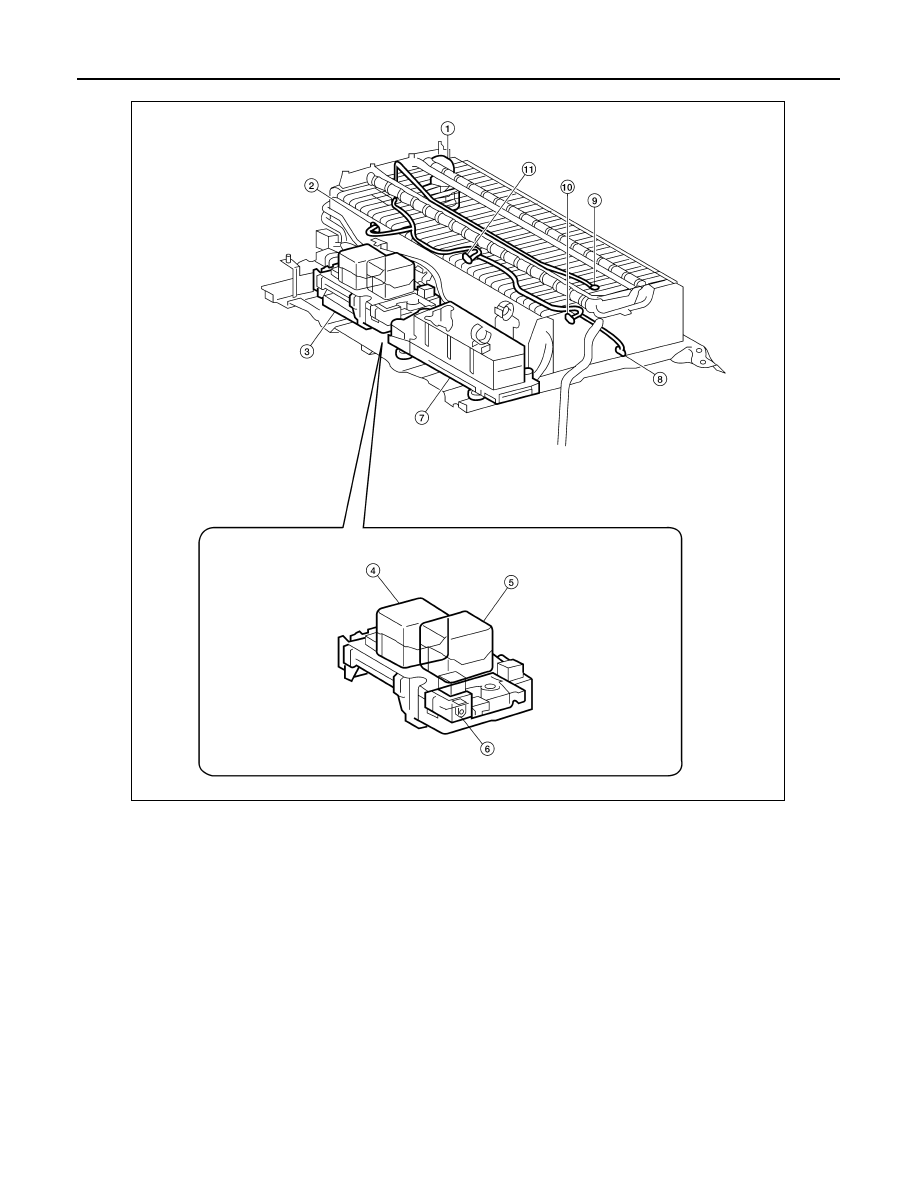

1.

Service plug grip

2.

Battery temperature sensor 0

3.

Battery smart unit

4.

SMRG

5.

SMRB

6.

Battery current sensor

7.

Hybrid vehicle converter

8.

Battery temperature sensor 3

9.

Intake air temperature sensor

10. Battery temperature sensor 2

11. Battery temperature sensor 1

ALCIA0004ZZ

HBB-18

< FUNCTION DIAGNOSIS >

AUXILIARY BATTERY CHARGING CONTROL

AUXILIARY BATTERY CHARGING CONTROL

System Diagram

INFOID:0000000004212237

System Description

INFOID:0000000004212238

GENERAL

The hybrid vehicle control ECU controls the DC/DC converter in accordance with the signals from the battery

temperature sensor of the auxiliary battery, in order to control the charging voltage to the auxiliary battery.

BATTERY TEMPERATURE SENSOR

The battery temperature sensor is installed on the battery.

The battery characteristic (battery internal resistance) of taking in current for charging varies according to bat-

tery electrolyte temperature. If the electrolyte temperature is too low, the battery internal resistance will

increase, resulting in early deterioration. To prevent this, the battery temperature sensor changes its resis-

tance as shown below to detect the temperature.

JMCIA0069GB

JMCIA0070GB

AUXILIARY BATTERY CHARGING CONTROL

HBB-19

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

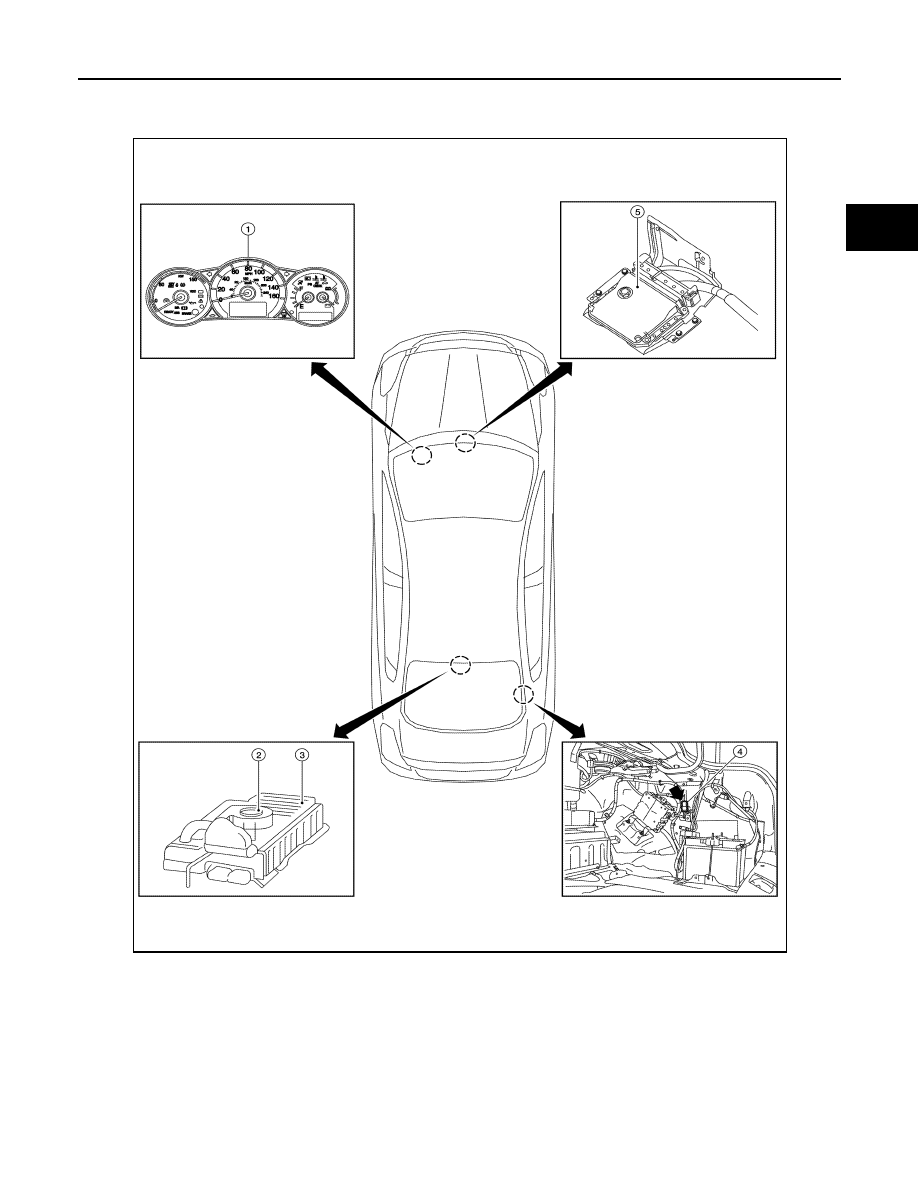

Component Parts Location

INFOID:0000000004212239

1.

Combination meter

2.

HV battery cooling fan

3.

HV battery pack

4.

HV battery cooling fan relay

5.

Hybrid vehicle control ECU
(located under heater box assembly)

ALCIA0003ZZ

HBB-20

< FUNCTION DIAGNOSIS >

AUXILIARY BATTERY CHARGING CONTROL

1.

Service plug grip

2.

Battery temperature sensor 0

3.

Battery smart unit

4.

SMRG

5.

SMRB

6.

Battery current sensor

7.

Hybrid vehicle converter

8.

Battery temperature sensor 3

9.

Intake air temperature sensor

10. Battery temperature sensor 2

11. Battery temperature sensor 1

ALCIA0004ZZ
