Nissan Altima HL32 Hybrid. Manual - part 539





HYBRID BATTERY SYSTEM

HBB-13

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

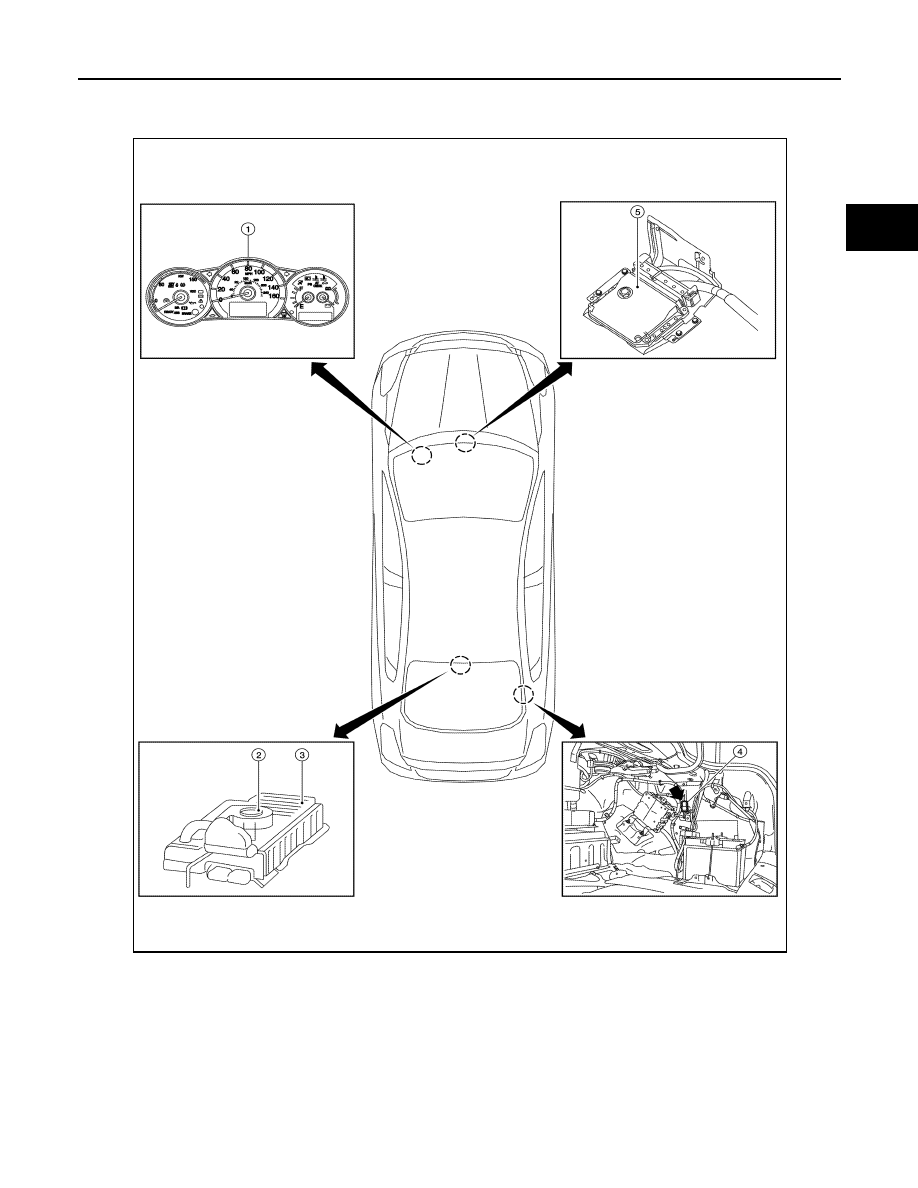

Component Parts Location

INFOID:0000000004212233

1.

Combination meter

2.

HV battery cooling fan

3.

HV battery pack

4.

HV battery cooling fan relay

5.

Hybrid vehicle control ECU
(located under heater box assembly)

ALCIA0003ZZ

HBB-14

< FUNCTION DIAGNOSIS >

HYBRID BATTERY SYSTEM

1.

Service plug grip

2.

Battery temperature sensor 0

3.

Battery smart unit

4.

SMRG

5.

SMRB

6.

Battery current sensor

7.

Hybrid vehicle converter

8.

Battery temperature sensor 3

9.

Intake air temperature sensor

10. Battery temperature sensor 2

11. Battery temperature sensor 1

ALCIA0004ZZ

COOLING FAN CONTROL FOR HV BATTERY

HBB-15

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBB

N

O

P

COOLING FAN CONTROL FOR HV BATTERY

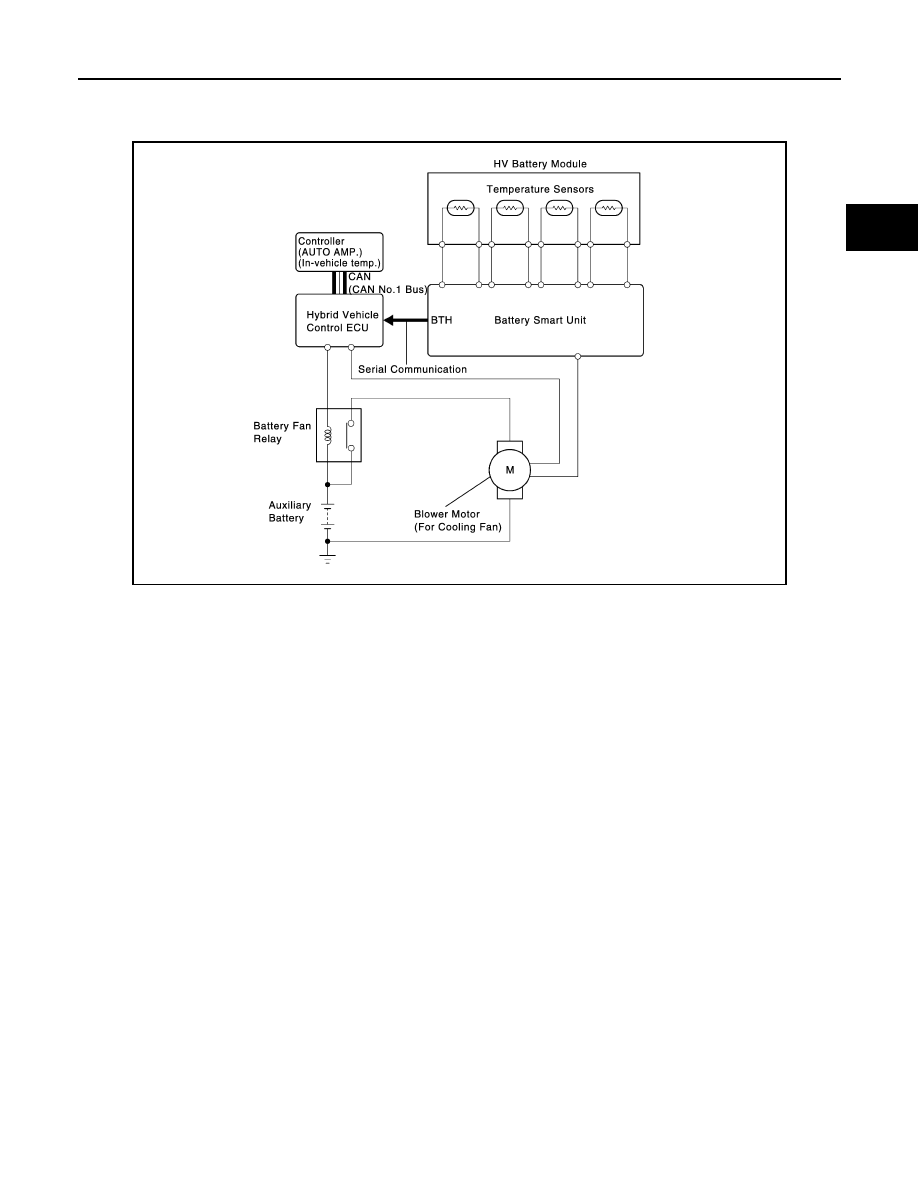

System Diagram

INFOID:0000000004212234

System Description

INFOID:0000000004212235

• The HV ECU monitors rises in the battery temperature through the four temperature sensors in the HV bat-

tery module. Then, the hybrid vehicle control ECU steplessly actuates the cooling fan under duty cycle con-

trol, in order to maintain the temperature of the HV battery module within the specified range.

• While the air conditioning system is operating to cool the cabin, if the HV battery module temperature is

within a normal range, the hybrid vehicle control ECU turns the battery cooling fan OFF or changes the fan

speed to low speed. The purpose of this control is to give priority to cooling down the cabin, which also pro-

vides cooling to the battery module through the intake duct located on the center of the rear package tray

trim.

JMCIA0068GB

HBB-16

< FUNCTION DIAGNOSIS >

COOLING FAN CONTROL FOR HV BATTERY

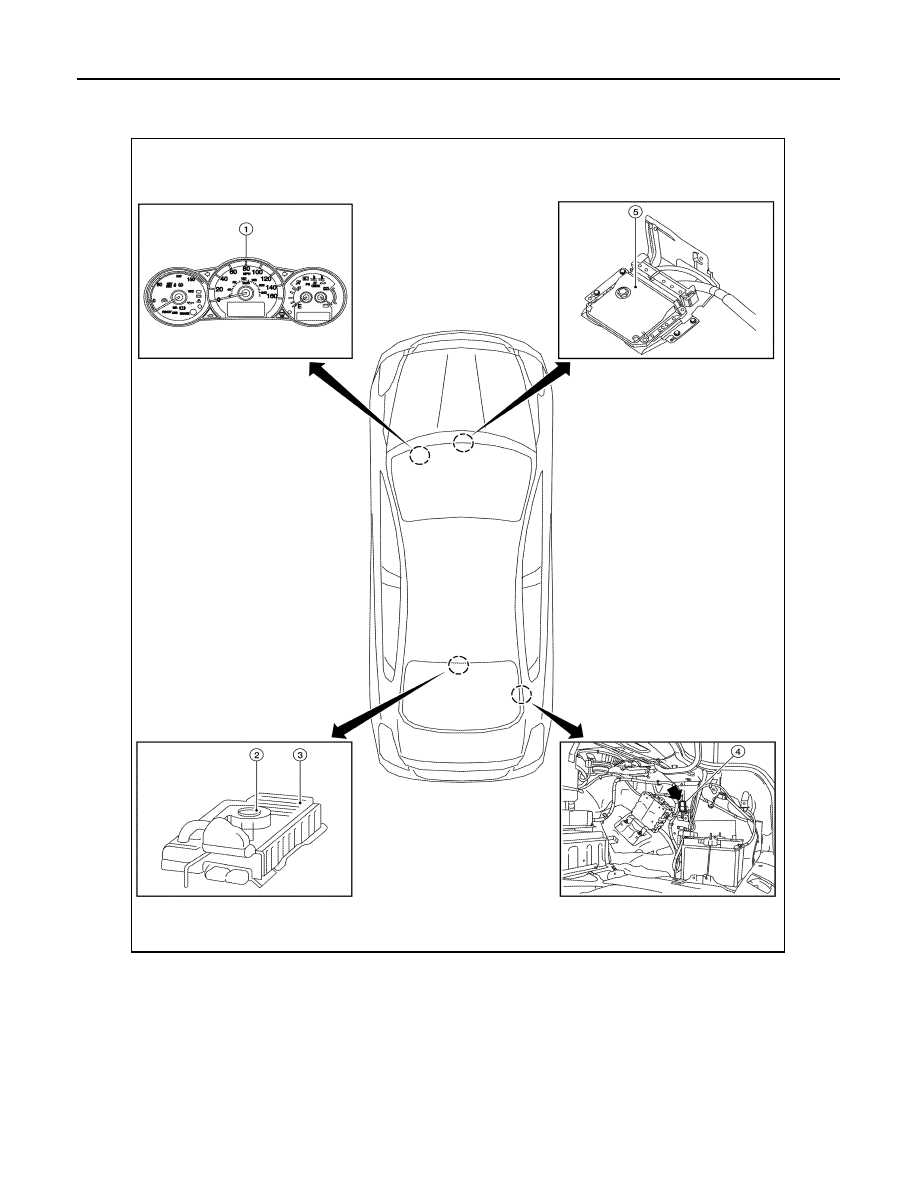

Component Parts Location

INFOID:0000000004212236

1.

Combination meter

2.

HV battery cooling fan

3.

HV battery pack

4.

HV battery cooling fan relay

5.

Hybrid vehicle control ECU
(located under heater box assembly)

ALCIA0003ZZ
