EXT-14

< ON-VEHICLE REPAIR >

REAR BUMPER

REAR BUMPER

Removal and Installation

INFOID:0000000004216201

REMOVAL

1. Remove the LH and RH rear combination lamps. Refer to

EXL-166, "Removal and Installation"

.

2. Remove both the rear wheels and tires. Refer to

WT-62, "Adjustment"

.

1.

Rear bumper supports

2.

Rear bumper reinforcement

3.

Energy absorbing foam

4.

Splash shield LH

5.

Rear bumper fascia

6.

Splash shield RH

Vehicle front

ALKIA0002ZZ

REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

3. Remove the LH and RH splash shields.
4. Remove the rear bumper fascia clips and screws, then remove the rear bumper fascia.
5. Remove the rear energy absorbing foam.
6. Remove the rear bumper reinforcement.
7. Remove the rear bumper supports.

INSTALLATION

Installation is in the reverse order of removal.

EXT-16

< ON-VEHICLE REPAIR >

FRONT GRILLE

FRONT GRILLE

Removal and Installation

INFOID:0000000004216202

FRONT GRILLE

Removal

1. Remove the front grille clips.
2. Release the grille pawl from the front bumper fascia, then remove the front grille.

Installation

Installation is in the reverse order of removal.

ALKIA0003ZZ

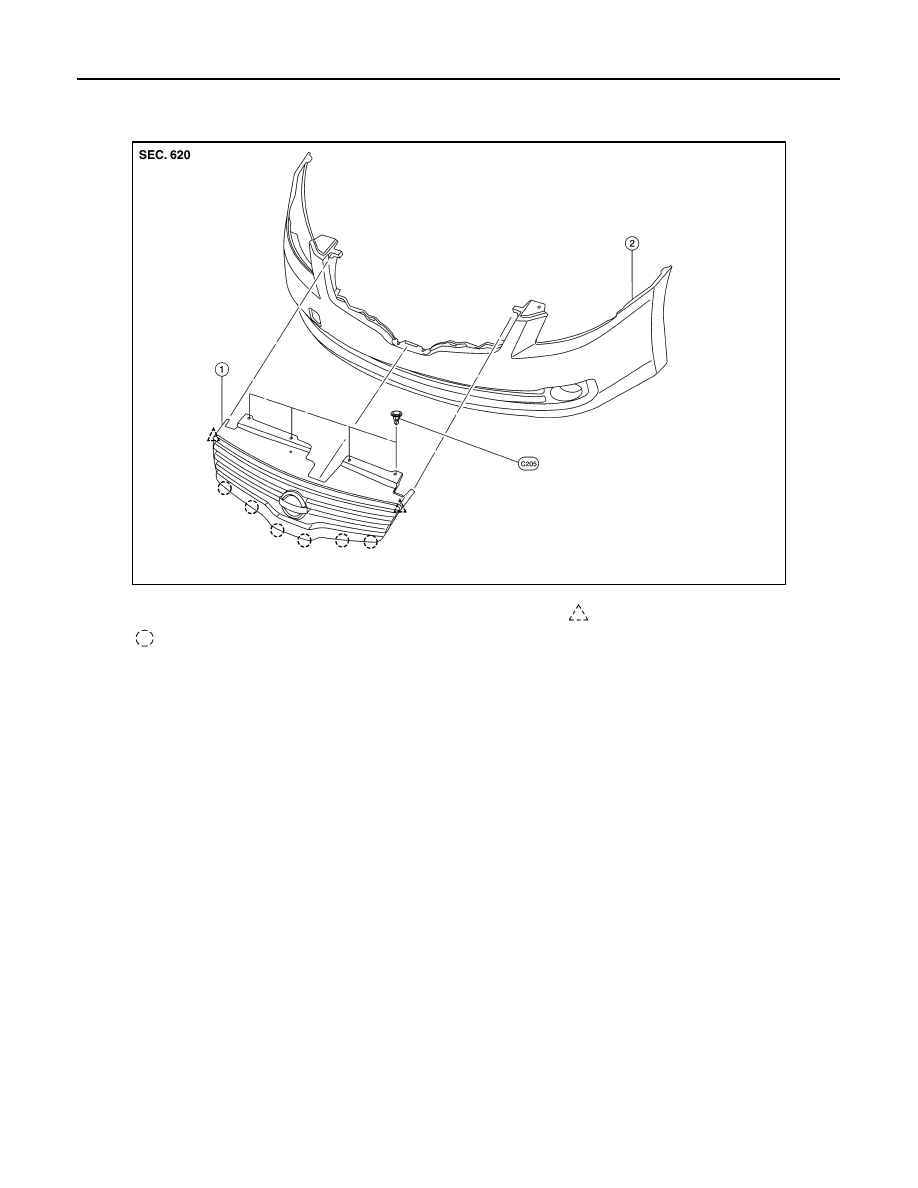

1.

Front grille

2.

Bumper fascia

Clip

Pawl

COWL TOP

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

COWL TOP

Removal and Installation

INFOID:0000000004216203

REMOVAL

1. Remove both the RH and LH wiper arms. Refer to

WW-92, "FRONT WIPER ARMS : Removal and Instal-

lation"

.

2. Remove the cowl top side trim covers.
3. Remove the cowl top foam blocks.
4. Remove the cowl top clips and remove the cowl top.

INSTALLATION

Installation is in the reverse order of removal.

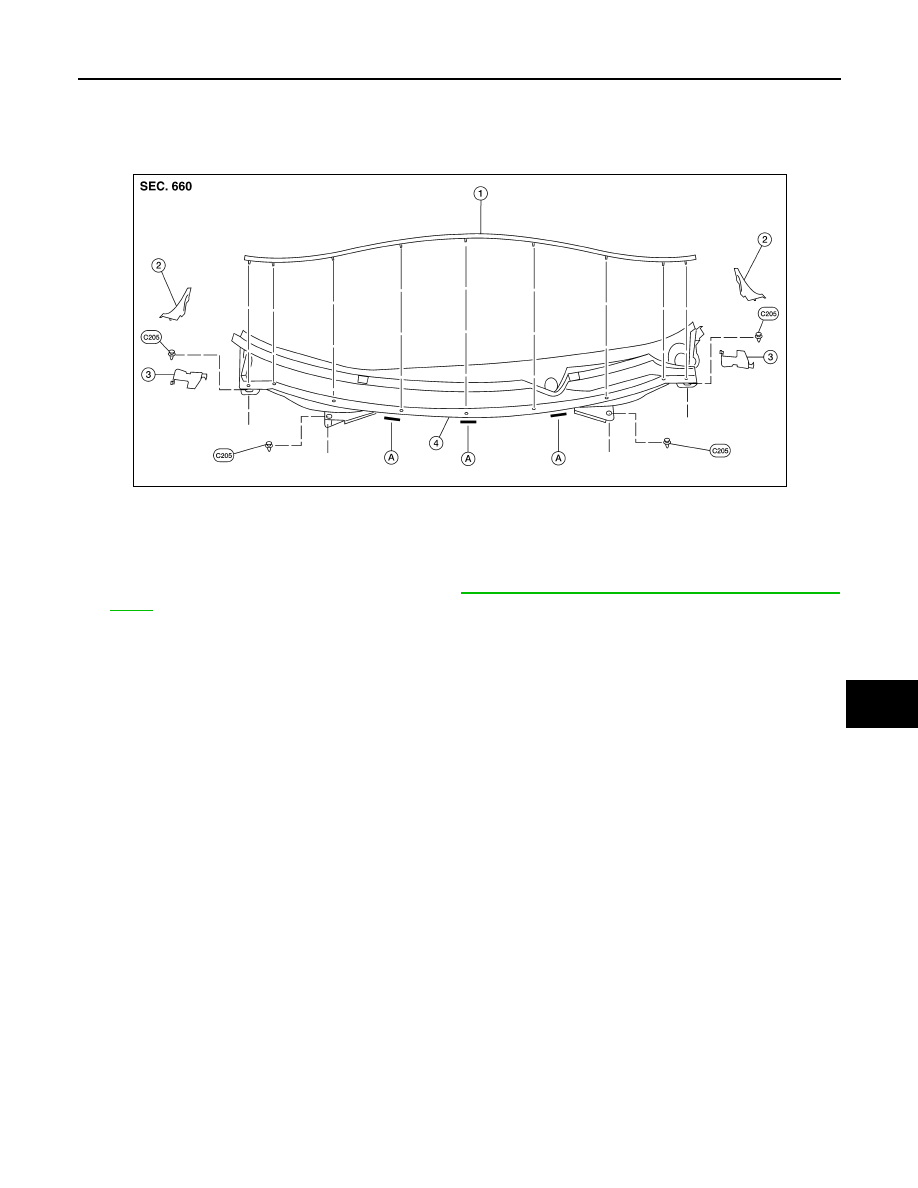

1.

Cowl top seal

2.

Cowl top side trim covers

3.

Cowl top foam blocks

4.

Cowl top

A

Clips

ALKIA0004ZZ
