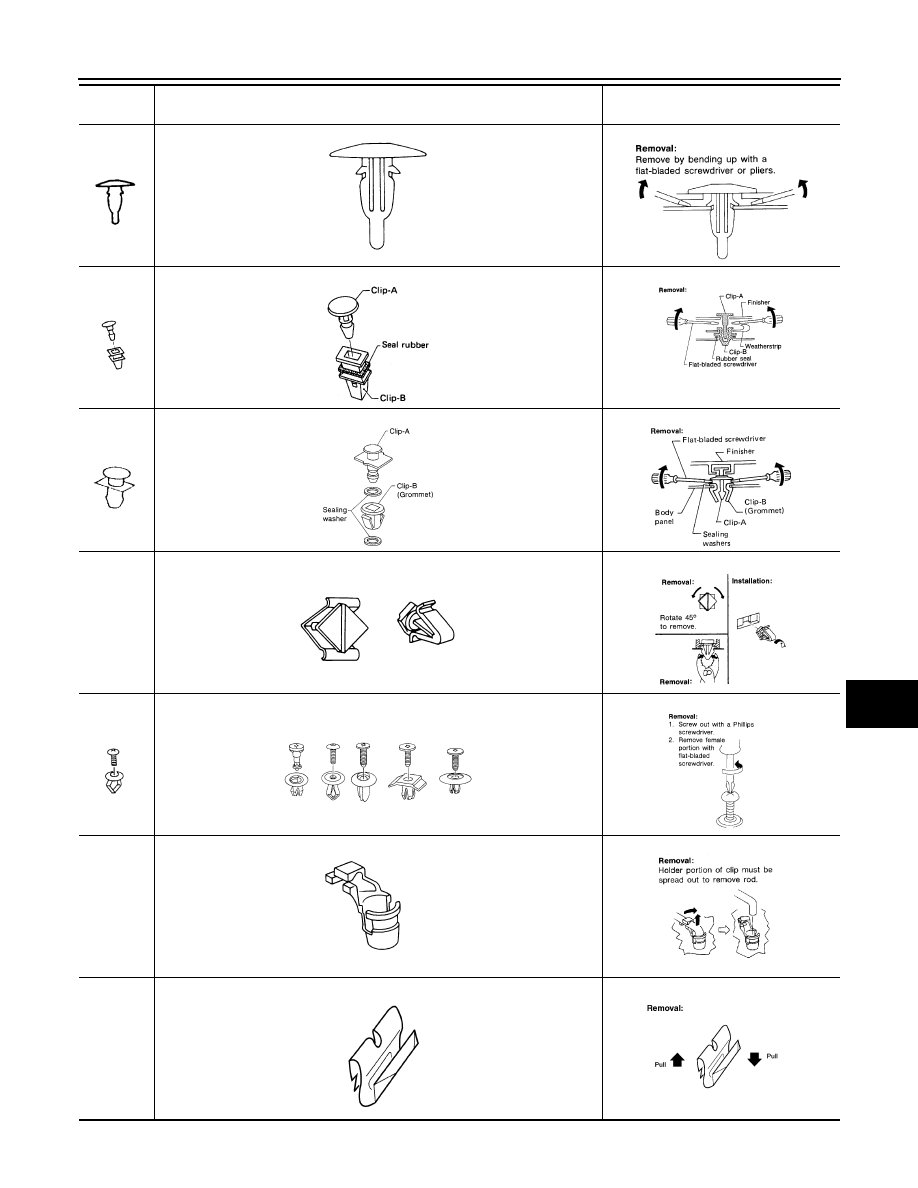

SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CE117

CF110

CF118

CG101

CS101

CR103

Metal Clip

Symbol

No.

Shapes

Removal & Installation

SBF174D

SBF175DA

SBF648B

SBF649B

SBF151D

SBF259G

SBF145B

SBF085B

SBF078B

SBF992G

SBF768B

SBF770B

WBT072

WBT073

EXT-12

< ON-VEHICLE REPAIR >

FRONT BUMPER

ON-VEHICLE REPAIR

FRONT BUMPER

Removal and Installation

INFOID:0000000004216200

REMOVAL

1. Remove the front fender protectors RH and LH. Refer to

EXT-18, "Removal and Installation"

.

2. Remove the engine under cover.
3. Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

4. Remove the fog lamp if equipped. Refer to

EXL-162, "Removal and Installation"

.

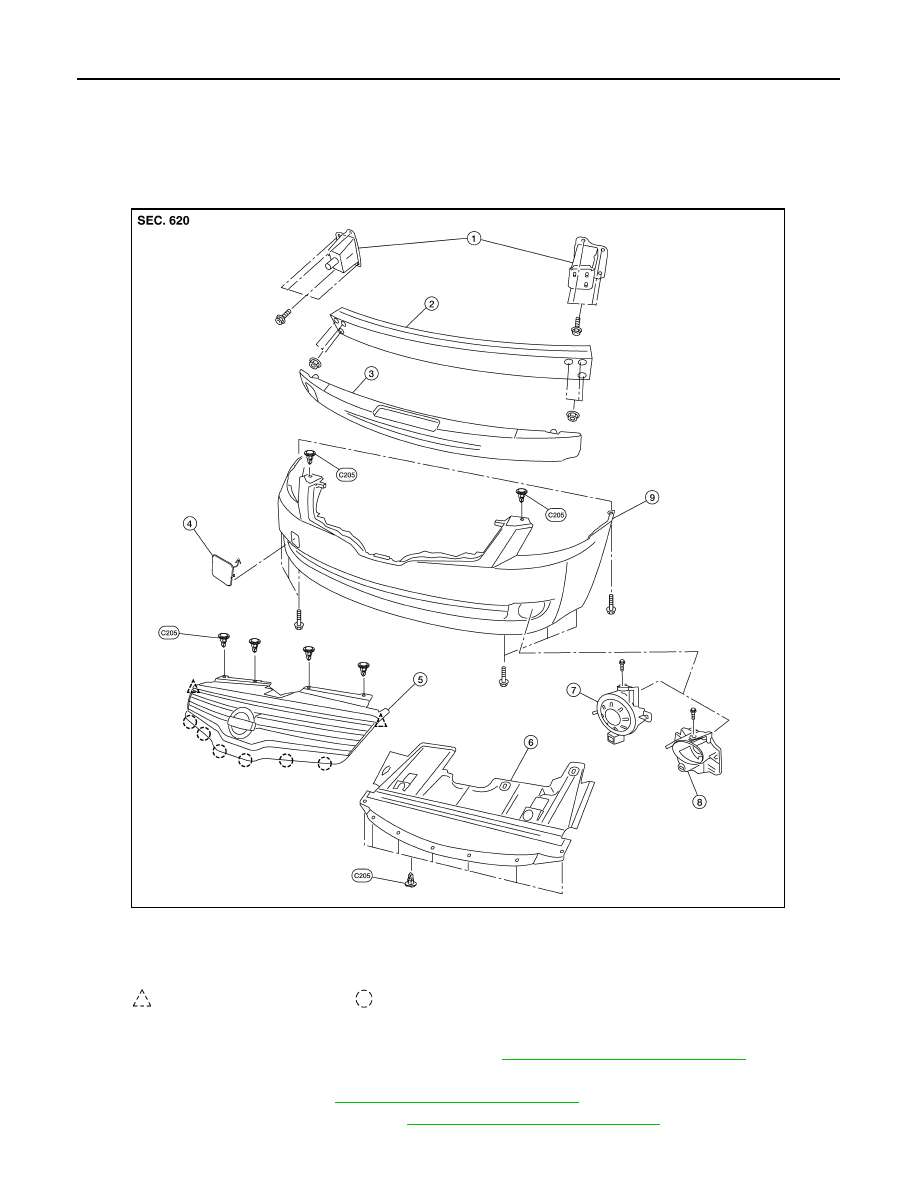

1.

Front bumper supports

2.

Front bumper reinforcement

3.

Energy absorbing foam

4.

Tow cover

5.

Front grille

6.

Engine under cover

7.

Fog lamp finisher

8.

Fog lamp (if equipped)

9.

Front bumper fascia

Clip

Pawl

ALKIA0194ZZ

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5. Remove the front bumper fascia clips and screws, then remove the front bumper fascia.
6. Remove the front energy absorbing foam.
7. Remove the front bumper reinforcement.
8. Remove the front bumper supports.

INSTALLATION

Installation is in the reverse order of removal.
