HEADLAMP (HI) CIRCUIT

5. With EXTERNAL LAMP ON, check the voltage between the

combination lamp connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK HEADLAMP (HI) CIRCUIT FOR OPEN

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector and

the front combination lamp harness connector.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT COMBINATION LAMP (HI) GROUND CIRCUIT

1. Disconnect the front combination lamp connector.

2. Check continuity between the front combination lamp harness

connector terminal and ground.

Does continuity exist?

YES

>> Inspect the headlamp bulb.

NO

>> Repair the harness.

Terminals

Condition

Voltage

(+)

(

−)

Combination lamp

Ground

External

lamp

Connector

Terminal

RH

E222

3

HI

Battery
voltage

LH

E213

3

OFF

0V

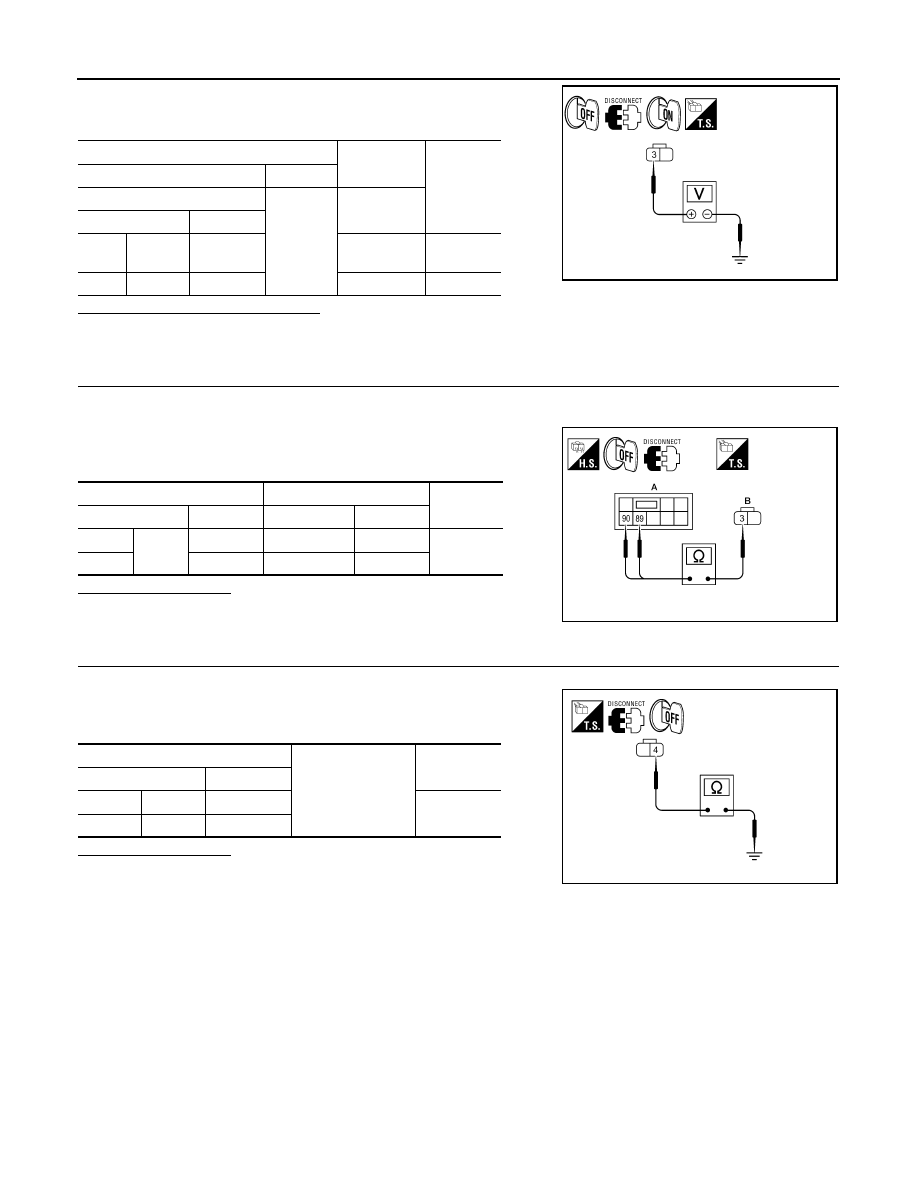

ALLIA0116ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E200

89

E222

3

Yes

LH

90

E213

3

ALLIA0117ZZ

Front combination lamp

Ground

Continuity

Connector

Terminal

RH

E222

4

Yes

LH

E213

4

ALLIA0118ZZ

HEADLAMP (LO) CIRCUIT

EXL-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP (LO) CIRCUIT

Description

INFOID:0000000004216391

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp low relay based on

inputs from the BCM over the CAN communication lines. When the headlamp low relay is energized, power

flows through fuses 51 and 52, located in the IPDM E/R. Power then flows to the front combination lamps to

the headlamp low beam.

Component Function Check

INFOID:0000000004216392

1.

CHECK HEADLAMP (LO) OPERATION

WITHOUT CONSULT-III

1. Start IPDM E/R auto active test. Refer to

PCS-14, "Diagnosis Description"

.

2. Check that the headlamp is turned ON.

NOTE:

HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

CONSULT-III

1. Select "EXTERNAL LAMP" of IPDM E/R active test item.

2. With operating the test items, check that the headlamp is turned ON.

Is the headlamp turned ON?

YES

>> Headlamp (LO) is normal.

NO

>> Refer to

EXL-41, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004216393

1.

CHECK HEADLAMP (LO) FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK HEADLAMP (LO) OUTPUT VOLTAGE

CONSULT-III

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector.

3. Turn the ignition switch ON.

4. Select "EXTERNAL LAMP" of IPDM E/R active test item.

LO

: Headlamp ON

OFF

: Headlamp OFF

Unit

Location

Fuse

Capacity

Headlamp LO (LH) IPDM E/R

51

15A

Headlamp LO (RH)

IPDM E/R

52

15A

EXL-42

< COMPONENT DIAGNOSIS >

HEADLAMP (LO) CIRCUIT

5. With EXTERNAL LAMP ON, check the voltage between the

combination lamp connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK HEADLAMP (LO) CIRCUIT FOR OPEN

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector and

the front combination lamp harness connector.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT COMBINATION LAMP (LO) GROUND CIRCUIT

1. Disconnect the front combination lamp connector.

2. Check continuity between the front combination lamp harness

connector terminal and ground.

Does continuity exist?

YES

>> Inspect the headlamp bulb.

NO

>> Repair the harness.

Terminals

Condition

Voltage

(+)

(

−)

Combination lamp

Ground

External

lamp

Connector

Terminal

RH

E223

1

LO

Battery
voltage

LH

E212

1

OFF

0V

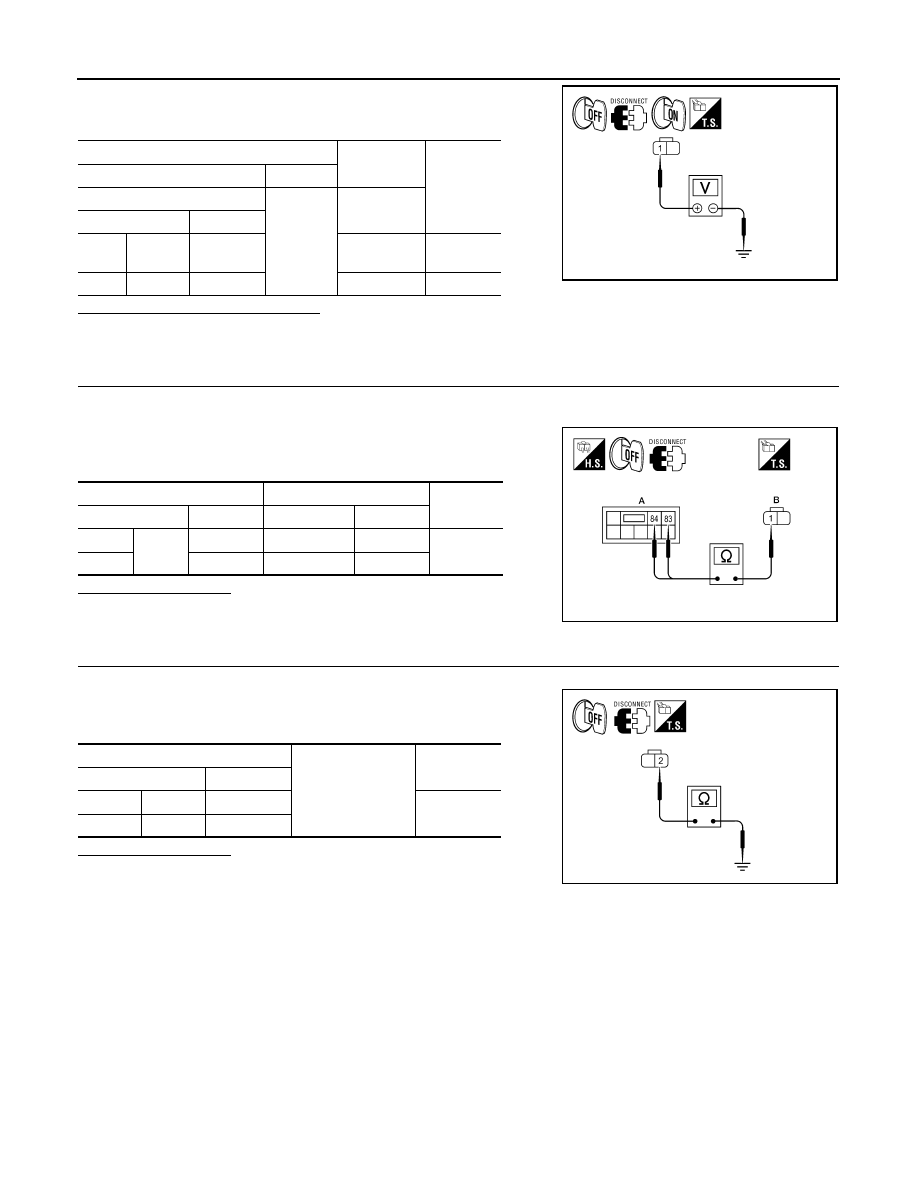

ALLIA0119ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E200

83

E223

1

Yes

LH

84

E212

1

ALLIA0120ZZ

Front combination lamp

Ground

Continuity

Connector

Terminal

RH

E223

2

Yes

LH

E212

2

ALLIA0121ZZ

FRONT FOG LAMP CIRCUIT

EXL-43

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP CIRCUIT

Description

INFOID:0000000004216394

The IPDM E/R (intelligent power distribution module engine room) controls the front fog lamp relay based on

inputs from the BCM over the CAN communication lines. When the front fog lamp relay is energized, power

flows from the front fog lamp relay in the IPDM E/R to the front fog lamps.

Component Function Check

INFOID:0000000004216395

1.

CHECK FRONT FOG LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-14, "Diagnosis Description"

.

2. Check that the front fog lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMP" of IPDM E/R active test item.

2. With operating the test items, Check that the front fog lamp is turned ON.

Is the front fog lamp turned ON?

YES

>> Front fog lamp circuit is normal.

NO

>> Refer to

EXL-43, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004216396

1.

CHECK FRONT FOG LAMP FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK FRONT FOG LAMP OUTPUT VOLTAGE

CONSULT-III

1. Turn the ignition switch OFF.

2. Disconnect the front fog lamp connector.

3. Turn the ignition switch ON.

4. Select "EXTERNAL LAMP" of IPDM E/R active test item.

5. With EXTERNAL LAMP ON, check the voltage between the fog

lamp connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

FOG

: Front fog lamp ON

OFF

: Front fog lamp OFF

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

53

15A

Terminals

Condition

Voltage

(+)

(

−)

Front fog lamp

Ground

Front fog

lamp

Connector

Terminal

LH

E214

1

FOG

Battery
voltage

RH

E227

1

OFF

0V

ALLIA0119ZZ
