Nissan Altima HL32 Hybrid. Manual - part 383





EM-46

< ON-VEHICLE REPAIR >

[QR25DE]

CAMSHAFT

• Install No. 1 camshaft bracket as follows.

- Apply sealant to No.1 camshaft bracket as shown.

• Use Genuine Silicone RTV Sealant, or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

CAUTION:

• After installation, be sure to wipe off any excessive seal-

ant leaking from part (A) (both on right and left sides).

• Apply sealant to camshaft bracket contact surface on the front

cover backside.

• Apply sealant to the outside of bolt hole on front cover.

• Position the No.1 camshaft bracket near the mounting posi-

tion, and install it without disturbing the sealant applied to the

surfaces.

4. Tighten camshaft bracket bolts in four steps in the order as

shown.

CAUTION:

After tightening camshaft bracket bolts, be sure to wipe off

excessive sealant from the parts listed below.

• Mating surface of rocker cover.

• Mating surface of front cover, when installed without the front cover.

SBIA0257E

Dimension (A)

: 3.9 mm (0.154 in)

AWBIA0062ZZ

SBIA0259E

Step 1 (bolts 9 - 11) : 1.96 N·m (0.2 kg-m, 17 in-lb)
Step 2 (bolts 1 - 8)

: 1.96 N·m (0.2 kg-m, 17 in-lb)

Step 3 (bolts 1 - 11) : 5.88 N·m (0.6 kg-m, 52 in-lb)
Step 4 (bolts 1 - 11) : 10.4 N·m (1.02 kg-m, 92 in-lb)

SBIA0255E

CAMSHAFT

EM-47

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

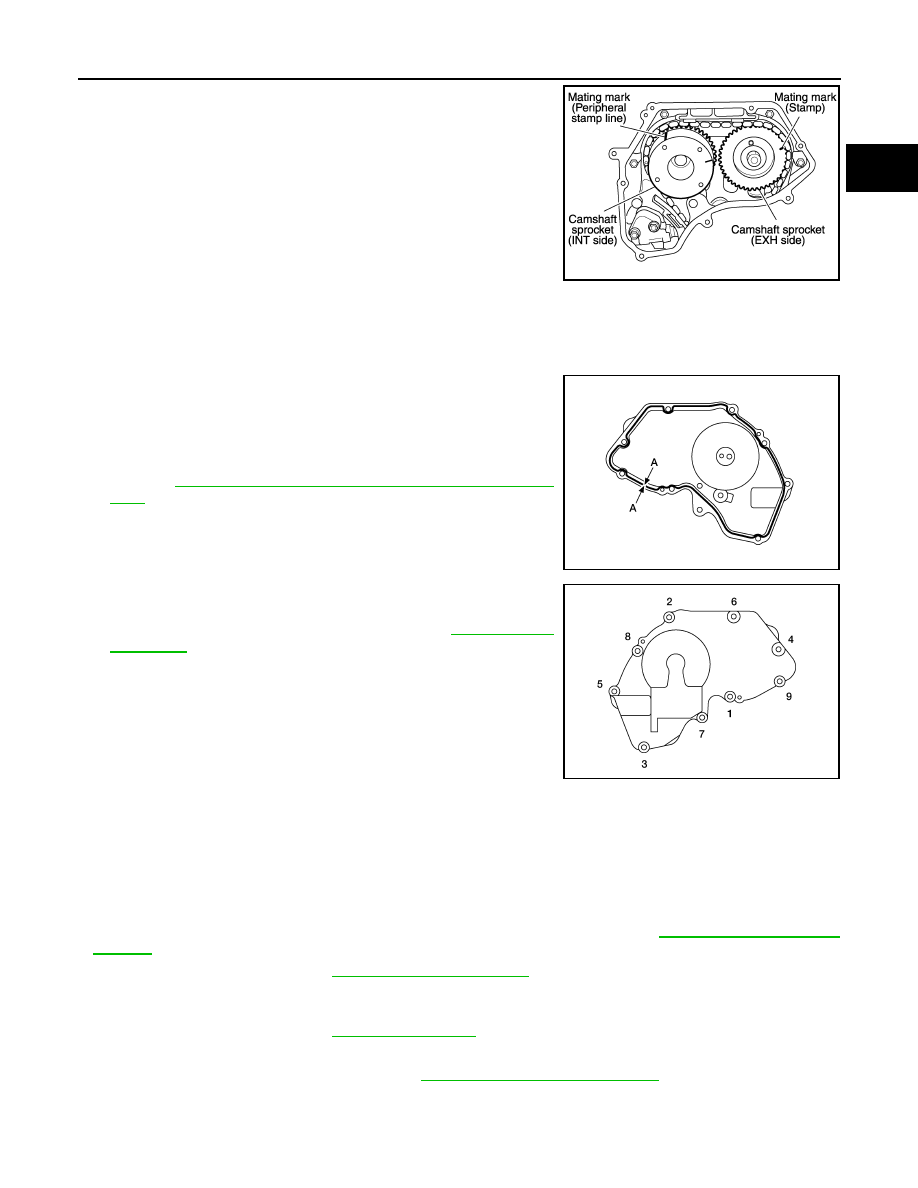

5. Install camshaft sprockets.

• Install them by lining up the mating marks on each camshaft

sprocket with the ones painted on the timing chain during

removal.

• Before installation of chain tensioner, it is possible to re-match

the marks on timing chain with the ones on each sprocket.

CAUTION:

• Aligned mating marks could slip. Therefore, after match-

ing them, hold the timing chain in place by hand.

• Before and after installing chain tensioner, check again to

make sure that mating marks have not slipped.

6. Install chain tensioner.

CAUTION:

• After installation, pull the stopper pin off completely, and make sure that the tensioner is fully

released.

7. Install chain guide.
8. Install IVT control cover with the following procedure.
a. Install IVT control solenoid valve to intake valve timing control

cover.

b. Install O-ring to front cover side.
c. Apply Genuine Silicone RTV Sealant to the positions as shown.

Refer to

GI-15, "Recommended Chemical Products and Seal-

ants"

.

d. Install IVT control cover.

• Tighten the bolts in the numerical order as shown.

9. Check and adjust valve clearances. Refer to

EM-48, "Valve

Clearance"

.

10. Installation of the remaining components is in the reverse order

as shown.

Inspection After Installation

INFOID:0000000004211250

Inspection of Camshaft Sprocket (INT) Oil Groove

WARNING:

• Check when engine is cold so as to prevent burns from any splashing engine oil.

CAUTION:

• Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT III

and it is directed according to inspection procedure of EC section. Refer to

EC-127, "Diagnosis Pro-

cedure"

.

1. Check engine oil level. Refer to

LU-9, "Changing Engine Oil"

.

2. Perform the following procedure so as to prevent the engine from being unintentionally started while

checking.

a. Release fuel pressure. Refer to

EC-465, "Inspection"

.

b. Disconnect ignition coil and injector harness connectors if practical.
3. Remove IVT control solenoid valve. Refer to

EM-51, "Removal and Installation"

.

Diameter (A)

: 3.0 - 4.0 mm (0.118 - 0.157 in)

KBIA0115E

ALBIA0193ZZ

ALBIA0192ZZ

EM-48

< ON-VEHICLE REPAIR >

[QR25DE]

CAMSHAFT

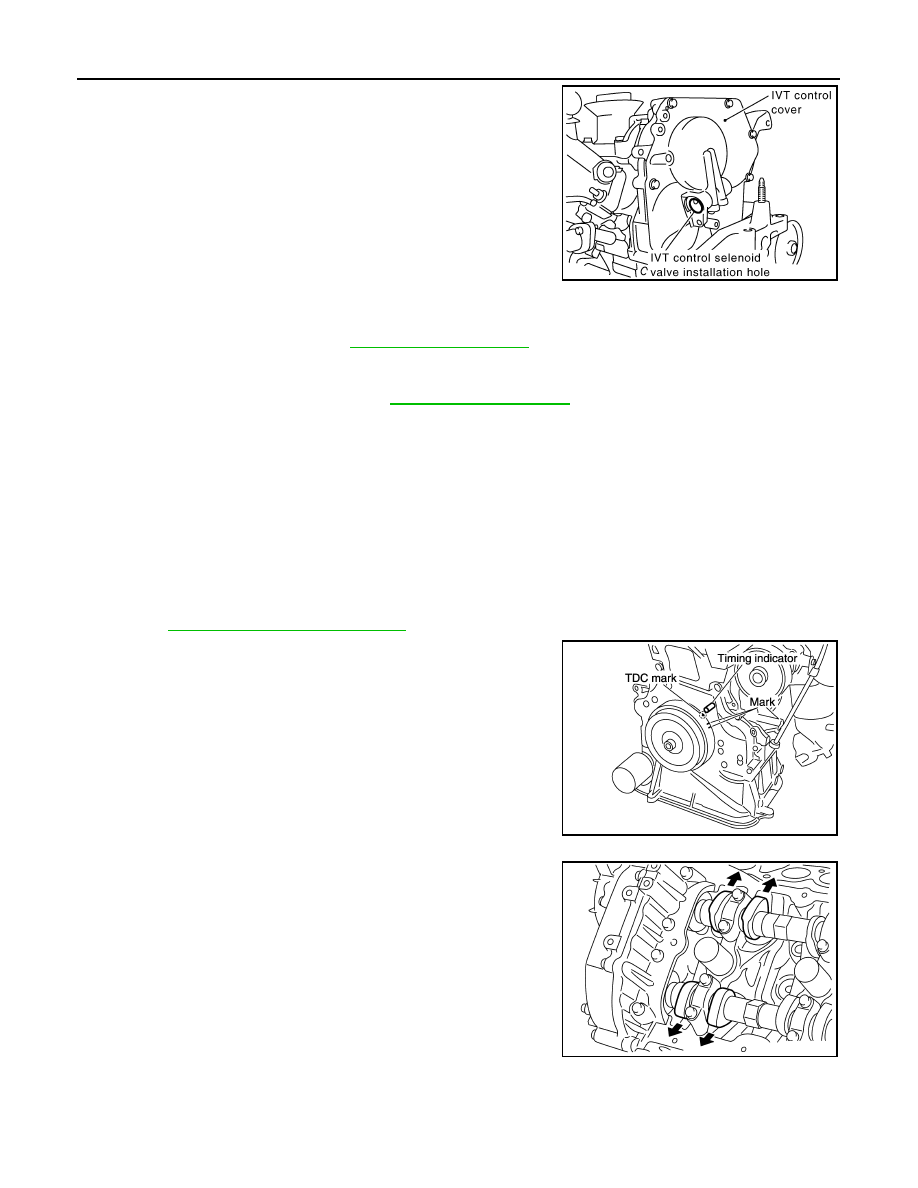

4. Crank engine, and then make sure that engine oil comes out

from IVT control cover oil hole. End cranking after checking.

WARNING:

Be careful not to touch rotating parts (drive belts, idler pul-

ley, and crankshaft pulley, etc.).

CAUTION:

• Engine oil may squirt from IVT control solenoid valve

installation hole during cranking. Use a shop cloth to pre-

vent engine oil from splashing on worker, engine compo-

nents and vehicle.

• Do not allow engine oil to get on rubber components such

as drive belts or engine mount insulators. Immediately

wipe off any splashed engine oil.

5. Clean oil groove between oil strainer and IVT control solenoid valve if engine oil does not come out from

IVT control cover oil hole. Refer to

LU-6, "Lubrication Circuit"

.

6. Remove components between IVT control solenoid valve and camshaft sprocket (INT), and then check

each oil groove for clogging.

• Clean oil groove if necessary. Refer to

LU-6, "Lubrication Circuit"

.

7. After inspection, installation of the remaining components is in the reverse order of removal.

Valve Clearance

INFOID:0000000004211251

Inspection

• Perform this inspection as follows after removal, installation, or replacement of the camshaft or any valve-

related parts, or if there are any unusual engine conditions due to changes in valve clearance over time

(starting, idling, and/or noise).

1. Warm up the engine, then stop it.
2. Remove front RH engine under cover using power tool.
3. Remove the rocker cover using power tool.

Refer to

EM-38, "Removal and Installation"

.

4. Turn crankshaft pulley in normal direction (clockwise when

viewed from front) to align TDC identification mark (without paint

mark) with timing indicator.

5. At this time, check that the both intake and exhaust cam lobes of

No. 1 cylinder face outside.

• If they do not face outside, turn crankshaft pulley once more.

KBIA2683E

KBIA0190E

KBIA0400J

CAMSHAFT

EM-49

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

6. By referring to the figure (locations indicated with black arrow),

measure valve clearances with a feeler gauge at locations

marked X as shown in the table below.

• No.1 cylinder compression TDC.

• Use a feeler gauge to measure the clearance between valve

and camshaft.

*Reference data at approximately 80

°C (176°F)

CAUTION:

If inspection was carried out with cold engine, check that values with fully warmed up engine are

still within specifications.

7. Turn crankshaft one complete revolution (360

°) and align mark on crankshaft pulley with pointer.

8. By referring to the figure (locations indicated with black arrow),

measure valve clearances with a feeler gauge at locations

marked X as shown in the table below.

• No.4 cylinder compression TDC.

9. If out of specifications, adjust as follows.

ADJUSTMENT

• Perform adjustment depending on selected head thickness of valve lifter.

• The specified valve lifter thickness is the dimension at normal temperatures. Ignore dimensional differences

caused by temperature. Use the specifications for hot engine condition to adjust.

1. Remove camshaft. Refer to

EM-40, "Removal and Installation"

.

2. Remove the valve lifters at the locations that are outside the standard.

Cylinder

No.1

No.2

No.3

No.4

     Valve

 INT

EXH

 INT

EXH

 INT

EXH

 INT

EXH

Measurable

×

×

×

x

KBIA0248E

Valve clearance standard:
Cold

Intake

: 0.24 - 0.32 mm (0.009 - 0.013 in)

Exhaust

: 0.26 - 0.34 mm (0.010 - 0.013 in)

Hot*

Intake

: 0.304 - 0.416 mm (0.012 - 0.016 in)

Exhaust

: 0.308 - 0.432 mm (0.012 - 0.017 in)

Cylinder

No.1

No.2

No.3

No.4

    Valve

 INT

EXH

 INT

EXH

 INT

EXH

 INT

EXH

Measurable

 x

×

x

×

KBIA0185E

KBIA0249E
